Lithe Audio - WiSA SoundSend Transmitter - Black
FREE shipping to
Related Item
Specifications
- Number of Audio Zones8Number of Channels8Number of Audio Zone Source Outputs8Surround Sound SupportedDolby Atmos, Dolby Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHDAudio Only Inputs1 x Optical digital audioAudio/Video InputsNo audio/video inputs
- Key Specs
- Number of Audio Zones: 8 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zone Source Outputs: 8 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Atmos, Dolby Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Audio Only Inputs: 1 x Optical digital audio
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Wireless Connectivity: Infrared, Radio Frequency (RF - 2.4 Ghz/Low Latency), Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Lithe Audio
- Model Number: 06530
- Product Name: WiSA SoundSend Transmitter
- Color: Black
- Audio
- Number of Audio Zones: 8 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zone Source Outputs: 8 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Atmos, Dolby Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 96kHz (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Equalizer: false (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Inputs
- Audio Only Inputs: 1 x Optical digital audio
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 0
- Front Facing Inputs: 0
- Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Number of Subwoofer Pre Outs: 0
- Number of HDMI Outputs (Total): 0
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Built-in Digital-to-Analog converter (DAC): true (Commonly used in music players, digital-to-analog converters (DAC), allowing digital data streams to be converted to analog audio signals.)
- Remote Control Included: false
- Effect Type(s): Volume
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Infrared, Radio Frequency (RF - 2.4 Ghz/Low Latency), Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: false (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Dimensions
- Product Height: 1.06 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.06 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.76 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2-Year Limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 860002265148

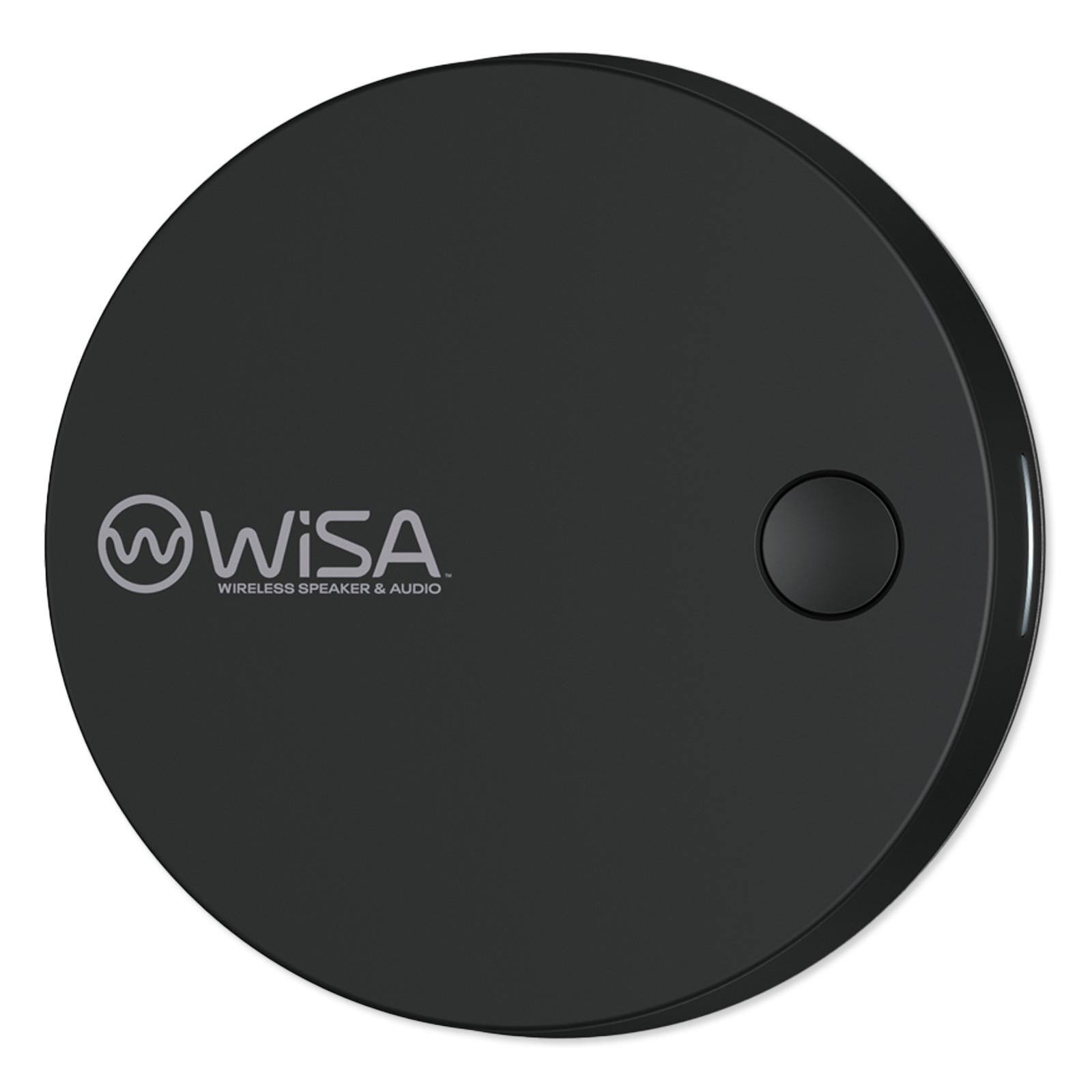

The Lithe Audio WiSA SoundSend Transmitter allows you to experience true cinema sound in your home in minutes. Using HDMI, this unique device connects to your TV via an ARC or eARC connection to receive audio so it can wirelessly transmit it to WiSA Certified HT compatible speakers. Up to 8 channels of 24-bit, 96 KHz uncompressed audio with ultra-low latency and less than 1 microsecond of synchronization between speakers can be set up to turn your home audio system into a wireless cinema quality audio experience. The WiSA SoundSend Transmitter supports 2.0 to 7.1 stereo and Dolby Atmos 3.1.2 and 5.1.2 audio configurations. Additionally, you can easily set up the system using the SoundSend app for iOS and Android devices, where you can manage and adjust the speaker and audio settings, and adjust the volume, which can also be done with your TV's remote control. Dimensions: 1.0625(H) x 4.3125(W) inches (27 x 110mm). Manufacturer Part #: 06530.
- Experience True Cinema Sound With Wireless Connections: Utilizes WiSA wireless streaming technology to deliver high-fidelity sound to any WiSA HT certified wireless speakers

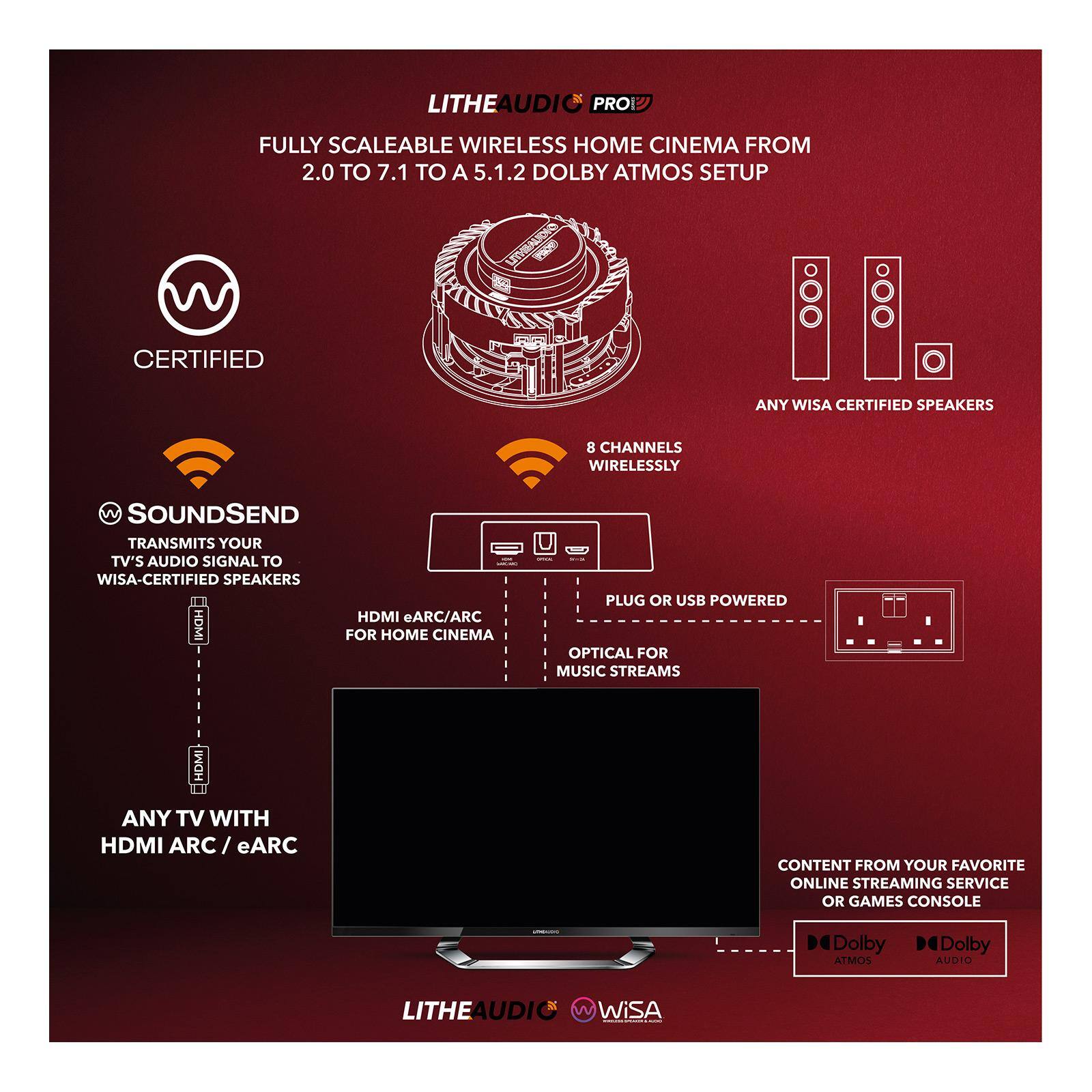

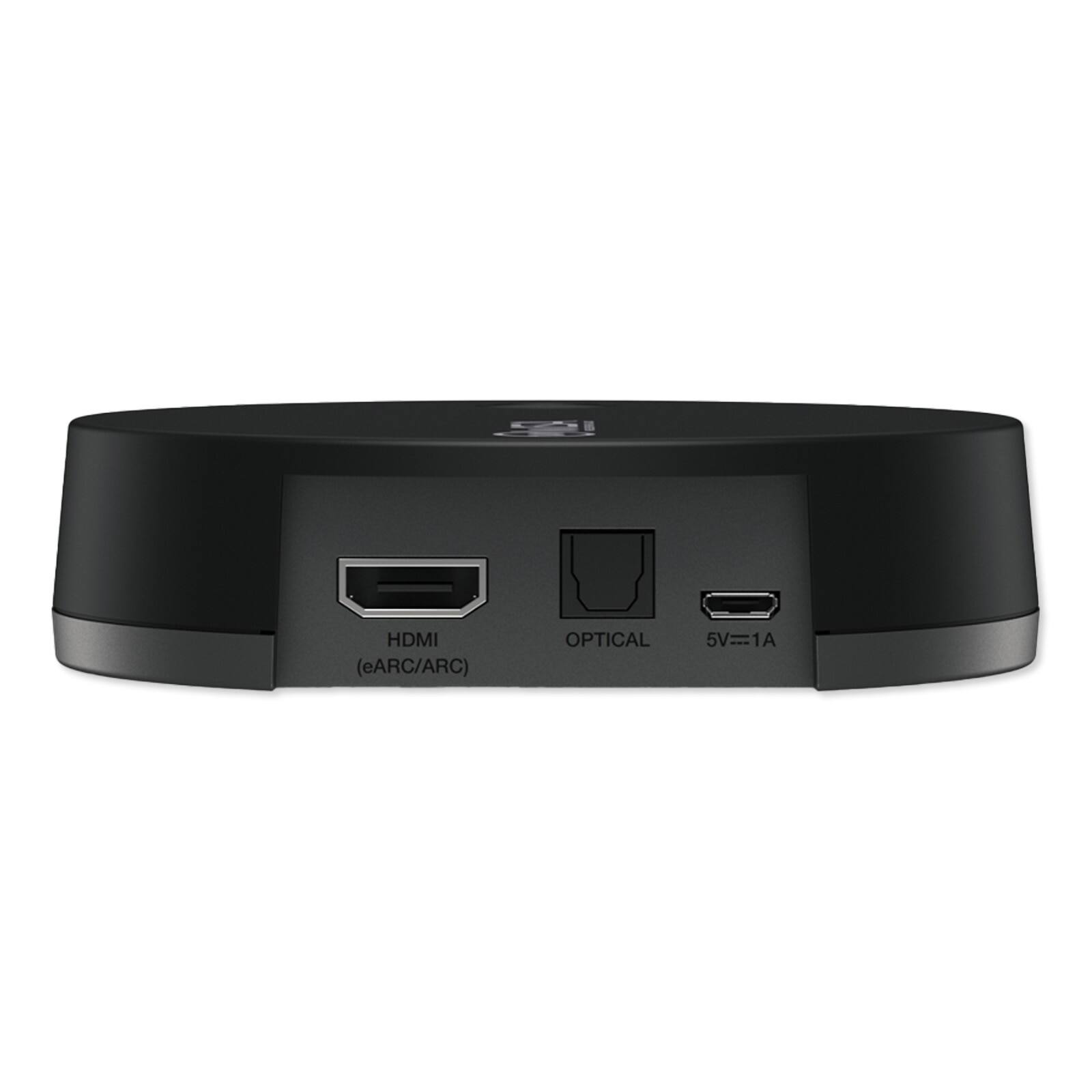

- Deliver Audio to up to 8 Channels: Supports up to 8 channels of wireless audio and connects to TV via HDMI-eARC or HDMI-ARC for home cinema and optical for music streams
- Install into Nearly Any Sized Home Audio Setup: Supports 2.0 to 7.1 stereo and Atmos 3.1.2 and 5.1.2 speaker configurations
- Supports HQ Audio with Minimal Latency: Transmits 24bits at 48kHz/96kHz at 5.2ms of latency, preventing audio delay and visible lip sync

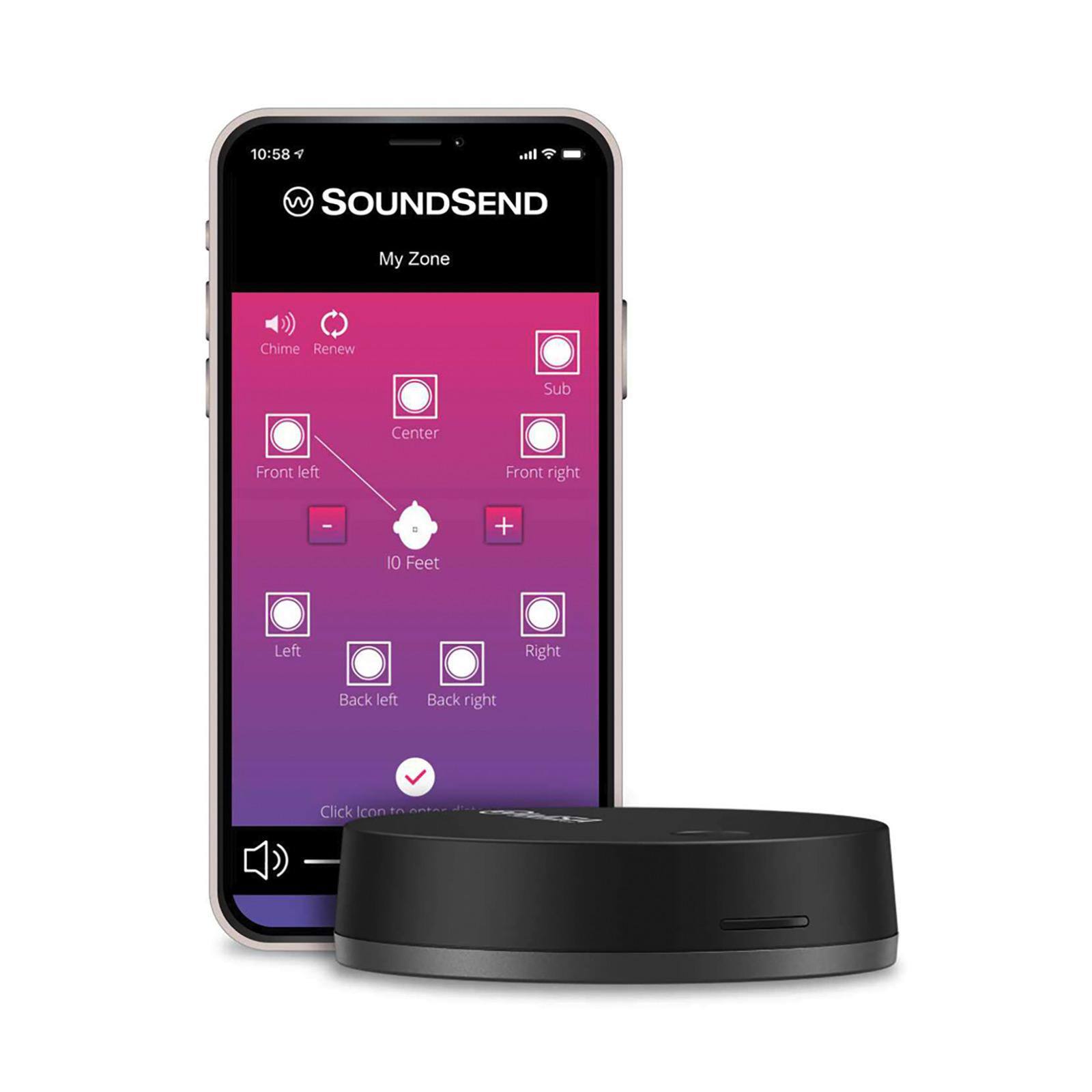

- Easily Configure Speakers with the Soundsend app: Easy setup and configuration using the SoundSend app for iOS and Android devices
Whats Included
- 06530 WiSA SoundSend Transmitter, Instruction Manual
