Luxul - 4 Port Gb PoE+ Switch W/Uplink 58W - Black
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 4 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Number of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Luxul
- Model Number: SW-100-04P
- Product Name: Luxul 4 Port Gb PoE+ Switch W/Uplink 58W
- Color: Black
- Network
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Other
- UPC: 655003921632

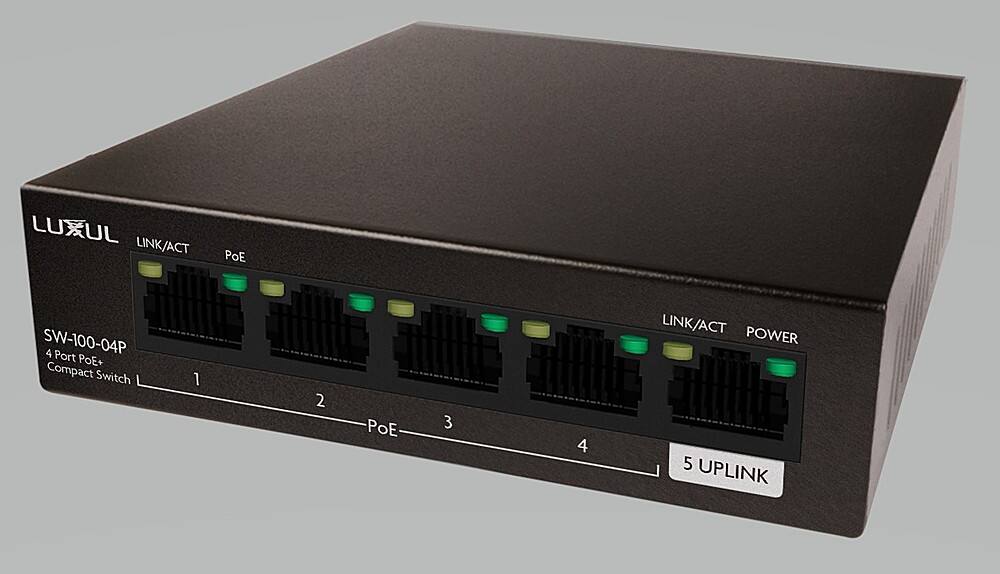

The SW-100-04P is a compact Gigabit PoE+ switch that provides four PoE+ capable ports of Gb Ethernet connectivity with a total power budget of 58 watts. It is an excellent choice for expanding your network when using PoE-enabled devices such as IP cameras, wireless access points, AV over IP devices, control panels and easily fits into the widest range of environments. The durable metal case includes rubber feet and keyhole features for surface mounting options.
- Use the SW-100-04P to: : Connect up to 4 IP cameras or other PoE-enabled devices (max output 58 watts)
- Use the SW-100-04P to: : Simplify PoE device installation (IP cameras, wireless APs, AV over IP devices)
- PoE+ capable: 4 port Gb PoE+ switch (58W total power budget) + 1 uplink port
- Versatile design: Includes rubber feet and keyhole features for surface mounting options
- Low profile: Small form factor, and fanless for totally silent operation
- Status LEDs: LEDs are a quick way to know which ports are active and which are not.
Whats Included
- SW-100-04P Compact Gigabit PoE+ Switch

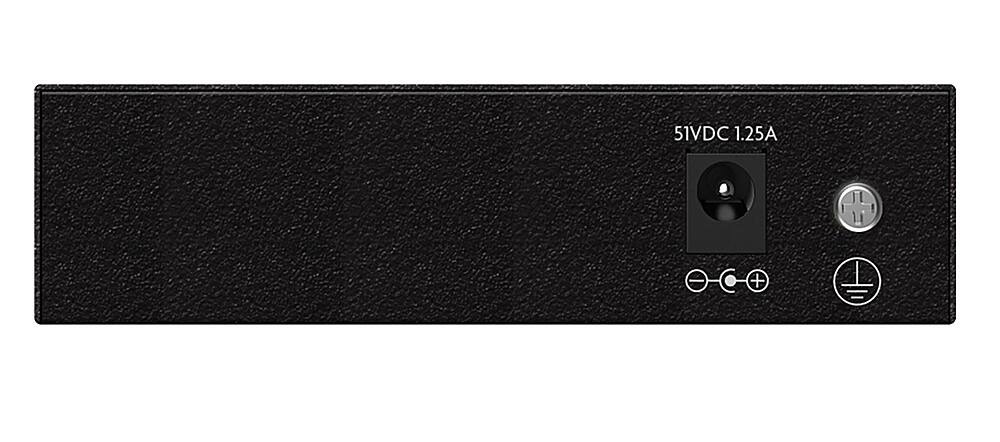

- Power supply
- Rubber feet (4)
- Quick Install Guide & Regulatory Documentation
Q: Can this switch be mounted on a surface?
A: Yes, the switch is designed with rubber feet and keyhole features for surface mounting options.
Q: What is the total power budget provided by this switch?
A: This switch provides a total power budget of 58 watts.
Q: How many PoE-enabled devices can I connect to this switch?
A: You can connect up to 4 PoE-enabled devices to this switch.
Q: Does this switch have any visual indicators for port activity?
A: Yes, the switch features status LEDs that provide a quick indication of which ports are active.
Q: Is this switch suitable for noise-sensitive environments?
A: Yes, the switch is designed for silent operation as it has a low profile and is fanless.
