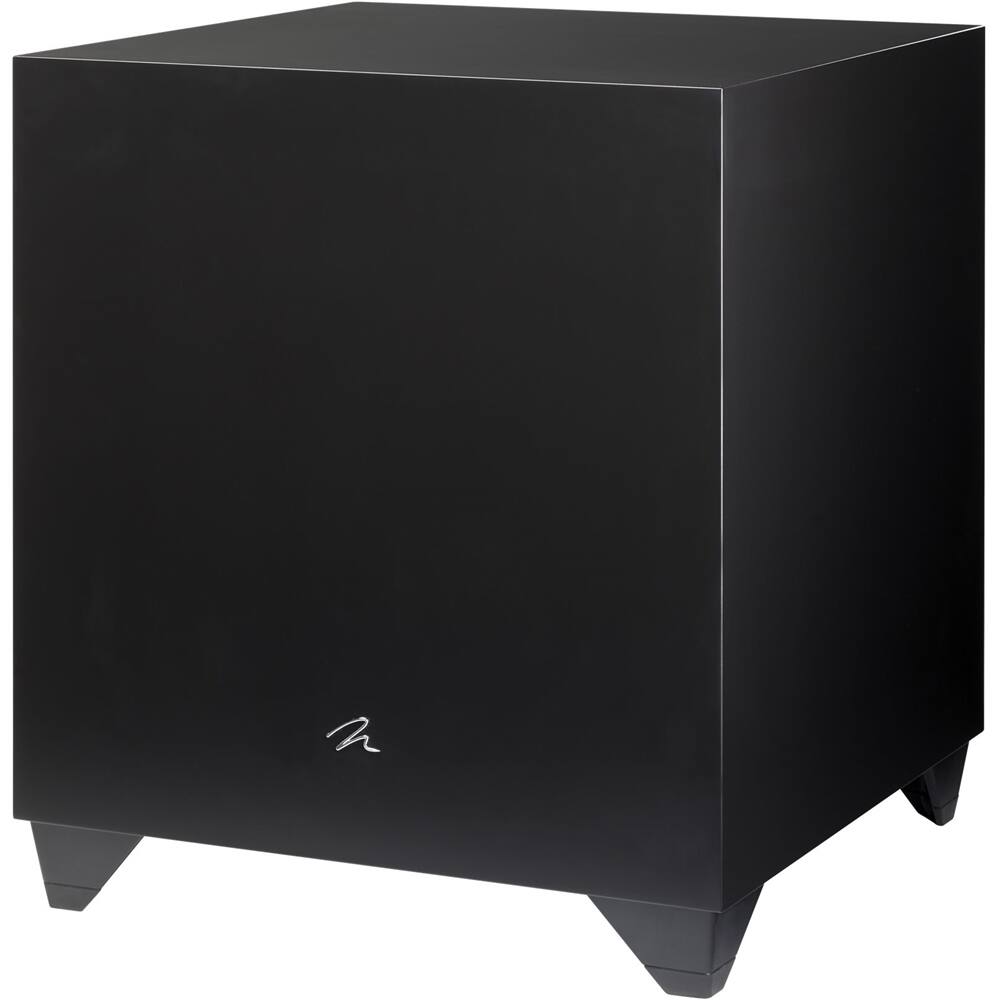

MartinLogan - Dynamo 1600X 15" 1800W Sealed, Powered Subwoofer, with Sub Control App and Wireless Ready - Satin Black
- Key Specs
- RMS Power: 900 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 15 inches
- General
- Brand: MartinLogan
- Model Number: DYN1600XD
- Product Name: Dynamo 1600X 15" 1800W Sealed, Powered Subwoofer, with Sub Control App and Wireless Ready
- Color: Satin Black
- Audio
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 200 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Enclosure Type: Sealed
- Firing Direction: Down, Front
- Speaker Type: Floorstanding
- Subwoofer Type: Powered (Passive subwoofers require an external amplifier, such as the one driving the main speakers in the system, for power. Active subwoofers, on the other hand, have a designated amplifier (one that isn't shared with other speakers) for power as well as line-level crossover.)
- Enclosed: true
- Peak Power Handling: 1800 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Controls: Volume, Power on/off
- Connectivity
- Subwoofer Connection Type: Banana Jack/Screw Terminals
- Wireless: true
- Dimensions
- Product Height: 20.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 57.1 pounds (The out of box weight of the item.)
- Material
- Woofer Composition: Polypropylene cone
- Included
- Remote Control Included: false
- Cable(s) Included: Power
- Other
- UPC: 810123023479
Feel the beat with this MartinLogan Dynamo 1600X subwoofer. The advanced woofers and powerful amplifiers provide a wide frequency response with a peak of 1800W for a big crystal-clear sound. The included app makes it easy to adjust this MartinLogan Dynamo 1600X subwoofer from your phone, and Anthem room correction automatically changes settings to fill the space.
- Integrated Class D Amplifier: Dynamo 1600X’s Class D amplifier supplies 1800W peak power (900W RMS) and operates with extremely low levels of distortion to deliver dynamic impact with plenty of overhead.
- Subwoofer Control App: MartinLogan’s Subwoofer Control app for iOS and Android devices allows you to easily adjust settings like Volume, DSP Mode, Phase, and many others right from the comfort of your seat for ultimate control and ease of tuning.
- Anthem Room Correction: ARC Mobile (iOS or Android) uses your mobile devices' built in microphone to custom tune your Subwoofer in real time for the best performance in your room. Or use the optional ARC Genesis software (PC or MAC) and microphone kit (sold separately) for more calibration options.
- Wireless Ready: Dynamo 1600X is wireless ready out of the box with use of the MartinLogan SWT-X, or SWT-2 wireless subwoofer kits (sold separately).
- Inputs: Dynamo 1600X features Stereo RCA Inputs, a dedicated RCA LFE Input, Balanced XLR LFE Input and speaker level inputs for maximum flexibility.
- Sealed Enclosure: Dynamo 1600X’s Sealed Enclosure gives it the highest levels of bass accuracy in the most compact sizing possible.
- Unique Front or Down-Firing Design: When placed in a cabinet or other discreet location, Dynamo 1600X subwoofer can easily convert from standard down-firing to front-firing orientation, with no tools or special skills required. A grille is provided for use in front-firing applications.
- Inverse Mathematical Equation (IME) Filter: The IME filter used in the Dynamo subwoofers is derived from the inverse of the unfiltered driver response. Precision IME filtering yields extremely accurate low-frequency response.
Whats Included
- Dynamo 1600X Subwoofer
- Front-firing grille, rubber feet
- Power cable
- Owner's manual
Product Manuals
Q: Does the subwoofer come with a wireless kit?
A: The Dynamo 1600X is wireless ready, but you'll need to purchase the MartinLogan SWT-X, or SWT-2 wireless subwoofer kits separately.
Q: What type of inputs does the Dynamo 1600X have?
A: The Dynamo 1600X has Stereo RCA Inputs, a dedicated RCA LFE Input, Balanced XLR LFE Input and speaker level inputs.
Q: Does this subwoofer have a sealed enclosure?
A: Yes, the Dynamo 1600X subwoofer has a sealed enclosure to ensure accurate tones.
Q: How much power does the integrated amplifier in this subwoofer provide?
A: The integrated Class D amplifier provides 650W RMS power for high volume levels and minimal distortion.
Q: Can I control this subwoofer with an app?
A: Yes, you can easily adjust the subwoofer's settings from your phone using the included app.
Q: What is the frequency response of this MartinLogan subwoofer?
A: The Dynamo 1600X subwoofer has a frequency response of 20-200Hz.
A: Best Buy site has typo on Dynamo 1600X product. The manual out of the box has same specifications as the Martin Logan Site for the Dynamo 1600X 15” sub at 900Watts. The Wireless function is only available when you buy the SWT-X kit and RCA cable (any brand) sold separately. https://www.bestbuy.com/site/martinlogan-swt-x-wireless-subwoofer-system-black/6255470.p?skuId=6255470
