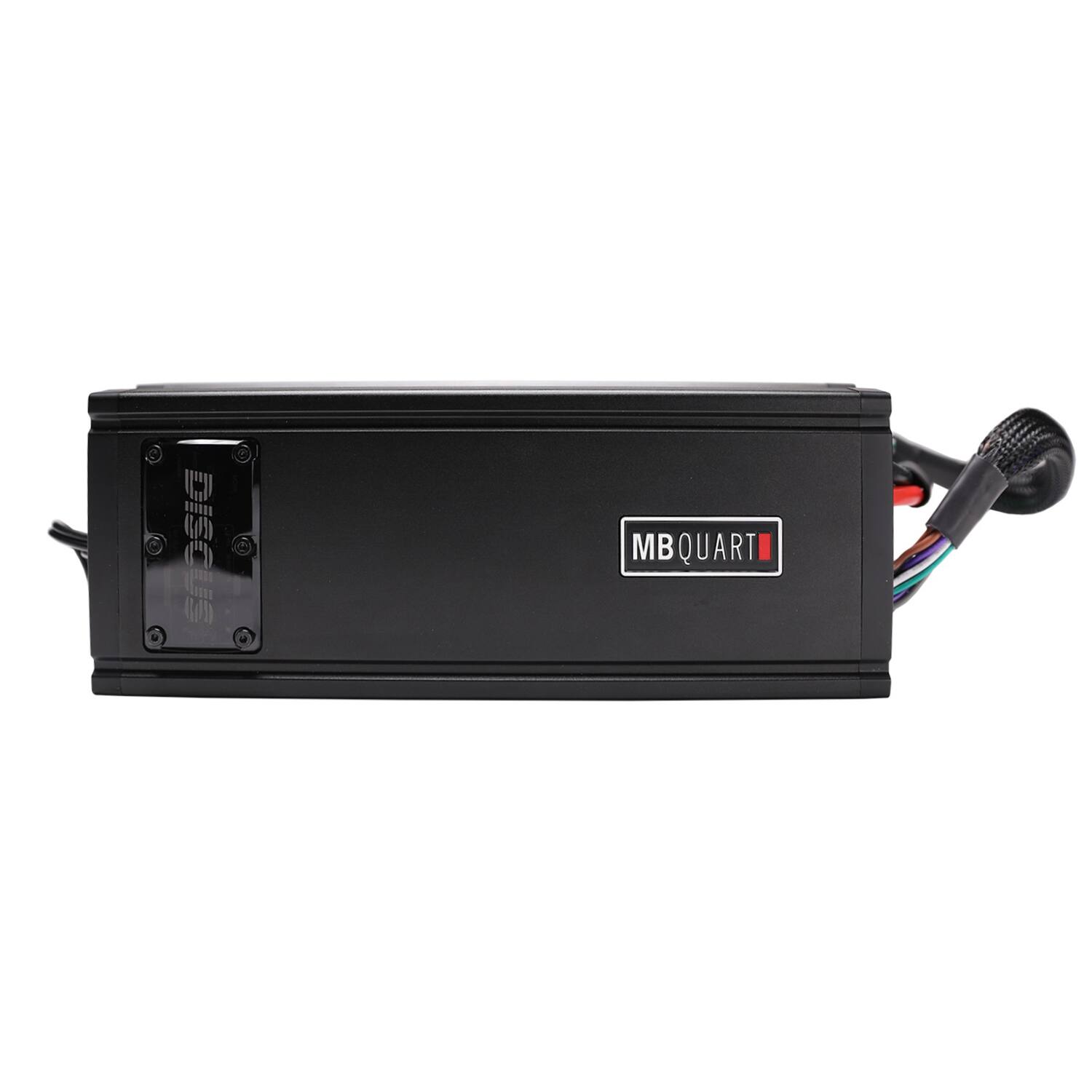

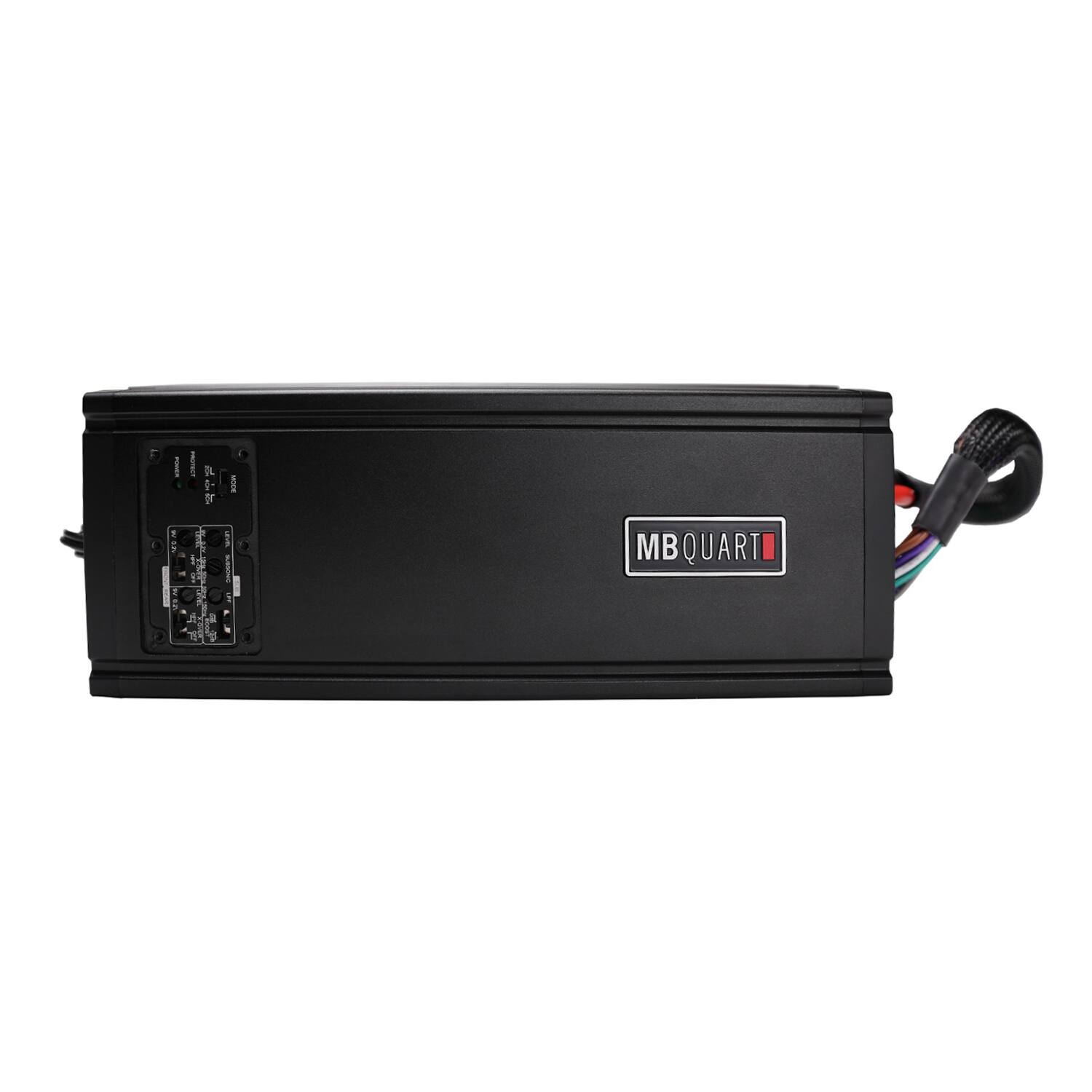

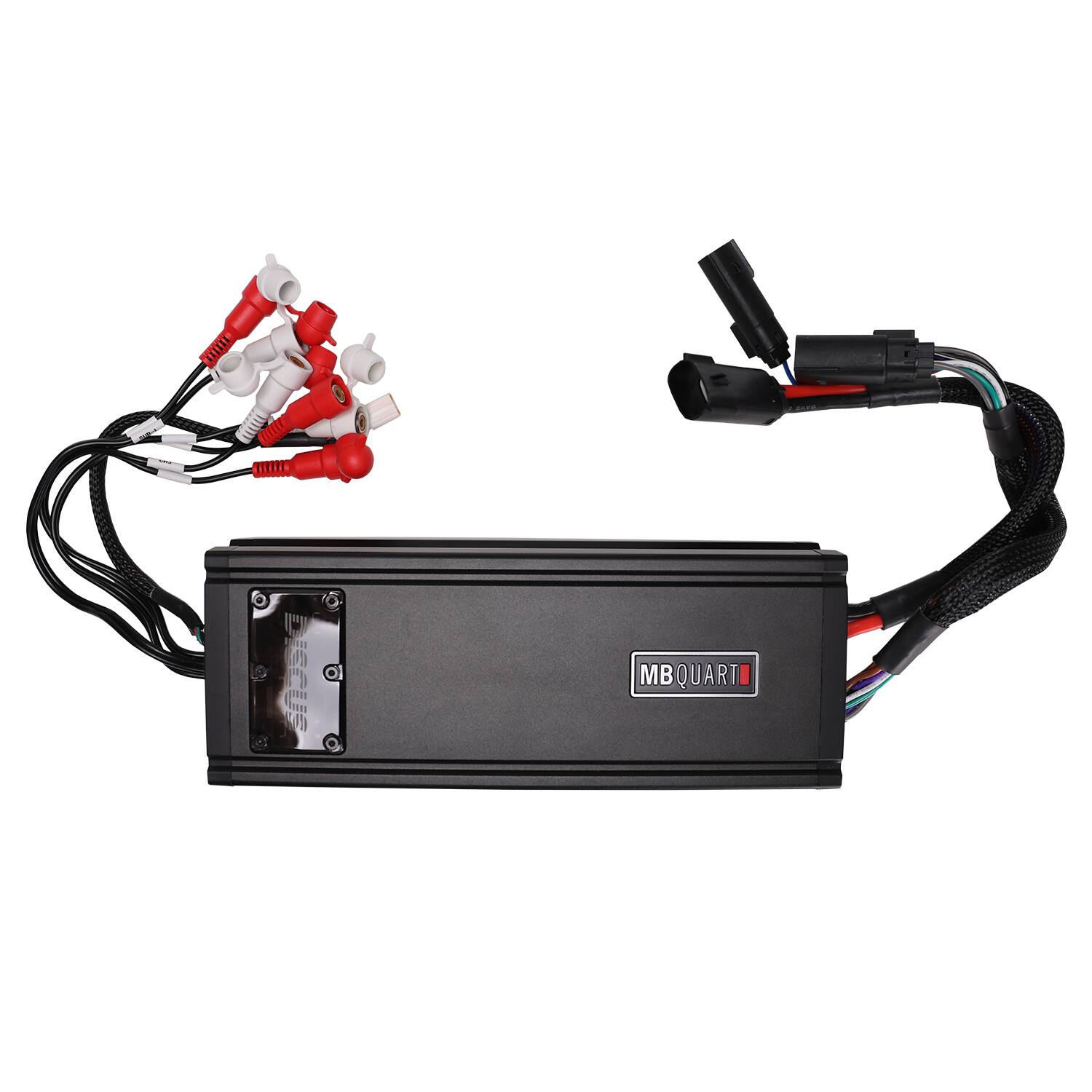

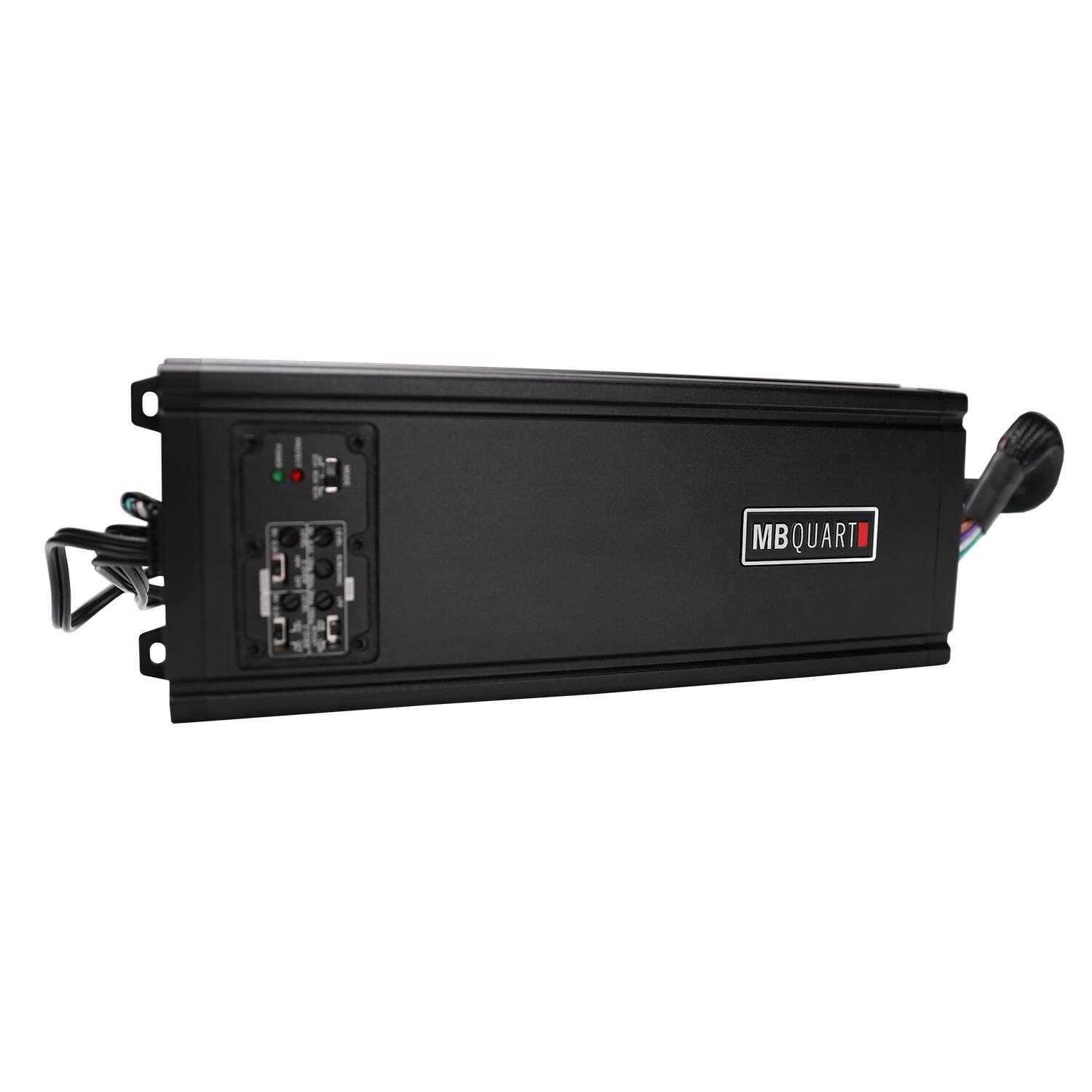

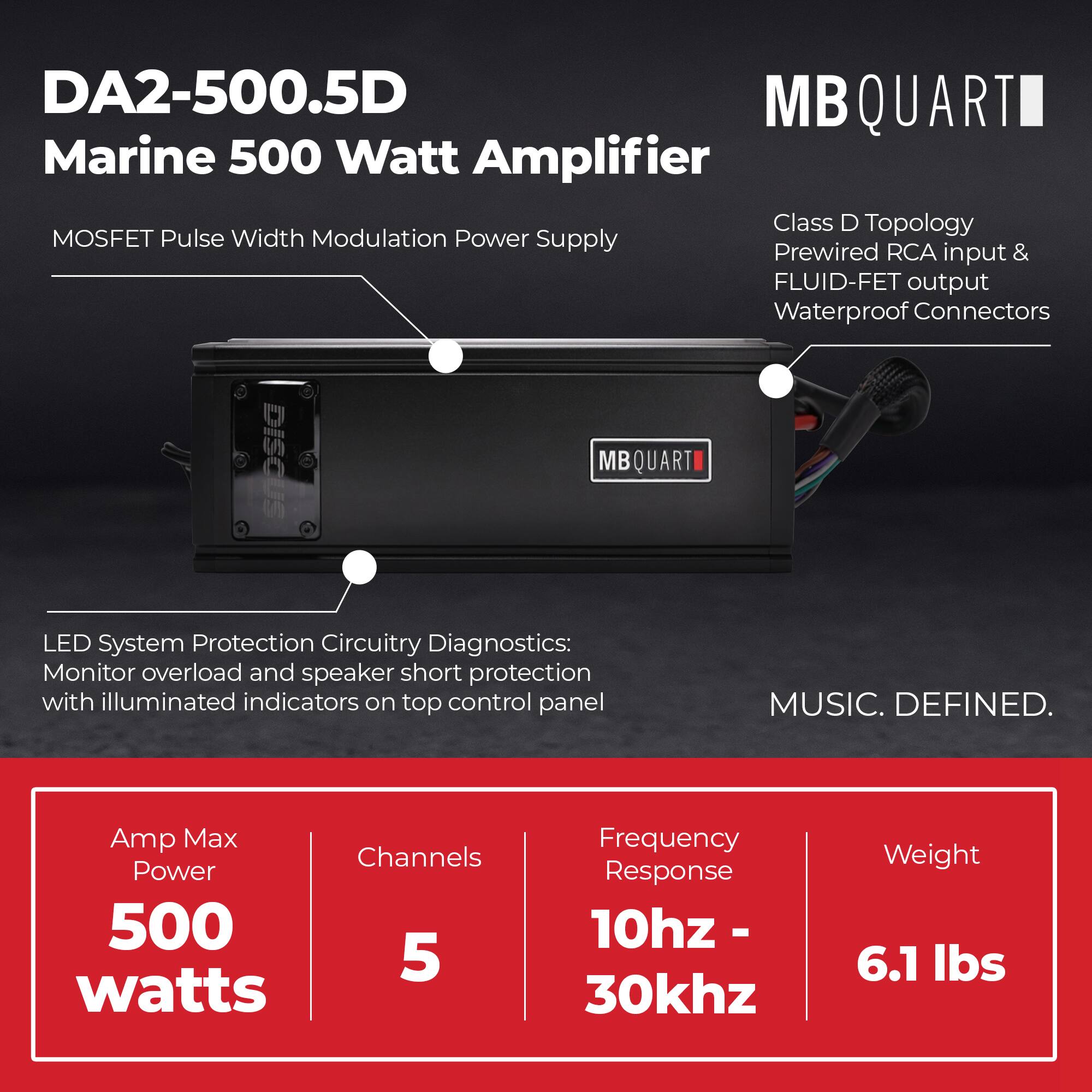

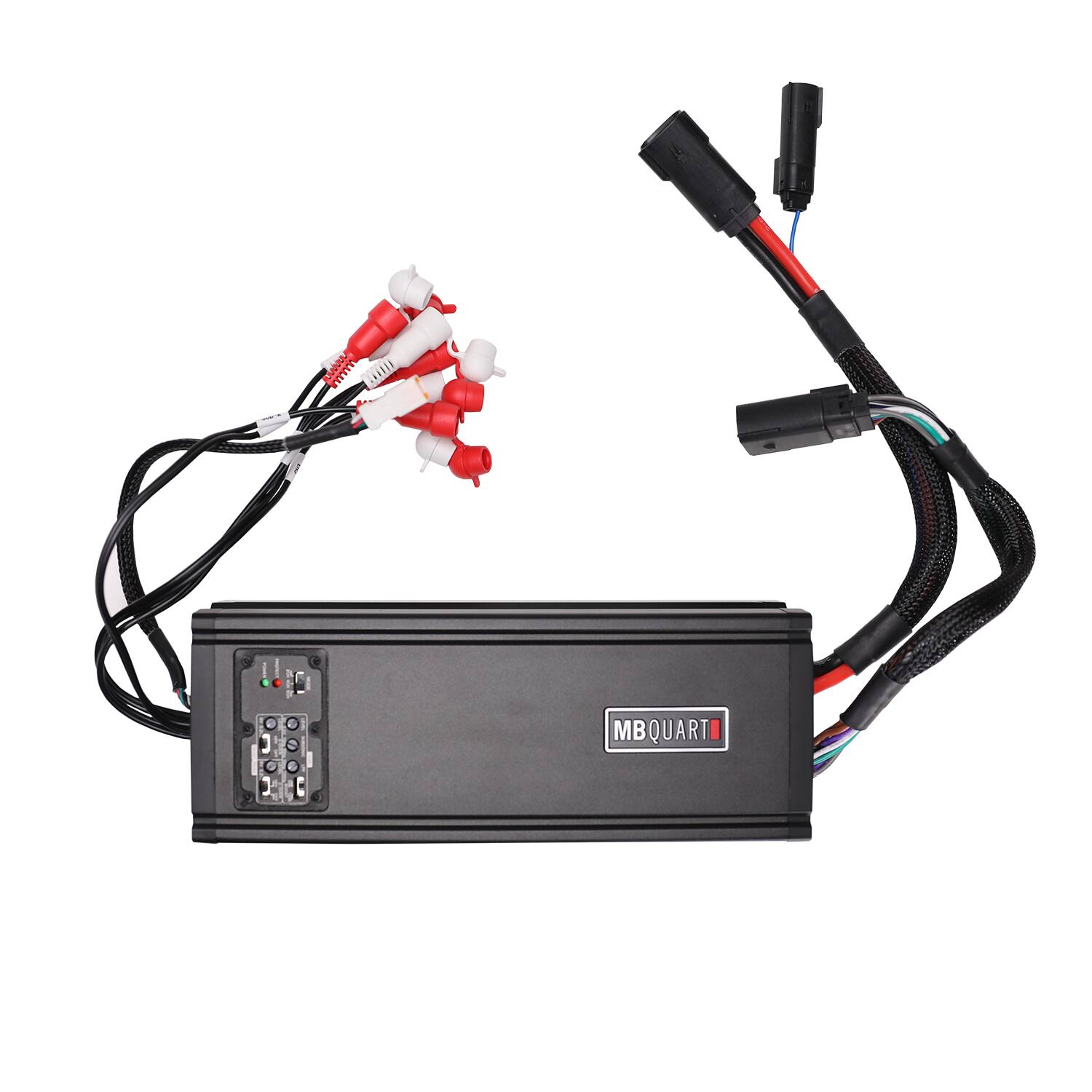

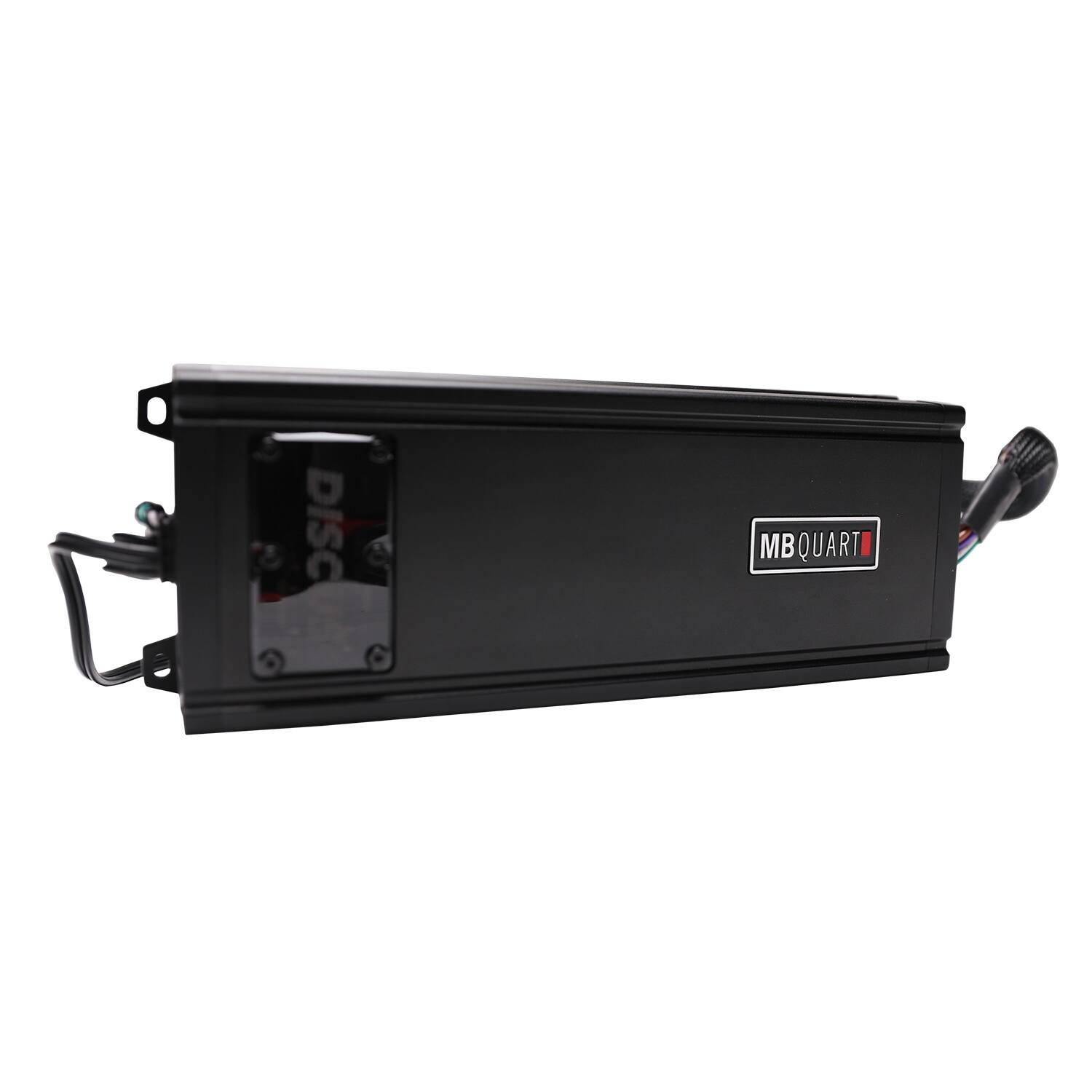

MB Quart - Discus 5 Channel Marine Amplifier with Top Mounted Controls, 500 Watts - Black

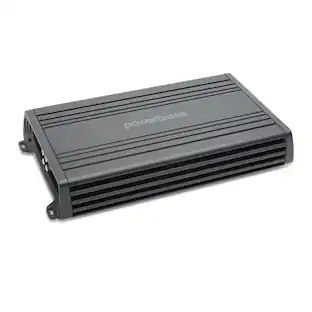

Borrowing from Powerbass's former ACS series, these new amplifiers offer upgraded features, terminals and a dual layer PCB all packed in the most compact chassis allowable. To accomplish this they selected SMD parts and engineered a brand new high density heat sink engineered for maximum efficiency and cooling. The result, an all new line-up of two, four, five and mono channel models that offer amazing performance and fantastic value. Ultra efficient, the PB Series amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. The PB Series Amplifiers provide the perfect mix of performance and style in a sleek new compact chassis. Features: 4-Channel 720 Watt High Efficiency Class A/B Design 2-ohm Stable (4-ohm in Bridged Mode) PWM MOSFET Power Supply High Level (Speaker)/Low Level (RCA) Input Remote Soft Delay Turn On/Off Circuit Variable High/Low Pass Electronic Crossover Selectable 12dB Bass Boost EQ Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output. Specifications: Peak Power: 720 watts Power Supply: Unregulated PWM Inputs: RCA, 2 Pairs Input, 2 Pair Speaker Level Input Dimensions (in Inches): 12.8" x 7.1" x 2.0" Depth: 12.8" Channels (mono): 4 4-ohm Power: 45 watts x 4 4-ohm Mono Power: 180 watts x 2 2-ohm Power: 90 watts x 4 1-ohm Mono Power: N/A Variable Subsonic Freq: N/A Equalization Boost/Cut: N/A Height: 2.0" Width: 7.1" Switchable Subwoofer EQ: N/A Subwoofer EQ Frequency: N/A Variable Subwoofer EQ: N/A Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz High-Pass Crossover Freq: Variable 50 Hz - 1 kHz Crossover Slope: 12 dB Input Sensitivity: 0.25 V - 6.0 V S/N Ratio: >100 dB Total Harmonic Distortion: 0.3% @ Rated Power Strapped Output Power @ 2ohms: N/A Output Power (14.4 V) @ 4 ohm: 45 watts x 4 Output Power (14.4 V) @ 2 ohm: 90 watts x 4 Output Power (14.4 V) @ 1 ohm: N/A Frequency Response: 10 Hz - 50 kHz

MM Series marine grade amplifiers by Memphis were designed to withstand the water and the elements. These amplifiers feature sealed chassis and conformal coated boards which allows them to perform in the harshest marine environment. These amplifiers feature loads of upgrades geared towards making them the most installer-friendly marine amp ever produced by Memphis. Single sided terminals, removable power lug, sealed outputs with waterproof quick-disconnects and sealed top mounted control panel all make this amplifier extremely durable and user friendly. With 2/4/6 channel options, this is the most complete Marine amp lineup in Memphis history allowing for a multitude of system designs from simple to extreme. Features - • IPX5 rated • Removable power terminal • Sealed removable signal connectors • Sealed top mount controls • Extruded aluminum heat sink • Signal sensing auto turn on • 12dB/octave butterworth crossovers • Input select switch • LED light strip • Remote bass knob • Protection circuitry against: Overload, short circuit, thermal & reverse polarity • Variable bass boost (0-12dB) centered at 45Hz • 24dB Infrasonic Filter • Fully Variable Crossover

800 Watt High Efficiency Class D Design Front Load Terminal Design 1-OHM Stable Mono Block Amplifier Ultra Low Current Draw Double Sided Copper Plated PCB PWM MOSFET Power Supply Digital Sound Optimization Circuitry High Damping Control Circuit Variable Subsonic Filter High Current Voltage Ripple Rejection Circuitry Balanced RCA Inputs Selectable Auto Turn On Circuit Remote Soft Delay Turn On/Off Circuit 40 Click Variable Low Pass Electronic Crossover Variable Gain Control Wired Secondary Remote Gain Control Included Calibrated Visual Clipping Indicator Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output Specifications Peak Power: 1600 watts Subwoofer Frequency Range: 10Hz - 300 Hz Dimensions (in Inches): 10.25x7x2.25 Depth: 10.25 Channels (mono): 1 4-ohm Power: 400 watts x 1 4-ohm Mono Power: 400 watts x 1 2-ohm Power: 600 watts x 1 1-ohm Mono Power: 800 watts x 1 Nominal Impedance: 1 Height: 2.25 Width: 7 Subwoofer EQ Frequency: 40 Hz- 100 Hz Low-Pass Crossover Freq: 35 Hz - 250 Hz High-Pass Crossover Freq: N/A Crossover Slope: 24 dB Input Sensitivity: 0.25 V - 7 V S/N Ratio: >95 dB Strapped Output Power @ 2ohms: 1600 watts x 1 Output Power (14.4 V) @ 4 ohm: 400 watts x 1 Output Power (14.4 V) @ 2 ohm: 600 watts x 1 Output Power (14.4 V) @ 1 ohm: 800 watts x 1 Frequency Response: 10 Hz - 300 Hz
