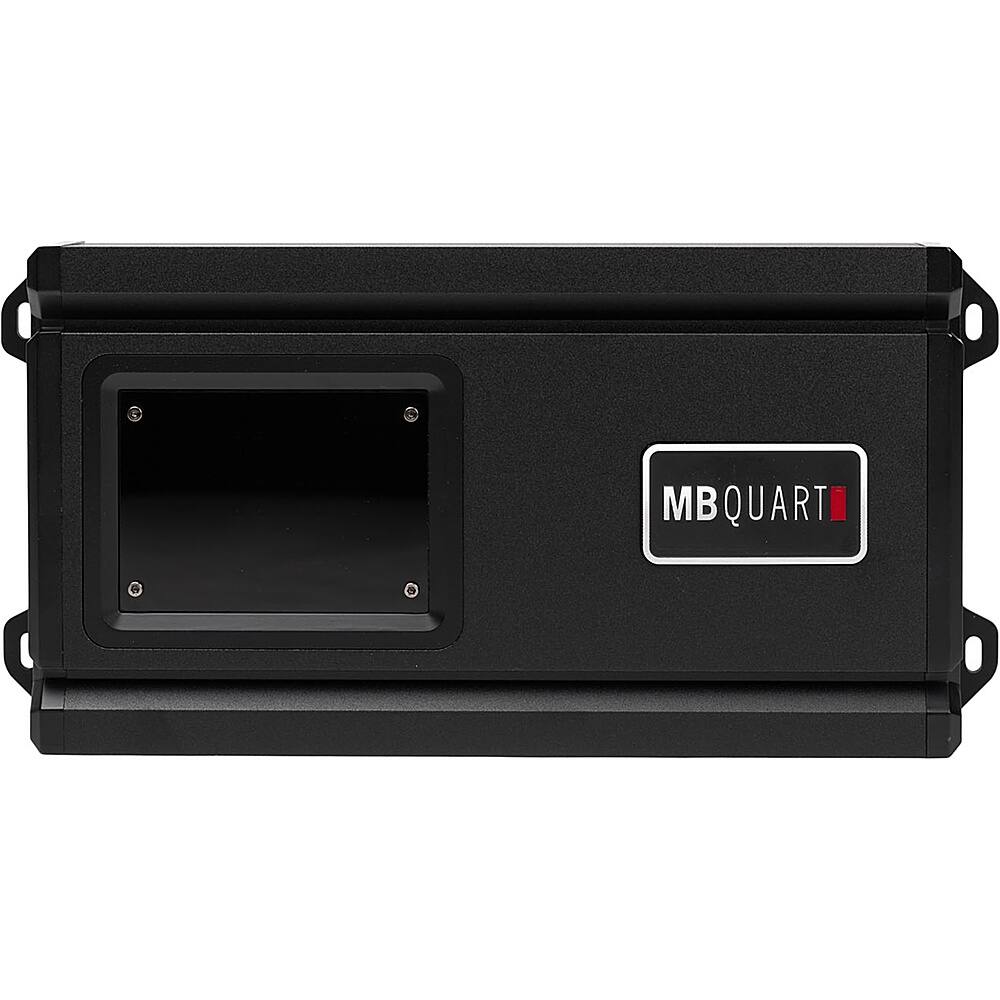

MB Quart - Reference 300W Class D Mono Amplifier - Black
Model: RA1-300.1
SKU: 6498279
This item is no longer available in new condition. See similar items below
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: MB Quart
- Model Number: RA1-300.1
- Product Name: Reference 300W Class D Mono Amplifier
- Color: Black
- Audio Power
- Total Power Handling Maximum: 300 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 25 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 91 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Marine: false
- Fan Cooled: false
- Input
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 2.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 806576232643
Boost your vehicle's sound system with this MB Quart RA1-300.1 Reference Series car audio amplifier. An included wired bass remote enables easy control of low frequencies, while the 300W output power delivers dynamic, high-quality audio. This mono MB Quart RA1-300.1 Reference Series car audio amplifier features variable electronic crossovers for effective sound control.
- 300W Total Power: Ensures robust audio.
- Low-Noise Preamplifier Circuit: A maximum low-voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
- Nickel-Plated RCA Inputs: Erosion-resistant and high temperature impact-resistant with hex screw terminals that allow for secure connections.
- Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
- Class D Circuitry: Ensures reliable power handling.
- FLUID-FETS: Painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest-end home amplifiers.
- Aluminum Heat Sink: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
- Rugged MOSFET Pulse Width Modulation Power Supply: Allows the amplifier to produce efficient power without taxing the vehicle electrical system.
- Heavy Duty Connections: Allows a secure electrical signal to pass into wiring and resist erosion, which adds longevity to the amplifier.
- Wired Bass Remote: Adjustments to bass frequencies can be made from the control mounted anywhere in the vehicle.
- Auto Turn-On: The amplifier turns on when a signal is received on the RCA inputs, so an amplifier remote turn-on wire is not needed to turn on the amplifier.
- 0-12dB Bass Boost: Lets you add punchy bass to your music.
- 91dB Signal-to-Noise Ratio: Offers crisp audio.
- 0.09% THD (Total Harmonic Distortion): Provides clean sound.
- Variable Low-Pass-Filter Crossover: Lets you easily adjust the audio frequency from 50Hz to 250Hz for flexible sonic customization.
Whats Included
- MB Quart Reference 300W Class D Mono Amplifier
- Owner's manual
Product Manuals
Q: Does this amplifier have an automatic turn-on feature?
A: Yes, the amplifier turns on when a signal is received on the RCA inputs.
Q: What is the signal-to-noise ratio for this amplifier?
A: The signal-to-noise ratio for this amplifier offers crisp audio at 91dB.
Q: Does this amplifier have a MOSFET power supply?
A: Yes, this amplifier features a rugged MOSFET pulse width modulation power supply.
Q: What is the total harmonic distortion of this amplifier?
A: This amplifier provides clean sound with a 0.09% total harmonic distortion.
Q: Is there a low pass filter crossover in this amplifier?
A: Yes, this amplifier has a variable low-pass-filter crossover.
Q: Does this amplifier come with speaker-level inputs?
A: Yes, this amplifier has speaker-level inputs.
Q: Can the bass frequencies be adjusted with this amplifier?
A: Yes, adjustments to bass frequencies can be made from the control mounted anywhere in the vehicle.
