Miele - PFD 104 SCVi 24' Built Under Professional Dishwasher (120V/208-240V) - Custom Panel Ready
Specifications
- Color FinishWhiteProduct Height33 5/16 inchesProduct Width23 9/16 inchesProduct Depth21 11/16 inchesOperating Sound Level45 decibels adjustedNumber Of Racks2
- Key Specs
- Color Finish: White
- Product Height: 33 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 45 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Miele
- Model Number: PFD 104 SCVi
- Product Name: PFD 104 SCVi 24' Built Under Professional Dishwasher (120V/208-240V)
- Color: Custom Panel Ready
- Color Finish: White
- Dimensions
- Product Height: 33 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 106 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 7/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 45 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: false (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle
- Number of Cycles: 3 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: 8
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Third Rack Features: Adjustable height (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)

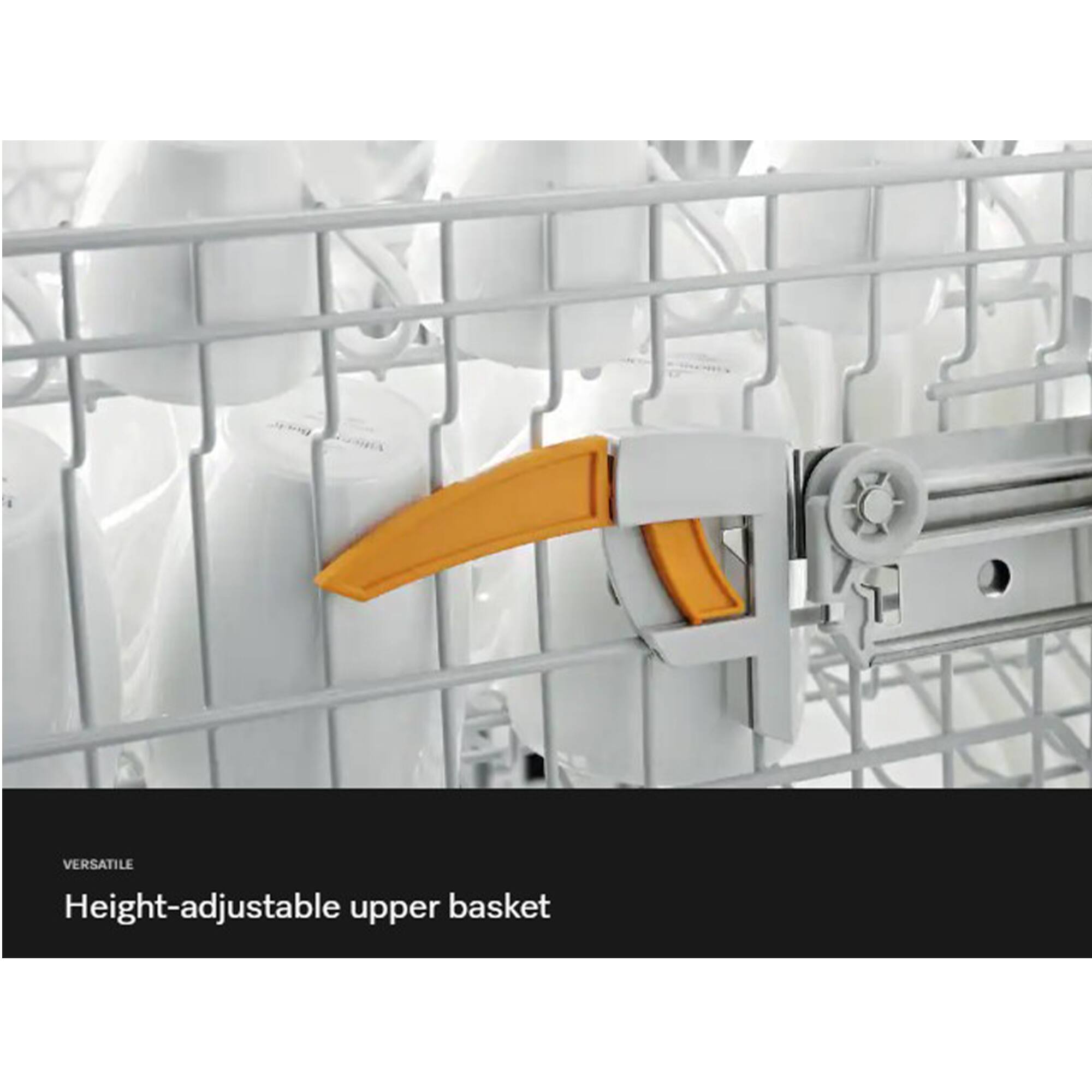

- Upper Rack Features: Adjustable height (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable height, Adjustable tines, Removable (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Panel(s) Included: false
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Front control
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: true (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 38 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 4002516366942
Bring professional-grade performance and luxury kitchen integration together with the Miele PFD 104 SCVi XXL Fully Integrated Dishwasher. Designed for luxury homes, office kitchens, showrooms, and other light-commercial environments, this premium 24-inch dishwasher delivers powerful cleaning performance, exceptional durability, and seamless built-in aesthetics. The fully integrated custom panel-ready design blends effortlessly with surrounding cabinetry for a refined, furniture-style appearance. Knock2open technology allows the door to open with a gentle tap, making it ideal for modern handleless kitchen designs. Engineered for demanding daily use, the PFD 104 SCVi XXL is tested for up to 12,500 wash cycles and supports up to five wash cycles per day. The spacious XXL interior accommodates up to 16 place settings and features the MaxiComfort basket system with a flexible 3D MultiFlex Tray for utensils, cups, and small kitchen items. Professional cleaning performance is enhanced by the SaniWash cycle featuring a 180°F final rinse for elevated hygiene performance. BrilliantLight interior lighting illuminates the stainless steel wash cabinet for easier loading and unloading, while AutoOpen drying improves drying results at the end of the cycle. The dishwasher also includes integrated WiFiConn@ct connectivity, a built-in water softener, and quiet 45 dB operation for premium convenience and performance.
- Fully Integrated Custom Panel Design: Custom panel-ready dishwasher blends seamlessly with surrounding cabinetry for a premium built-in appearance.
- Professional-Grade Performance: Engineered for luxury residential and light-commercial applications including offices, showrooms, and shared kitchens.
- XXL Interior Capacity: Spacious interior accommodates up to 16 place settings for large loads, cookware, and entertaining essentials.

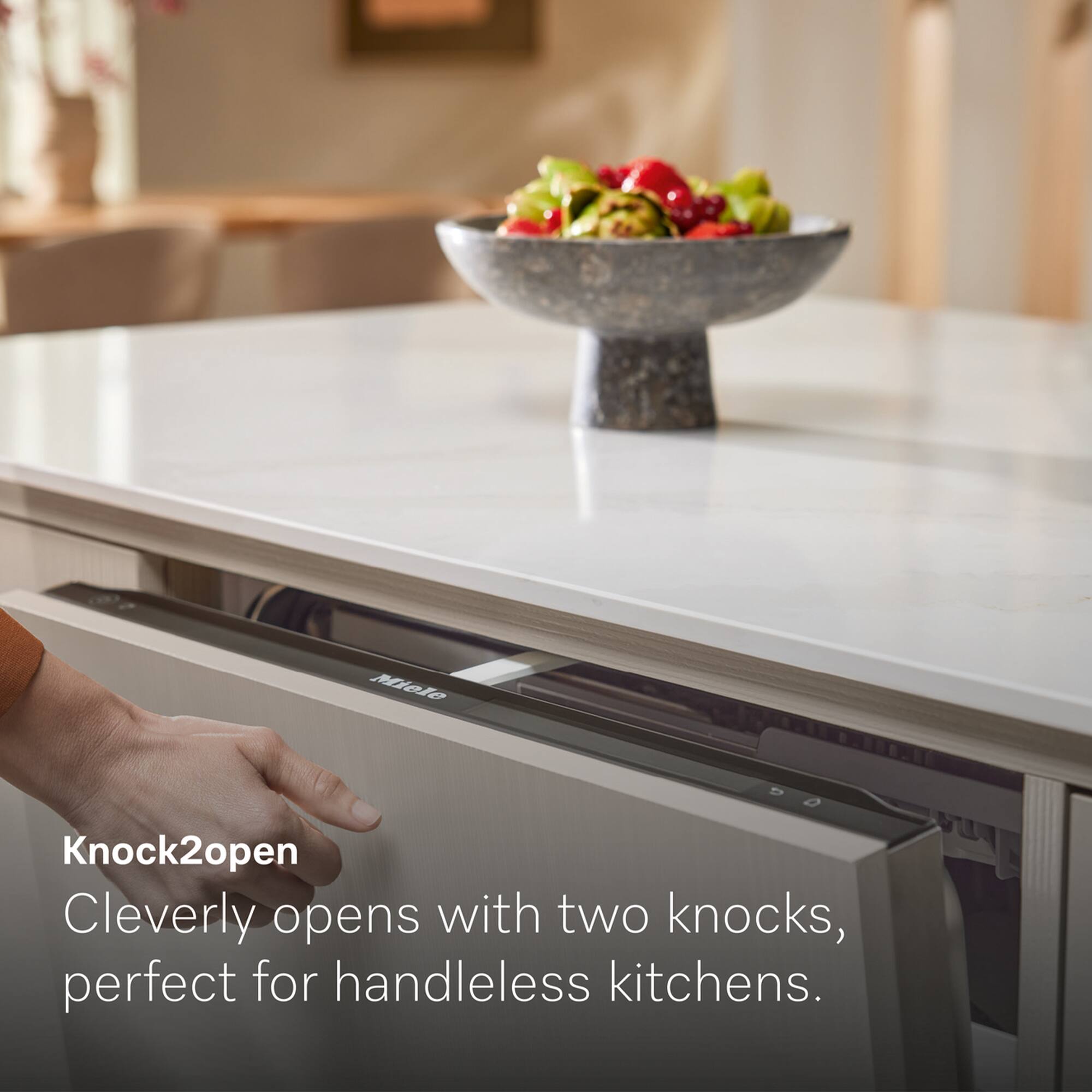

- Knock2open Technology: Handleless opening system allows the dishwasher door to open with a gentle tap for modern kitchen designs.
- Commercial-Level Durability: Tested for up to 12,500 wash cycles and designed to support up to five wash cycles per day.

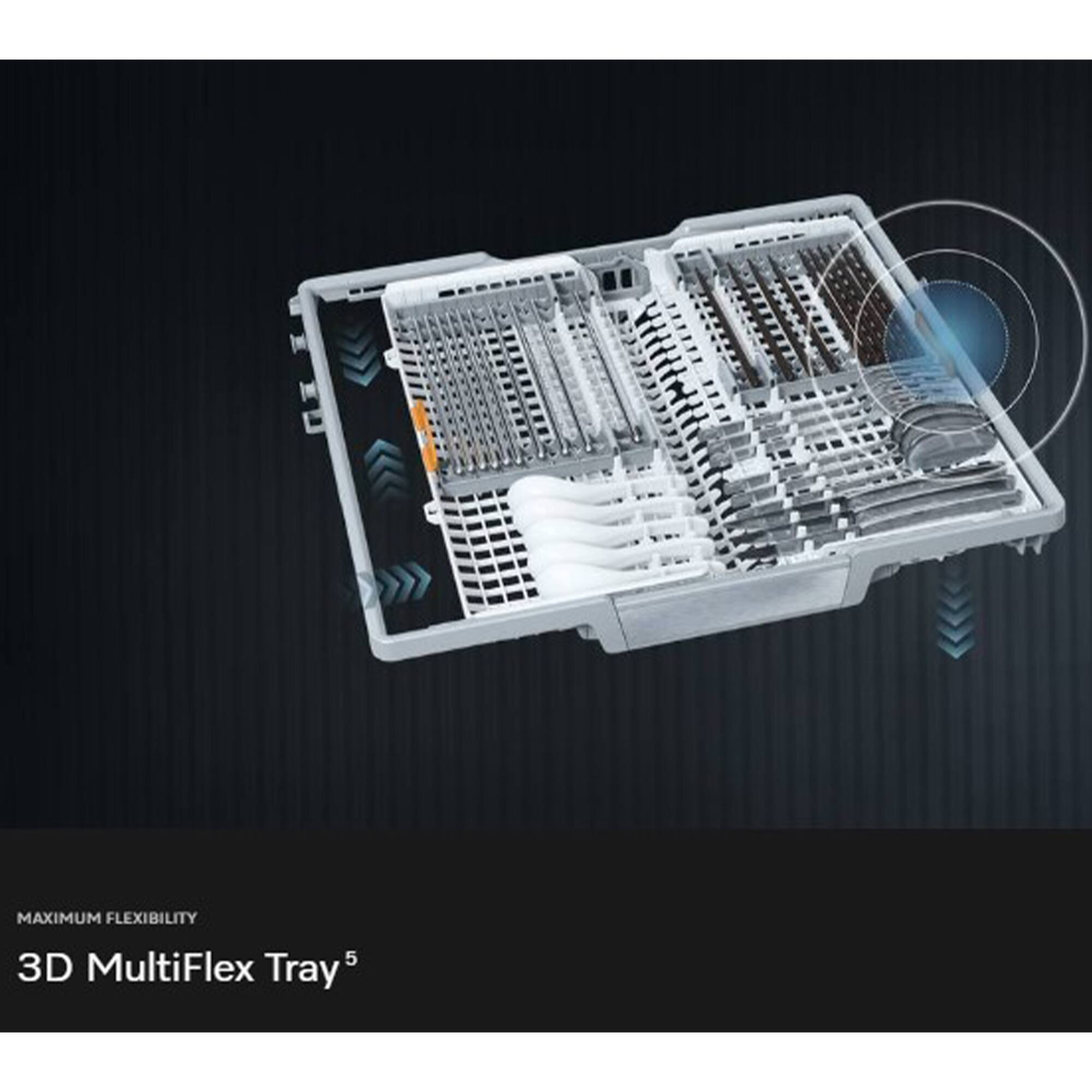

- 3D MultiFlex Tray: Flexible third rack provides dedicated space for utensils, flatware, espresso cups, and small kitchen tools.

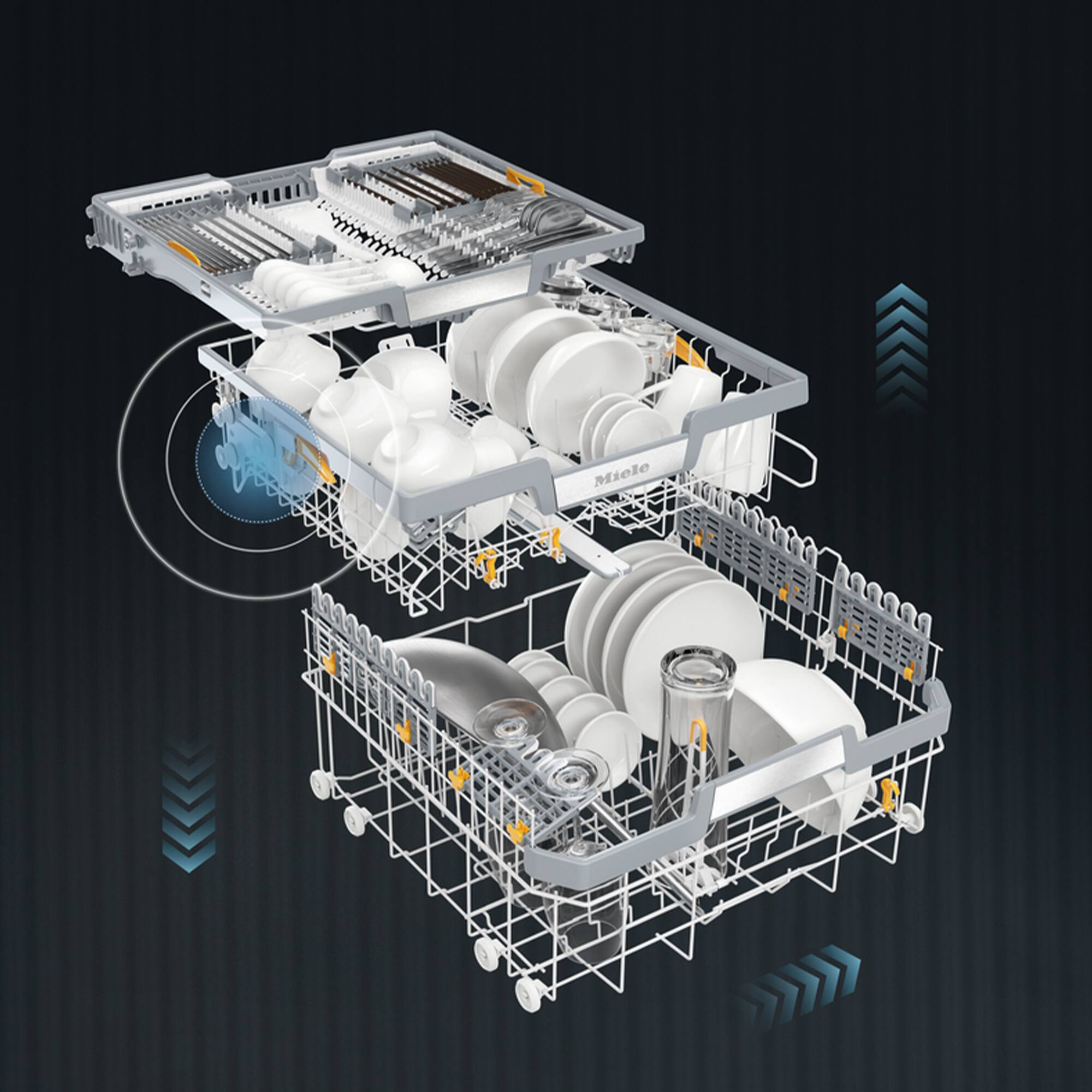

- MaxiComfort Basket System: Adjustable upper and lower racks provide flexible loading options for dishes, cookware, and delicate glassware.
- SaniWash Hygiene Cycle: Specialized sanitation program features a 180°F final rinse held for a minimum of 15 seconds to support enhanced hygiene performance.
- QuickIntenseWash Cycle: Fast wash capability delivers efficient cleaning performance for busy households and entertaining.

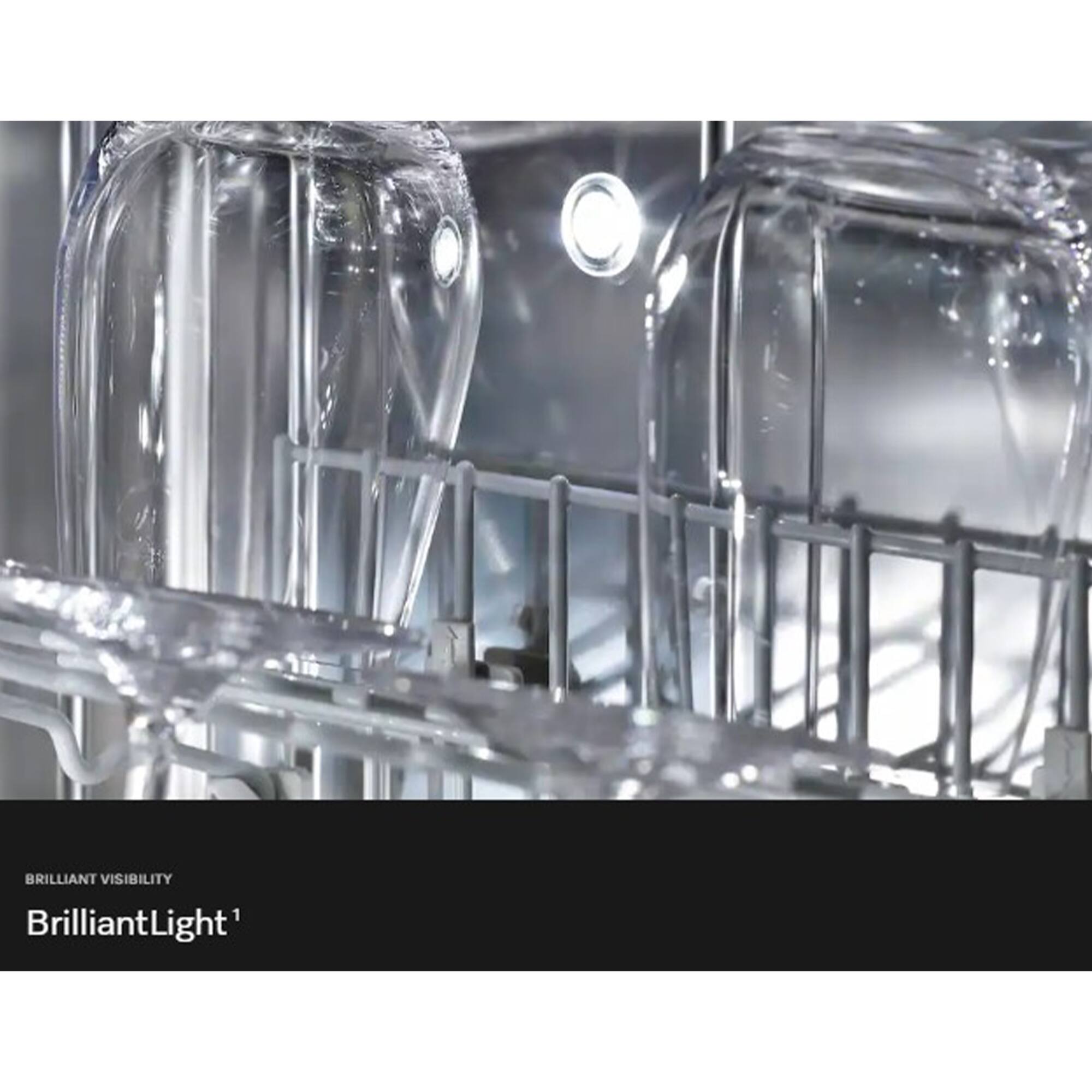

- BrilliantLight Interior Lighting: Integrated LED lighting illuminates the dishwasher interior for improved visibility during loading and unloading.
- AutoOpen Drying: Door automatically opens at the end of the cycle to improve drying performance and reduce residual moisture.
- Integrated Water Softener: Built-in water softening system helps improve cleaning performance and protect dishware.
- WiFiConn@ct Connectivity: Smart connectivity enables convenient monitoring and control through compatible mobile devices.
- Quiet 45 dB Operation: Low-noise performance helps maintain a quiet kitchen environment.
- Rilsan® Rack Coating: Durable commercial-grade rack coating helps protect dishware while supporting long-term durability.
- Flexible Electrical Configuration: Available in both 120V and 120/208–240V configurations to support a variety of installation requirements.
Whats Included
- PFD 104 SCVi (120V/208-240V)
Documents
- Energy_Guide_PDF
Q: Can the dishwasher be installed in a panel-ready configuration?
A: This dishwasher can be installed in a panel-ready configuration.
Q: What is the estimated annual electricity use of the dishwasher?
A: The estimated annual electricity use is 270 kilowatt hours.
Q: What is the warranty on the dishwasher's parts?
A: The manufacturer's warranty for parts on the dishwasher is 2 years.
Q: Does the dishwasher have a delay start option?
A: This dishwasher model does have a delay start option.
Q: What is the operating sound level of the dishwasher?
A: The operating sound level is 45 decibels adjusted.
