Minisforum - MS-01 Mini PC, Intel Core i5‑12600H, 32GB RAM, 1TB SSD, PCIe Expansion Support - Black
Related Item
Highlights
- Key Specs
- Processor Model: Intel 12th Generation Core i5 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- System Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: Intel Iris Xe Graphics (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: Minisforum
- Model Number: MS-01-S1260
- Product Name: MS-01 Mini PC, Intel Core i5‑12600H, 32GB RAM, 1TB SSD, PCIe Expansion Support
- Color: Black
- Year of Release: 2024
- Processor
- Processor Brand: Intel
- Processor Model: Intel 12th Generation Core i5 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 12600H
- Processor Model Year of Release: 2022 (The year the processor model was initially available for sale or built into a computer.)
- CPU Boost Clock Frequency: 4.5 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The maximum rate at which the processor is able to execute tasks, typically only used for a short period of time as needed. This rate may temporarily boost the processor's performance, but may result in overheating, shutdown, or damage to equipment if sustained.)
- Number of CPU Cores: 12-core (A core, or "brain" of a CPU, allows it to receive and execute instructions. Each core can work independently or together to perform parallel operations.)
- Number of CPU Threads: 16 (Generally, the more threads, the faster and more responsive the operating system.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- Solid State Drive Capacity: 1000 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Solid State Drive Interface: NVMe (Connects the solid state drive to the host system. PCI and SATA interfaces are the most common; PCI interfaces are typically faster, but SATA interfaces are compatible with a wider range of systems.)
- Memory
- System Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 5200 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 2
- System Memory RAM Expandable To: 64 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: Intel
- Graphics: Intel Iris Xe Graphics (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 11 Pro (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Connectivity

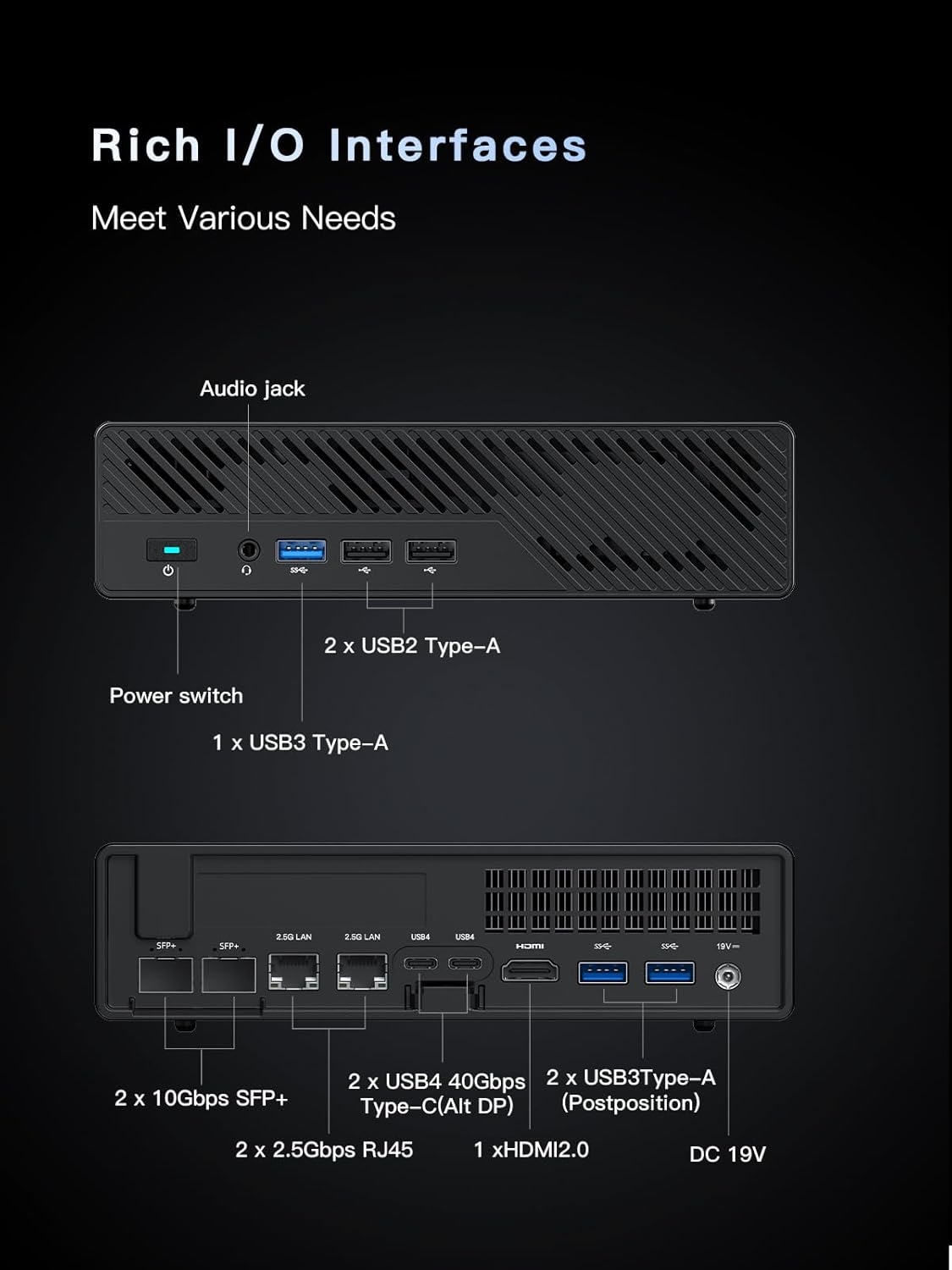

- Display Connector(s): 1 x HDMI 2.0, Display connection via USB port (The number and type of connectors used to connect to an external display.)
- Number of HDMI Outputs (Total): 1
- Number of DisplayPort Outputs (Total): 0
- USB Ports: 3 x USB-A 3.2, 2 x USB-A 2.0, 2 x USB-C 4 (The number and type of USB ports the product has.)
- Number of USB Ports (Total): 7
- Number of USB-A Charging Ports: 5
- Number of USB-C Charging Ports: 2
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Ethernet Ports: 4
- Expansion
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Features
- Size: Mini
- Dimensions
- Product Height: 7.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.12 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: false
- Mouse Included: false
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 4897118832380
The Minisforum MS‑01 is a high‑performance mini desktop engineered for professional workloads, powered by the Intel Core i5‑12600H processor with 14 cores, 20 threads, and turbo speeds up to 5.0GHz. It comes equipped with 32GB of high‑speed memory and a 1TB NVMe SSD, with support for massive enterprise‑class expansion up to 24TB across multiple NVMe drives. Designed for extreme flexibility, the MS‑01 includes a full‑length PCIe 4.0 x16 slot for external GPUs or high‑bandwidth add‑in cards, plus an additional PCIe 4.0 x8 slot for pro‑grade hardware. It supports 8K triple‑display output, making it ideal for creators and engineers who rely on high‑resolution, multi‑monitor workflows. Enterprise‑level Intel vPro technology provides hardware‑rooted security and remote management, while dual 10G SFP+ fiber ports and dual 2.5G Ethernet ports deliver unmatched network performance for servers, NAS, virtualization, and high‑speed production environments.
- High‑Performance Processing: Powered by Intel Core i5‑12600H with 6 cores, 12 threads, and up to 4.8GHz turbo for demanding workloads and smooth multimedia performance
- Advanced Expansion & Bandwidth: Full‑length PCIe 4.0 x16 slot plus PCIe 4.0 x8 slot support high‑performance GPUs, network adapters, and pro‑grade expansion cards

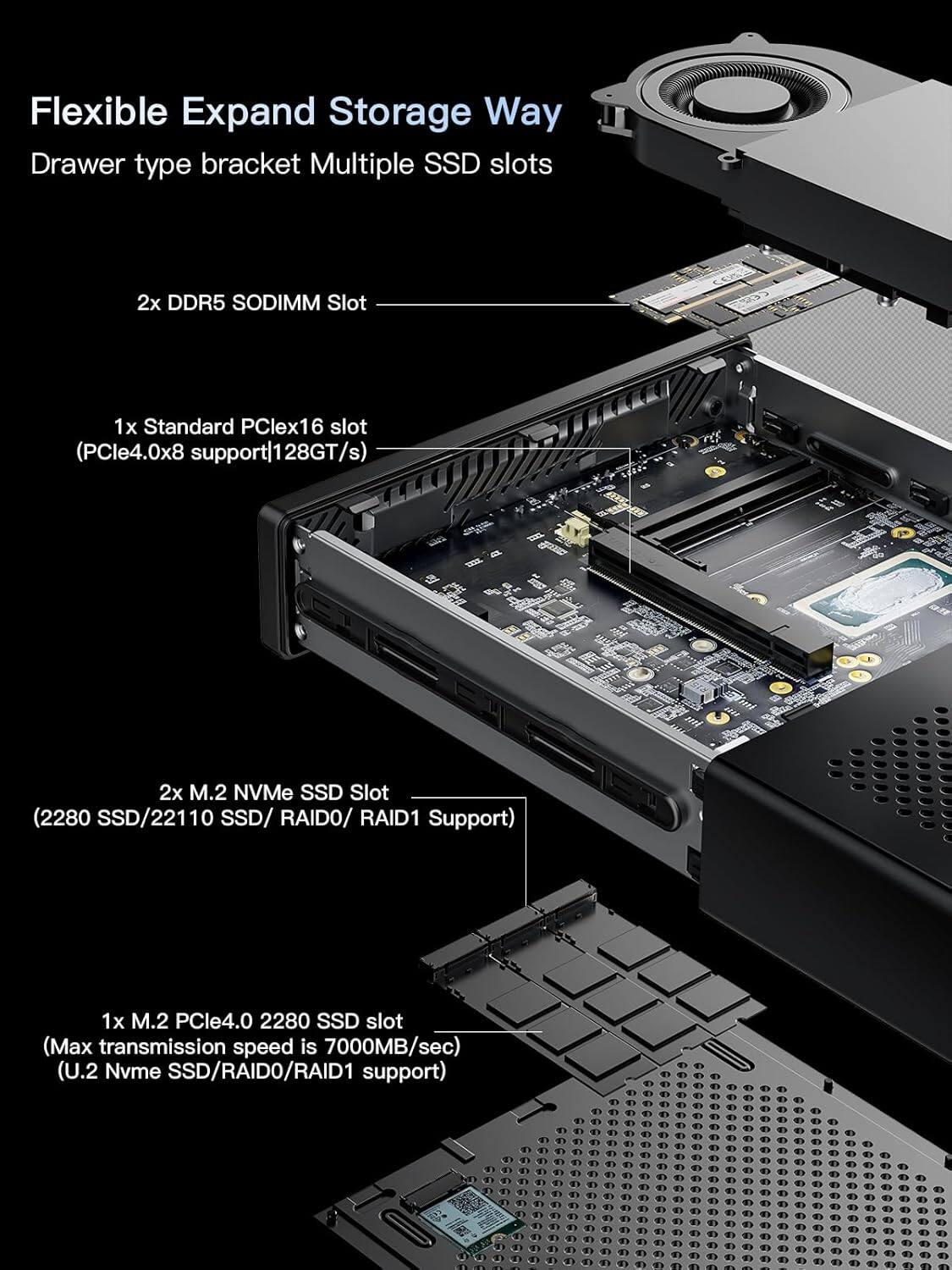

- Enterprise‑Class Storage: Includes 1TB NVMe SSD and supports up to three M.2 NVMe drives plus one U.2 SSD for a massive 24TB total capacity with RAID 0/1
- 8K Triple‑Display Support: Delivers ultra‑high‑resolution output across up to three displays—ideal for 3D rendering, engineering design, video editing, and multi‑monitor workflows

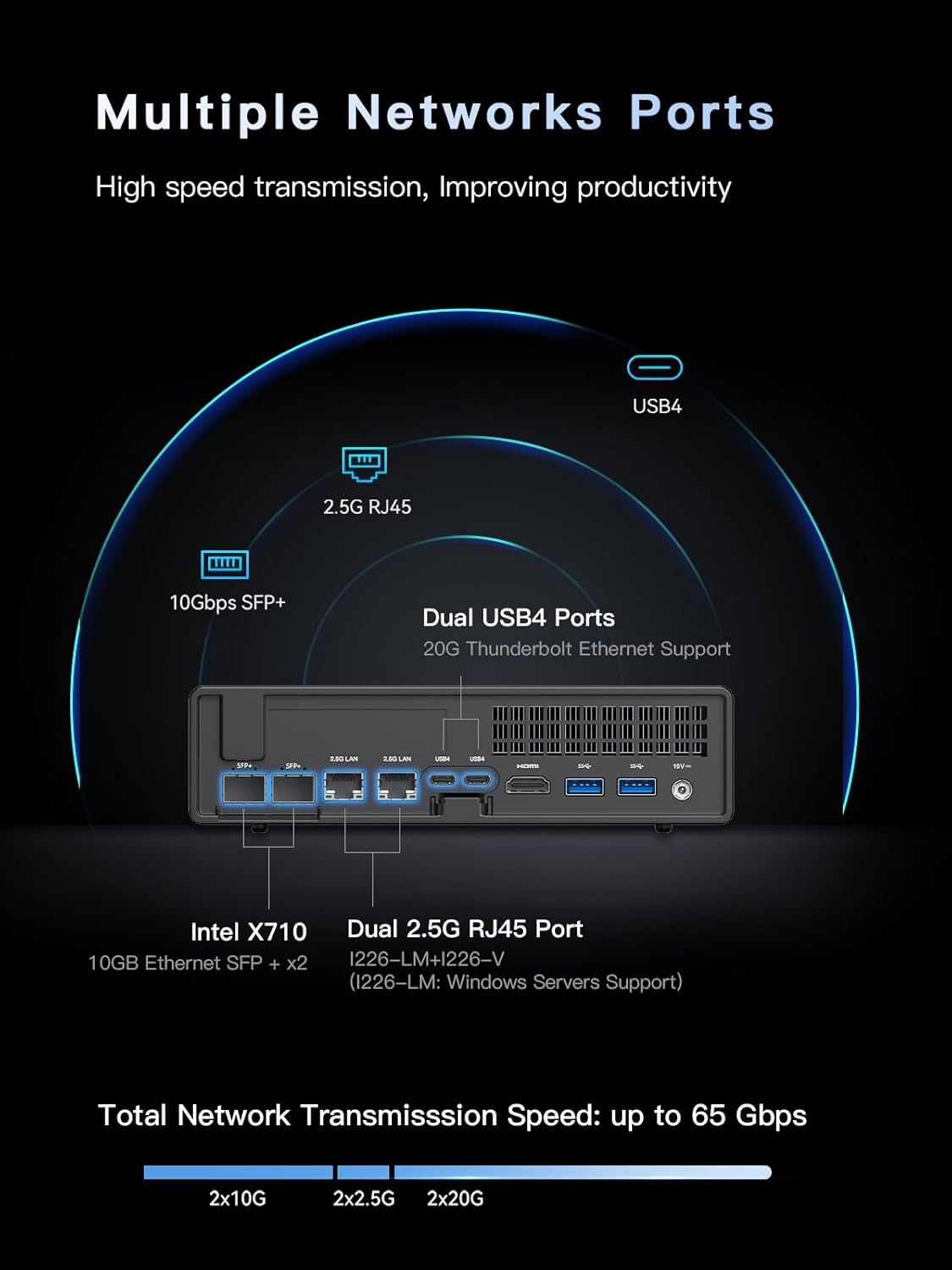

- Ultra‑Fast Networking: Dual 10G SFP+ fiber ports and dual 2.5G Ethernet ports provide exceptional bandwidth for servers, NAS, virtualization, and high‑speed production environments

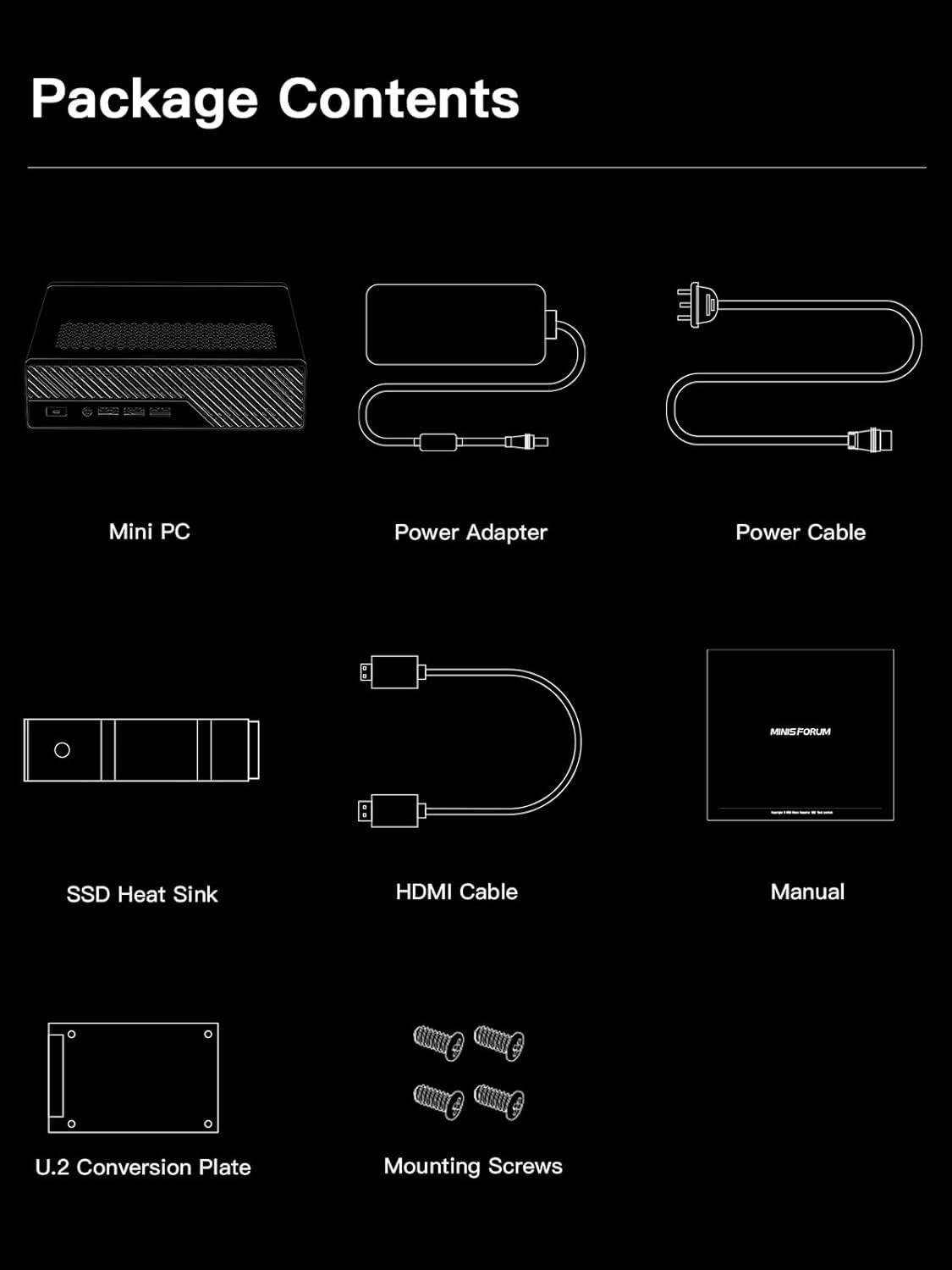

Whats Included
- MS-01 Mini PC, Power Adapter, U.2 Conversion Plate, SSD Heat Sink, Mounting Screw, HDMI Cable, User Manual
