Mohu - Vibe Amplified Indoor HDTV Antenna 50-Mile Range - Gray Tweed
- Key Specs
- Antenna Type: Amplified Antenna, Digital HD Antenna, Multi-Directional Antenna
- Indoor or Outdoor Use: Indoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Range: 50 miles
- Amplified Reception: true (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- General
- Brand: Mohu
- Model Number: VIBEXG
- Product Name: Vibe Amplified Indoor HDTV Antenna 50-Mile Range
- Color: Gray Tweed
- Design
- Antenna Type: Amplified Antenna, Digital HD Antenna, Multi-Directional Antenna
- Indoor or Outdoor Use: Indoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Form Factor: Panel (The size, arrangement, and physical configuration of the product.)
- Mount Location: Wall
- Performance
- Maximum Operating Range: 50 miles
- Channel Reception: UHF, VHF
- Frequency: 470-700MHz, 174-230MHz (A measurement of the electromagnetic radio waves a device emits.)
- Gain: 2.5 decibels relative to isotropic (The higher the gain, the farther the range and higher the efficiency of the antenna.)
- Impedance: 75 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Signal Strength Meter: false
- Features
- Amplified Reception: true (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- Removable Amplifier: true
- Product Type: HDTV antenna
- Connectivity
- Connector Type: F connector
- Connection Type: USB
- Compatibility: Universal TV antenna - Compatible with all HDTVs
- Dimensions
- Product Height: 11.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.63 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 0.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.5 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Coaxial Cable Included: true
- Warranty
- Warranty - Parts: One-year antenna warranty / 90-Day accessory warranty
- Warranty - Labor: Not applicable
- Other
- UPC: 817848012467

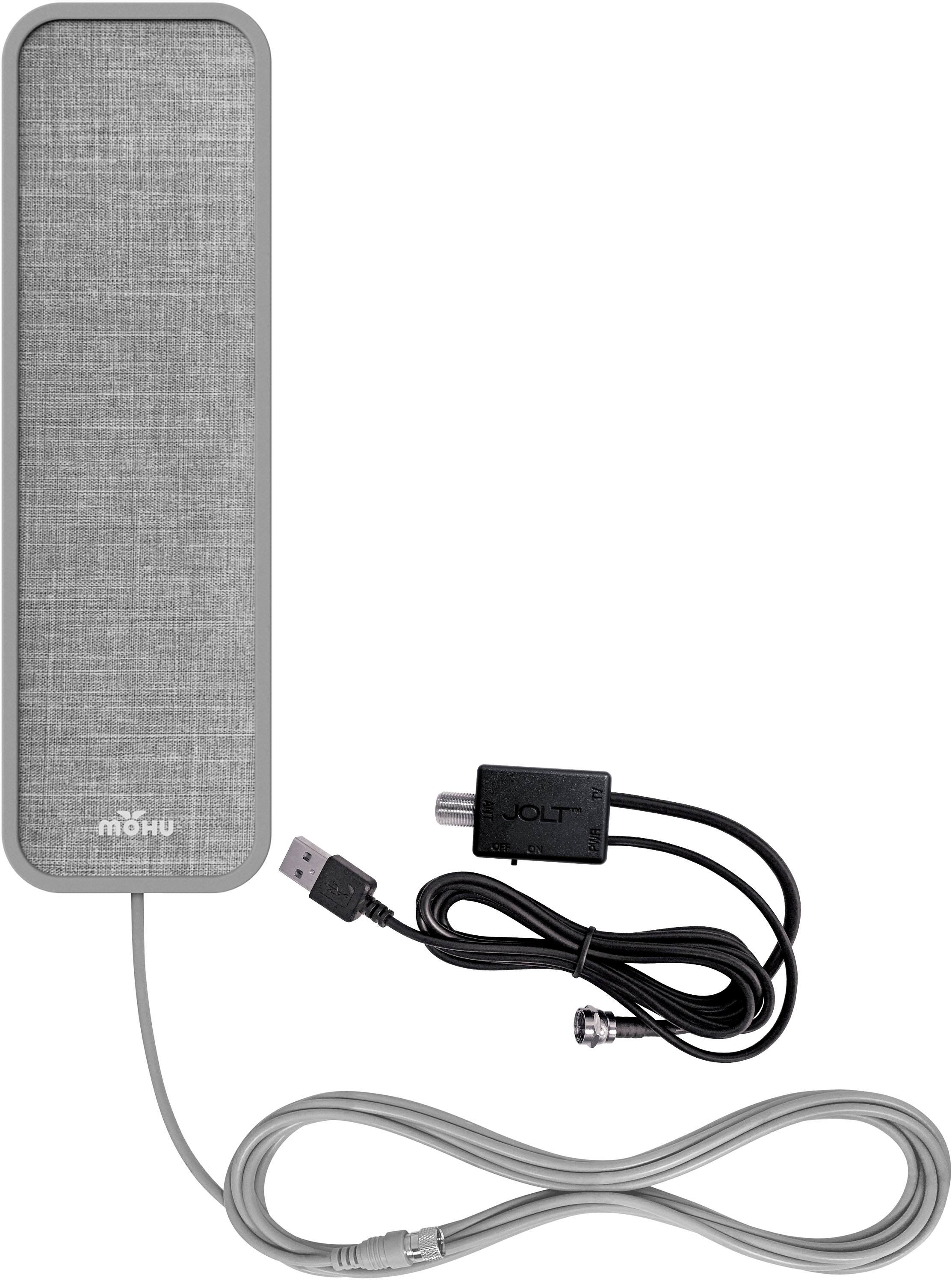

The Mohu Vibe Amplified has contemporary design and impressive 50-mile range with new and improved amplification from the Jolt Switch in-line USB amplifier. Small and mighty, this indoor antenna is made for efficiency and low-profile installation with warm grey tweed texture in a decorative lightweight frame to complement any room. Multi-directional UHF and Hi-VHF antenna elements receive crystal-clear HDTV signal from the front and back of the antenna. High-performance coaxial cable is attached for optimized function and fewer opportunities for lost signal. The Jolt Switch is your antenna’s best friend with 18 dB of amplified gain in real time at the simple flip of a switch. Toggle ON for clear, efficient TV signal boost, sometimes tuning in channels beyond your antenna’s standard range. Toggle OFF when reception doesn’t need a boost without having to uninstall any part of your antenna setup and this all-in-one solution still provides protection and filtering from FM and RF signal interference. Easy setup takes minutes with a keyhole on the back for hanging. Compact profile of both antenna and amplifier make this free TV system perfect for city, suburb, and single-TV homes and small spaces like apartments and dorm rooms. Full HD 1080p, 4K, 8K UHD, and Nextgen TV compatible. No internet required. Find local free TV channels and towers on our website or using our free Antenna Point app. Since introducing the world’s first paper-thin Leaf indoor antenna in 2011, Mohu has embraced new standards for HDTV innovation. We offer a wide range of aesthetically pleasing, easy-to-install indoor digital TV antennas that allow consumers to enjoy the TV they want at a cost they control.
- Inspired by your home: Contemporary compact design with impressive performance.
- Enjoy TV that's free: Networks like ABC, CBS, FOX, NBC, PBS, The CW, Univision, and more, are all broadcast for free over the air. No Internet required.
- Backed by research: Engineered using technology developed in the U.S.A.
- Universal TV antenna - Compatible with all HDTVs: Full HD 1080p, 4K, 8K UHD and NextGen TV compatible.
- Easy to install: Simply connect the antenna, scan for channels, and watch the TV you want at a cost you control!
- Broadband reception: Multi-directional UHF and Hi-VHF elements specifically tuned to the frequencies broadcast in North America receive TV signals from both sides of the antenna.
- Inspired by your home: Contemporary compact design with impressive performance.
- Enjoy TV that's free: Networks like ABC, CBS, FOX, NBC, PBS, The CW, Univision, and more, are all broadcast for free over the air. No Internet required.
- Backed by research: Engineered using technology developed in the U.S.A.
- Universal TV antenna - Compatible with all HDTVs: Full HD 1080p, 4K, 8K UHD and NextGen TV compatible.
- Easy to install: Simply connect the antenna, scan for channels, and watch the TV you want at a cost you control!
- Broadband reception: Multi-directional UHF and Hi-VHF elements specifically tuned to the frequencies broadcast in North America receive TV signals from both sides of the antenna.
Whats Included
- Mohu VIBE Amplified Indoor HDTV Antenna
- 12 ft. high-performance coaxial cable with easy-to-use F-connector
- Jolt Switch 18 dB USB in-line amplifier with coaxial cable and 6 ft. USB cable
- Wall screw and anchor
- Installation instructions
- Mohu VIBE Amplified Indoor HDTV Antenna
- 12 ft. high-performance coaxial cable with easy-to-use F-connector
- Jolt Switch 18 dB USB in-line amplifier with coaxial cable and 6 ft. USB cable
- Wall screw and anchor
- Installation instructions
Product Manuals
Q: Does it have to be plugged into the tv
A: Yes. The female mini-coaxial cable must be attached to the male post on the back of the TV. Also, the USB wire needs to be plugged into one of the USB ports on the TV.
Q: Does this have to be hung on wall or can it be placed on desktop surface?
A: You could put it on the wall, lay flat or use a phone holder to prop it upright
Q: Is this ok to use in a travel trailer?
A: anywhere that you could receive a clear signal without using cable access
