MSI - Intel H610 DDR4 64GB Motherboard PROH610MGD4WIFI
More Buying Options from Marketplace sellers
Specifications
- ChipsetIntel H610Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 5Number Of Memory Slots2Maximum Memory Supported64 gigabytes
- Key Specs
- Chipset: Intel H610
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: MSI
- Model Number: PRO H610M-G WIFI DDR4
- Product Name: Intel H610 DDR4 64GB Motherboard PROH610MGD4WIFI
- Compatibility
- Chipset: Intel H610
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 2
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 4 x USB-A 3.2, 6 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244.1 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 28 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: Unknown (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: None (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 824142299081

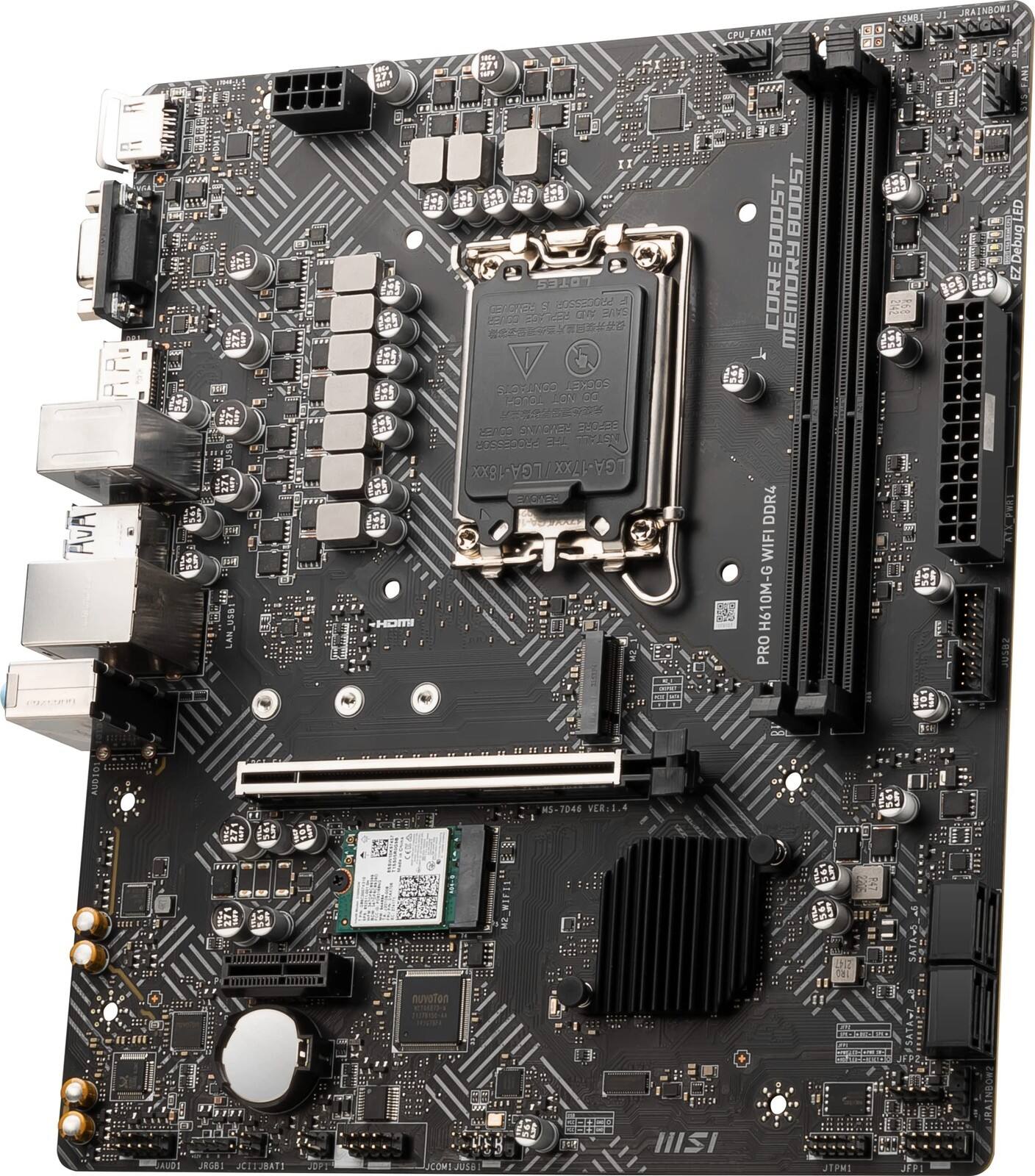

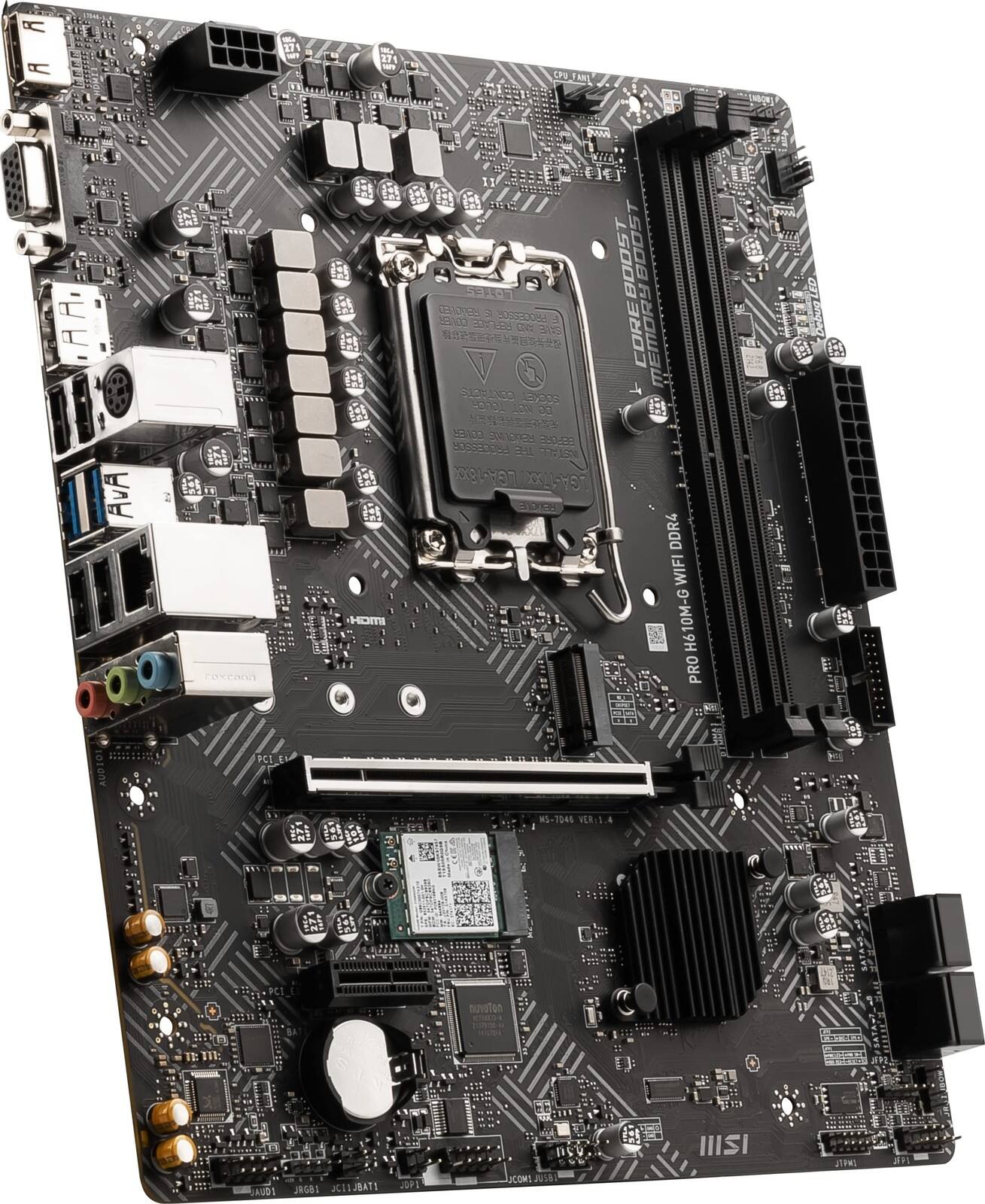

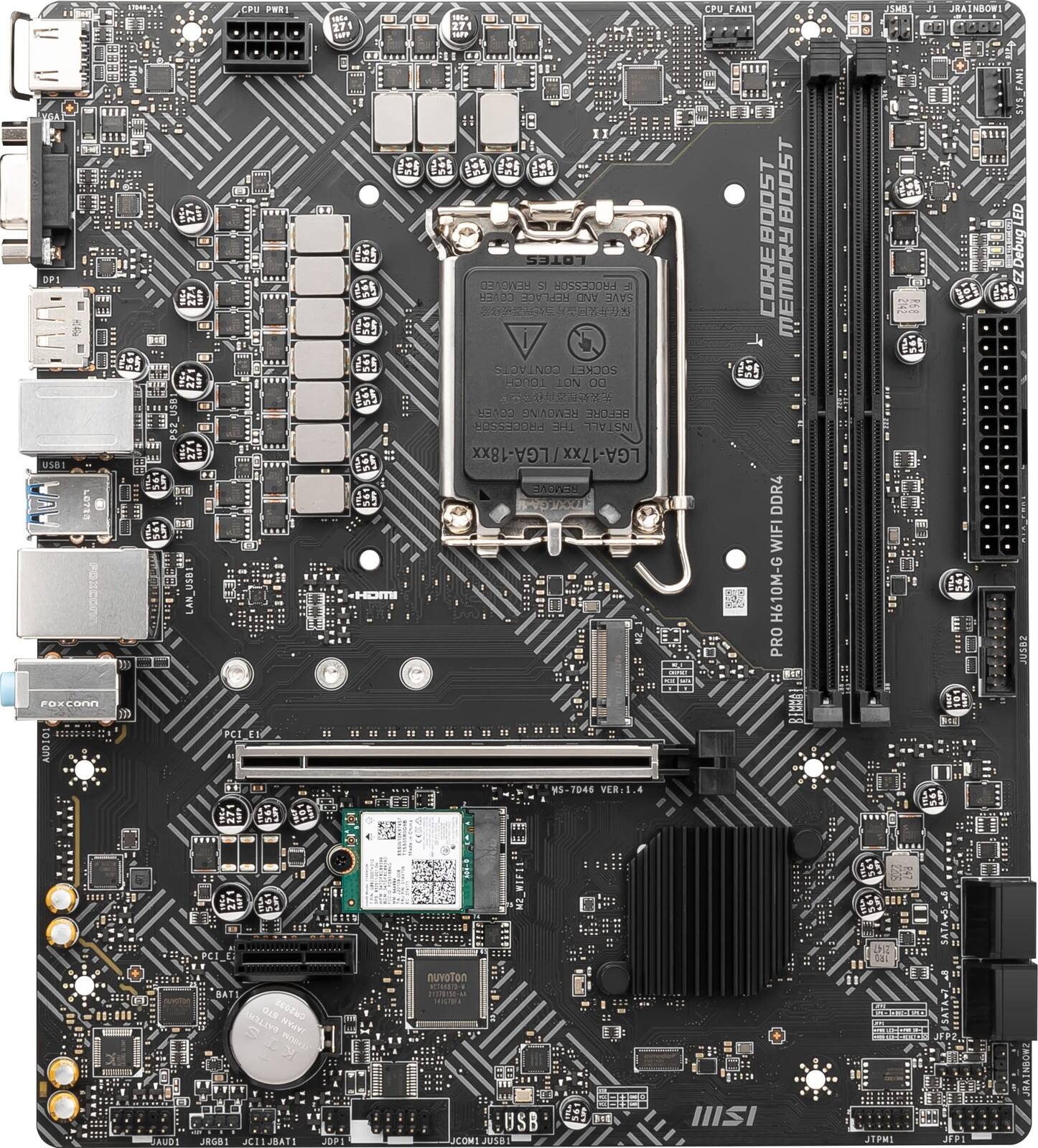

PRO H610M-G WIFI DDR4 Motherboard supports 12th Gen Intel Core Processors, Pentium gold and Celeron Processors. It features Lightning Gen4 PCI-E solution with up to 64 GB/s bandwidth for maximum transfer speed. Memory Boost also helps to deliver pure data signals for the best performance, stability and compatibility. Premium layout and fully digital power design support more cores and provides better performance. PCI-E Steel Armor protects video cards against bending and EMI. Frozr AI Cooling detects CPU and GPU temperatures and automatically adjusts system fan duty to a proper value. Enjoy studio grade sound quality with Audio Boost for the most immersive audio experience.
- Video Support: For processors that support integrated graphics, you get access to HDMI and DisplayPort video outputs as well as one VGA port for legacy hardware.
- Memory Capacity: Supports up to 64GB of DDR4 memory, with speeds up to 3200 MHz.
- Expansion Slots: Equipped with 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot for versatile expansion.
- Connectivity Options: Offers HDMI, DisplayPort, and VGA ports for multiple display connections.
- Audio Features: Features Realtek ALC892/ALC897 codec for 7.1-channel high-definition audio.
Whats Included
- 1
