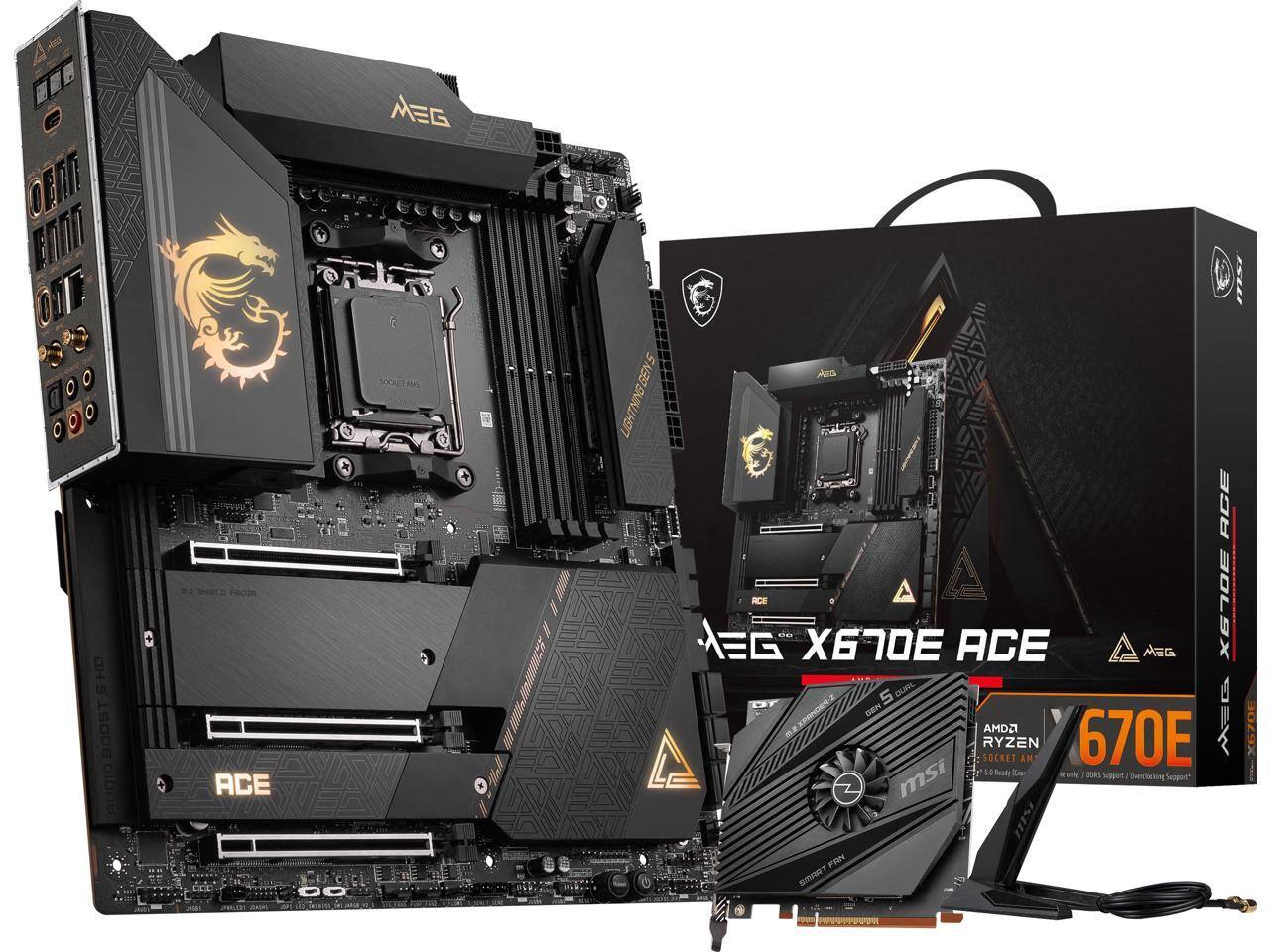

MSI - MEG X670E ACE Desktop Motherboard
Specifications
- ChipsetAMD X670Form FactorEATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: AMD X670
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Product Name: MEG X670E ACE Desktop Motherboard
- Compatibility
- Chipset: AMD X670
- Chipset Compatibility: AMD
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 2 x USB-C 3.2, 8 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.0 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 10.7 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.4 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4800 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142299180
The MEG X670E ACE Desktop Motherboard is engineered for high-performance computing, supporting AMD Ryzen 7000 Series processors on the Socket AM5 platform. It offers 4 DDR5 memory slots with a maximum capacity of 128GB, ensuring efficient multitasking and data handling. The motherboard is equipped with 3 PCIe 5.0 x16 slots, facilitating multi-GPU setups for enhanced graphics performance. Storage options are abundant, featuring 4 M.2 slots and 6 SATA 6Gb/s ports, accommodating a wide range of storage devices. Networking is robust with a 10Gbps LAN port and Wi-Fi 6E support, providing fast and reliable connectivity. Additionally, the motherboard includes advanced audio capabilities with a Realtek ALC4082 Codec and ESS ES9280AQ Combo DAC/HPA, delivering high-quality sound output.
- Processor Support: Compatible with AMD Ryzen 7000 Series Desktop Processors, utilizing the Socket AM5.
- Memory Capacity: Equipped with 4 DDR5 memory slots, supporting up to 128GB of memory.
- Expansion Slots: Features 3 PCIe 5.0 x16 slots, enabling multi-GPU configurations.
- Storage Options: Offers 4 M.2 slots and 6 SATA 6Gb/s ports for versatile storage solutions.
- Networking Capabilities: Includes a 10Gbps LAN port and supports Wi-Fi 6E for high-speed connectivity.
- Processor Support: Compatible with AMD Ryzen 7000 Series Desktop Processors, utilizing the Socket AM5.
- Memory Capacity: Equipped with 4 DDR5 memory slots, supporting up to 128GB of memory.
- Expansion Slots: Features 3 PCIe 5.0 x16 slots, enabling multi-GPU configurations.
- Storage Options: Offers 4 M.2 slots and 6 SATA 6Gb/s ports for versatile storage solutions.
- Networking Capabilities: Includes a 10Gbps LAN port and supports Wi-Fi 6E for high-speed connectivity.
