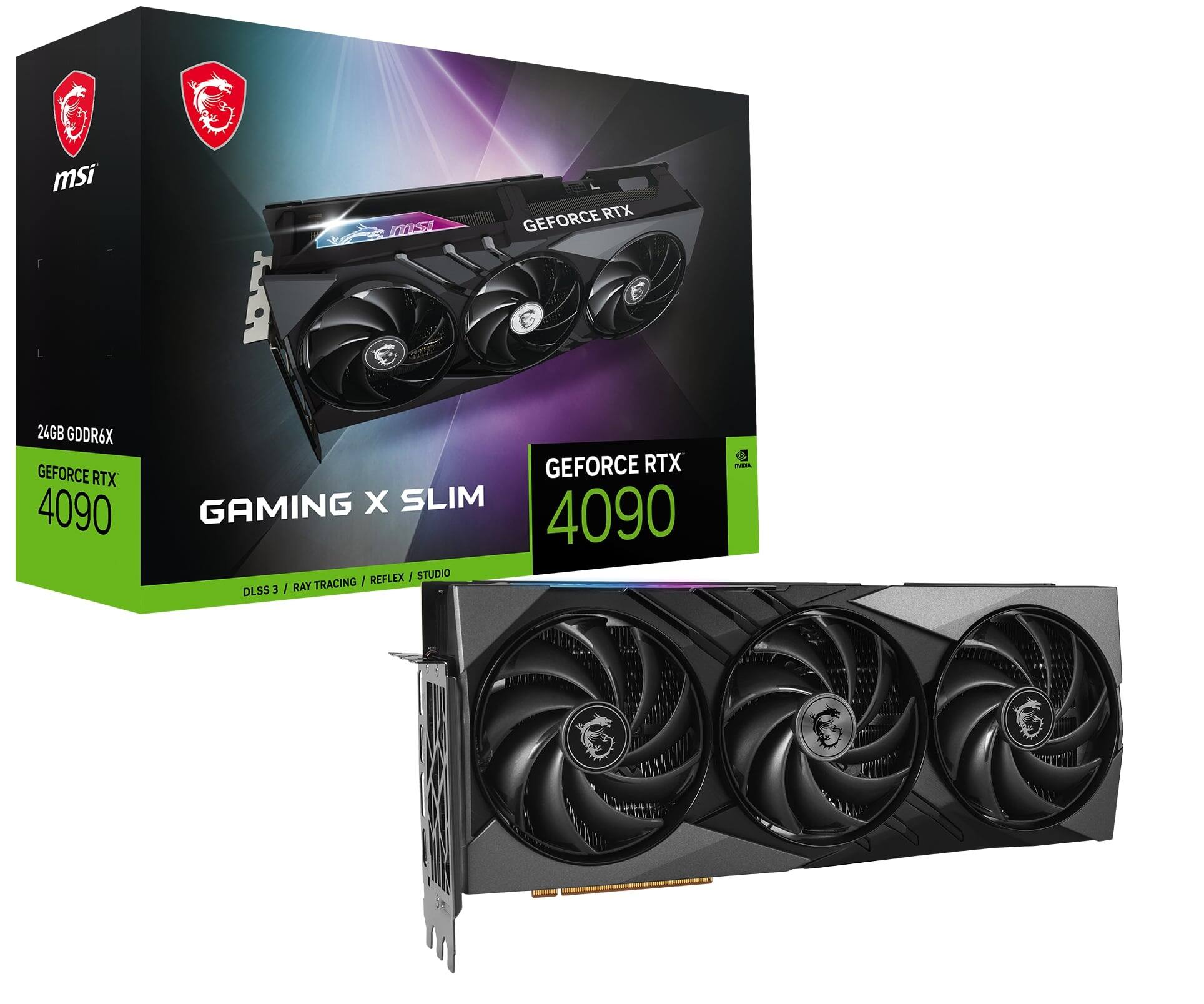

MSI - NVIDIA GeForce RTX 4090 GAMING X SLIM 24G - 24GB DDR6X PCI Express 4.0 Graphics Card - Black
Model: RTX 4090 GAMING X SLIM 24G
SKU: 6560954
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 2.235 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.52 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 24 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 3-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 337 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 77 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: MSI
- Model Number: RTX 4090 GAMING X SLIM 24G
- Product Name: NVIDIA GeForce RTX 4090 GAMING X SLIM 24G - 24GB DDR6X PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4090 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Performance
- GPU Base Clock Frequency: 2.235 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.52 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 24 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 21 gigahertz
- Compatibility
- Slot Size: 3-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 450 watts
- Recommended Power Supply: 850 watts
- Dimensions
- Product Height: 337 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 77 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 4.78 pounds (The out of box weight of the item.)
- Other
- UPC: 824142336687
The NVIDIA GeForce RTX 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of GDDR6X memory to deliver the ultimate experience for gamers and creators.
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 4090 graphics processing unit (GPU) with a 2.52 GHz boost clock speed
- 24GB GDDR6X (384-bit): 24GB GDDR6X (384-bit) Video Memory.
- Interface Compatibility: PCI Express 4.0 and earlier PCI Express 3.0. Offers compatibility with a range of systems.
- API (Application Programming Interface) Support: DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6 support
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 4090 graphics processing unit (GPU) with a 2.52 GHz boost clock speed
- 24GB GDDR6X (384-bit): 24GB GDDR6X (384-bit) Video Memory.
- Interface Compatibility: PCI Express 4.0 and earlier PCI Express 3.0. Offers compatibility with a range of systems.
- API (Application Programming Interface) Support: DirectX 12 Ultimate, Vulkan RT, OpenGL 4.6 support
Whats Included
- NVIDIA GeForce RTX 4090 GAMING X SLIM 24G - 24GB DDR6X PCI Express 4.0 Graphics Card
- NVIDIA GeForce RTX 4090 GAMING X SLIM 24G - 24GB DDR6X PCI Express 4.0 Graphics Card
Product Manuals
A: The listed dimensions of the RTX 4090 Gaming X Slim 24G is 322 x 136 x 62 mm.
Q: Is there any difference in performance between the gaming x trio and the gaming x slim?
A: The Gaming X Slim is equipped with a slightly smaller cooler which may affect the boosting ability of the graphics card.
A: It has 2 DP, 2 HDMI, MSI may be the one that needs to update their photos.
