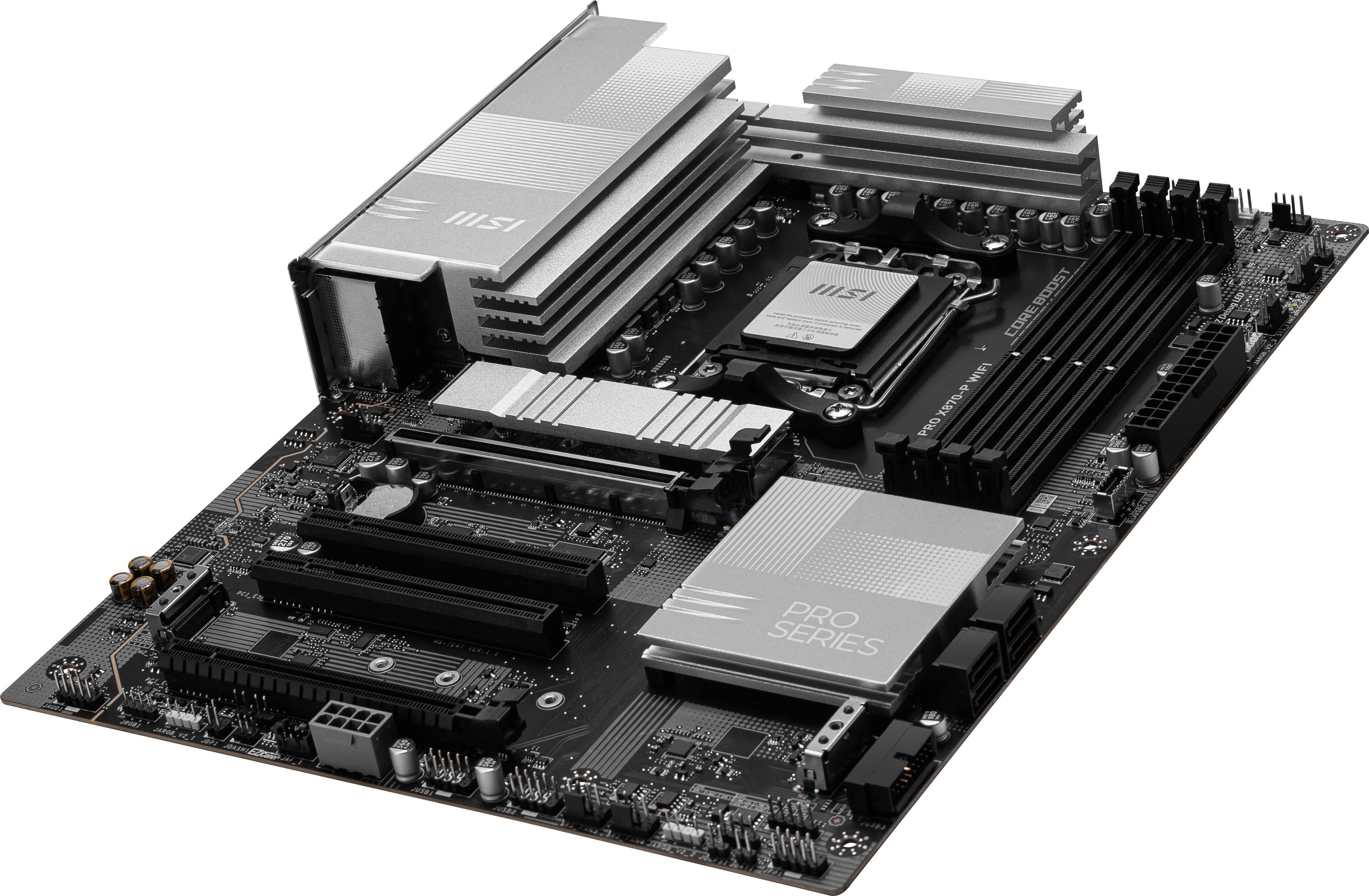

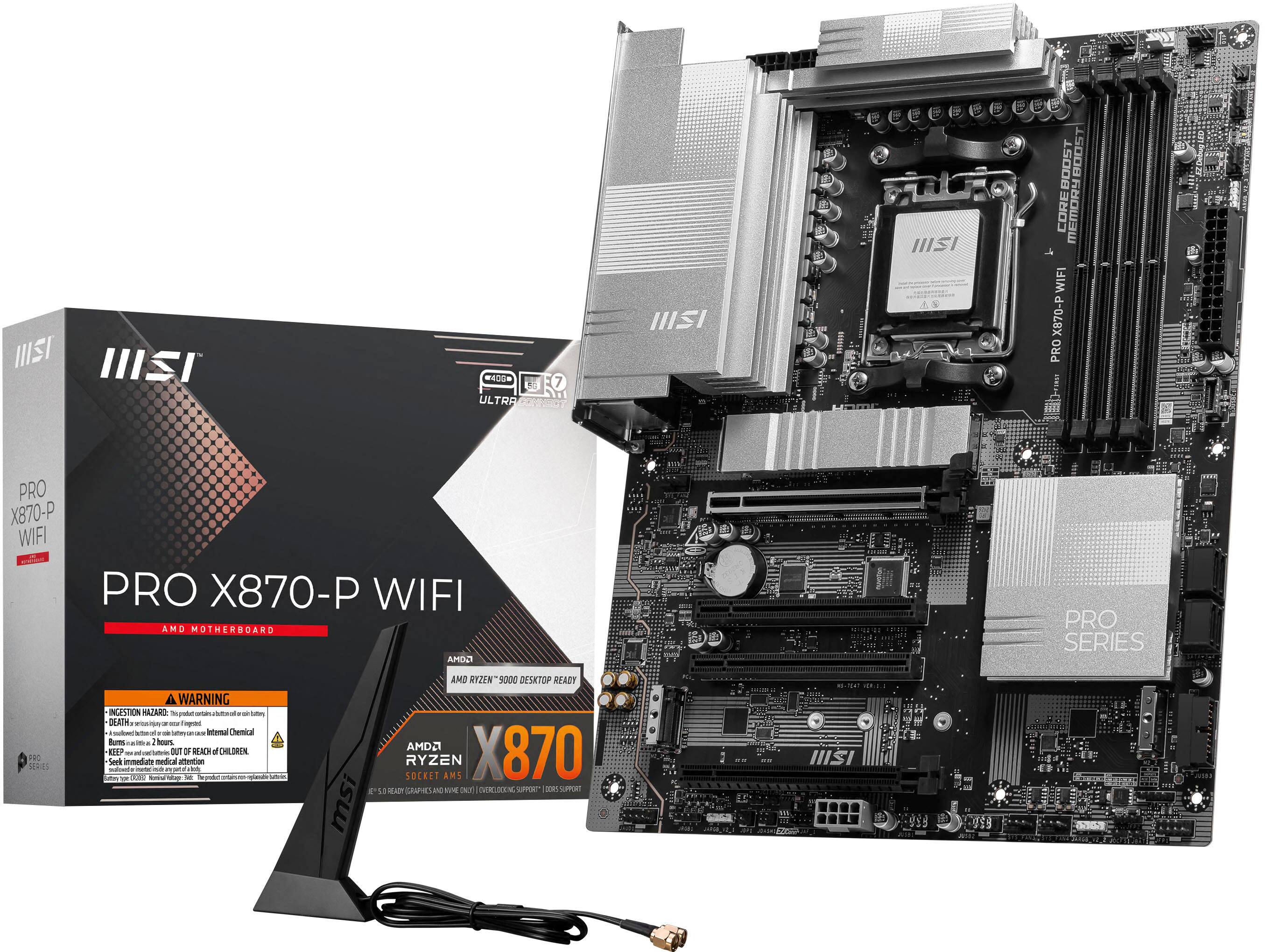

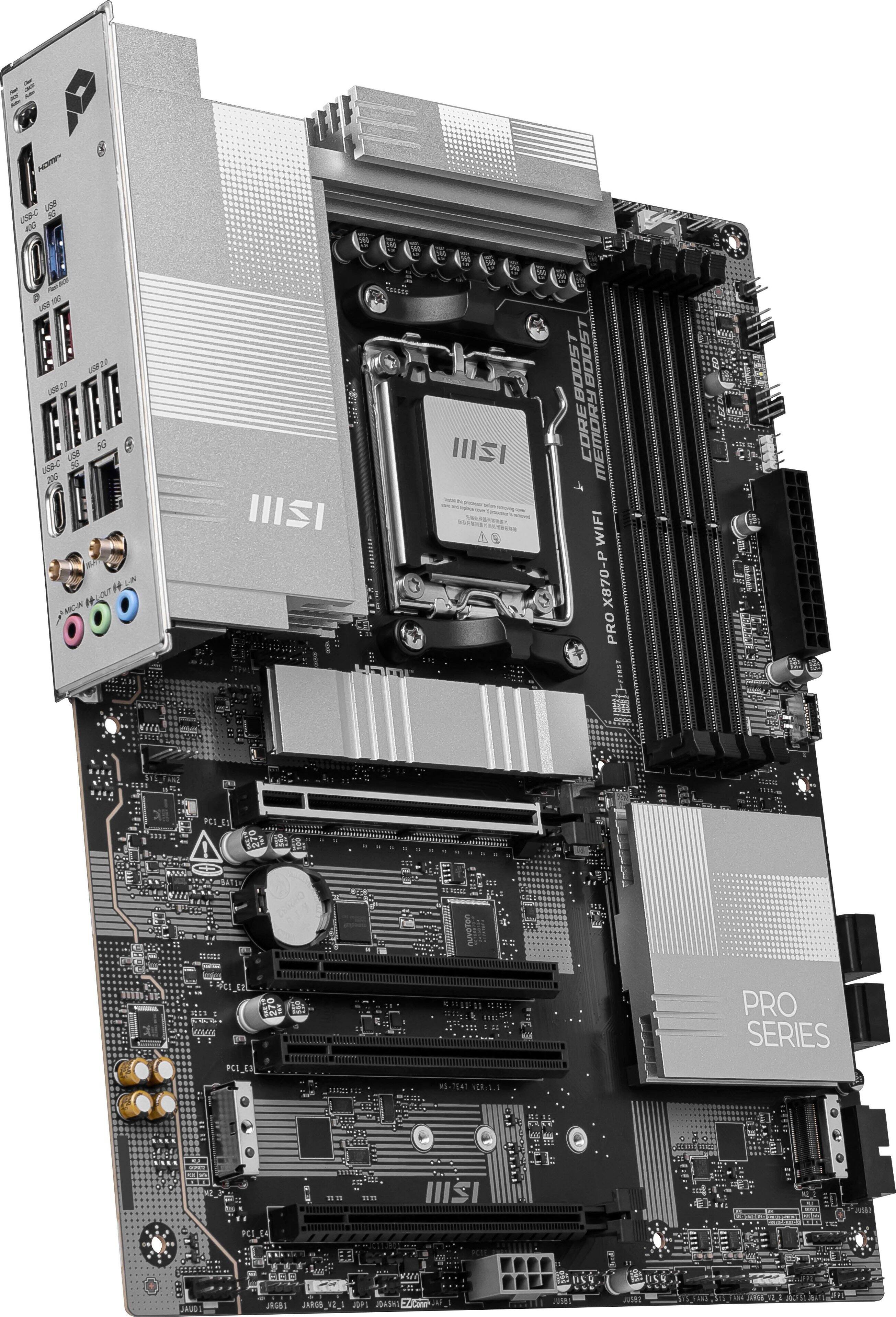

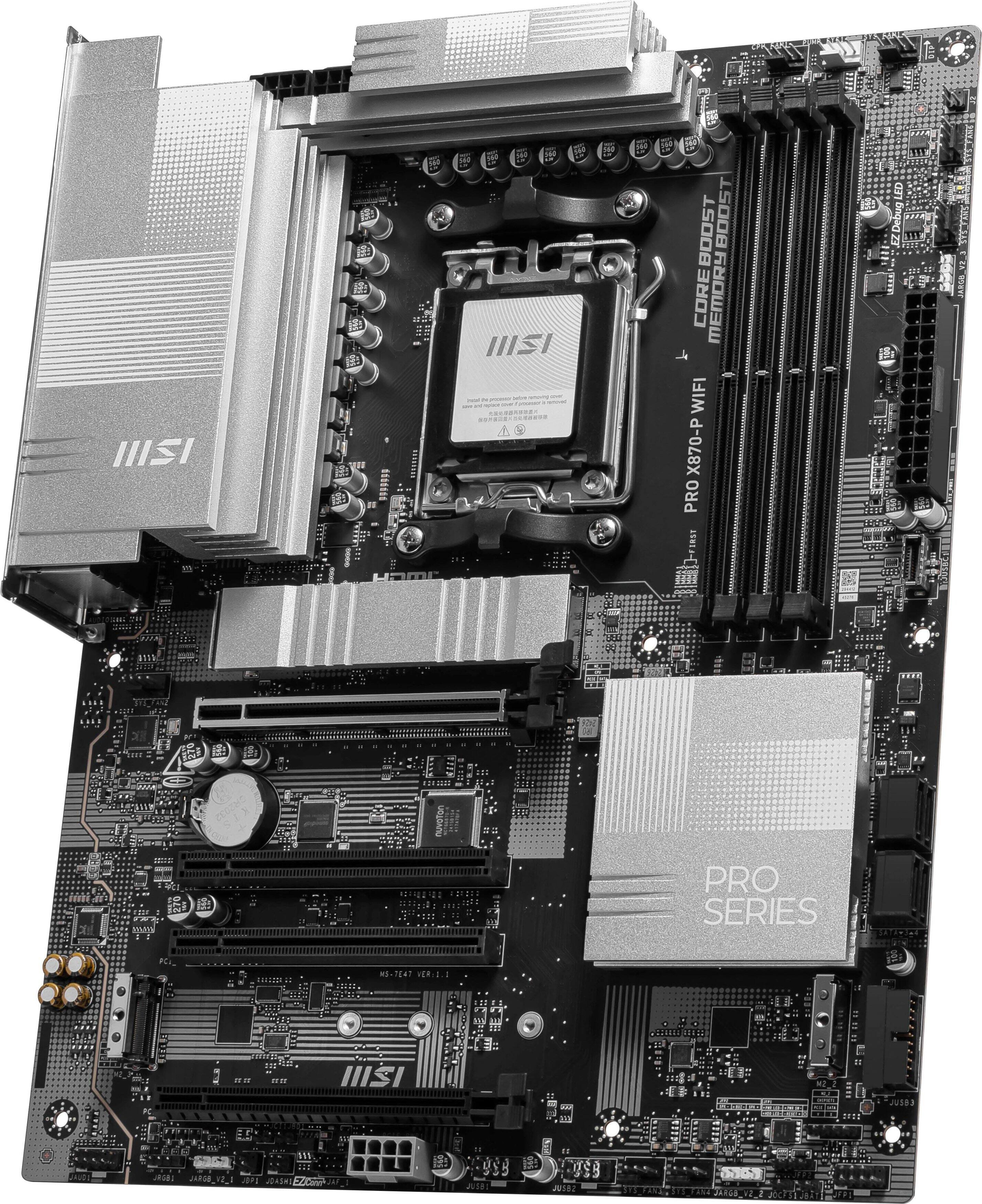

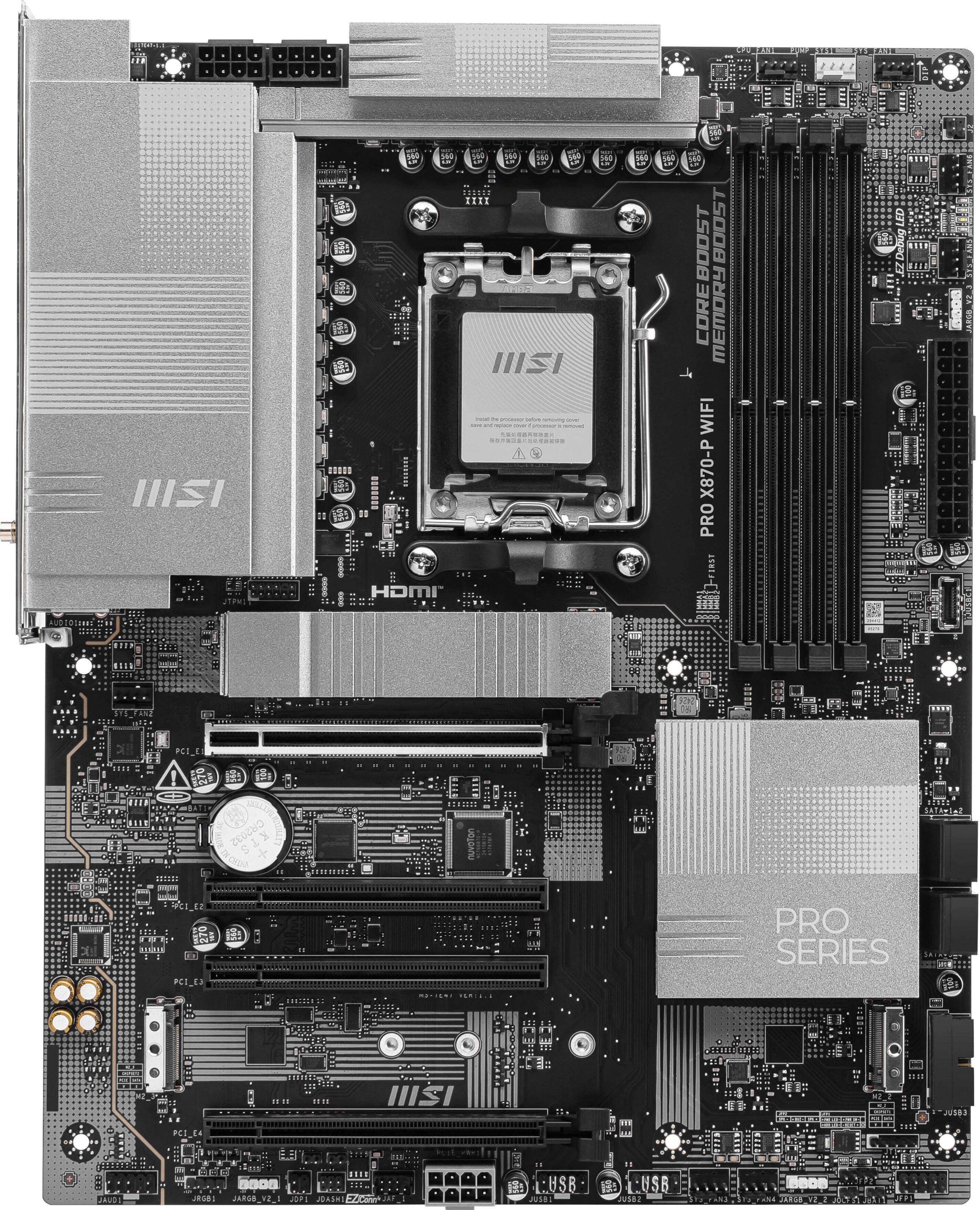

MSI - PRO X870-P WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
Intel - Core i9-14900K 14th Gen 24-Core 32-Thread - 4.4GHz (6.0GHz Turbo) Socket LGA 1700 Unlocked Desktop Processor - Multi$499.99
More Buying Options
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: PRO X870-P WIFI
- Product Name: PRO X870-P WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2024
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 5 7000 Series
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)

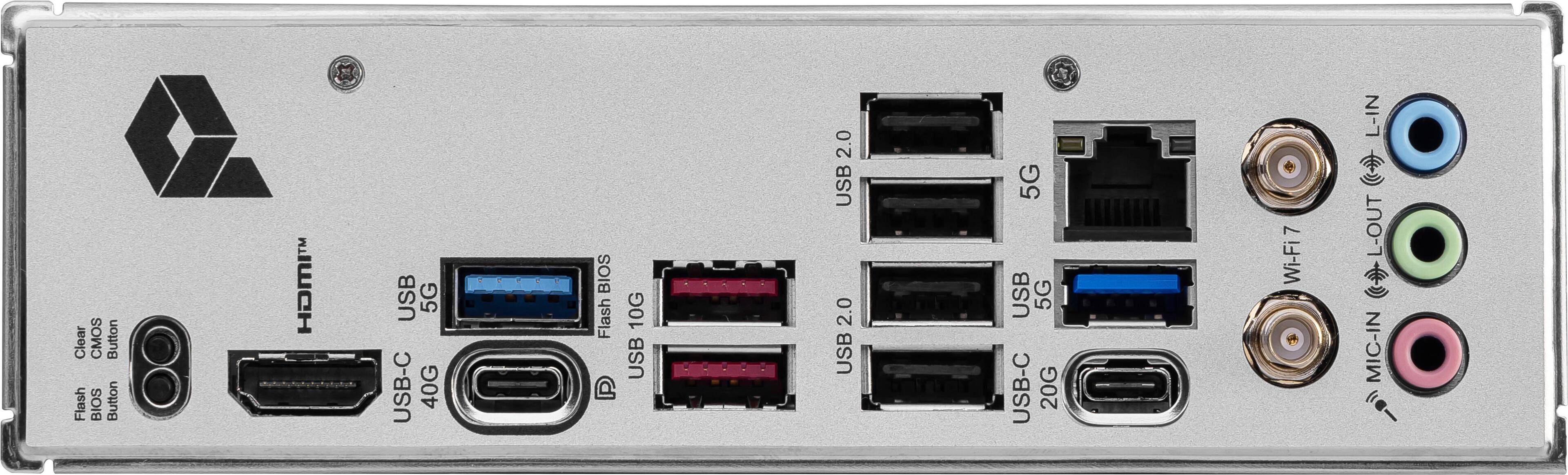

- Ports
- USB Ports: 8 x USB-A 2.0, 8 x USB-A 3.0, 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 48 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142380987
PRO X870-P WIFI takes all the essential elements of the AMD Ryzen 9000/7000 series processors and combines them with game-ready features and proven durability.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor Socket AM5
- Speed (memory speed supported): 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MH
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor Socket AM5
- Speed (memory speed supported): 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MH
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
Q: What is the warranty period for the motherboard?
A: The manufacturer's warranty for both parts and labor is 3 years.
Q: Can the motherboard support AMD Ryzen 9 9000 Series processors?
A: This motherboard offers support for AMD Ryzen 9 9000 Series processors.
Q: How many memory slots does the motherboard have?
A: The motherboard has four memory slots.
Q: What is the maximum memory capacity supported by the motherboard?
A: The maximum memory capacity supported by the motherboard is 256 gigabytes.
Q: Does the motherboard support RAID?
A: This motherboard supports RAID 0.
Q: What is the processor socket type of the motherboard?
A: The processor socket type of the motherboard is Socket AM5 (LGA 1718).
Q: Does this motherboard support 7200 MHz ram speeds?
A: Hello anon - this motherboard does support up to 7200Mhz system memory speeds. Please reference the full products spec details and owners manual to ensure you are making the right selections. https://www.msi.com/Motherboard/PRO-X870-P-WIFI/Specification
Compare similar products
PRO X870-P WIFI takes all the essential elements of the AMD Ryzen 9000/7000 series processors and combines them with game-ready features and proven durability.

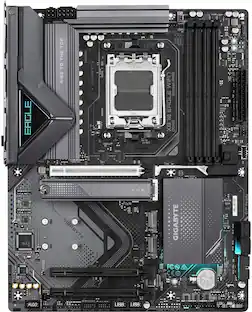

The X870 EAGLE WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The PRO X870E-P WIFI brings together the essential power of AMD Ryzen 9000 and 7000 series processors with game-ready features and proven durability, delivering a reliable and high-performance platform.

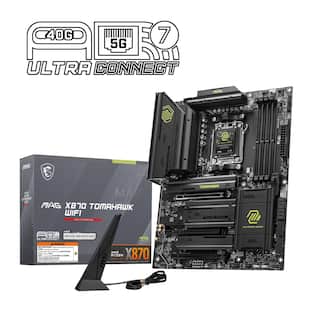

MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
| Pros for MSI - PRO X870-P WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| Performance | Connectivity, BIOS, Build Quality, Installation, Compatibility | Heat Dissipation | Connectivity, BIOS, Overall Performance, Installation Ease, Features |
Specs
Reviews
Customers are saying
Customers have good things to say about the PRO X870-P WIFI motherboard. Users are enjoying the robust performance and extensive connectivity that this motherboard provides. There are currently no negative comments available for this product.

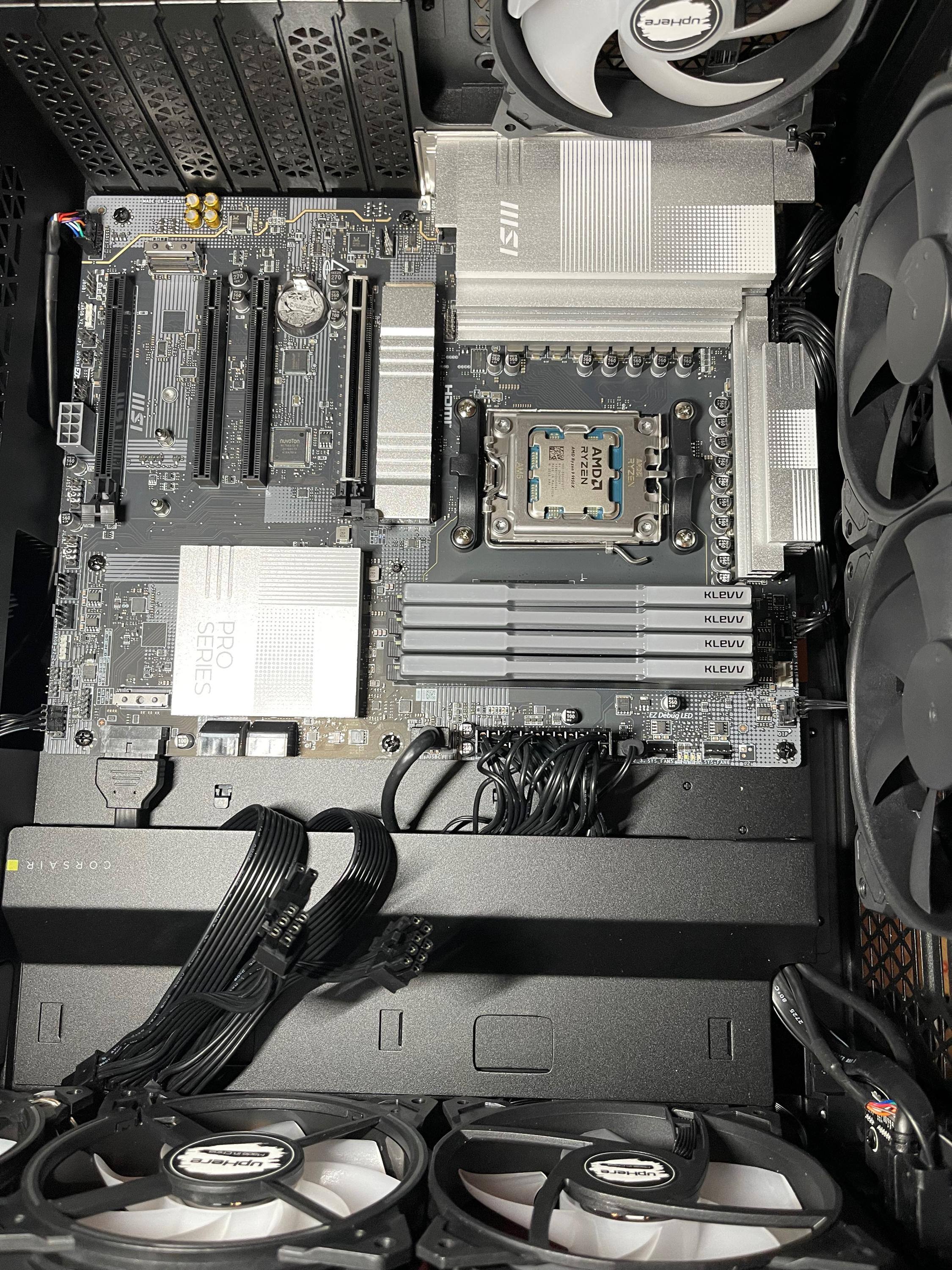

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Good mid tier motherboard with wifi 7
This motherboard has most of the features you want except extra 40gb usbc ports on the rear panel. If thats important to you look at the x870e boards. It has one 40 and one 20gbps usb c ports though. It also has a 5 gb ethernet port but wont be of value if your switch can onky handle 1gbps. Everything else is pretty standard. Requires two cpu 8 pin power to the motherboard so check your power supply if your videocard requires 3 pcie connectors as well. It has a strange extra pcie connector on the board to give extra power to the video card i think it said in the documentation. Other then that, its a pretty straight forward install. This mobo was tested with 8000mt but im sticking with 6400 cl32 for now as i think it gives the best bang for the buck. Im using this with a 9950x as well as a 9800x3d which is coming tomorrow.
Posted by Marky
- Rated 5 out of 5 stars
Outstanding Performance
The MSI X870-P WIFI has exceeded my expectations in every aspect. From its robust performance and extensive connectivity to its elegant design and ease of use, it stands out as a premier choice in the motherboard market. Whether you're building a gaming rig or a powerful workstation, the MSI X870-P WIFI is a fantastic option that won't disappoint. Highly recommended!
Posted by kbxlove
- Rated 5 out of 5 stars
So far so good! Highly recommended
Great motherboard durable so far just fired it up yesterday. Easy to install and for most part lay out is perfect. The board is powerful and rich to pair with new CPU. The pricing justifies the product itself as well
Posted by Haley
