MSI - PRO X870E-P WIFI (Socket AM5) AMD X870E ATX DDR5 Wi-Fi 7 Motherboard - Gray
CORSAIR - RS120 120mm PWM Computer Case Fan Expansion Fan - Black$14.99
More Buying Options
Related Item
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: PRO X870E-P WIFI
- Product Name: PRO X870E-P WIFI (Socket AM5) AMD X870E ATX DDR5 Wi-Fi 7 Motherboard
- Color: Gray
- Year of Release: 2025
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 2x SATA (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 10 x USB-A 2.0, 2 x USB-A 3.0, 3 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 71.04 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142425565

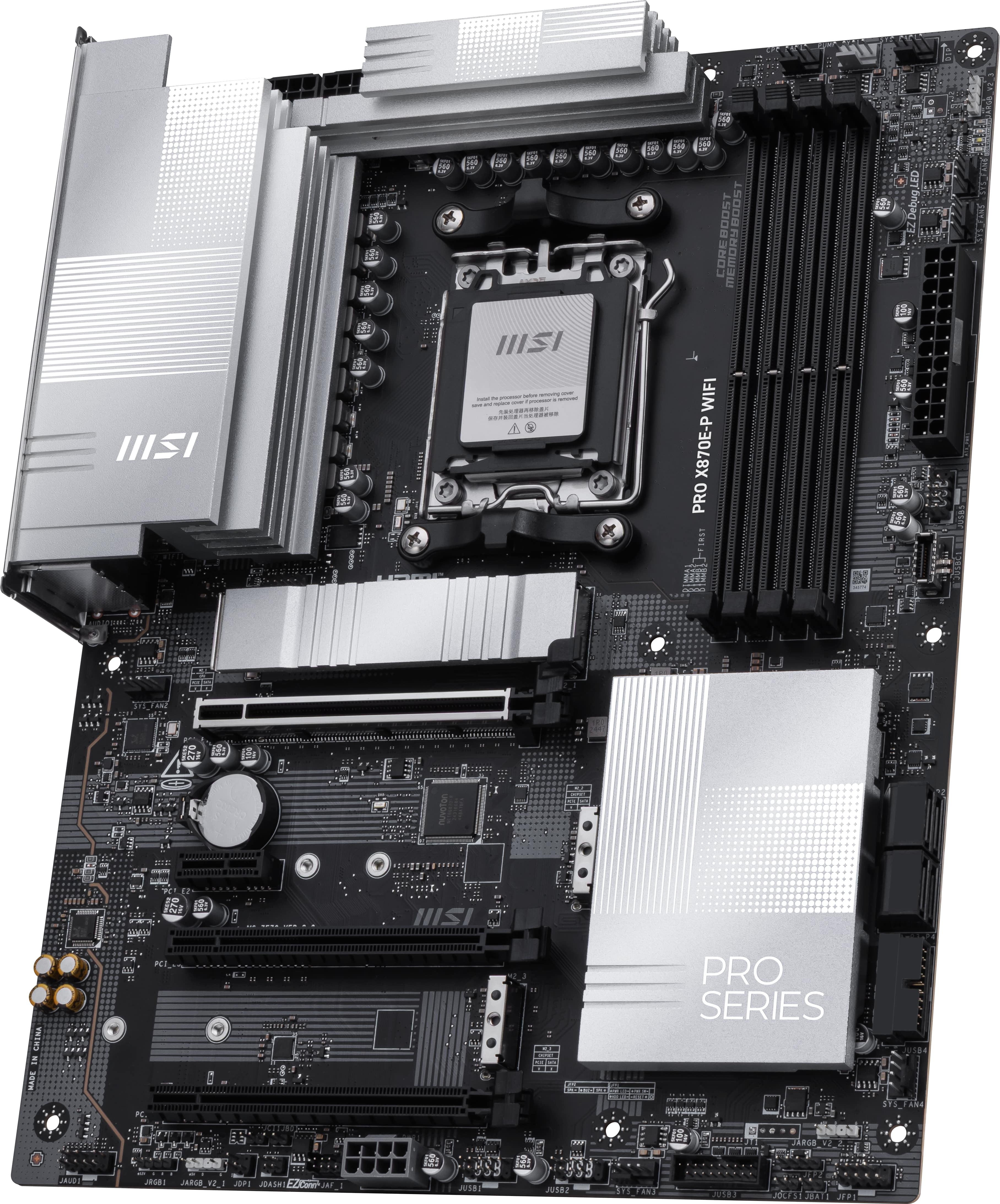

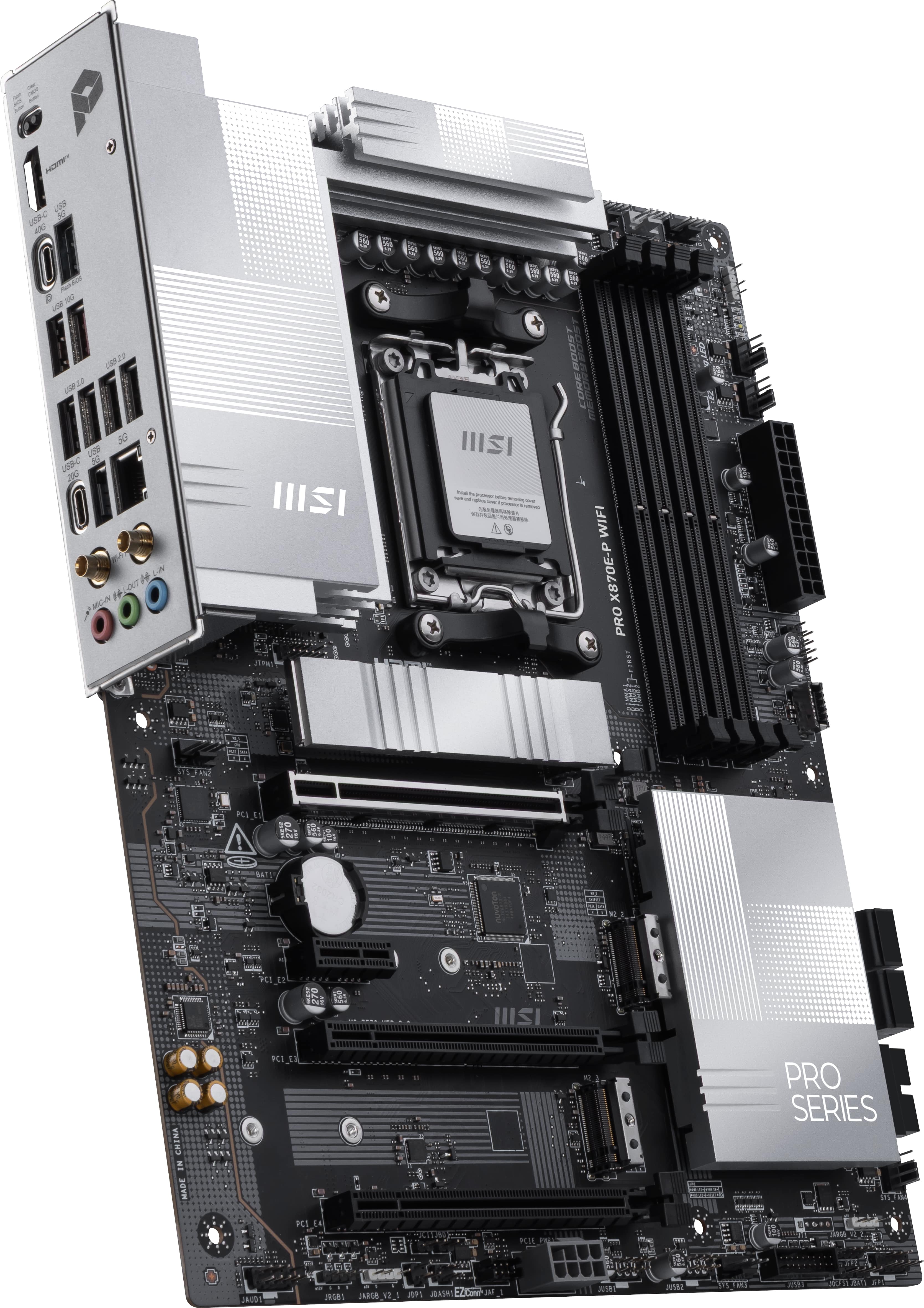

The PRO X870E-P WIFI brings together the essential power of AMD Ryzen 9000 and 7000 series processors with game-ready features and proven durability, delivering a reliable and high-performance platform.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor
- Speed (memory speed supported): 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Dual Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor
- Speed (memory speed supported): 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Dual Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
Compare similar products
The PRO X870E-P WIFI brings together the essential power of AMD Ryzen 9000 and 7000 series processors with game-ready features and proven durability, delivering a reliable and high-performance platform.
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
PRO X870-P WIFI takes all the essential elements of the AMD Ryzen 9000/7000 series processors and combines them with game-ready features and proven durability.
| Pros for MSI - PRO X870E-P WIFI (Socket AM5) AMD X870E ATX DDR5 Wi-Fi 7 Motherboard - Gray | |||
|---|---|---|---|
| Heat Dissipation | Overall Performance, Ease of Use, BIOS, Connectivity, Features | There were no pros for this product— | Performance |
Specs
Reviews
Customers are saying
Customers admire the PRO X870E-P WIFI motherboard's excellent heat dissipation capabilities. Many comments praise its effective cooling performance, noting that components stay cool even under load. There were no reported negative aspects mentioned by customers. This suggests a positive overall user experience regarding thermal management.
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Recommended
This motherboard really hits the sweet spot between premium features and a reasonable price. It’s got all the next-gen ports, solid power delivery, great cooling, and the layout made building super easy. It worked perfectly with my AMD setup, and I had no trouble installing it—the instructions were clear, and MSI’s support team was quick to respond when I had a couple of questions. I’m definitely sticking with their products going forward. Also, the silver heatsink looks awesome—works great with both white and black builds.
Posted by Emma
- Rated 5 out of 5 stars
great motherboard with solid looks
wanted more ports so i got this motherboard and it doesn’t disappoint! i like the grey heatsinks as my pc is mainly black with great cooling. my 9900x works perfectly and i got rgb ram to add some color. the new ports make sure i don’t need an upgrade for a while. it was easy to install and booted up on first try. putting on the froze for the ssd was easy and i’m really happy with this
Posted by BC1992
- Rated 5 out of 5 stars
Nice Upgrade
I recently upgraded to the MSI PRO X870E-P WIFI, and I couldn’t be more satisfied! Right out of the box, everything felt premium and well-crafted. The installation was seamless, with a clean layout that makes airflow and cable management a breeze. I especially love the sleek, professional look — it blends perfectly with my setup and just feels right. This motherboard reminded me why I love building PCs. If you’re on the fence, just do it — you won’t regret it!
Posted by kbxlove
