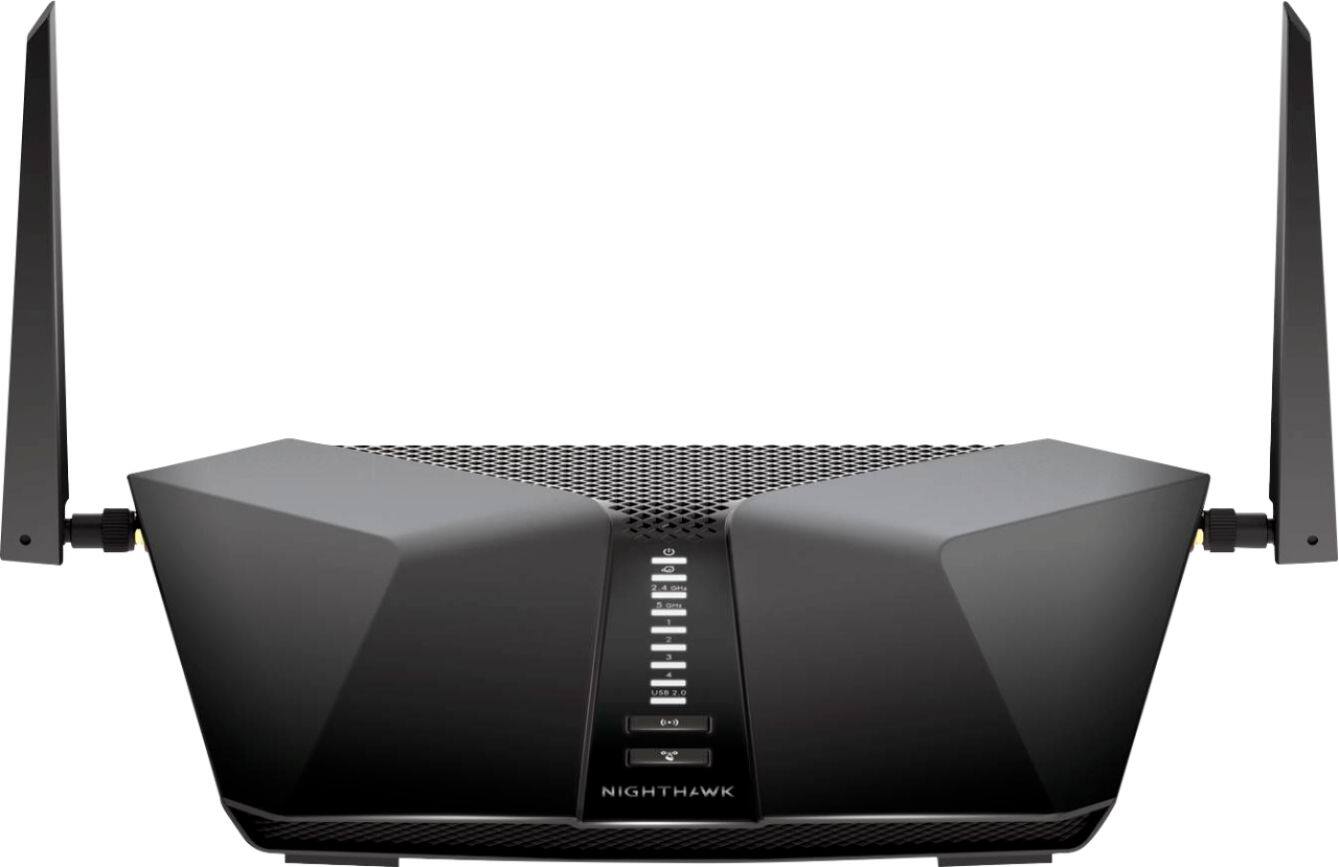

NETGEAR - Nighthawk AX1800 Dual-Band 4G LTE Wi-Fi Router
Model: LAX20-100NAS
SKU: 6445369
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Range: 1500 sq. ft. square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1800.0 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: NETGEAR
- Model Number: LAX20-100NAS
- Product Name: Nighthawk AX1800 Dual-Band 4G LTE Wi-Fi Router
- Security
- Data Encryption: true
- Encryption Type: WPA3 (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT, SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: 128-bit AES encryption with PSK; automatic firmware update; guest network access; double firewall protection (SPI and NAT); supports WPA3 security standard; VPN support; NETGEAR Armor
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 2
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 1500 sq. ft. square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: NETGEAR Nighthawk App
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000.0 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1800.0 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Microsoft Windows 7, 8, 10, Vista, XP, 2000, Mac OS, UNIX, or Linux. Microsoft Internet Explorer 11 or higher, Microsoft Edge, Google Chrome 55 or higher, Firefox 45 or higher, Safari 10 or higher (The software that a product must have for it to be able to integrate with another product.)
- Dimensions
- Product Height: 2.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.11 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.27 pounds (The out of box weight of the item.)
- Other
- UPC: 606449149333
Connect your smart devices to the internet or LAN with this NETGEAR Nighthawk 4G LTE router. Wi-Fi 6 technology lets you connect several devices, maintaining fast wireless speeds, while 4G LTE network compatibility allows internet access through compatible cellular devices. Featuring the NETGEAR Armor, this NETGEAR Nighthawk 4G LTE router helps protect your devices and data, and the quad-core processor enhances performance for gaming and streaming media.
- System requirements: Microsoft Windows 7, 8, 10, Vista, XP, 2000, macOS, Unix, or Linux. Microsoft Internet Explorer 11 or higher, Microsoft Edge, Google Chrome 55 or higher, Firefox 45 or higher, Safari 10 or higher.
- NETGEAR Nighthawk app: Easily set up your LTE router and get more out of your WiFi. Includes access from anywhere to manage your network away from home.
- Five Gigabit Ethernet ports: Connect more wired devices for fast file transfer and uninterrupted connections. One WAN and four LAN ports.
- More Wi-Fi for more devices: OFDMA allows for efficient data transmission to multiple devices at the same time.
- AX1800 dual-band Wi-Fi router: Features up to 1.8 Gbps (600 Mbps + 1200 Mbps) wireless speeds for fast data transfer speeds.
- Latest-generation Wi-Fi 6 technology: Delivering four times better performance than AC Wi-Fi, it allows more devices to connect and stream simultaneously without impacting the speed or reliability. Backward-compatible with Wi-Fi 5 and earlier-generation devices.
- 160MHz channel support: Allows streaming at Gigabit speeds to supported mobile devices, which are used for video streaming or gaming.
- 1024-QAM modulation: Ensures up to 25% increased data efficiency and faster speeds than a 256-QAM router.
- Use 4G LTE as your primary Internet connection: It lets you use 4G LTE cellular service for your home Internet connection when your existing Internet service fails and is compatible with most major LTE cellular networks.
- NETGEAR Armor: Advanced cyber threat protection for your home network and your connected devices.
- Latest security standard: Supports WPA3 with the latest and quality Wi-Fi security protocol.
- 128-bit AES encryption with PSK: Protects your network against hackers and eavesdroppers.
- Four-stream AX WiFi: Offers up to 1.5x better performance than an AC router for fast wireless speeds. Stream smooth 4K UHD content to smart TVs, mobile devices, and gaming consoles.
- Readyshare USB access: Wirelessly access and share USB hard drives via one USB port.
- Automatic firmware updates: Offer the latest security patches to the router.
- VPN support: Enables secure access to your home network away from home.
- System requirements: Microsoft Windows 7, 8, 10, Vista, XP, 2000, macOS, Unix, or Linux. Microsoft Internet Explorer 11 or higher, Microsoft Edge, Google Chrome 55 or higher, Firefox 45 or higher, Safari 10 or higher.
- NETGEAR Nighthawk app: Easily set up your LTE router and get more out of your WiFi. Includes access from anywhere to manage your network away from home.
- Five Gigabit Ethernet ports: Connect more wired devices for fast file transfer and uninterrupted connections. One WAN and four LAN ports.
- More Wi-Fi for more devices: OFDMA allows for efficient data transmission to multiple devices at the same time.
- AX1800 dual-band Wi-Fi router: Features up to 1.8 Gbps (600 Mbps + 1200 Mbps) wireless speeds for fast data transfer speeds.
- Latest-generation Wi-Fi 6 technology: Delivering four times better performance than AC Wi-Fi, it allows more devices to connect and stream simultaneously without impacting the speed or reliability. Backward-compatible with Wi-Fi 5 and earlier-generation devices.
- 160MHz channel support: Allows streaming at Gigabit speeds to supported mobile devices, which are used for video streaming or gaming.
- 1024-QAM modulation: Ensures up to 25% increased data efficiency and faster speeds than a 256-QAM router.
- Use 4G LTE as your primary Internet connection: It lets you use 4G LTE cellular service for your home Internet connection when your existing Internet service fails and is compatible with most major LTE cellular networks.
- NETGEAR Armor: Advanced cyber threat protection for your home network and your connected devices.
- Latest security standard: Supports WPA3 with the latest and quality Wi-Fi security protocol.
- 128-bit AES encryption with PSK: Protects your network against hackers and eavesdroppers.
- Four-stream AX WiFi: Offers up to 1.5x better performance than an AC router for fast wireless speeds. Stream smooth 4K UHD content to smart TVs, mobile devices, and gaming consoles.
- Readyshare USB access: Wirelessly access and share USB hard drives via one USB port.
- Automatic firmware updates: Offer the latest security patches to the router.
- VPN support: Enables secure access to your home network away from home.
Whats Included
- NETGEAR Nighthawk AX1800 Dual-Band 4G LTE Wi-Fi Router
- Ethernet cable
- Power adapter
- 2 external WiFi antenna
- Owner's manual
- NETGEAR Nighthawk AX1800 Dual-Band 4G LTE Wi-Fi Router
- Ethernet cable
- Power adapter
- 2 external WiFi antenna
- Owner's manual
Product Manuals
Q: Will this work with Google Fi?
A: undefined
Q: Does this device require a separate modem for the cellular connection.
A: No, that's built in.
Q: Do you have to use a sim card that uses hot spot or just a sim card with unlimited data ?
A: Well it depends on the carrier if the ISP/cellular carrier allows data only device on the unlimited data plan then you can use it otherwise you may need to have a hotspot type of plan.
A: Verizon site shows LAX20 ( AX1800 4G LTE Wifi Router) is certified now. https://opendevelopment.verizonwireless.com/device-showcase?imagesUrl=%2Fshowcase%2Fapi%2Fimages%2Fget%2F&countUrl=%2Fshowcase%2Fapi%2Fcount%2Fget&count=0&searchBox=netgear&page=0&pageSize=12&loading=false&moreToShow=true&sms=&operatingsystem=&simType=&eUICC=&voiceCapable=&wiFi=ðernetPort=&uSBPort=&wea=&securityLevel=
Q: Would this support network carriers from Africa or only US Based carriers?
A: The LAX20 supports following bands 4G LTE bands: B2, 4, 5, 7, 12, 13, 25, 26, 29, 30, 66; 3G bands: B2, 4, 5 so if the carriers in Africa support those bands than the prodcut will work with them. I would check with the carrier of choice in Africa before purchasing.
Q: What carrier's SIMs will work with this router?
A: I believe in US it should work with T-Mobile, AT&T and other none Sprint and Verizon networks as long as the it supports the bands that are used by LAX20.
Q: Is this router compatible with Spectrum internet service?
A: Yes, the LAX20 is a router that can work with with any internet service if you have a modem from Spectrum you can plug it into the LAX20 Internet port to get Internet access. 4G LTE can also be used as a stand alone service or as a back up option.
