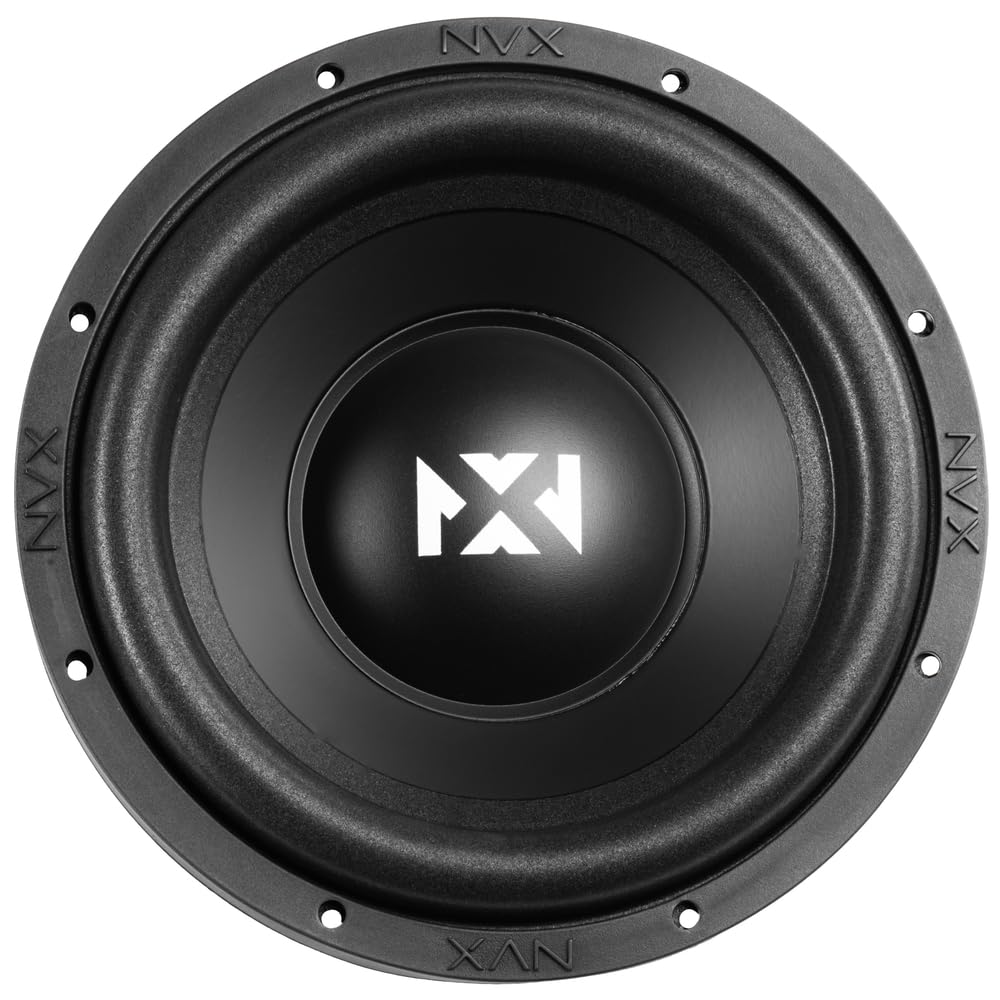

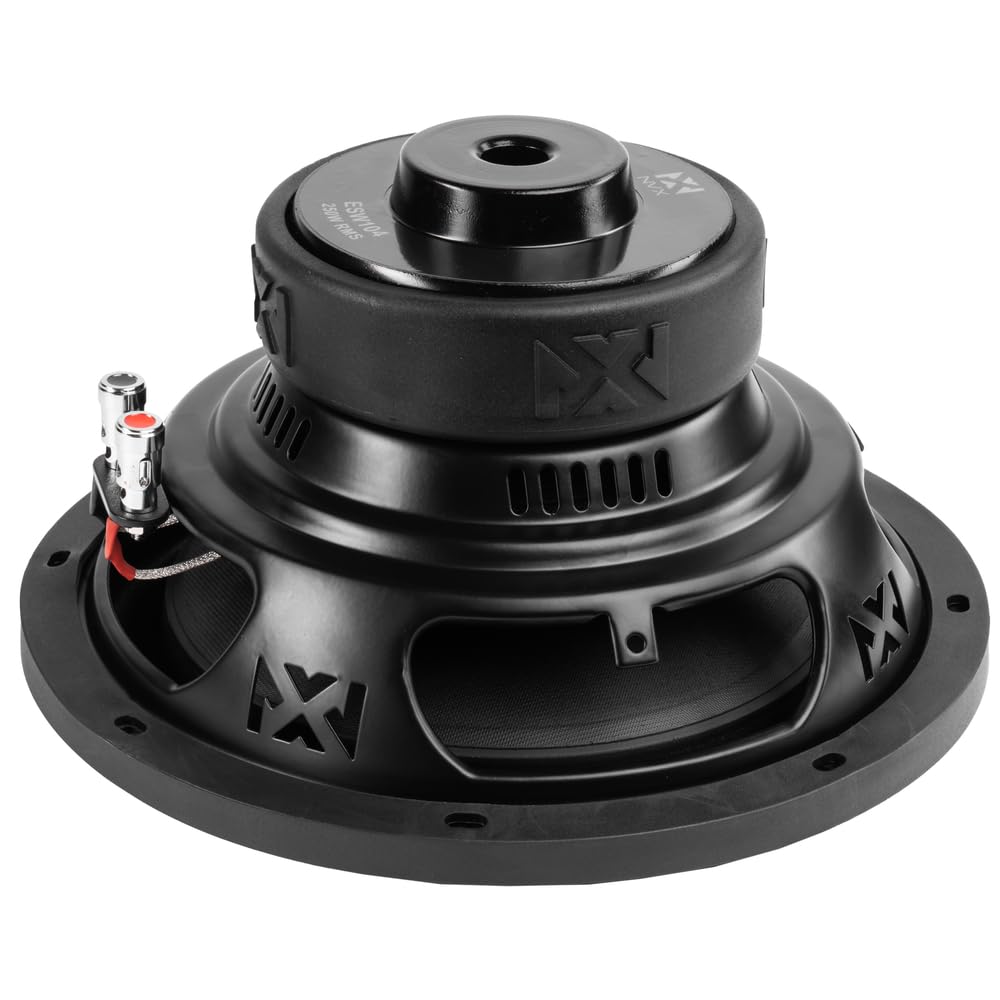

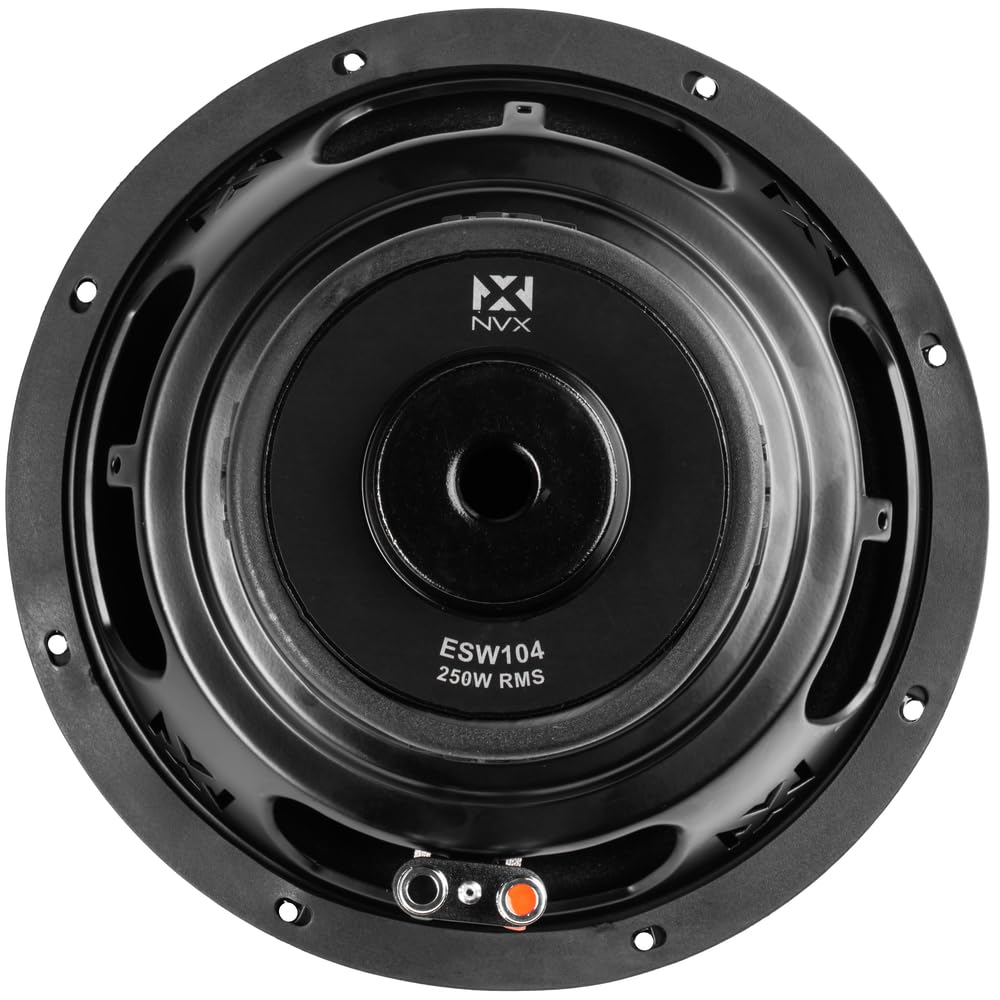

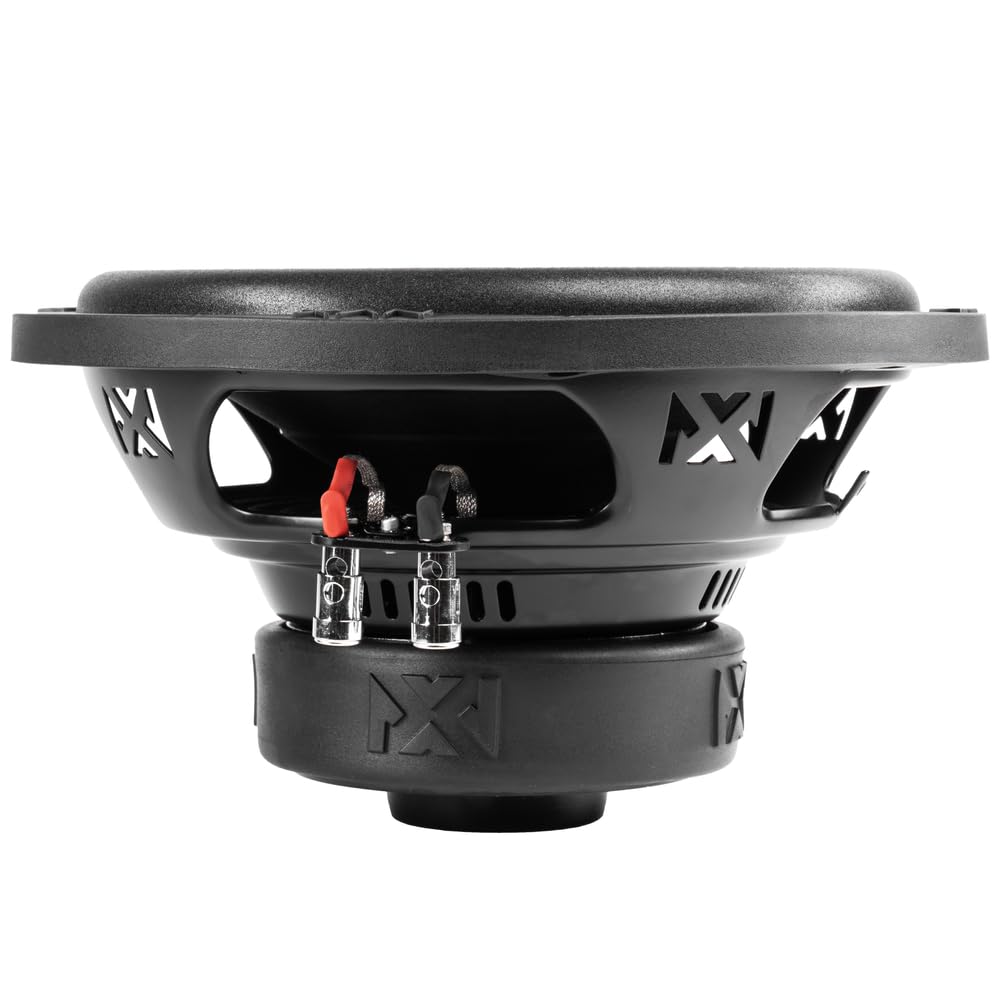

NVX - ESW104 500W Peak (250W RMS) E-Series 10in Single 4-Ohm Car Subwoofer
Woofer Size
10"Related Item
Specifications
- RMS Power250 wattsPeak Power Handling500 wattsImpedance4 ohmsWoofer Size10"
- Key Specs
- RMS Power: 250 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 500 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 10"
- General
- Brand: NVX
- Model Number: esw104
- Product Name: ESW104 500W Peak (250W RMS) E-Series 10in Single 4-Ohm Car Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 250 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 500 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 10"
- Product Height: 7.87 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.61 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.61 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.26 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021845418
Product Details: 10" Single 4 ohm E-Series Subwoofer. Power Handling: . Peak: 500 watts. RMS: 250 watts. 10 mm Xmax. Enhanced Pressed Paper Cone. High-Roll Foam Surround. Stamped Steel Vented Basket with NVX Punched Logo. 1. 5" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Single-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 46 oz. Single Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 37. 35 Hz. Sensitivity: 85 dB. Recommended sealed box volume: 1. 0 cubic feet. Recommended ported box volume: 1. 25 cubic feet. Top-mount depth: 4. 92". Cutout diameter: 8. 97". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX ESW104
- Impressive Power Handling: Delivers up to 500 watts peak and 250 watts RMS, providing deep, impactful bass that enhances your car audio system.
- High-Quality Construction: Features an enhanced pressed paper cone and high-roll foam surround for precise sound reproduction with minimal distortion.

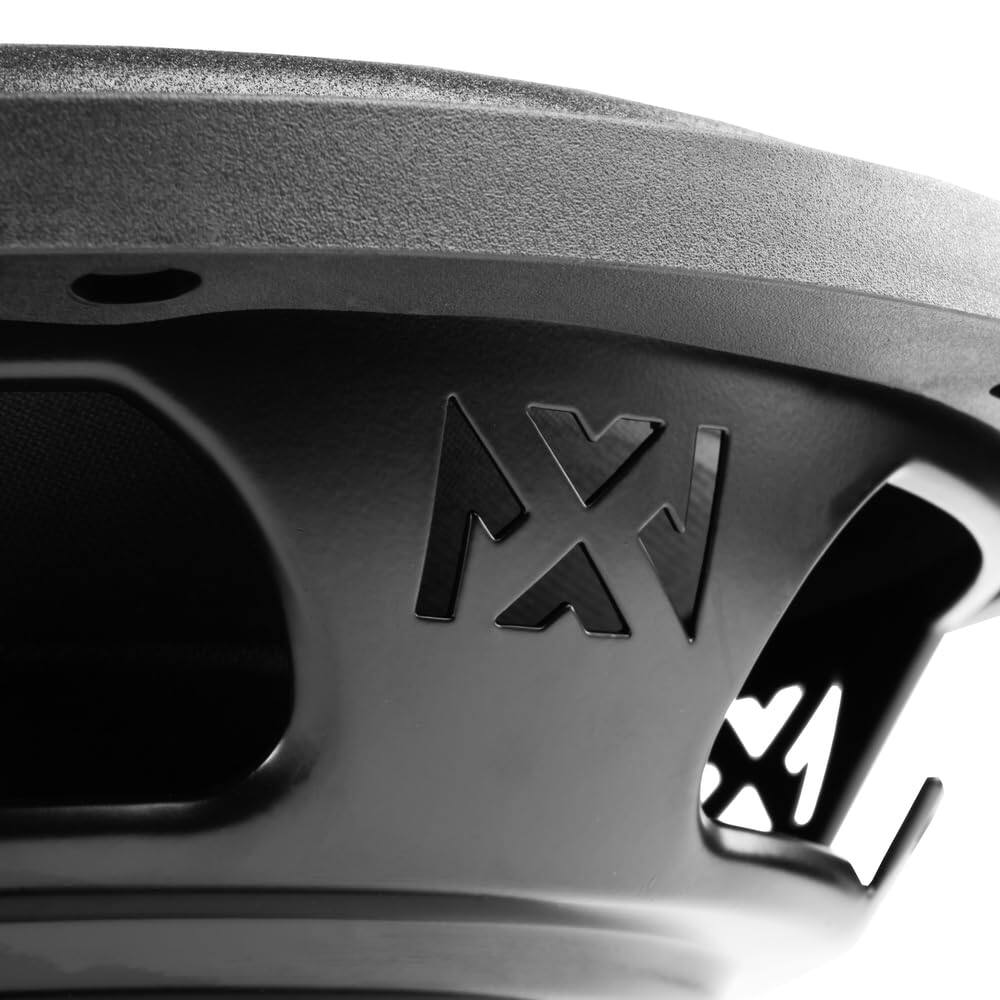

- Robust Design: Built with a 1.5" high-temperature copper voice coil with aluminum former and a stamped steel vented basket with the NVX punched logo for durability and efficient heat dissipation.
- Efficient Cooling: Equipped with a 46 oz. single-stacked ferrite magnet, protective rubber boot, and optimized high-velocity pole vent for superior cooling and performance.
- Single 4-Ohm Impedance: Offers versatile wiring configurations, with a frequency response of 20 - 200 Hz and a sensitivity of 85 dB for clear, resonant bass.
Whats Included
- 1
