NVX - VCW124v3 2400 Watt Peak (1200W RMS) 12in VC-Series v3 Dual 4-Ohm Car Subwoofer
Reviews coming soon
Woofer Size
12"Related Item
Specifications
- RMS Power1200 wattsPeak Power Handling2400 wattsImpedance4 ohmsWoofer Size12"
- Key Specs
- RMS Power: 1200 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 2400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 12"
- General
- Brand: NVX
- Model Number: vcw124
- Product Name: VCW124v3 2400 Watt Peak (1200W RMS) 12in VC-Series v3 Dual 4-Ohm Car Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 1200 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 2400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 12"
- Product Height: 11.93 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13.62 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.74 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 34 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 818060011375

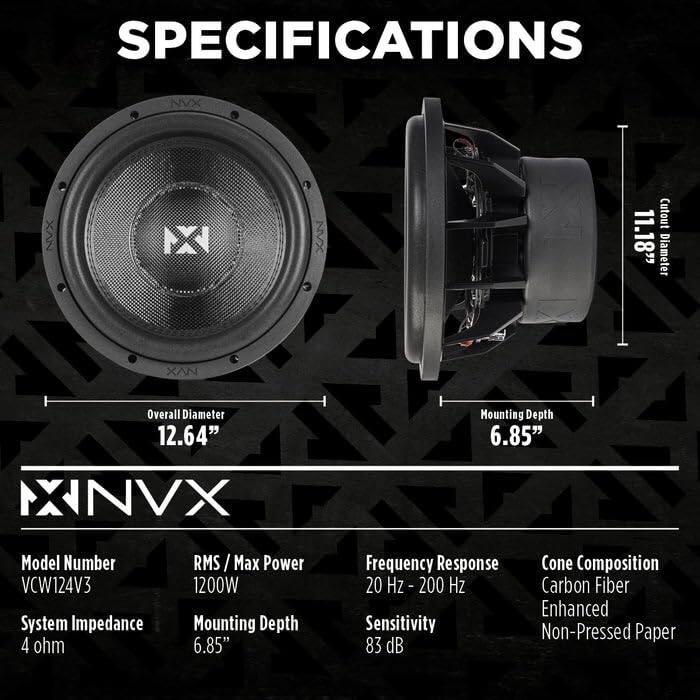

Product Features: 12" Dual 4-Ohm VC-Series v3 Car Subwoofer. Power Handling: . Peak Power: 2400 watts. RMS Power: 1200 watts. Impedance: Dual 4 ohm. Xmax: 23mm (One-way). Carbon Fiber Enhanced Non-Pressed Paper Cone. Custom High Roll foam surround with black nylon stitching. Die Cast aluminum vented basket. Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads. 3” 4-Layer High Temperature Black Aluminum Voice coil. Optimized high-velocity pole vent. One piece T-Yoke with vented magnet gap. 202 oz. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot. Frequency response: 20-200 Hz. Resonance Frequency (Fs): 25 Hz. Optimal sealed box volume: 0. 85 cubic feet. Optimal ported box volume: 1. 85 cubic feet. Top-mount depth: 7. 02". Cutout diameter: 11. 26". Sensitivity: 85dB. Authorized Internet Dealer. 1-year Manufacturer's Warranty. NVX VCW124
- Powerful 12" VC-Series v3 Subwoofer: Engineered for elite bass performance with a Dual 4-Ohm configuration, delivering clean, accurate low frequencies.
- Massive Power Handling: Supports 2400W Peak and 1200W RMS, combined with a 23mm Xmax for deep, hard-hitting output and impressive excursion.

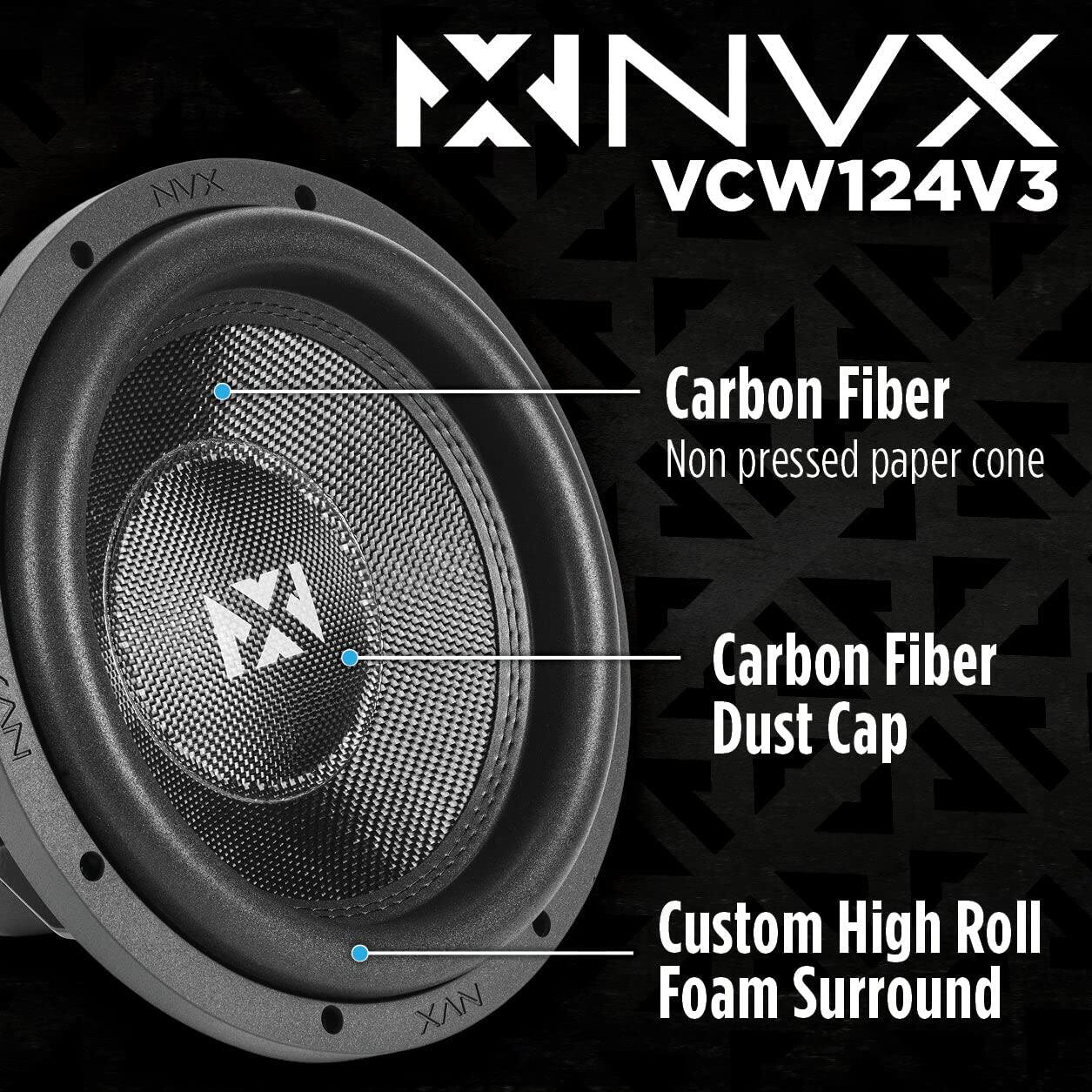

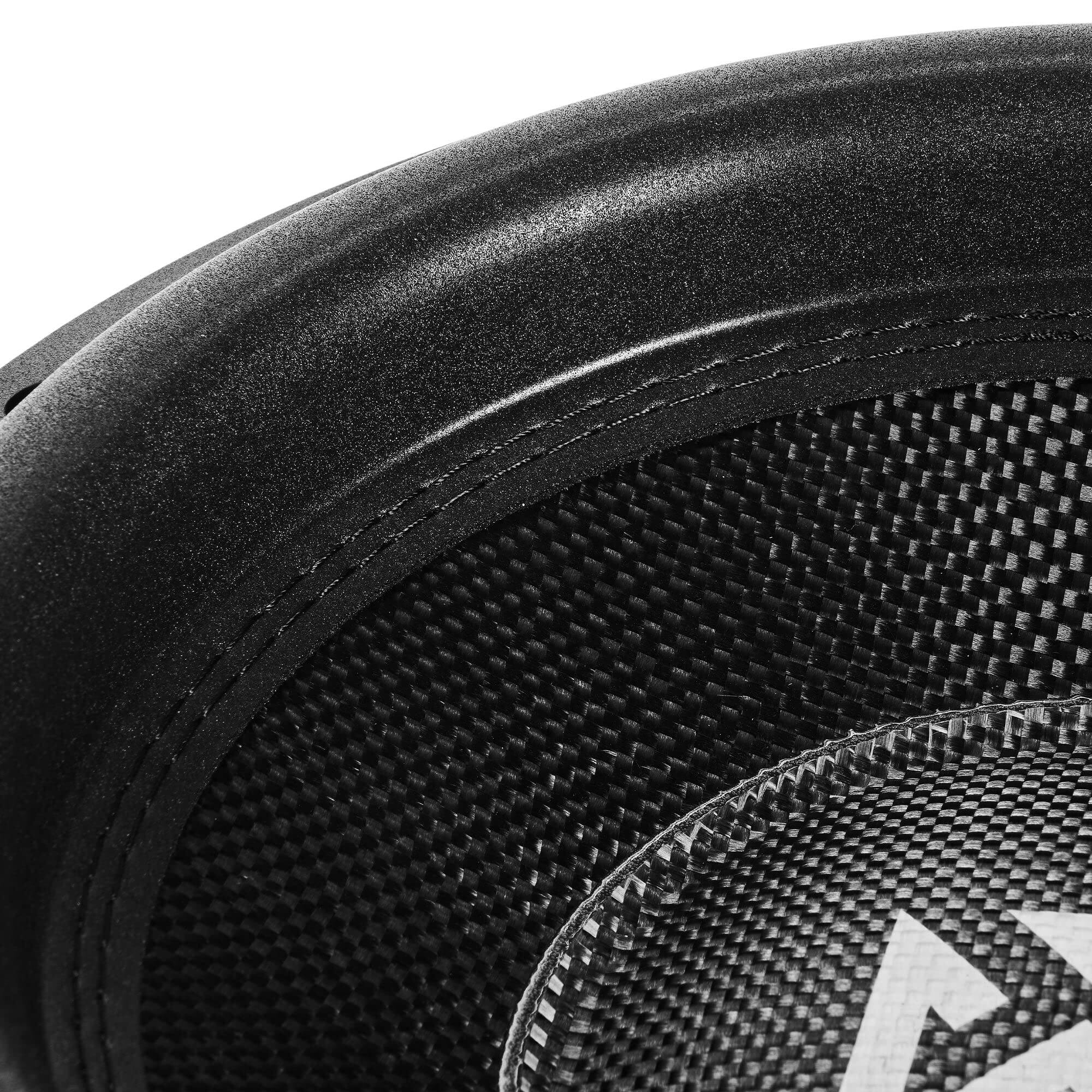

- Premium Cone & Surround: Features a Carbon Fiber Enhanced Non-Pressed Paper Cone paired with a Custom High Roll foam surround with reinforced black nylon stitching.
- Built for Strength & Cooling: Includes a Die-Cast aluminum vented basket, Optimized high-velocity pole vent, and 3” 4-Layer High Temp Aluminum Voice Coil for superior thermal performance.
- High-Mass Motor Structure: Equipped with a 202 oz. triple-stacked Y35 ferrite magnet and vented magnet gap for exceptional control, accuracy, and output under demanding conditions.
Whats Included
- 1
