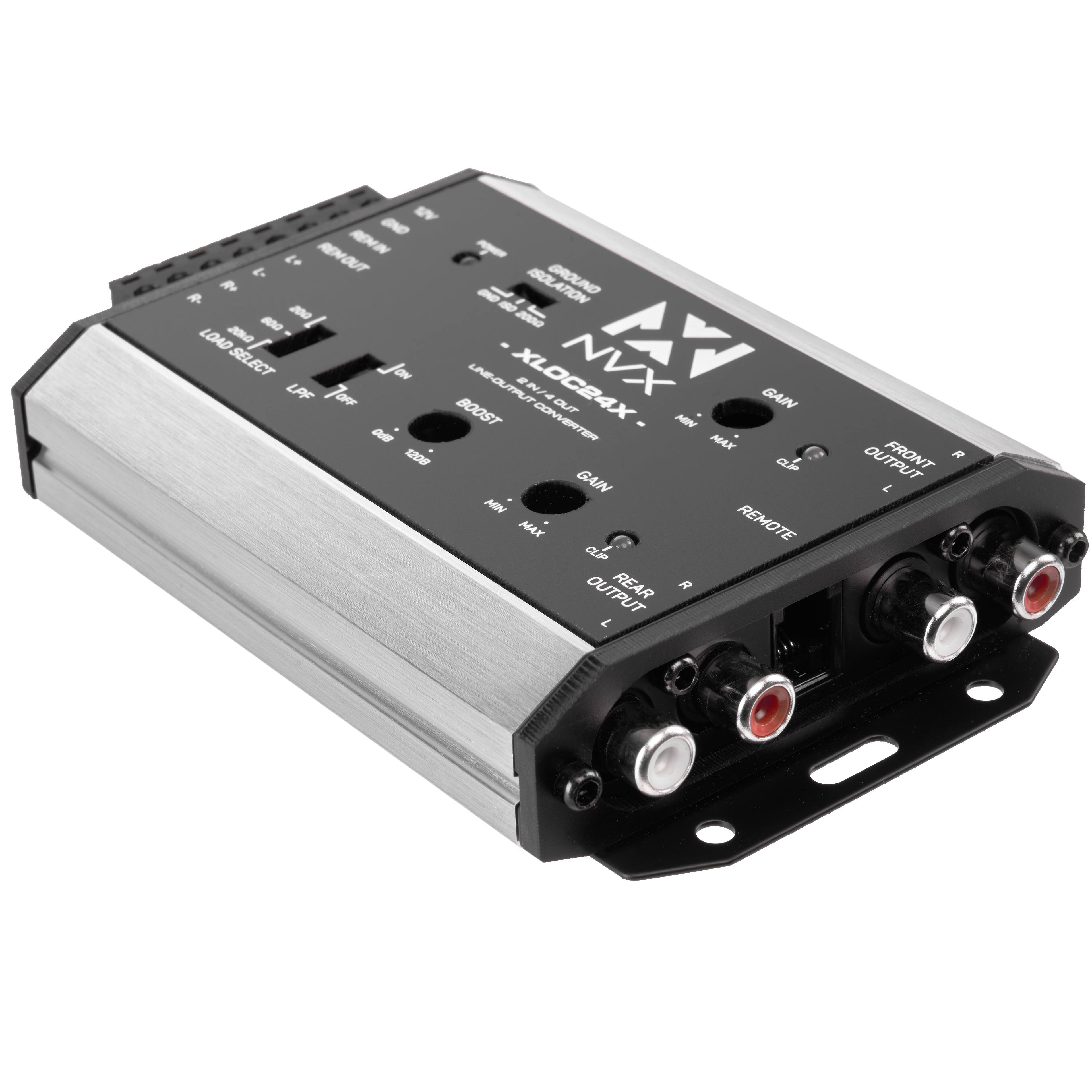

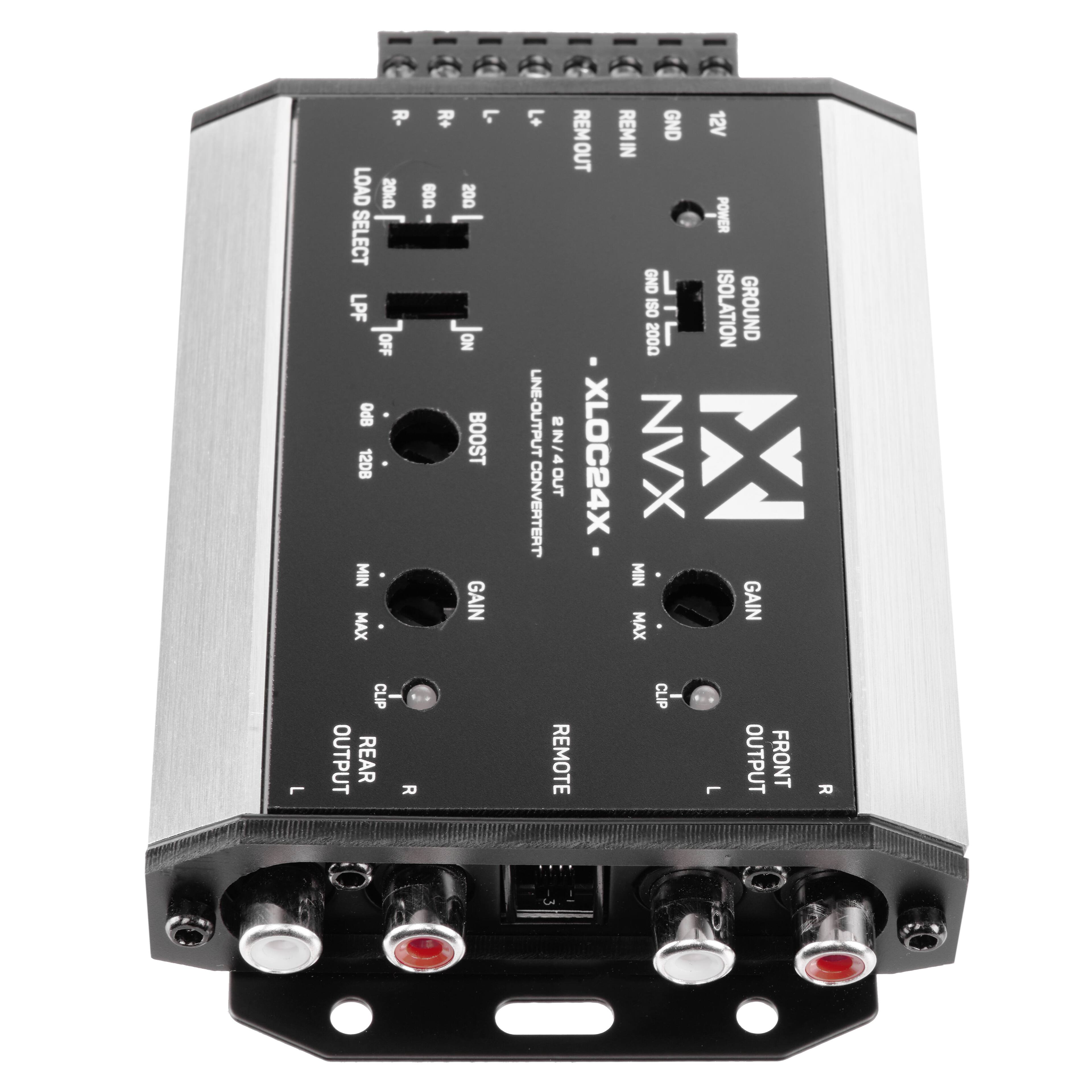

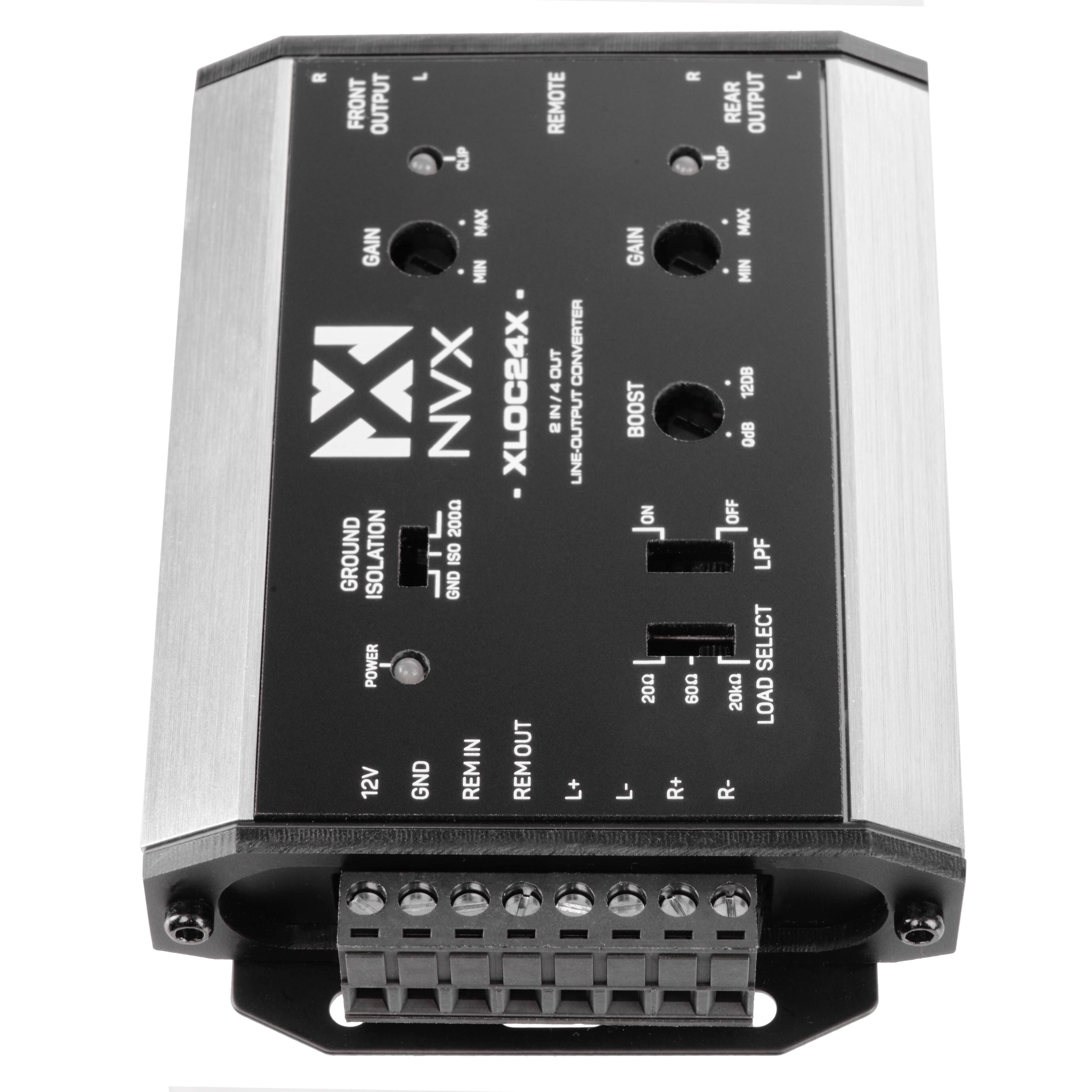

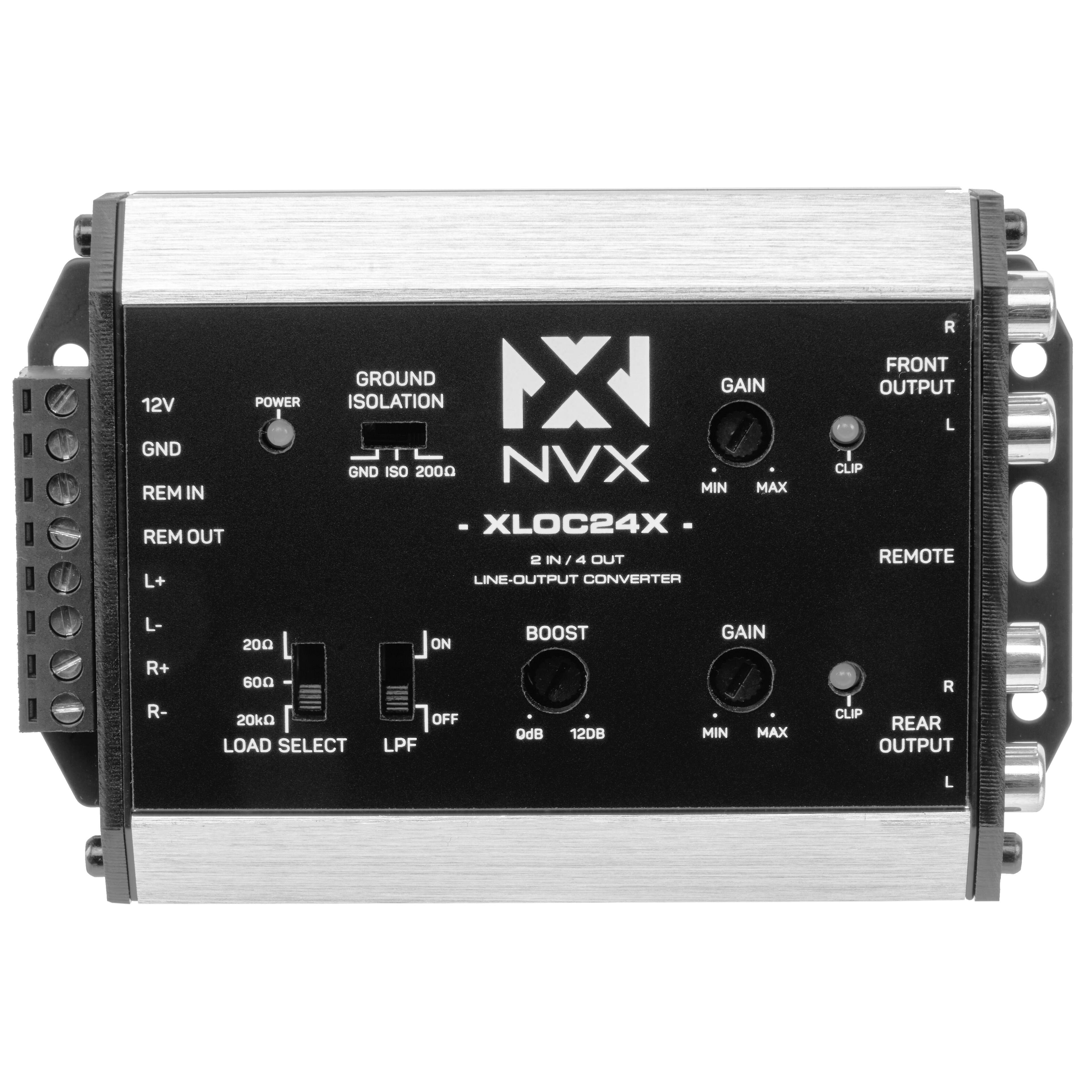

NVX - XLOC24X 2 inputs / 4 outputs High Voltage Active Line Output Converter with Impedance Matching
Reviews coming soon
About this product

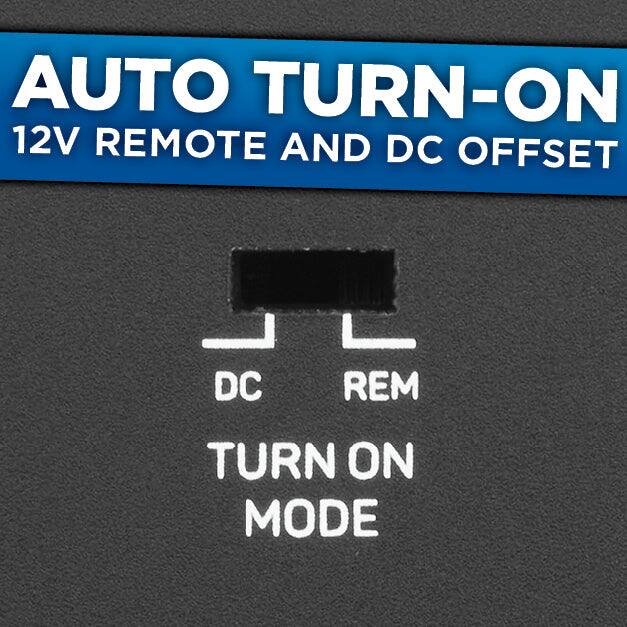

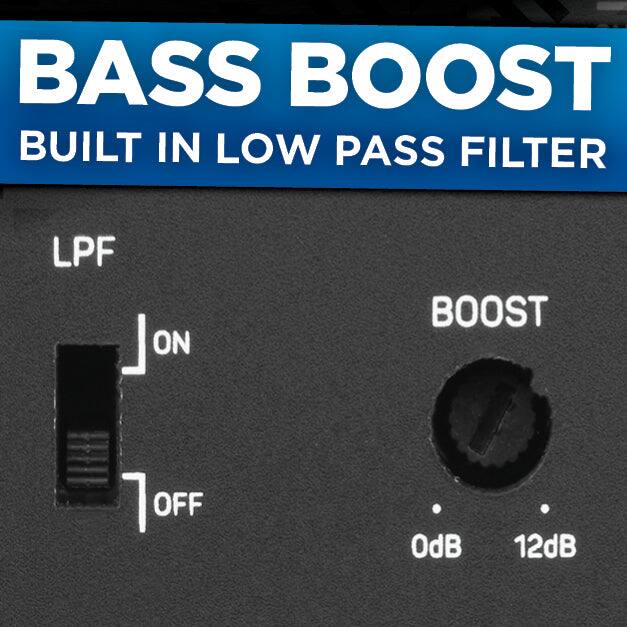

Product Details: Active line output converter and line driver. 2-channels of speaker-level inputs handle up to 40V (400 watts RMS). 4-channels of RCA outputs Provides up to 9. 5 Volts of output. Designed to work with factory audio systems. Auto turn-on via DC offset or Audio detection. Load selection switch (20, 60, or 20K ohm) to prevent factory stereo shut-down. Adjustable 0 - 12dB Bass Boost (Fixed at 45 Hz). Selectable Full Range or Low Pass Filter switch (LPF Rear channel only): 250Hz. 12 Volt turn-on output for aftermarket amplifiers. Selectable Ground Isolation switch to eliminate ground and alternator noise. Molex terminals for speaker signal and power. LED Clip indicator. Total Harmonic Distortion: 0. 01%. Signal to Noise: >110 dB. Frequency Response: 10-20, 000 Hz. Remote not included. 1-year Manufacturer's Warranty.
Features
High-Power 4-Channel Line Output Converter

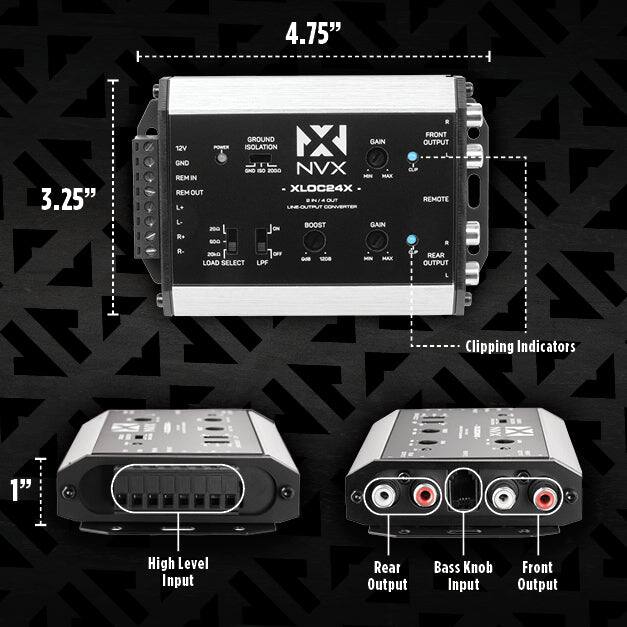

A versatile interface capable of handling up to 400W RMS (40V) input across 2 channels and providing 9.5V output across 4-channel RCA terminals, featuring a selectable load impedance switch (20Ω, 60Ω, or 20kΩ) and dual auto turn-on modes.
Provision for bass knob

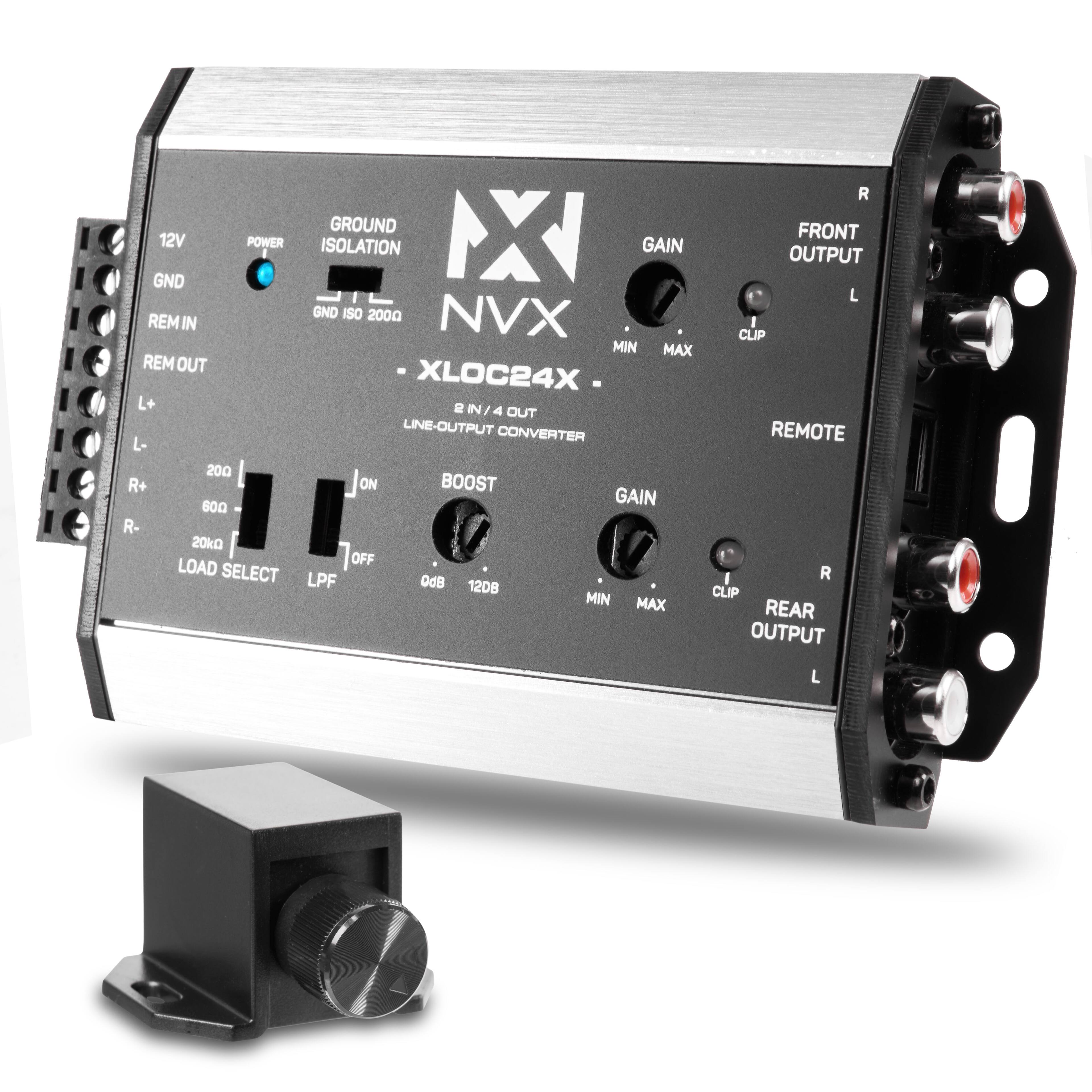

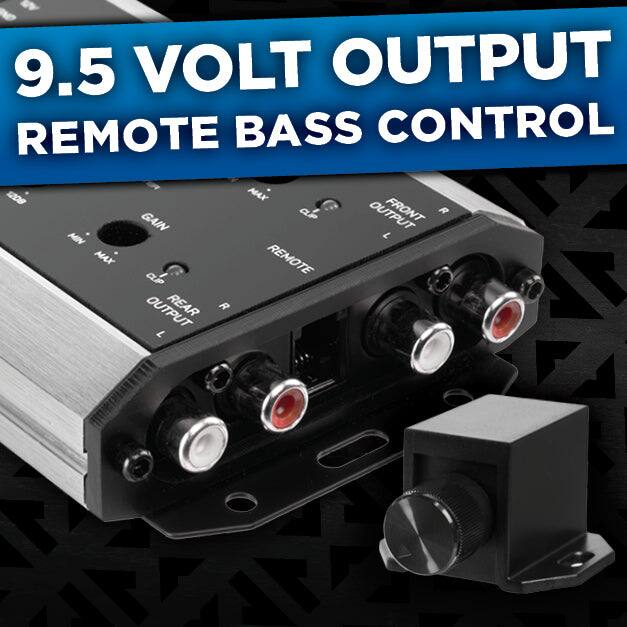

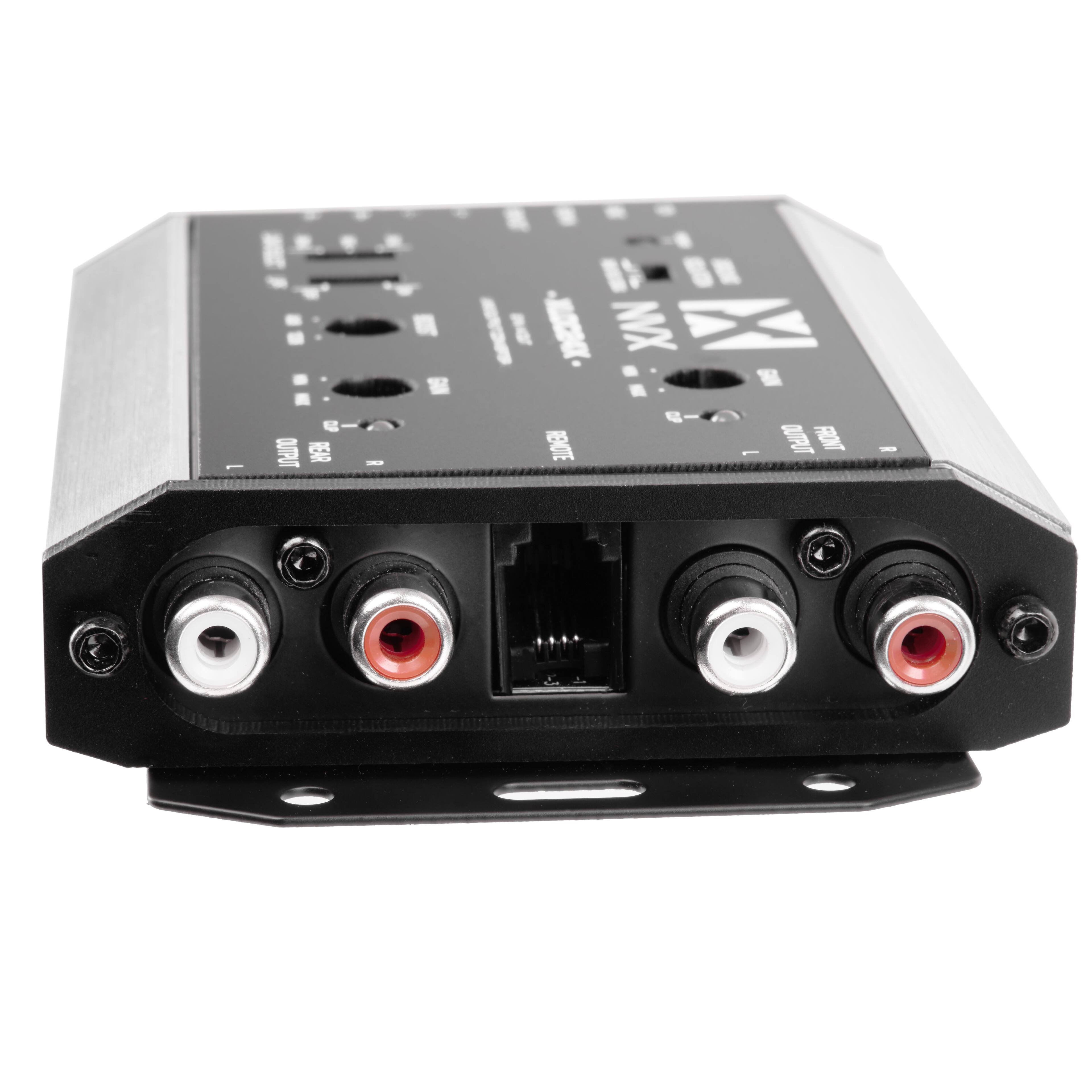

RJ11 port for optional bass knob connection (XLOCXLC remote sold separately)
Specifications
- BrandNVXModel Numberxloc24xProduct NameXLOC24X 2 inputs / 4 outputs High Voltage Active Line Output Converter with Impedance MatchingProduct CompatibilityAudio/VideoProduct TypeLine output converterUPC810021844534
