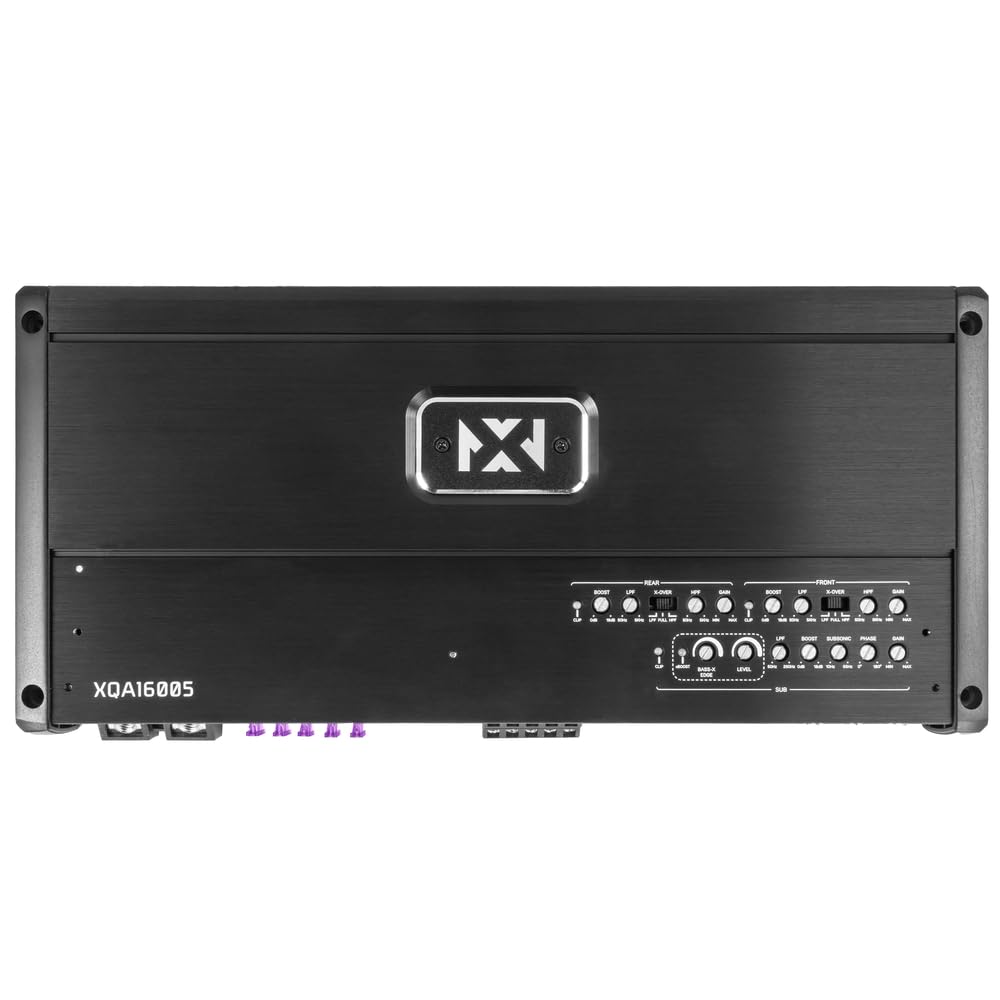

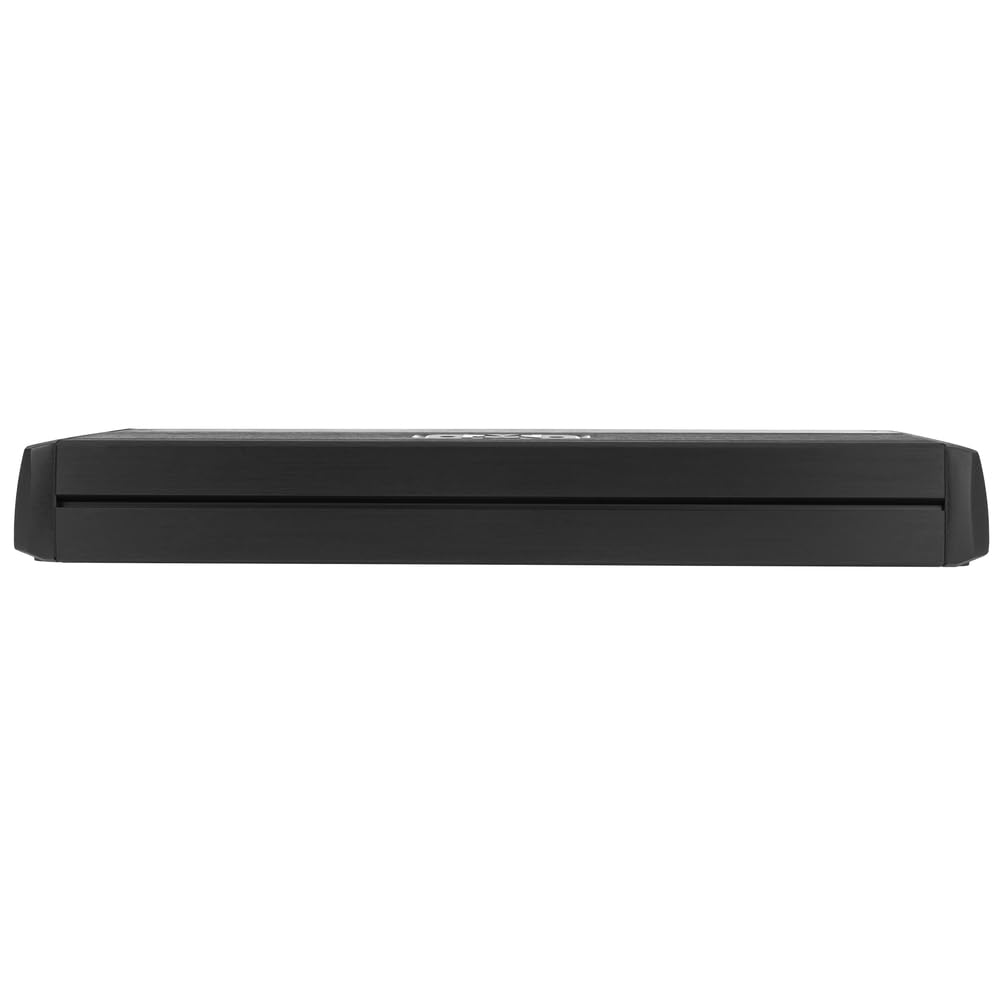

NVX - XQA16005 5-Channel Amplifier 1600W RMS XQ-Series SQ Hi-Res Class D with X-Boost and Wired Bass Remote
NVX - XQA16005 5-Channel Amplifier 1600W RMS XQ-Series SQ Hi-Res Class D with X-Boost and Wired Bass Remote
FREE shipping to
Specifications
- Amplifier ClassDNumber Of Channels5Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: NVX
- Model Number: xqa16005
- Product Name: XQA16005 5-Channel Amplifier 1600W RMS XQ-Series SQ Hi-Res Class D with X-Boost and Wired Bass Remote
- Audio Power
- Total Power Handling RMS: 1600 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 96 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features

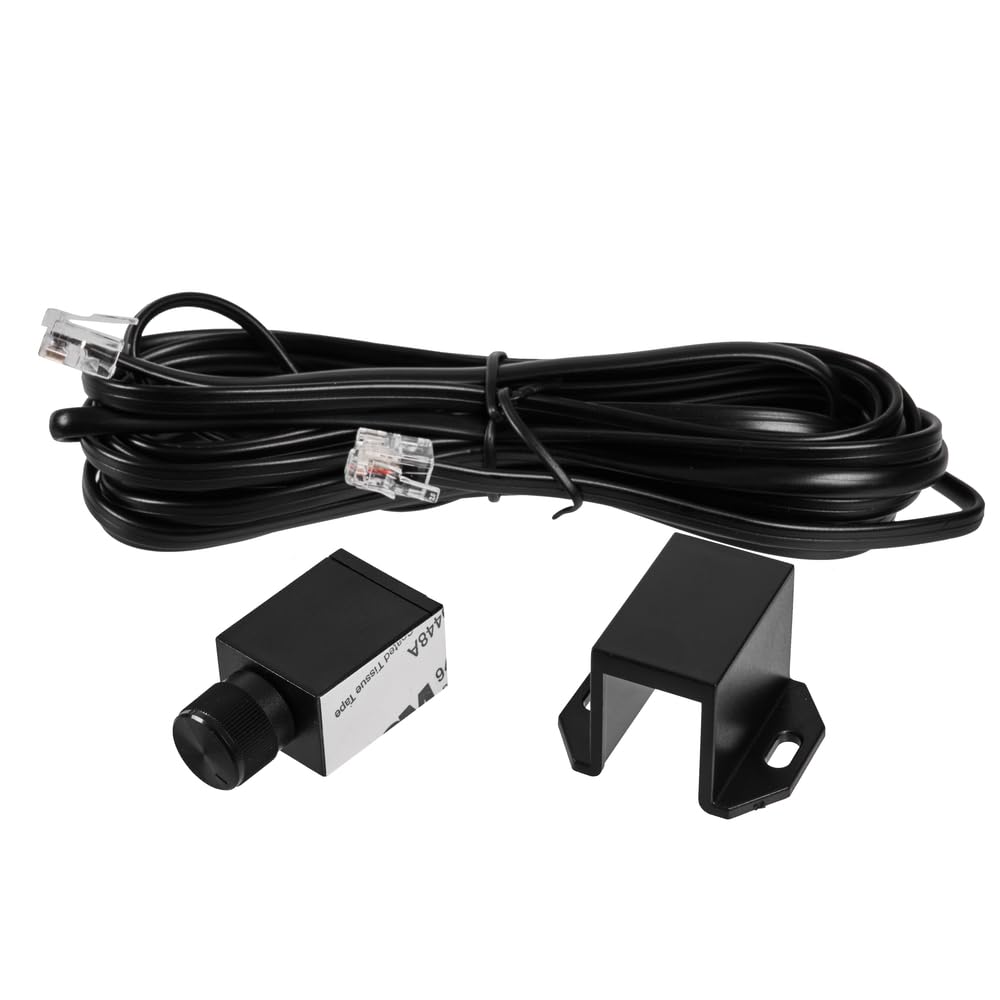

- Remote Control Included: Bass
- Marine: false
- Dimensions
- Product Height: 1.89 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.69 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.85 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 13 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021846231
Experience unparalleled sound quality and power with the NVX XQA16005 1600W RMS X-Series SQ Hi-Res Class D 5-Channel Amplifier. This versatile amplifier is designed to power your entire car audio system, delivering crisp highs, dynamic mids, and deep, impactful bass. With a total RMS output of 1600 watts, this amp effortlessly powers both speakers and subwoofers. The XQA16005 features advanced Hi-Res Class D technology for ultra-low distortion and a wide frequency range of 10Hz to 40kHz, ensuring crystal-clear audio playback. Its dedicated subwoofer channel is equipped with X-Boost circuitry to enhance low-frequency response, delivering rich and detailed bass performance. Customize your sound with precision thanks to variable high-pass and low-pass filters, a subsonic filter, and adjustable phase control. The amplifier also includes a wired bass level remote for on-the-fly bass adjustments. Built for reliability, it comes with 4-way protection circuitry and durable components, including Tiffany-style RCA inputs and outputs. Compact yet powerful, the NVX XQA16005 is perfect for audiophiles seeking a premium 5-channel amplifier that fits seamlessly into their vehicle without sacrificing performance.
- Powerful 5-Channel Amplifier: The NVX XQA16005 delivers 1600W RMS total power, with 200W x 4 at 2 ohms + 500W x 1 at 2 ohms, ensuring high-quality sound for your entire car audio system.
- Hi-Res Audio Certified: Experience ultra-clear, high-resolution audio with a 10Hz - 40kHz frequency response and a signal-to-noise ratio >96dB, making it ideal for audiophiles.
- Advanced Sound Tuning: Features variable high-pass and low-pass filters (50-5000Hz, 24dB/octave), a subsonic filter (10-55Hz, 24dB/octave), and an adjustable bass boost (0-18dB @ 45Hz) for precise audio customization.

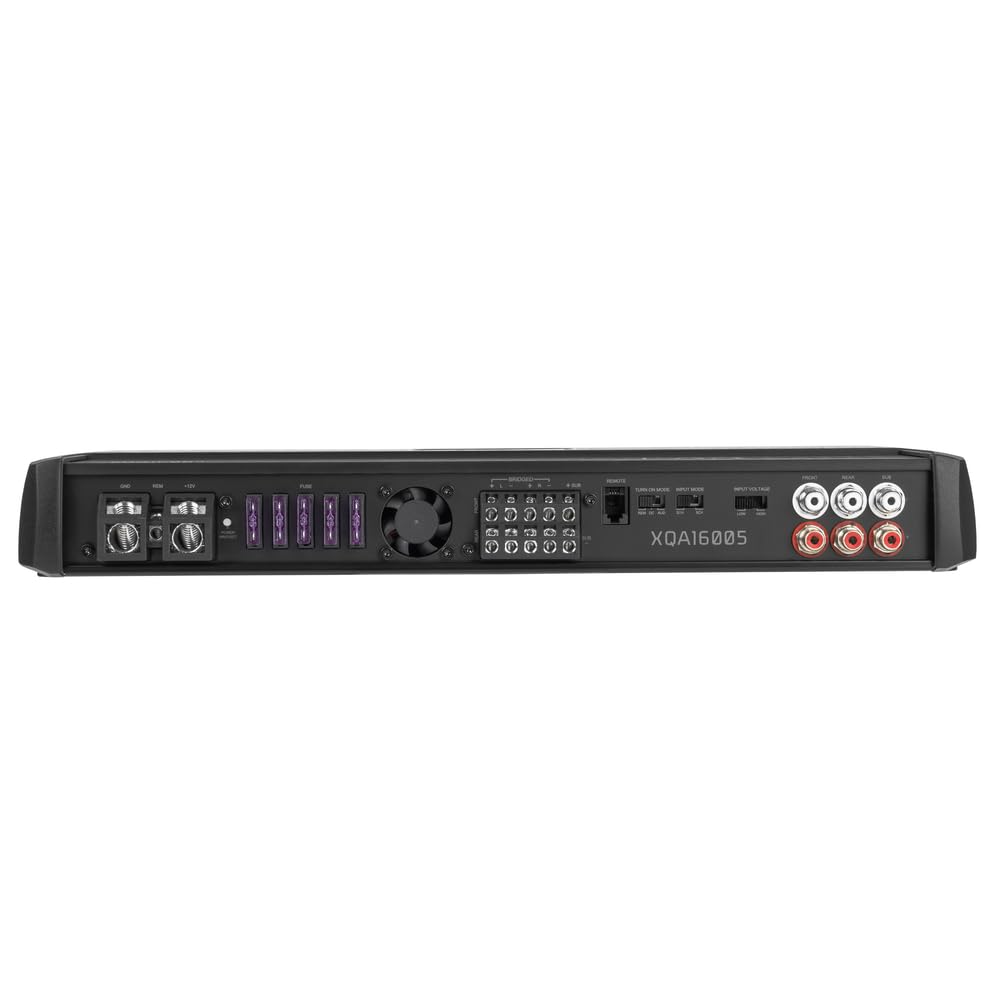

- Premium Build & Connectivity: Equipped with Tiffany-style RCA inputs and outputs, speaker-level inputs (adapter required), and signal-sensing remote turn-on for seamless integration into any system.
- X-Boost Bass Enhancement: The exclusive X-Boost circuitry enhances bass response and compensates for bass roll-off, delivering deeper and more impactful lows for your subwoofer.
- Powerful 5-Channel Amplifier: The NVX XQA16005 delivers 1600W RMS total power, with 200W x 4 at 2 ohms + 500W x 1 at 2 ohms, ensuring high-quality sound for your entire car audio system.
- Hi-Res Audio Certified: Experience ultra-clear, high-resolution audio with a 10Hz - 40kHz frequency response and a signal-to-noise ratio >96dB, making it ideal for audiophiles.
- Advanced Sound Tuning: Features variable high-pass and low-pass filters (50-5000Hz, 24dB/octave), a subsonic filter (10-55Hz, 24dB/octave), and an adjustable bass boost (0-18dB @ 45Hz) for precise audio customization.
- Premium Build & Connectivity: Equipped with Tiffany-style RCA inputs and outputs, speaker-level inputs (adapter required), and signal-sensing remote turn-on for seamless integration into any system.
- X-Boost Bass Enhancement: The exclusive X-Boost circuitry enhances bass response and compensates for bass roll-off, delivering deeper and more impactful lows for your subwoofer.
Whats Included
- 1
- 1
