NZXT - H2 Flow Mini-ITX SFF Case - Black
Reviews coming soon
FREE shipping to
More Buying Options
Related Item
Specifications
- Motherboard Form FactorMini-ITXMaximum GPU Length150 millimetersProduct Height17.1 inchesProduct Width7.1 inchesProduct Depth10.4 inchesWindow Panel(s)Left side
- Key Specs
- Motherboard Form Factor: Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 150 millimeters
- Product Height: 17.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Left side
- Case Material: Steel, Tempered glass, Mesh
- General
- Brand: NZXT
- Model Number: CI-H21FB-01
- Product Name: H2 Flow Mini-ITX SFF Case
- Color: Black
- Case Material: Steel, Tempered glass, Mesh
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 130 millimeters
- Maximum GPU Length: 150 millimeters
- Ports
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Dimensions
- Product Height: 17.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.03 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mini tower
- Window Panel(s): Left side
- Customizable Case Lighting: false
- Lighting Type: None
- Screwless Rail Design: true
- Cooling
- Maximum CPU Cooler Height: 75 millimeters
- Number of Fans Supported: 4
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Water cooling ready
- Number of Fans Included: 2
- Radiator Support: YES
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810074848404
H2 Flow is a compact 20.7 L vertical mini-ITX case designed for powerful small form factor builds. It supports GPUs up to 331 mm and liquid coolers up to 280 mm, with ultra-fine mesh panels for maximum airflow. A hybrid glass-and-mesh side panel puts your components on display while tool-less access and smart cable management keep building simple

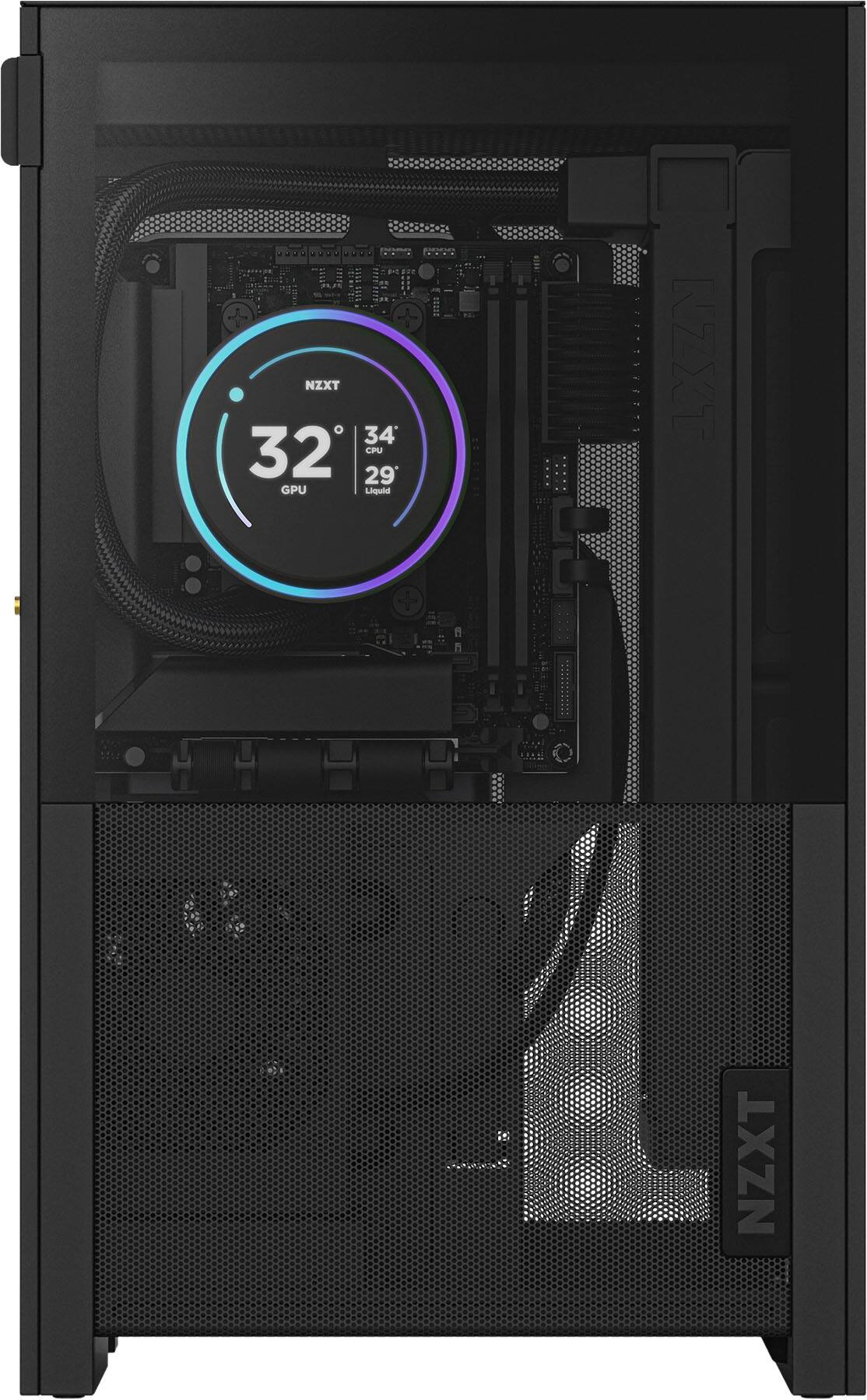

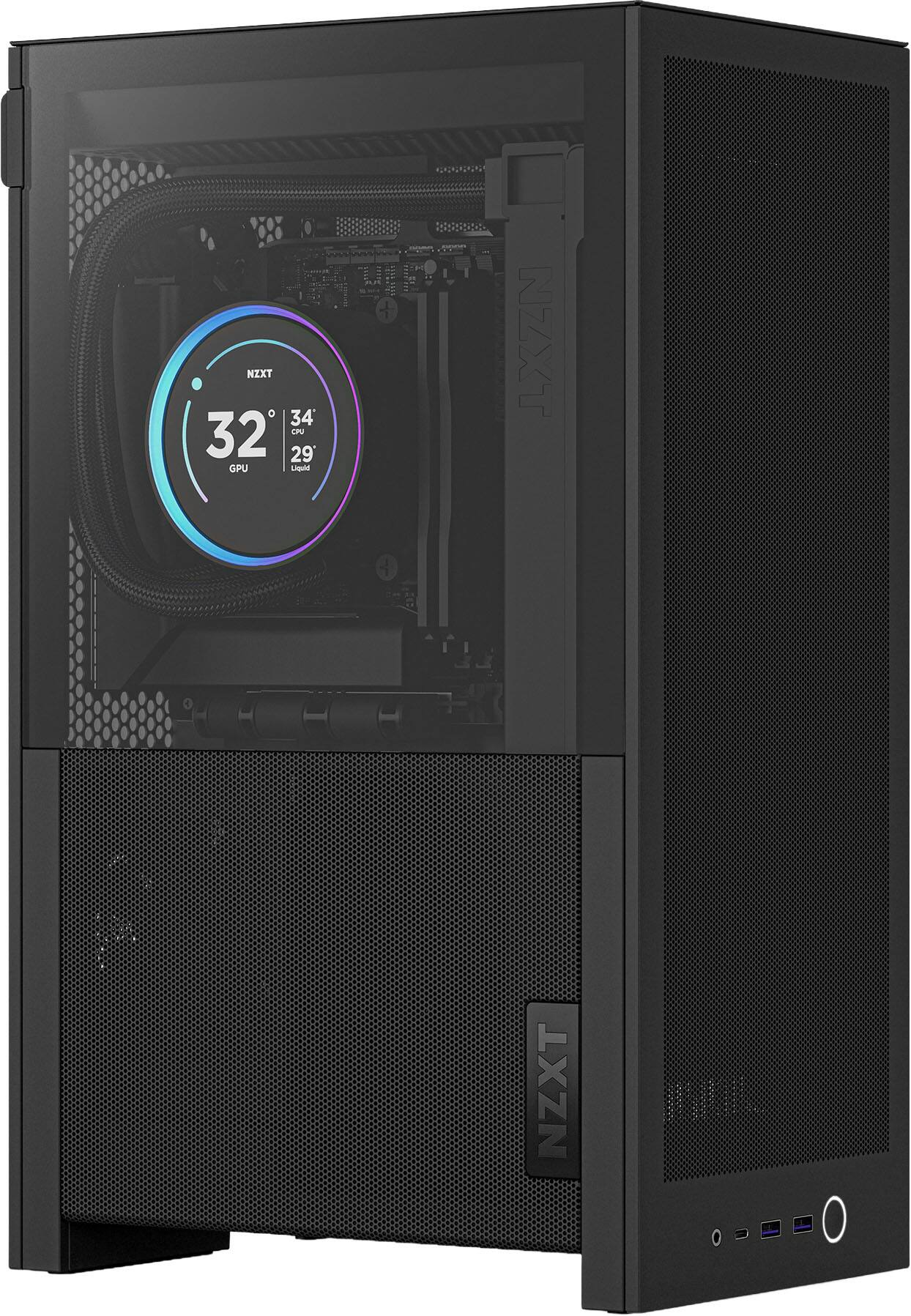

- Hybrid Side Panel: A split side panel combines tempered glass to show off your components with mesh below to keep airflow strong. Purpose-built to highlight NZXT Kraken AIO pump cap displays — like the Kraken Elite 280 RGB.

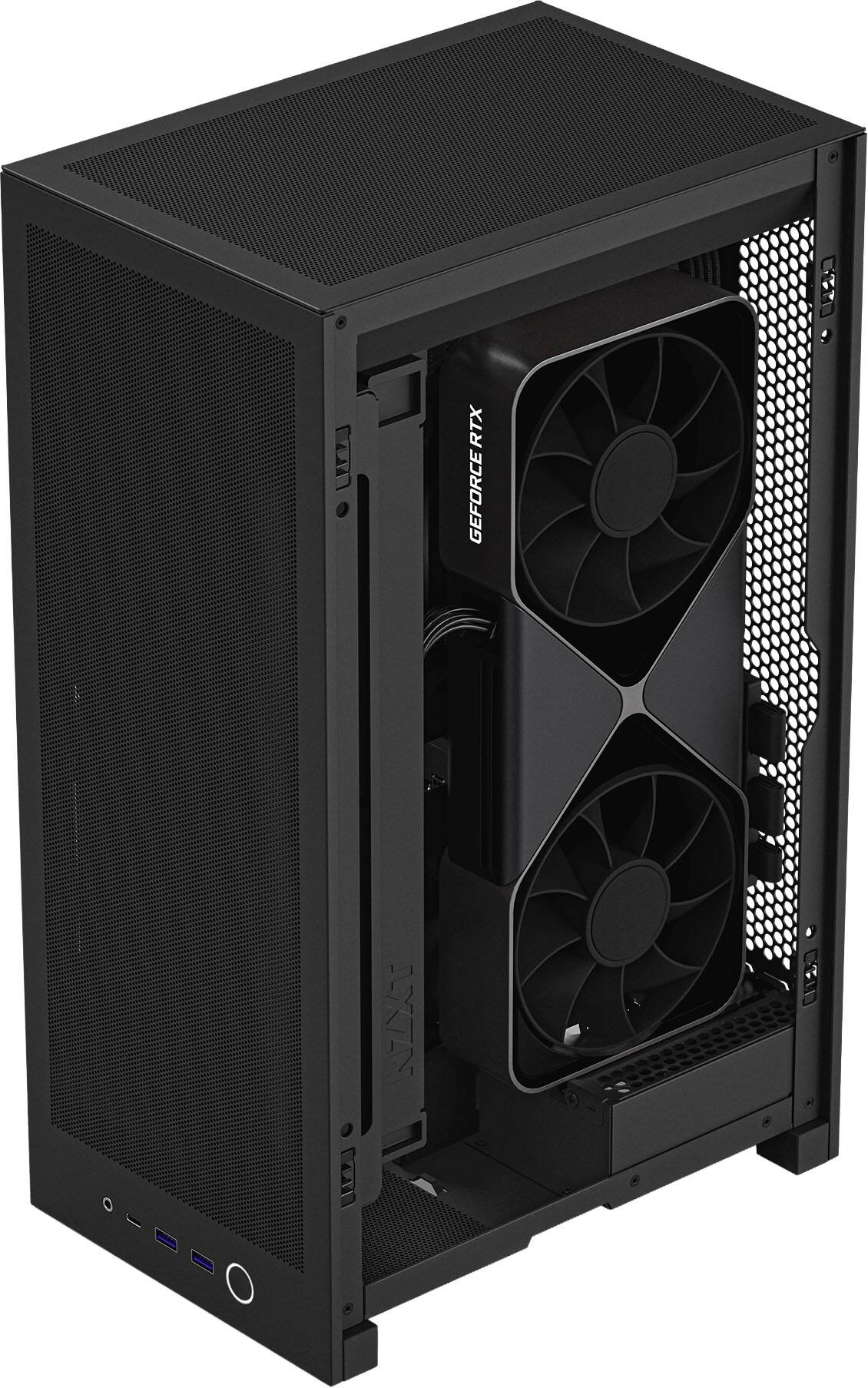

- Large GPU Support: Fits GPUs up to 331 mm, including many of today’s most powerful cards like the RTX 50 Series.
- High-Airflow panels: Ultra-fine mesh maximizes airflow while filtering dust to keep components cool and clean.
- Hybrid Side Panel: A split side panel combines tempered glass to show off your components with mesh below to keep airflow strong. Purpose-built to highlight NZXT Kraken AIO pump cap displays — like the Kraken Elite 280 RGB.
- Large GPU Support: Fits GPUs up to 331 mm, including many of today’s most powerful cards like the RTX 50 Series.
- High-Airflow panels: Ultra-fine mesh maximizes airflow while filtering dust to keep components cool and clean.
Whats Included
- H2 Flow case x 2
- Pre-installed F120Q (CV) x 3
- #6-32 x 5 mm screw for motherboard x 5
- #6-32 x 6 mm hex washer head screw for PSU x 5
- CB5 x 10 mm screw for fans x 9
- Cable ties x 11
- User guide x 2
- H2 Flow case x 2
- Pre-installed F120Q (CV) x 3
- #6-32 x 5 mm screw for motherboard x 5
- #6-32 x 6 mm hex washer head screw for PSU x 5
- CB5 x 10 mm screw for fans x 9
- Cable ties x 11
- User guide x 2
Compare similar products
H2 Flow is a compact 20.7 L vertical mini-ITX case designed for powerful small form factor builds. It supports GPUs up to 331 mm and liquid coolers up to 280 mm, with ultra-fine mesh panels for maximum airflow. A hybrid glass-and-mesh side panel puts your components on display while tool-less access and smart cable management keep building simple
As a new member of the Tower series, The Tower 300 shares the same silhouette with its predecessors, offering full display to the system components. The most obvious appearance between its families is the octagon design. You can fit 4090 GPU and a 420mm radiator in The Tower 300, keeping the motion high and the temperature low. Besides two preinstalled top fans, you can also install two 120/140mm behind the motherboard or one 120/140mm fan on top of the power cover or three 120/140mm fans at the right side fan bracket. It provides excellent hardware expandability to accommodates latest PC hardware without compensating the building experience.
Ridge is an uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
The H3 Flow is a space-efficient micro-ATX PC case delivering exceptional airflow and versatile component compatibility. Designed for optimal cooling, the mesh panels and ventilated PSU shroud keep high-performance components running smoothly.
