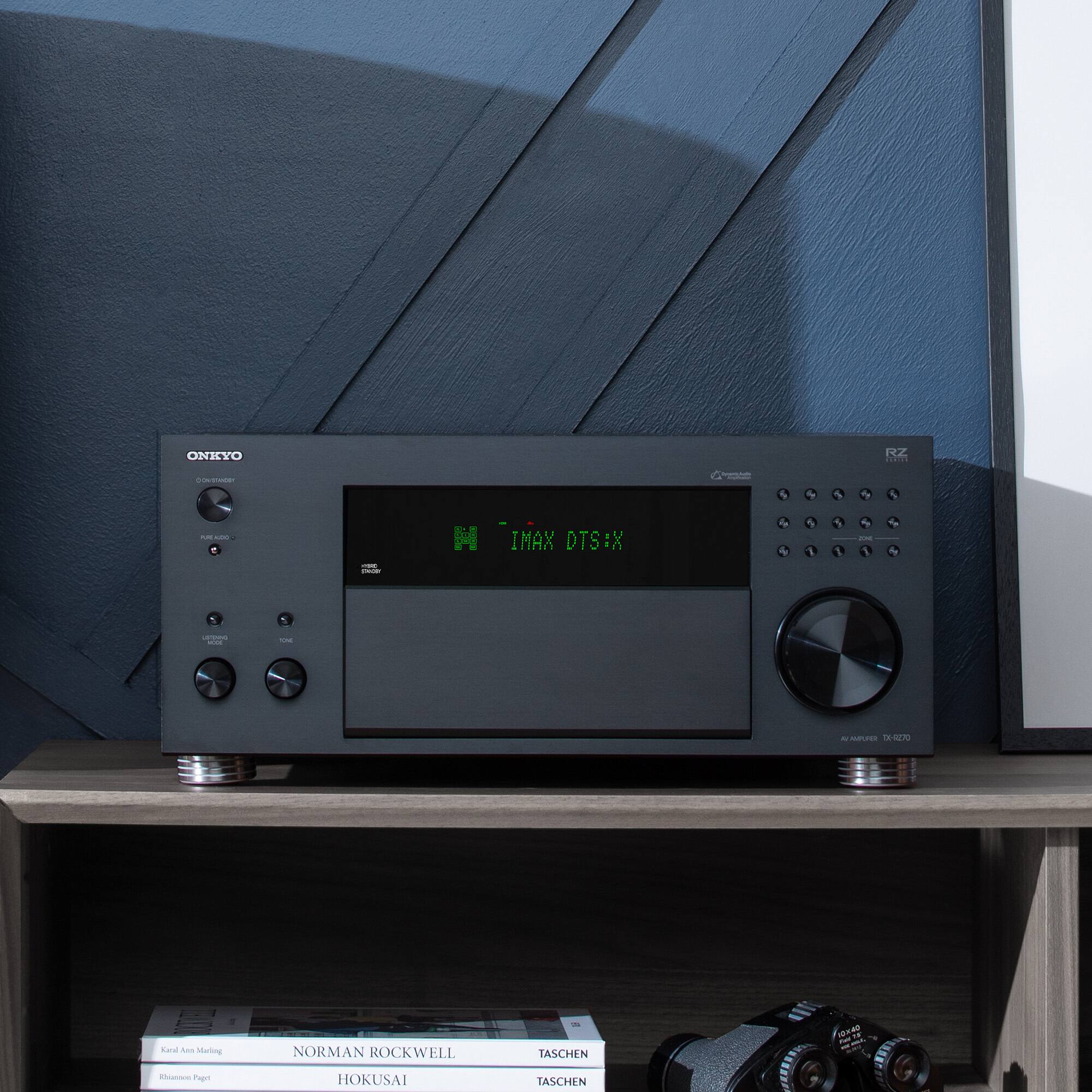

Onkyo - TX-RZ70 11.2 Channel AV Receiver - Black
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms140 watts x 2 channels @ 8 ohmsNumber of Channels11.2Number of Audio Zones3Audio Only Inputs5 x Analog audio, 2 x Coaxial digital audio, 2 x Optical digital audio, 4 x Analog audio, 1 x USB-AAudio/Video Inputs7 x HDMI 2.1Network Connector(s)1 x LAN, 1 x RS-232, 1 x IR in and out
- Key Specs
- Continuous Watts x Channel @ Ohms: 140 watts x 2 channels @ 8 ohms
- Number of Channels: 11.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 3 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 5 x Analog audio, 2 x Coaxial digital audio, 2 x Optical digital audio, 4 x Analog audio, 1 x USB-A
- Audio/Video Inputs: 7 x HDMI 2.1 (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN, 1 x RS-232, 1 x IR in and out
- Video Pass-through: 2160 (4K), 1080, HDR, 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 3 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa, Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Onkyo
- Model Number: TX-RZ70
- Product Name: TX-RZ70 11.2 Channel AV Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 140 watts x 2 channels @ 8 ohms
- Number of Channels: 11.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 3 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 3 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Atmos, DTS:X, IMAX Enhanced, Dolby TrueHD, DTS-HD Master Audio (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 192kHz (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- DSP Modes: Dirac Live (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): AM/FM, Internet, Satellite

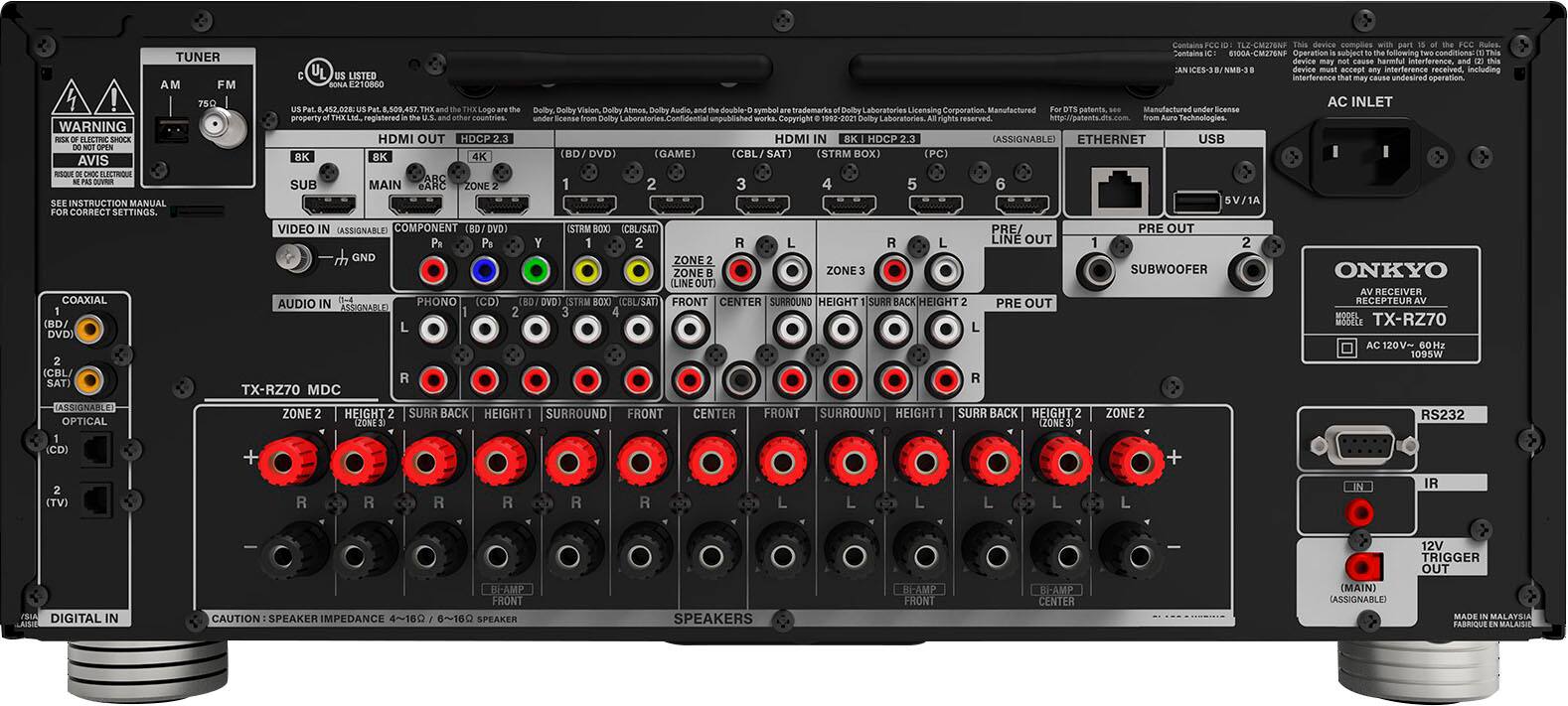

- Inputs
- Audio Only Inputs: 5 x Analog audio, 2 x Coaxial digital audio, 2 x Optical digital audio, 4 x Analog audio, 1 x USB-A
- Video Only Inputs: 1 x Component video, 2 x Composite video (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 7 x HDMI 2.1 (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN, 1 x RS-232, 1 x IR in and out
- Front Facing Inputs: HDMI, USB, Headphone, Setup Mic
- Number of HDMI Inputs (Total): 7
- Number of USB Inputs: 1
- Video
- Video Pass-through: 2160 (4K), 1080, HDR, 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- High Dynamic Range Format: HDR 10+, Dolby Vision, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: 3 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 3
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Featured Streaming Services: TIDAL, Spotify, TuneIn, SIRIUS, Pandora (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.3 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Sonos, Apple AirPlay 2, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa, Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 7.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 48.5 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889951003892
The all-new TX-RZ70 delivers remarkably pure sound, stellar visuals and new technologies to power the heart of your home entertainment system. Rest easy: With uncompromising high resolution audio/video reproduction, you'll enjoy movies, music and games exactly as the creators intended.
- Studio Grade Processing: Built by and for audiophiles, but intuitively built for the everyman. Utilizing new audio technology including ESS Sabre DACs, THX Certification, and eARC functionality, the Onkyo TX-RZ70 overdelivers on premium home theater performance.
- Dirac Live: Machine learning perfectly adapts and calibrates your audio settings to your unique speaker system and room layout. And big bass fans can also upgrade their system with Dirac Live Bass Control Single/Multi Subwoofer for optimal calibration of the lowest tones.
- IMAX: Meets the precise quality standards established by IMAX to reduce noise and grain to produce brighter, clearer pictures, plus immersive sound for the ultimate cinema experience. IMAX Enhanced Mode also provides a stretched aspect ratio for up to 26% more picture on your screen.
- THX: No matter what input is used, what combination of built-in features are used, what preamplifier or amplifier, there can be absolutely nothing added, nothing taken away from the source material. And the TX-RZ70 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
- Advanced Music Streaming & Connectivity: Our customers are precise and value great technology. That’s why we’ve included a host of built-in options for your favorite streaming apps and smart home assistants.
- Studio Grade Processing: Built by and for audiophiles, but intuitively built for the everyman. Utilizing new audio technology including ESS Sabre DACs, THX Certification, and eARC functionality, the Onkyo TX-RZ70 overdelivers on premium home theater performance.
- Dirac Live: Machine learning perfectly adapts and calibrates your audio settings to your unique speaker system and room layout. And big bass fans can also upgrade their system with Dirac Live Bass Control Single/Multi Subwoofer for optimal calibration of the lowest tones.
- IMAX: Meets the precise quality standards established by IMAX to reduce noise and grain to produce brighter, clearer pictures, plus immersive sound for the ultimate cinema experience. IMAX Enhanced Mode also provides a stretched aspect ratio for up to 26% more picture on your screen.
- THX: No matter what input is used, what combination of built-in features are used, what preamplifier or amplifier, there can be absolutely nothing added, nothing taken away from the source material. And the TX-RZ70 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
- Advanced Music Streaming & Connectivity: Our customers are precise and value great technology. That’s why we’ve included a host of built-in options for your favorite streaming apps and smart home assistants.
Whats Included
- Remote Controller
- Speaker Set-Up Microphone
- Indoor FM Antenna
- AM Loop Antenna
- Power Cord
- Remote Controller
- Speaker Set-Up Microphone
- Indoor FM Antenna
- AM Loop Antenna
- Power Cord
Product Manuals
Q: Does this receiver have Bluetooth connectivity?
A: Yes, the Onkyo TX-RZ70 has Bluetooth connectivity for wireless audio streaming.
Q: Does the Onkyo TX-RZ70 receiver include a remote control?
A: Yes, the Onkyo TX-RZ70 receiver comes with a remote control.
Q: Does this receiver support Dolby Atmos?
A: Yes, the Onkyo TX-RZ70 supports Dolby Atmos surround sound.
Q: What is the total power handling of this receiver?
A: This receiver has a total power handling of 140 watts.
Q: How many channels does the Onkyo receiver have?
A: The Onkyo receiver has 11.2 channels.
Q: What type of speaker connections does this receiver have?
A: The Onkyo TX-RZ70 uses banana jack and screw terminal speaker connections.
Q: This boat anchor weighs almost 49 pounds so whats what on the power output??
A: Hello Douglas Here is the watts specification for the TXRZ70: With 8 ohm loads, both channels driven, from 20 Hz20 kHz; rated 140 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output. Thank you Onkyo
A: Hello --- Here is the full dimensions on the TXRZ70: Dimensions (W × H × D) 435 mm × 201.5 mm × 480 mm 17-1/8" × 7-15/16" × 18-7/8" Thank you Onkyo
Compare similar products
The all-new TX-RZ70 delivers remarkably pure sound, stellar visuals and new technologies to power the heart of your home entertainment system. Rest easy: With uncompromising high resolution audio/video reproduction, you'll enjoy movies, music and games exactly as the creators intended.

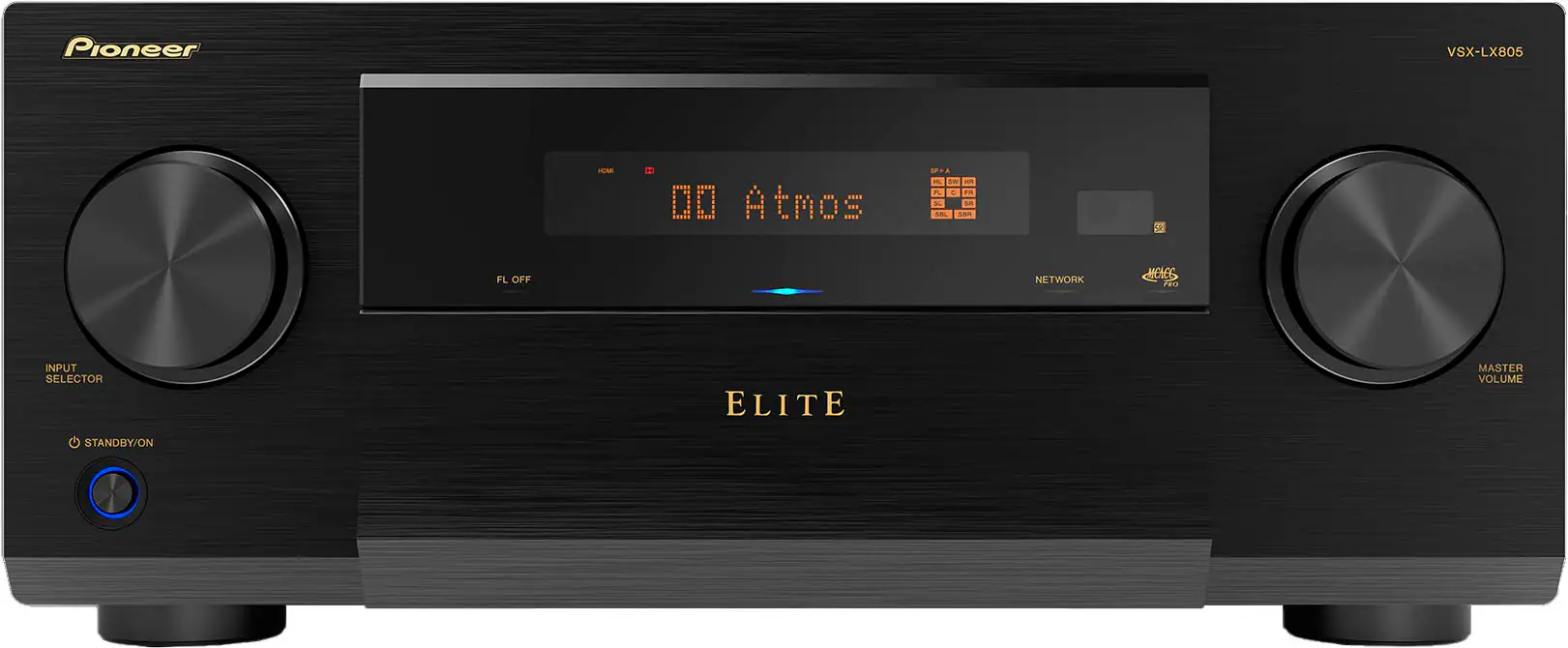

Boasting new technology and brimming with studio-grade circuitry, the VSX-LX805 has been engineered to satisfy your every AVR need. While our audio prowess stems from premium componentry and studio-level processing, our objective has always been to deliver world-class home entertainment solutions to discerning home theater enthusiasts across the globe. Cutting-edge hardware is essential, but our leadership position within the industry comes down to feedback from you, the Elite user. We’ve spared no expense in bringing the Pioneer Elite VSX-LX805 to market, enhancing our past successes and leveling-up our features for the modern age.
