Orei - 4K 1-In-9-Out HDMI™ Video Wall Controller (Audio Extract)-UHD-19VW - Black
Orei - 4K 1-In-9-Out HDMI™ Video Wall Controller (Audio Extract)-UHD-19VW - Black
Related Item
About This Item
- General
- Brand: Orei
- Model Number: UHD-19VW
- Product Name: OREI 4K 1-In-9-Out HDMI™ Video Wall Controller (Audio Extract)-UHD-19VW
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Warranty
- Warranty - Labor: None
- Other
- UPC: 810162900236

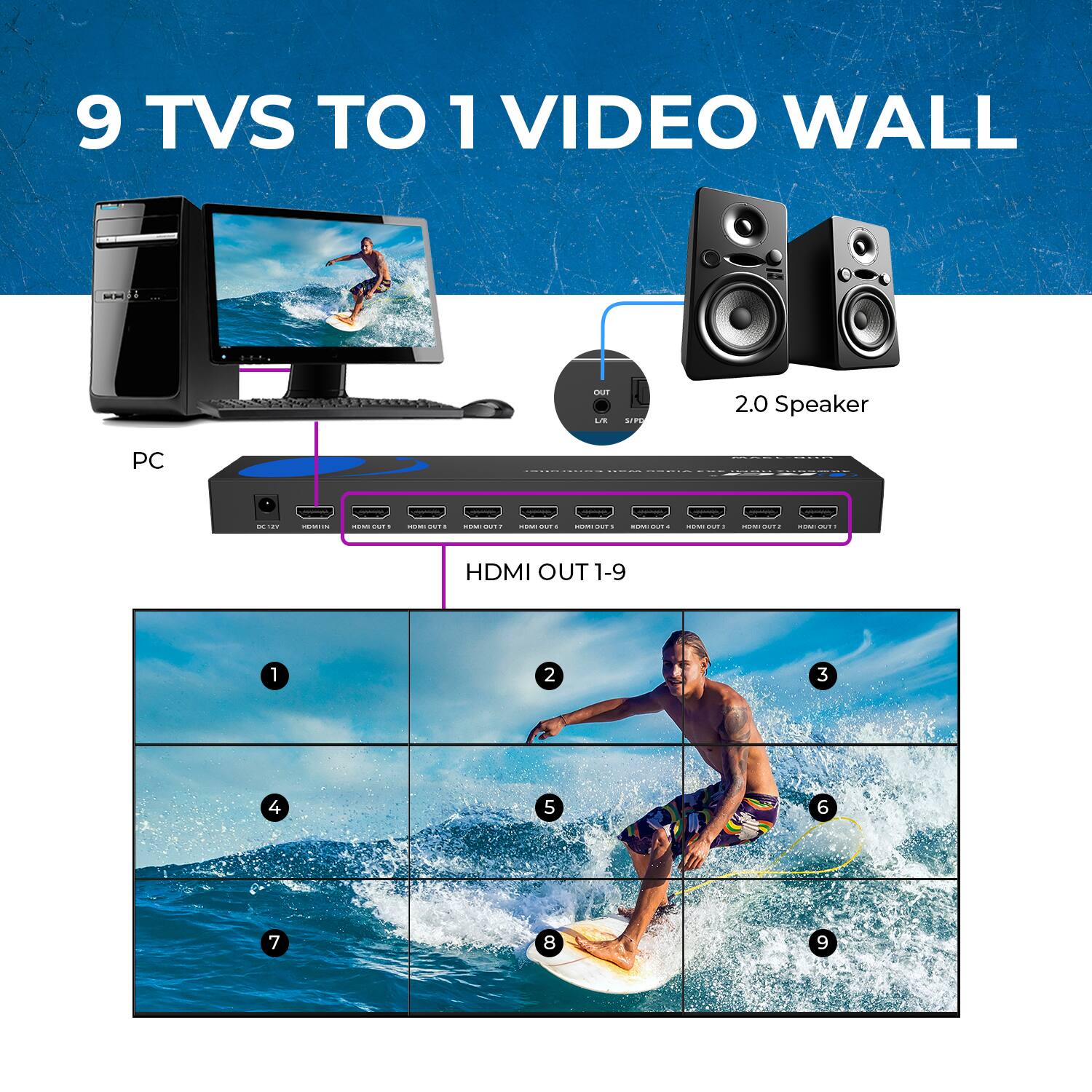

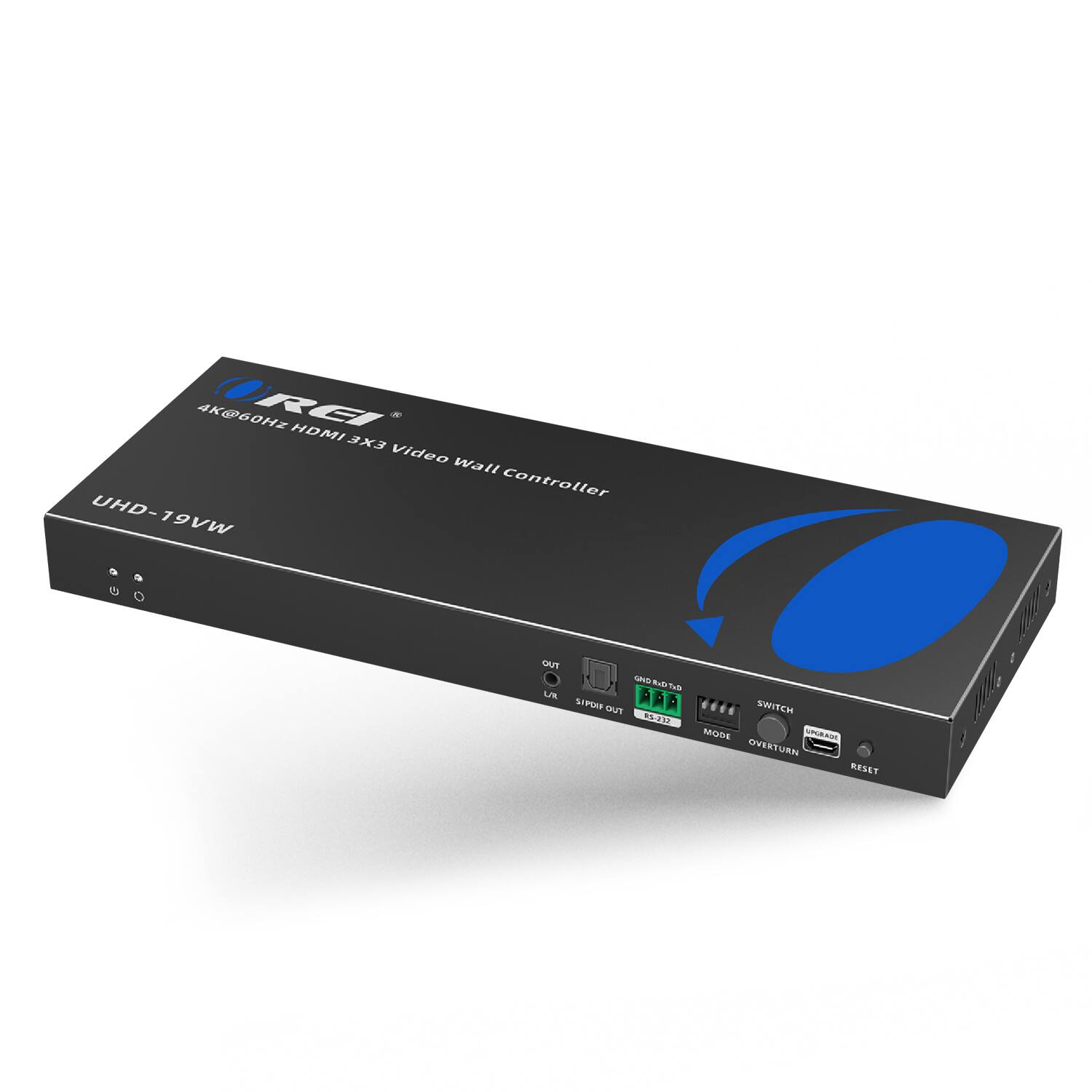

This UHD-19VW is a 1-in-9-out video wall controller, supports one HDMl source input and nine HDMl outputs. Supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/ 3x3 splicing modes, which can be set by RS-232 or dip switch. Equipped with 3.5mm audio output,S/PDlF audio output,180-degree rotation of display image.The product can flexibly adapt to different installation requirements which can be widely used in security monitoring, rail transit, broadcasting. smart cities, home theatre, training and other fields.

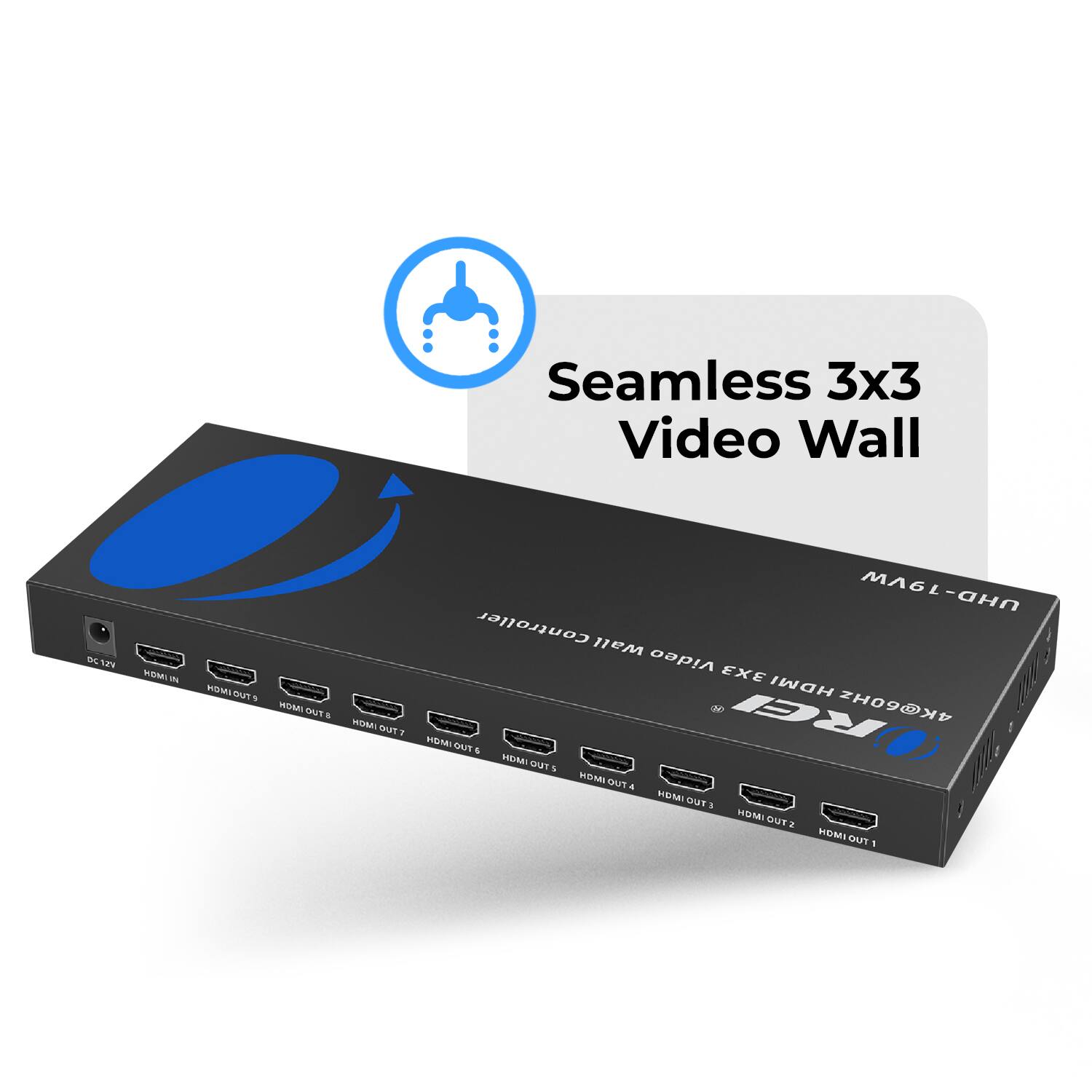

- UHD-19VW: HDMI 3X3 VIDEO WALL CONTROLLER WITH MICRO-USB PORT: Supports one 4096x2160@60Hz resolution HDMI signal input and nine 1080P resolution HDMI signal output.
- UHD-19VW: HDMI 3X3 VIDEO WALL CONTROLLER WITH MICRO-USB PORT: Supports one 4096x2160@60Hz resolution HDMI signal input and nine 1080P resolution HDMI signal output.
