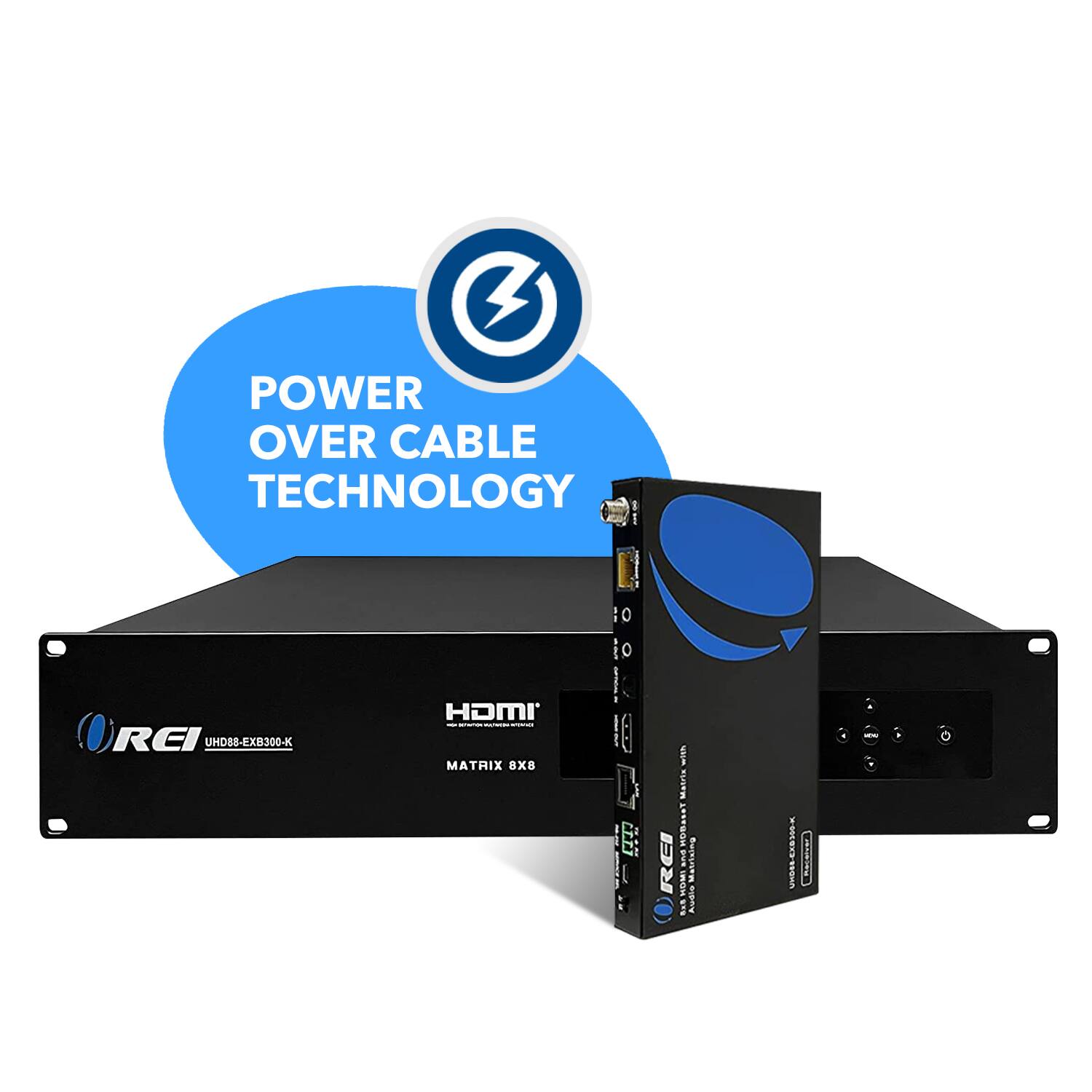

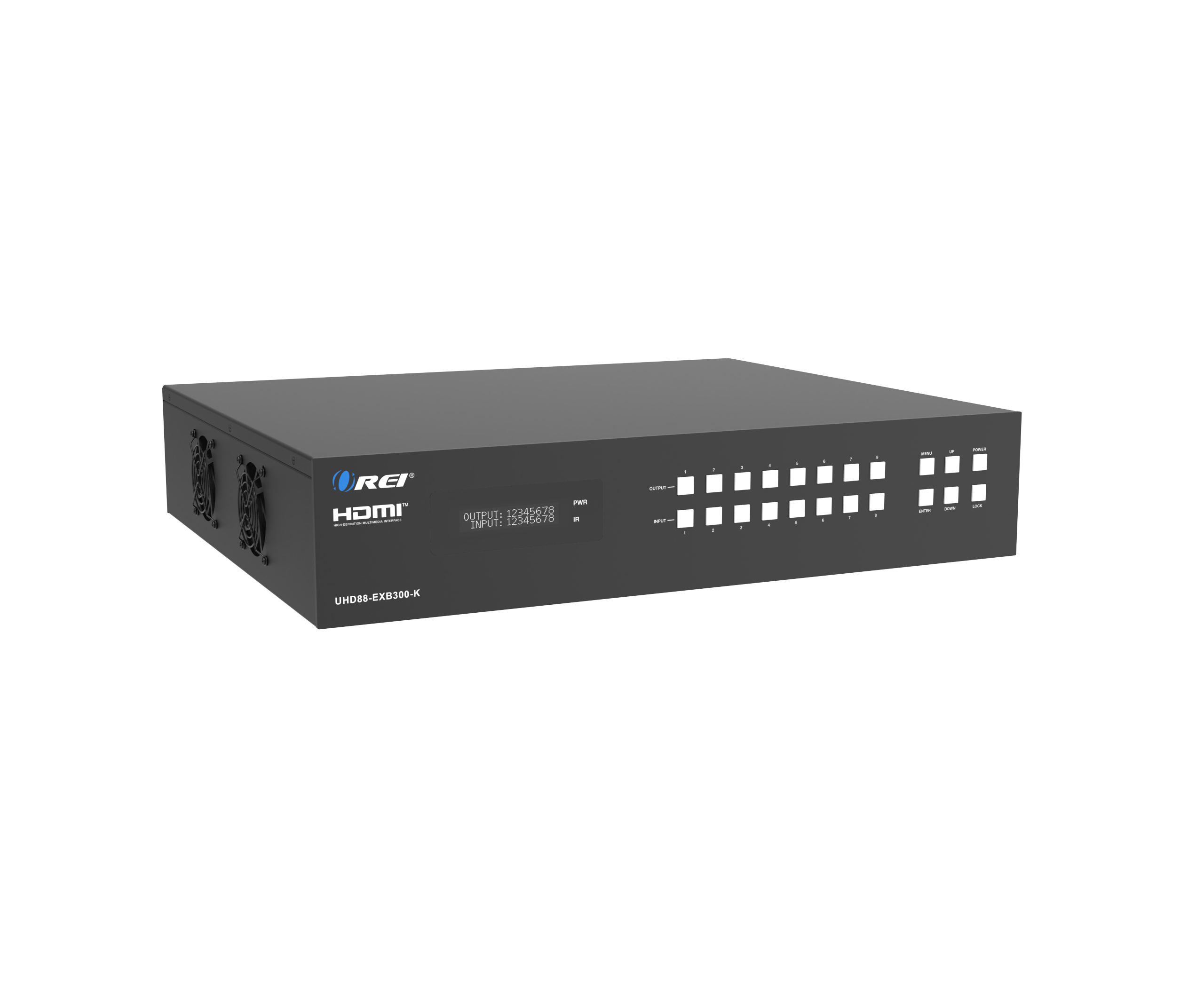

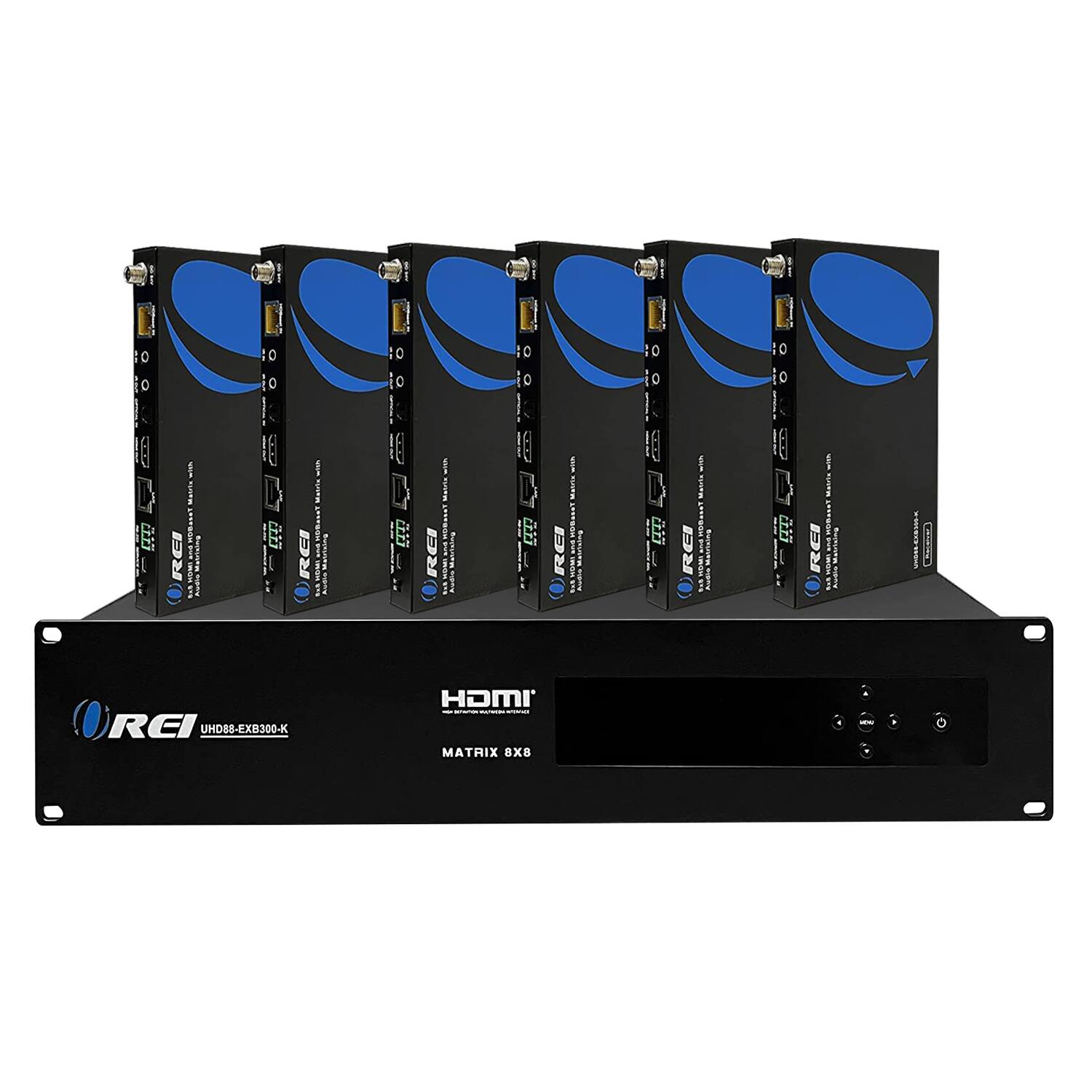

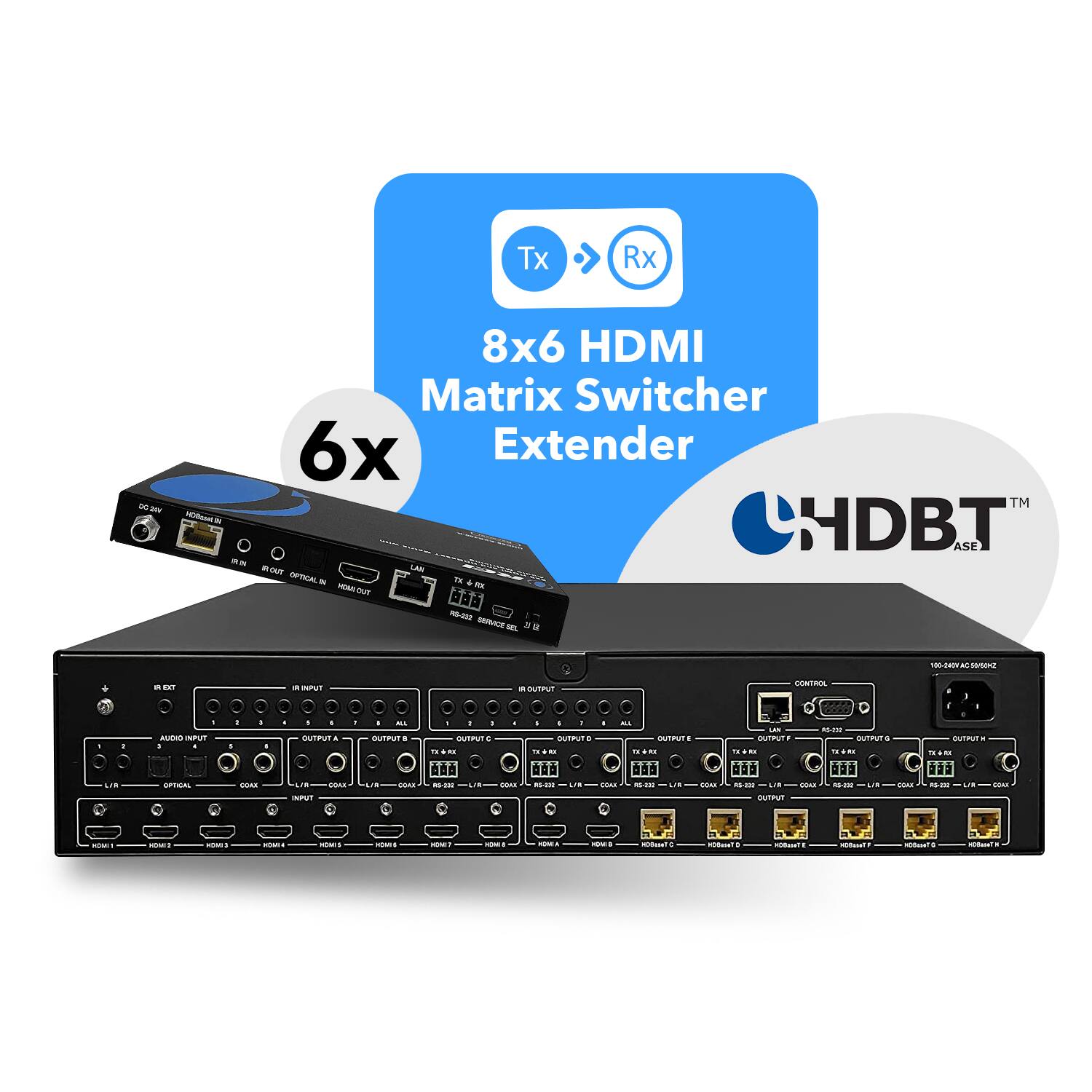

Orei - 4K HDBaseT 8x8 HDMI Extender Matrix - 300ft (cat6)-UHD88-EXB300-K - Black
FREE shipping to
About This Item
- General
- Brand: Orei
- Model Number: UHD88-EXB300-K
- Product Name: OREI 4K HDBaseT 8x8 HDMI Extender Matrix - 300ft (cat6)-UHD88-EXB300-K
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI

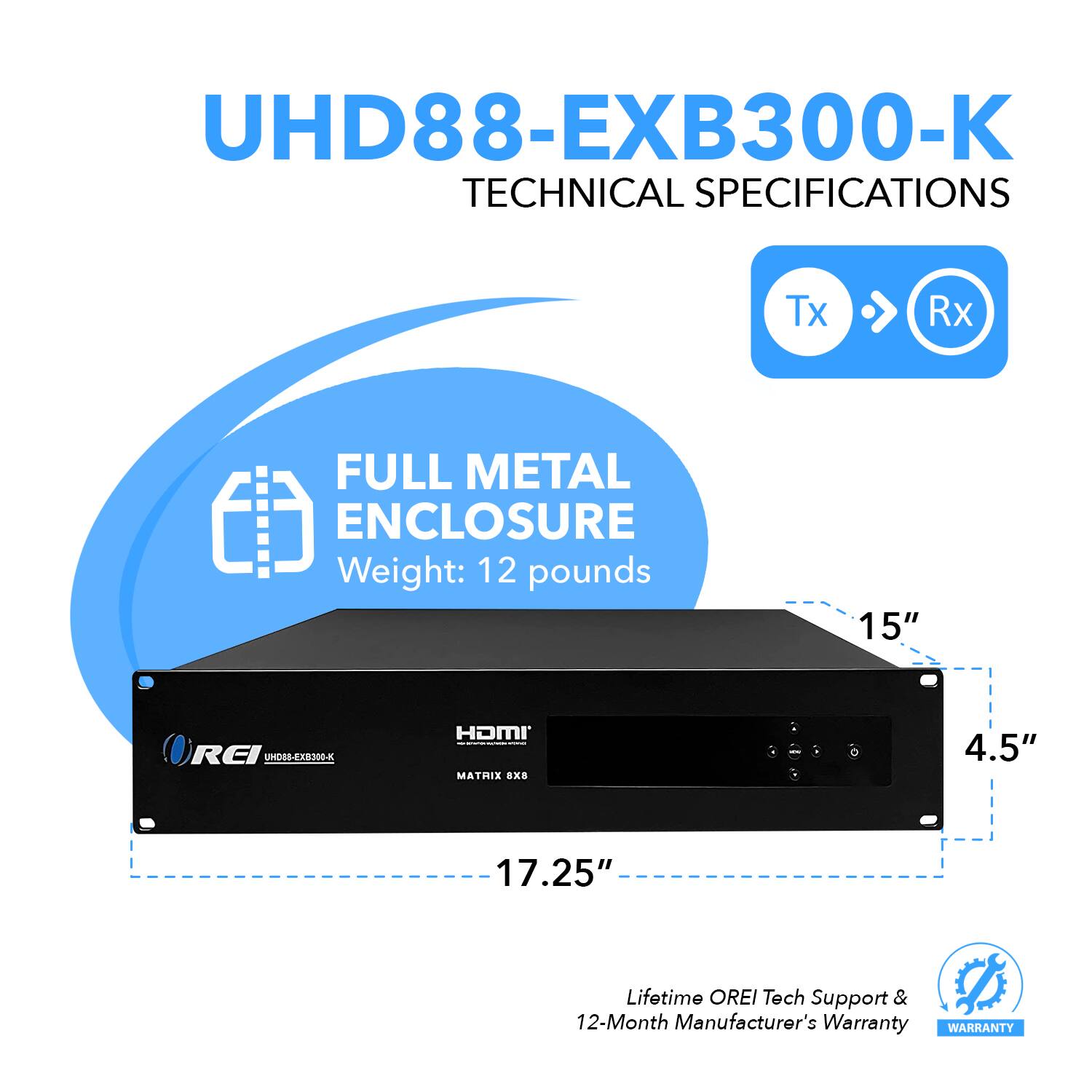

- Dimensions
- Product Height: 4.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Warranty
- Warranty - Labor: None
- Other
- UPC: 850031132290

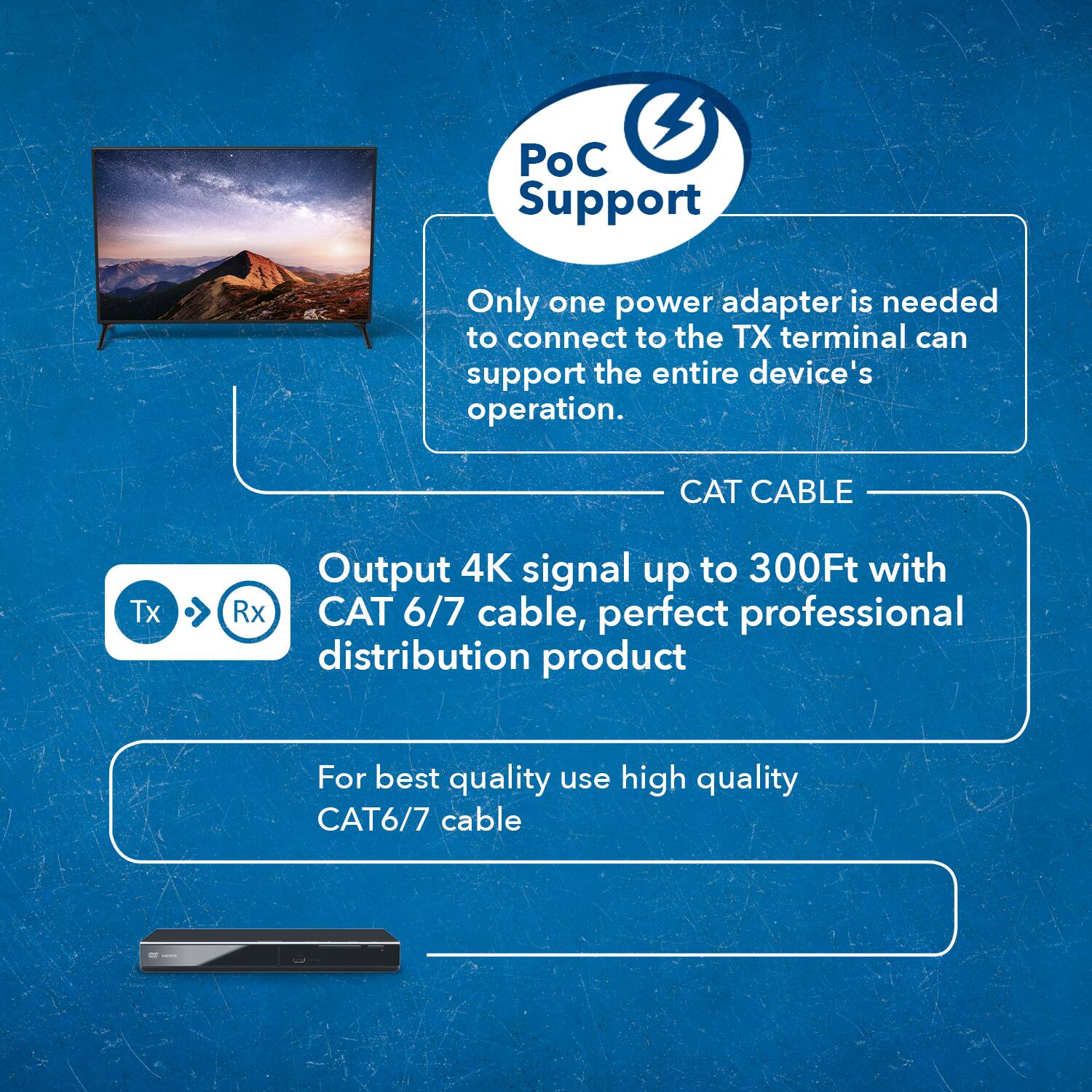

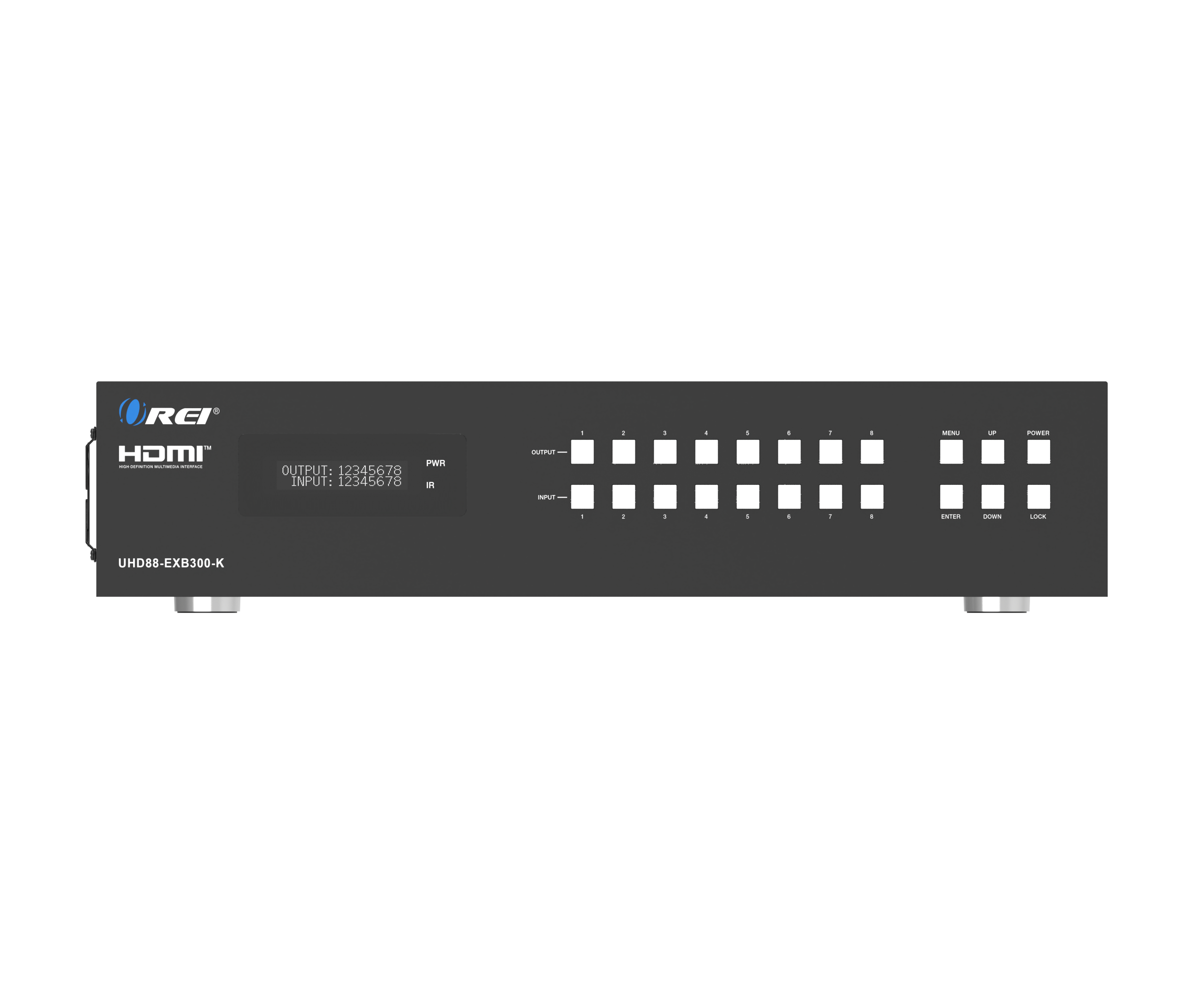

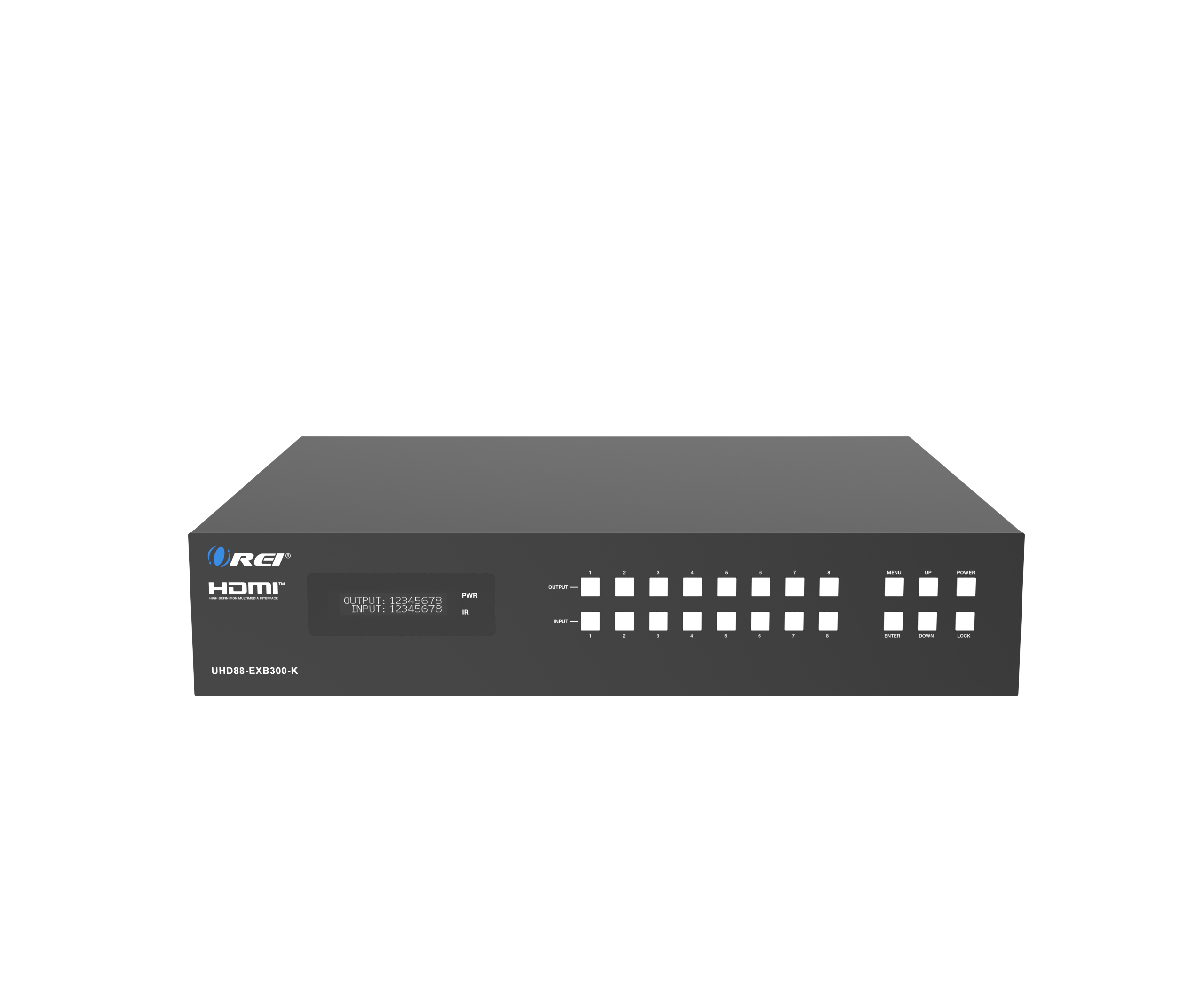

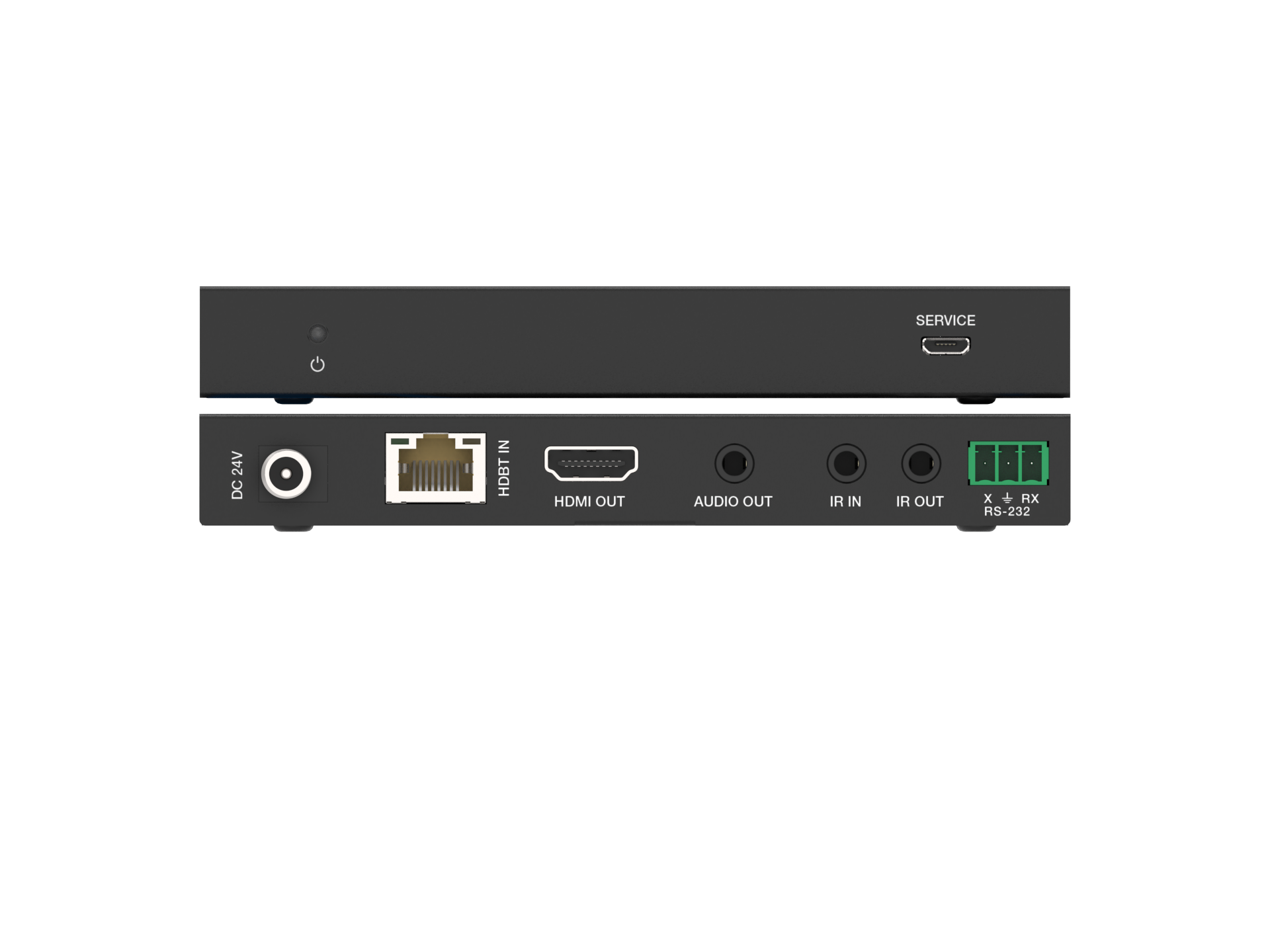

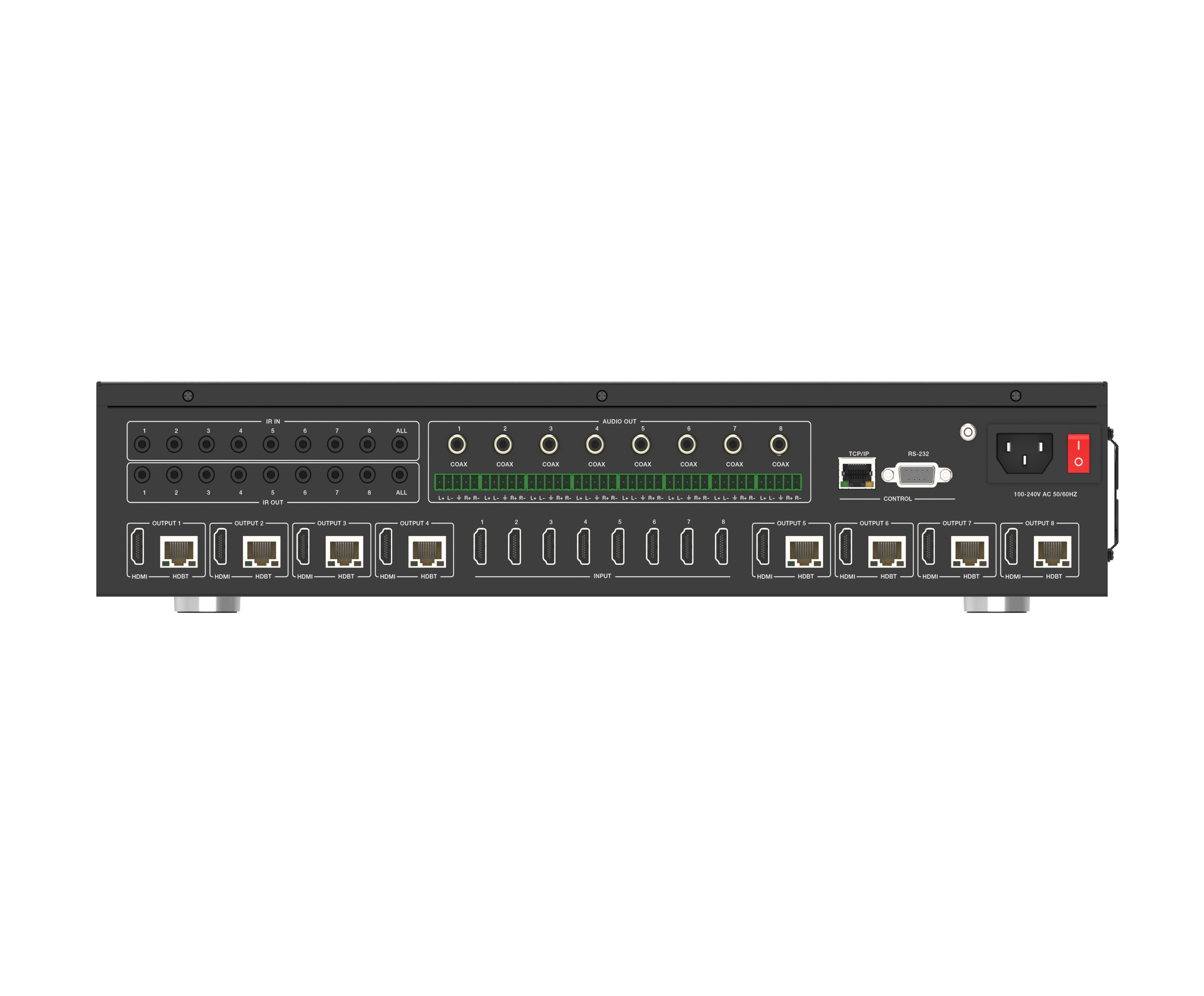

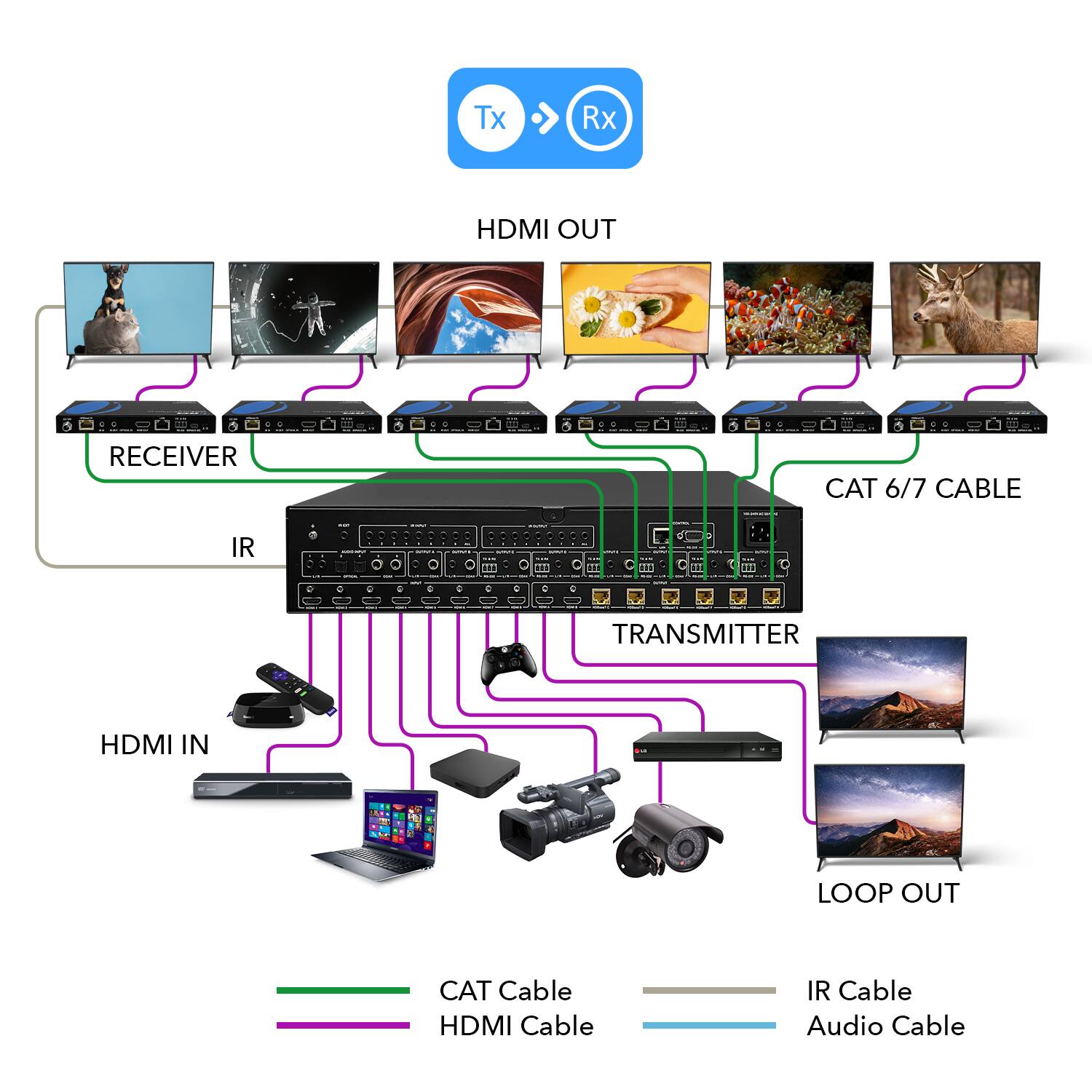

The 8x8 HDBaseT HDMI Matrix Switcher supports transmission of video resolution up to 4K@60Hz YUV 4:4:4 and multichannel audio (digital, analog stereo) while providing flexible control via front panel button (with OLED screen), IR remote, RS-232 or Web GUI. You can switch any of 8 sources to 2 independent outputs and 6 HDBaseT outputs. These HDBaseT ports extend distance up to 330 feet / 100 meters and resolution up to 1080p@60Hz or distance up to 400 feet / 90 meters and resolution up to 4K2K@60Hz YUV 4:4:4 via single CAT6/7 cable. All HDMI outputs support internal audio embed, you can choose the external embed audio by Web GUI. The Matrix Switcher built-in an independent audio matrix and the audio matrix can be choose audio input signal from 6 external audio sources, 8 HDMI inputs audio or 8 ARC audio inputs, and audio volume / mute / delay function can be adjusted by Web GUI. Moreover, the product supports two-way IR function (except 2 local HDMI outputs), and the IR control follows HDMI video channel. The product provides an intuitive set of front panels with OLED screen and supports front panel button, IR remote, RS-232 or Web GUI control ways. HDBaseT Technology - Uncompressed Signal for Zero Latency. A good quality CAT5e/6 STP shielded cable is essential in delivering quality content. Shielded CAT6 is recommended for better performance. Avoid using signal converters/adapters. Supports POE Power Over Cable Function, so only a power adapter is required at the Transmitter End.
- OREI UHD88-EXB400-K HDMI Matrix Switcher Extender - 400 Feet: Supports Video resolution up to 4K@60Hz (YUV 4:4:4)
