Orei - 4K@30hz 4x4 HDMI Matrix w/ Video Wall (Seamless)-HDS-404VW - Black
FREE shipping to
About This Item
- General
- Brand: Orei
- Model Number: HDS-404VW
- Product Name: 4K@30hz 4x4 HDMI Matrix w/ Video Wall (Seamless)-HDS-404VW
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI

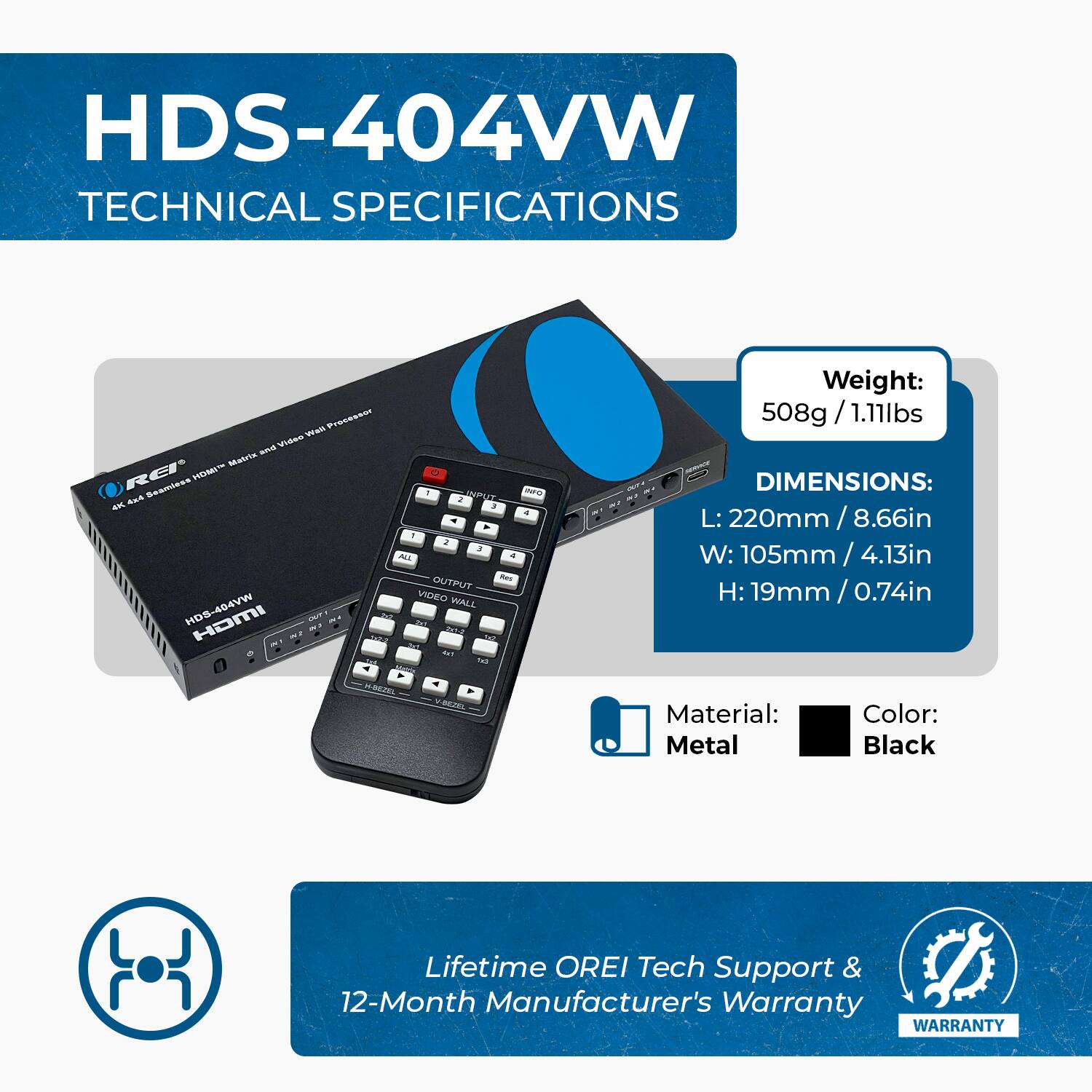

- Dimensions
- Product Height: 0.74 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.66 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 810162900205

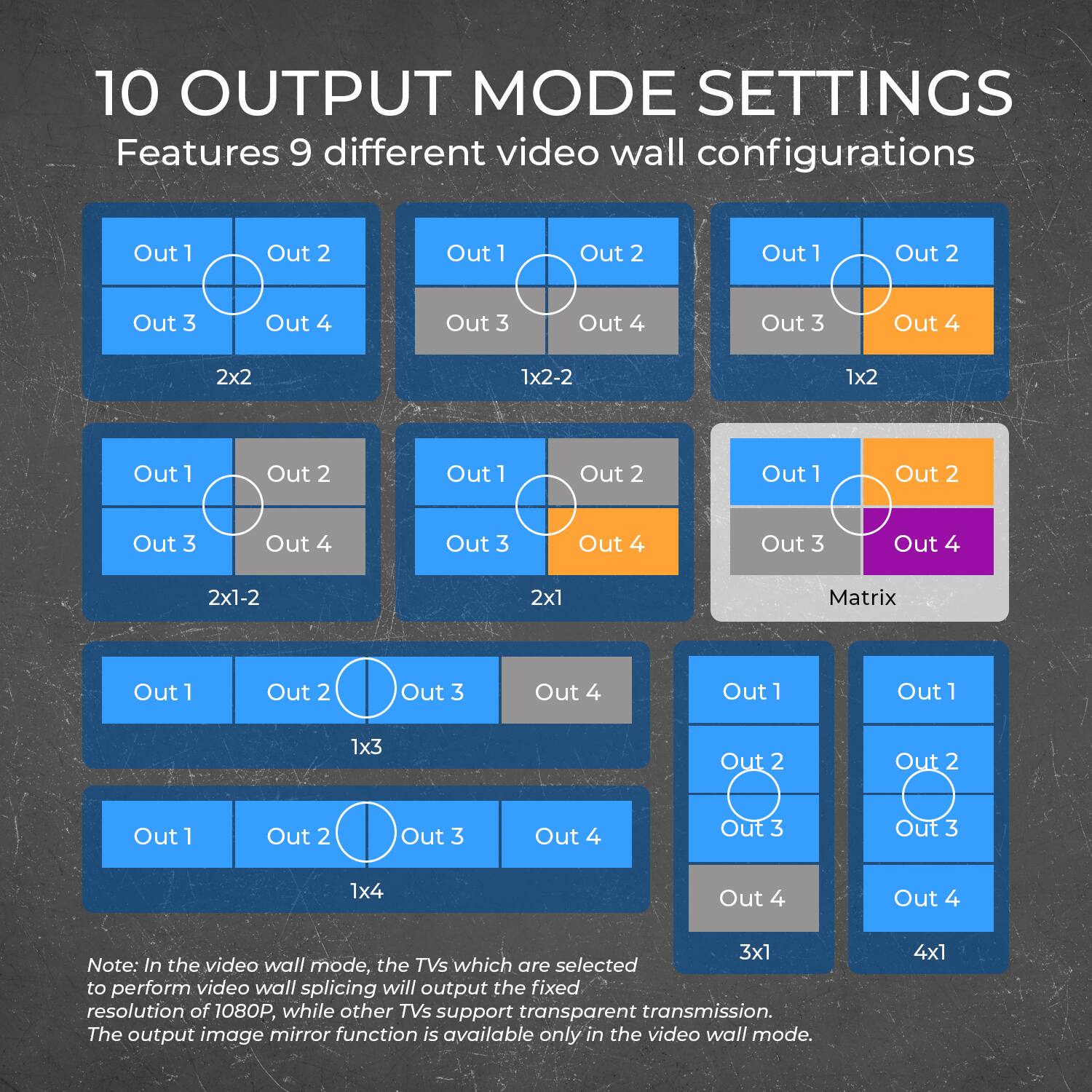

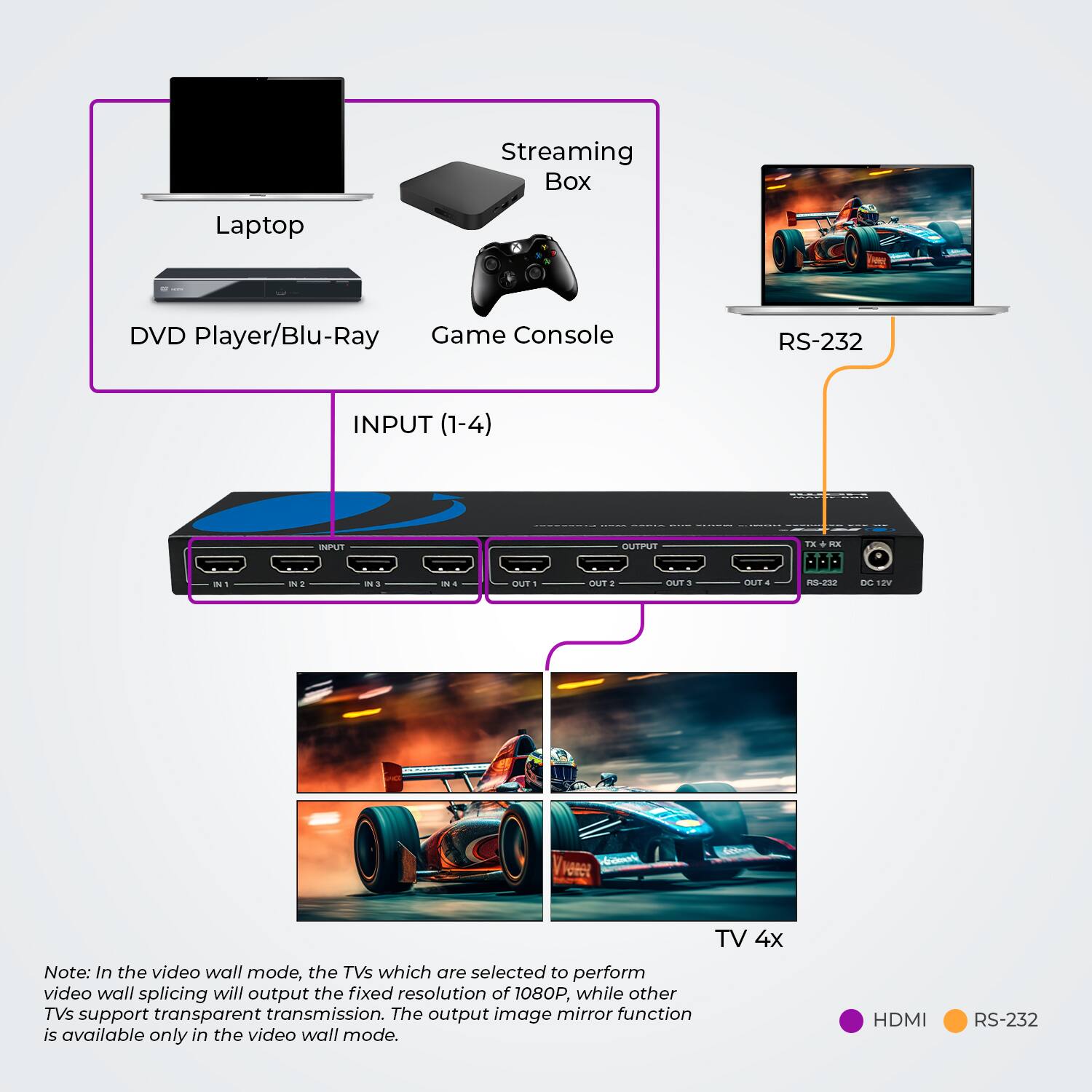

The HDS-404VW HDMI Matrix and video wall processor lets you create stunning video walls with video output resolutions up to 4K@30Hz in Matrix mode and 1080p@60Hz in Video Wall mode. It is HDCP 1.4 compliant, with a 10.2Gbps video bandwidth. It functions as a 4x4 Matrix, supporting 4 inputs and 4 outputs, and as a video wall processor with 9 modes. You can rotate the top two TVs 180 degrees in 2x2 mode via RS-232 commands. Bezel adjustment is available through the remote or RS-232 control. Its compact design and easy installation make it ideal for commercial or personal setups.
- HDS-404VW: 4K@30Hz 4x4 Seamless Matrix with Video Wall: 180-degree image rotation and bezel adjustment
- HDS-404VW: 4K@30Hz 4x4 Seamless Matrix with Video Wall: 180-degree image rotation and bezel adjustment
