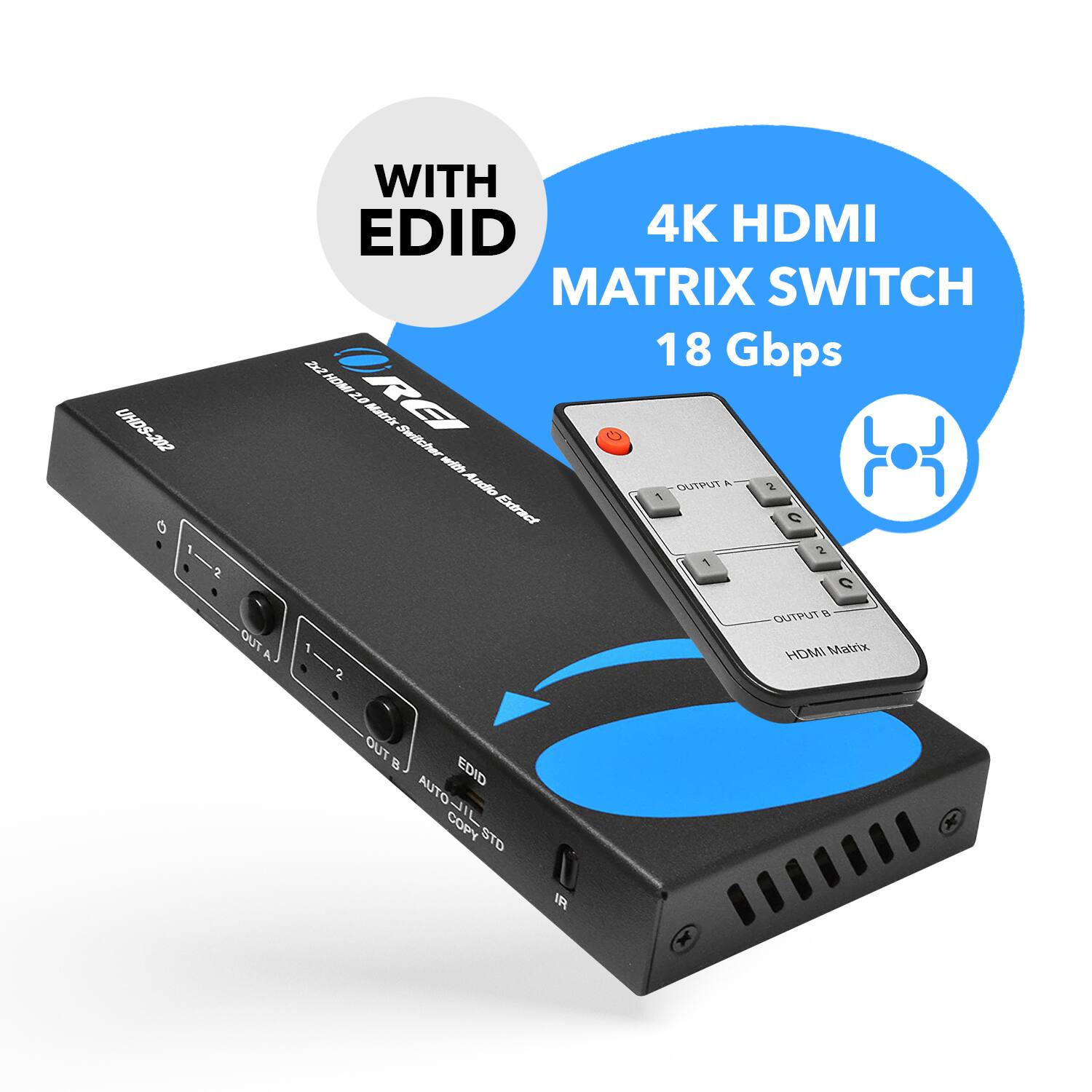

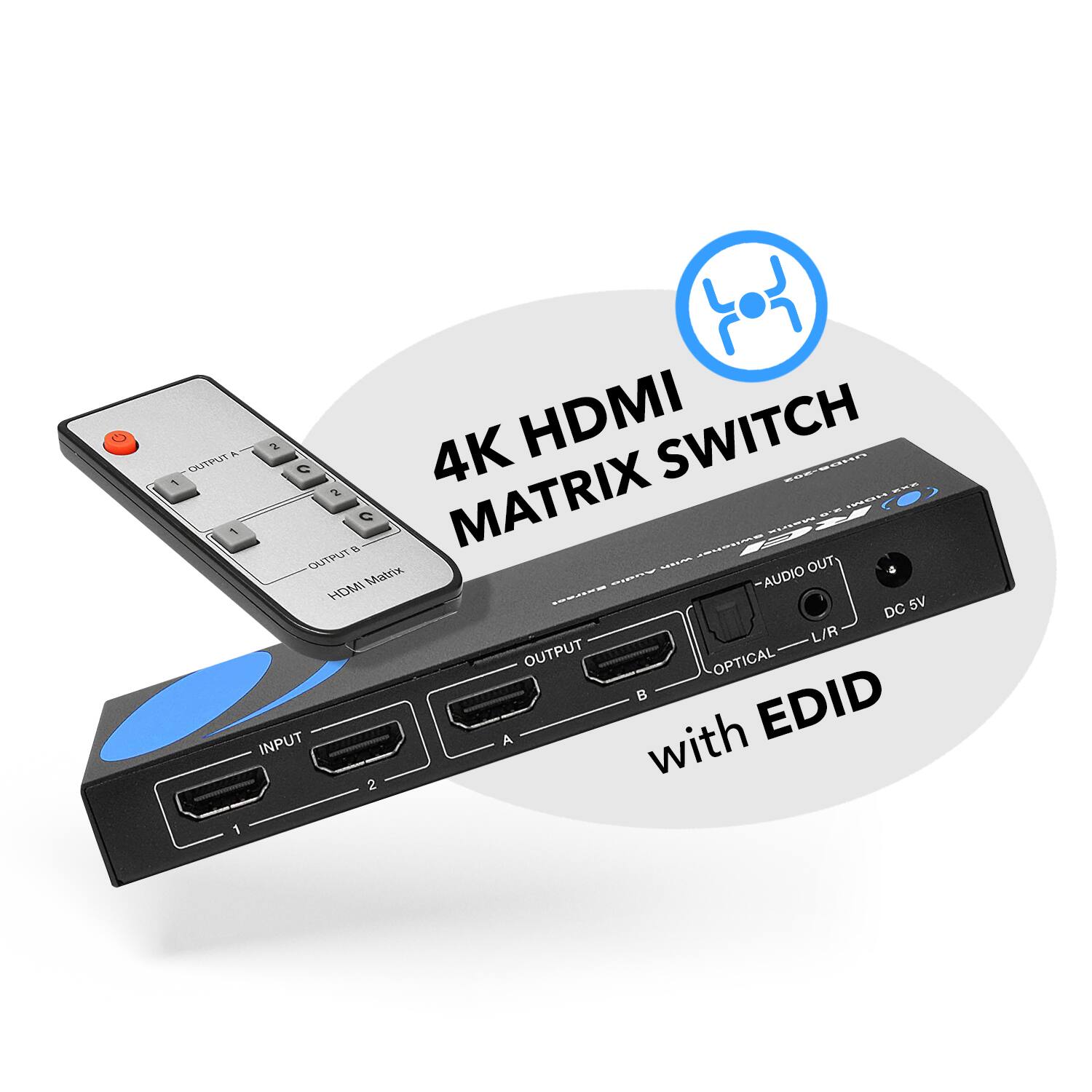

Orei - 4K@60hz 2x2 HDMI™ Matrix (Audio Extract)-UHDS-202 - Black
Reviews coming soon
About This Item
- General
- Brand: Orei
- Model Number: UHDS-202
- Product Name: 4K@60hz 2x2 HDMI™ Matrix (Audio Extract)-UHDS-202
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions

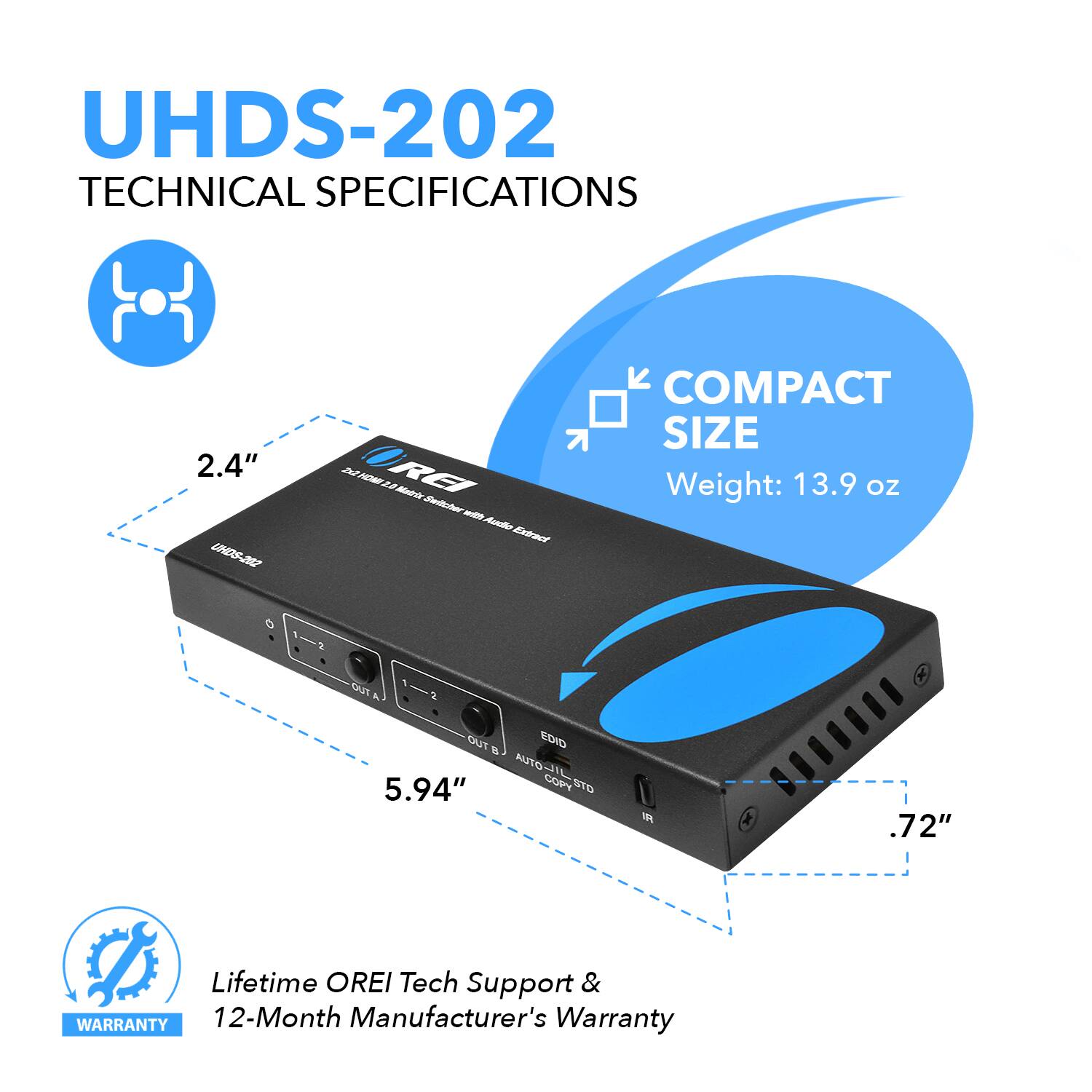

- Product Height: 0.70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.34 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 850008956508

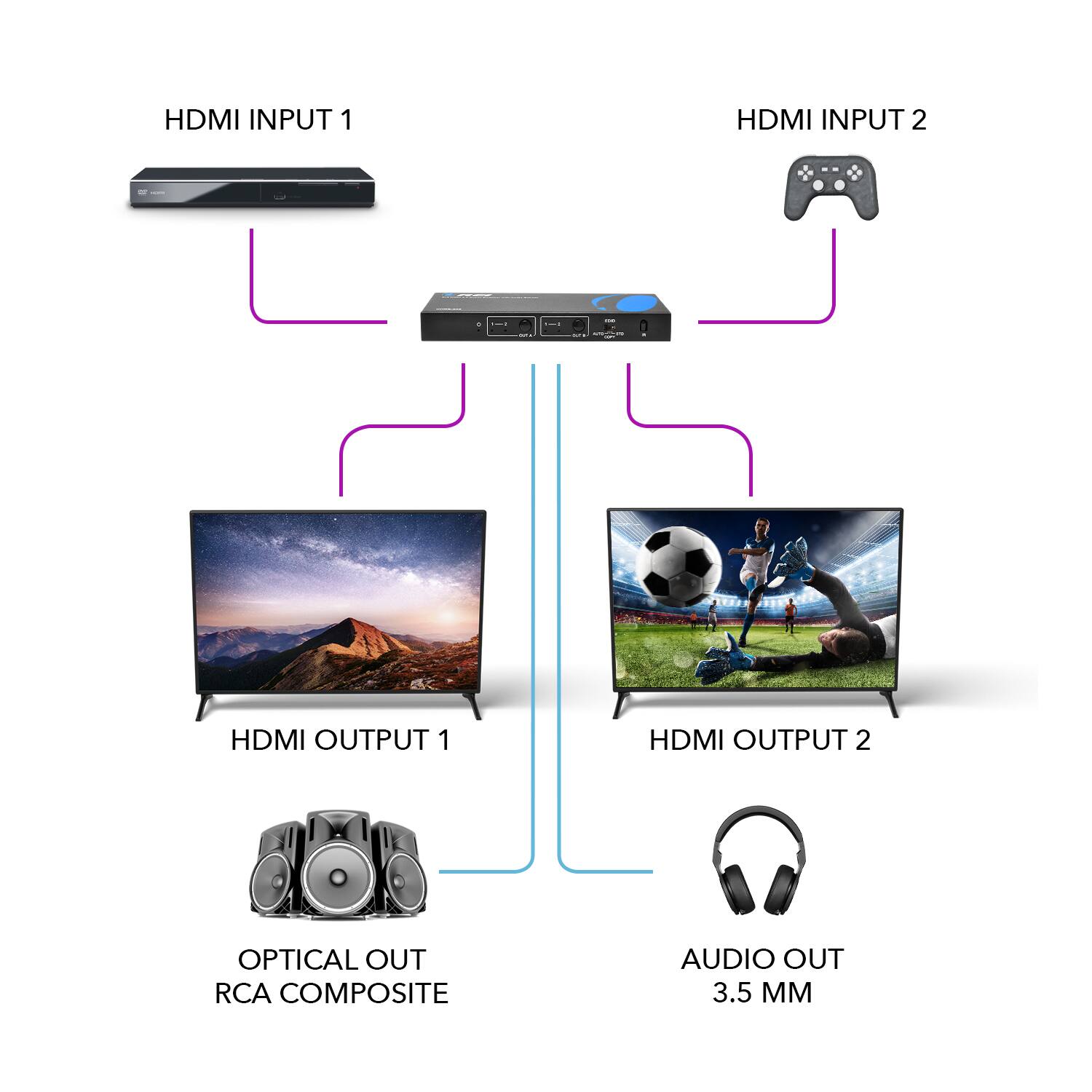

This OREI UHDS-202 18Gbps 2x2 HDMI Matrix switcher supports the transmission of the video signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extract from output A to optical and analog output. This HDMI has 2 input into 2 output Matrix Switcher. Supports highest video resolution up to 4K x 2K at 60Hz), EDID bypass. 2 IN 2 OUT HDMI SWITCH - Smart EDID management, 4K/60Hz 4:4:4,4x1 18G switcher w/ audio de-embedded, HDR. This HDMI switch designed with 2 input ports and 2 output ports, you can choose the HDMI signal source by the IR remote control, easy to access. It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and remote, the corresponding LED indicator on the front panel will be illuminated.
- OREI UHDS-202: 2x2 HDMI Matrix Switch: Supports highest video resolution up to 4Kx2K@60Hz(4:4:4), EDID bypass, Full 3D
