Orei - 4K@30Hz 2x2 HDMI Matrix Switch with Audio Extractor (HD-202) - Black
FREE shipping to
About This Item
- General
- Brand: Orei
- Model Number: HD-202
- Product Name: OREI 4K@30Hz 2x2 HDMI Matrix Switch with Audio Extractor (HD-202)
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions

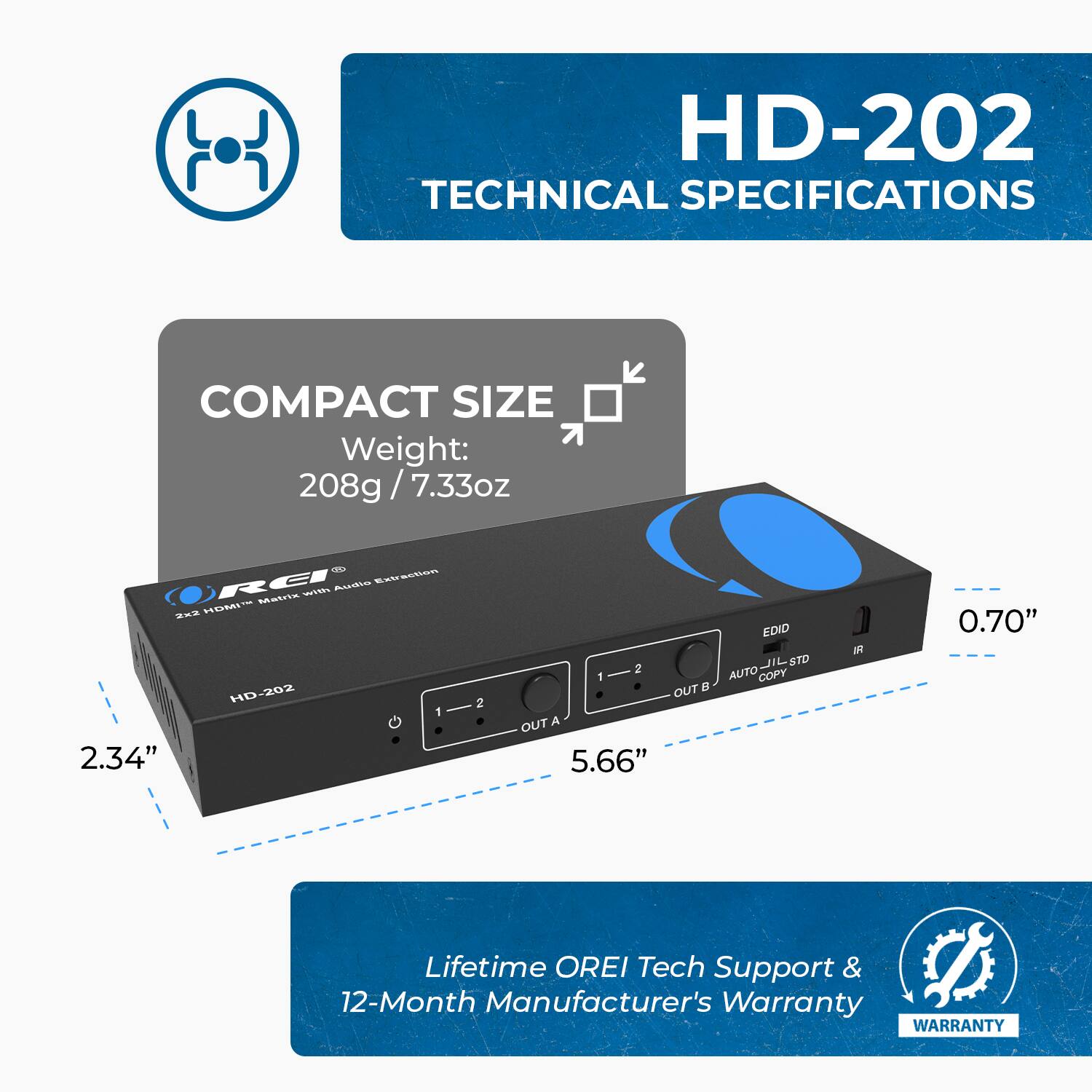

- Product Height: 0.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.34 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.66 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Warranty
- Warranty - Labor: None
- Other
- UPC: 045635948174

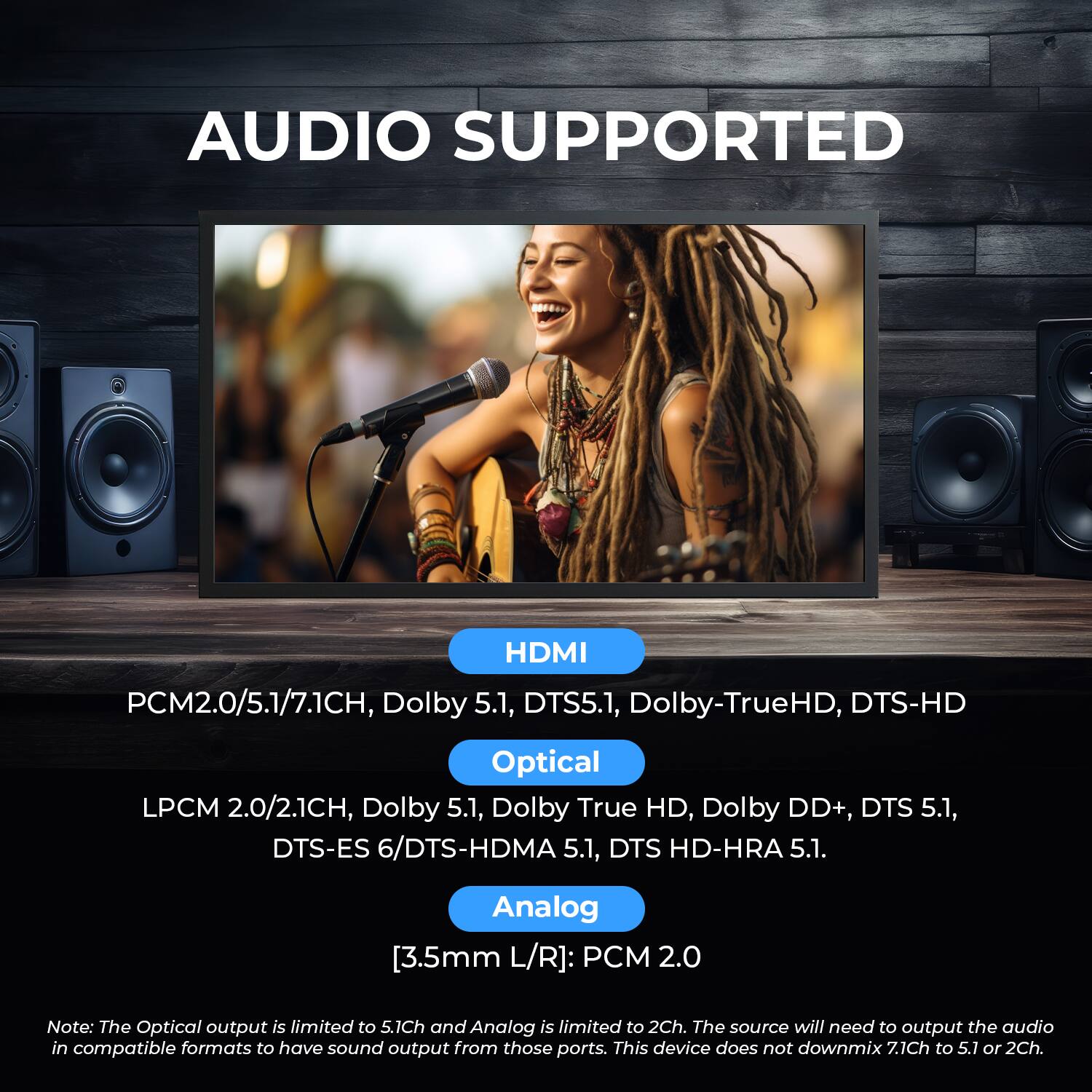

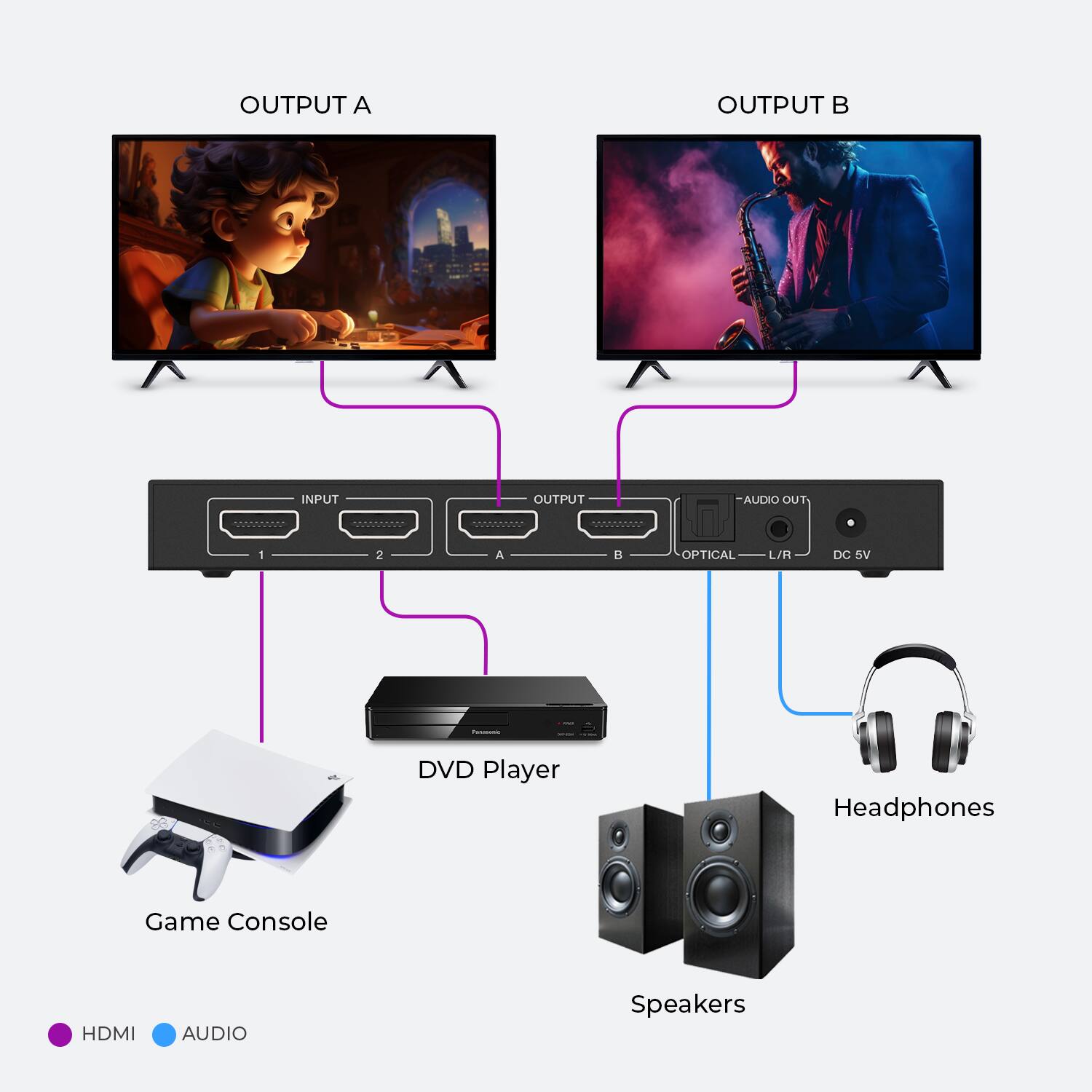

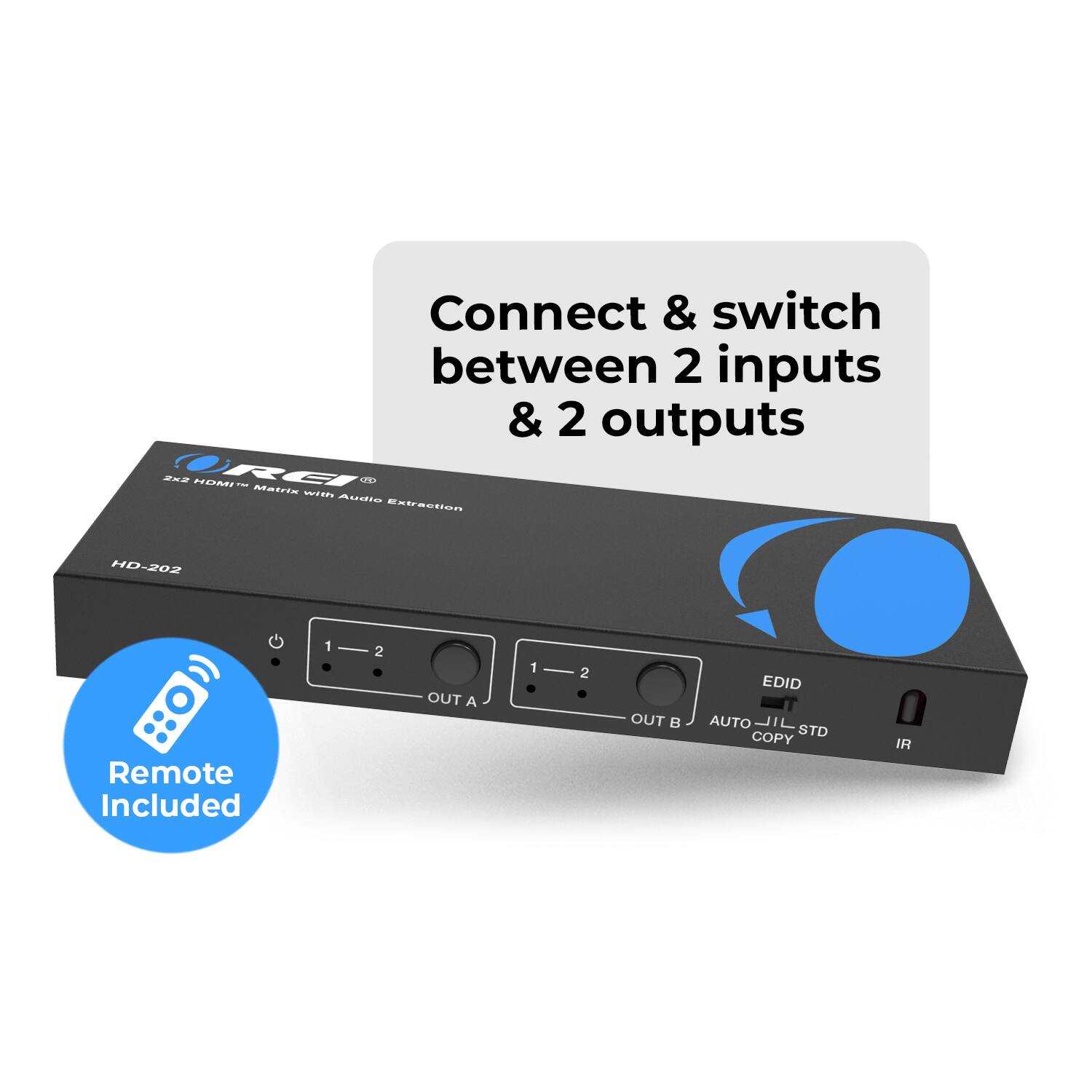

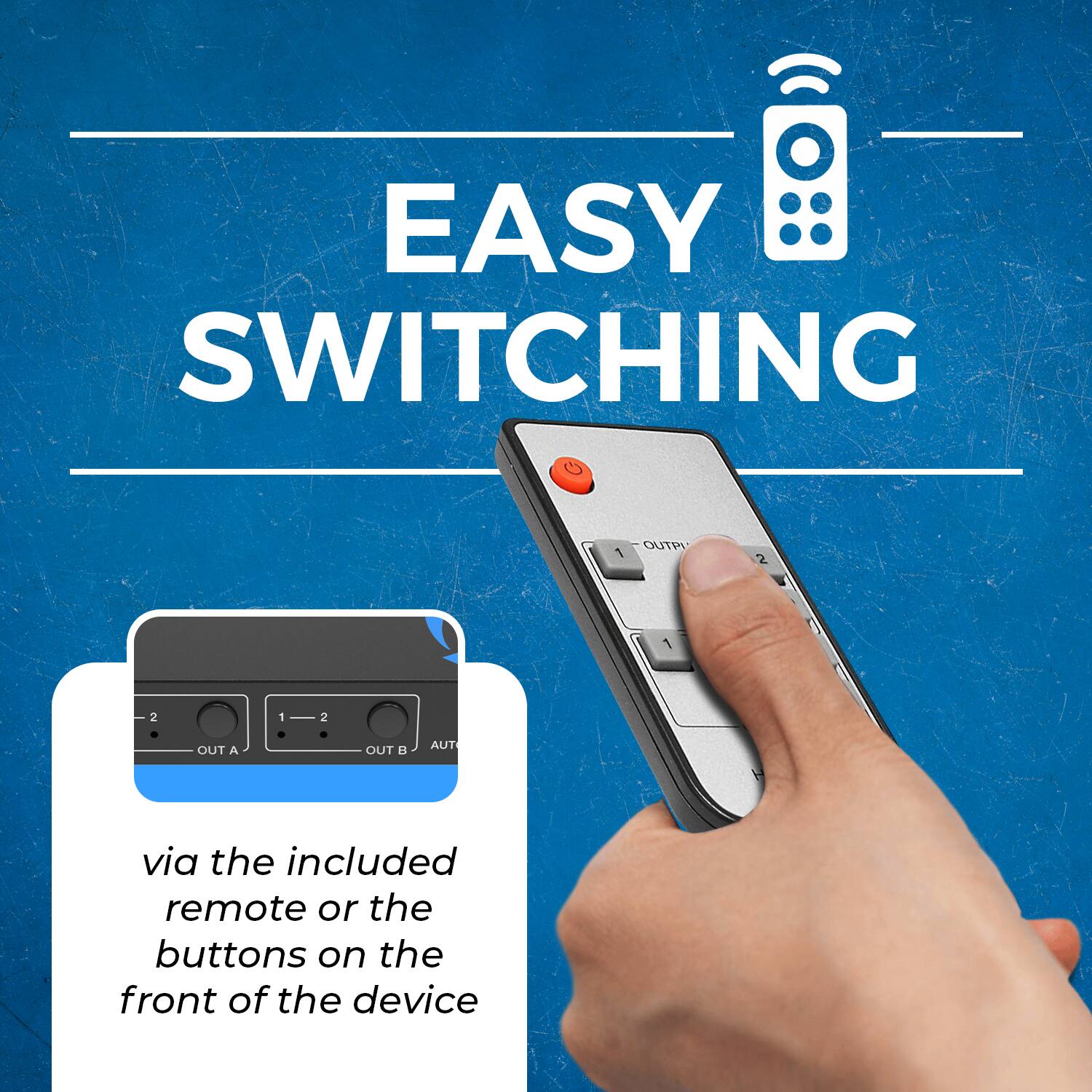

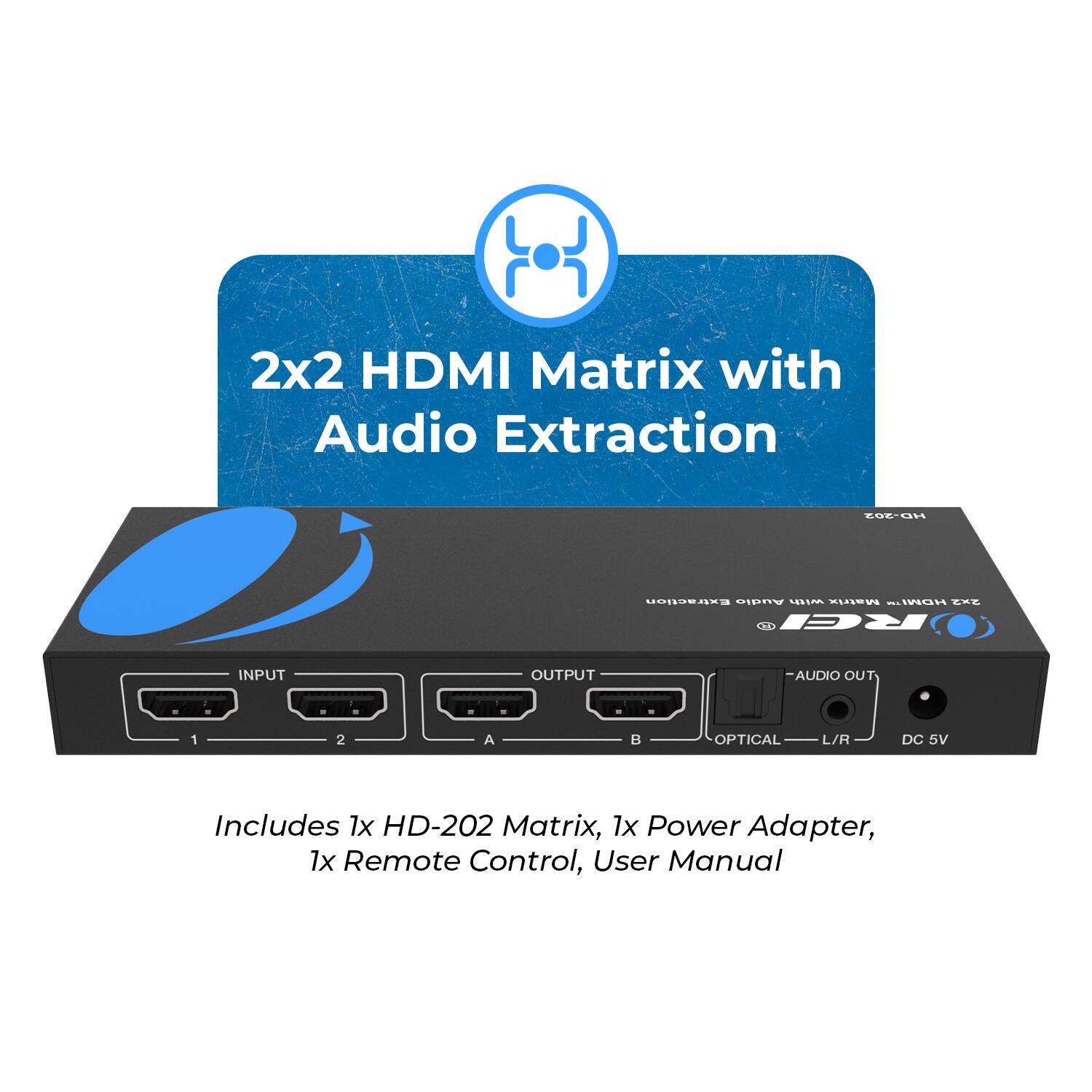

The HD-202 Matrix Switch is a multiple input and multiple output switch which allows you to connect and switch between 2 inputs and 2 outputs. It supports video resolutions up to 4K@60Hz. You can also extract audio from the media stream that is going to OUT A through Optical and Analog 3.5mm ports. The device also features an EDID switch on the front along with the Switch buttons for the respective output ports. You can easily switch between sources using these buttons or the included remote.

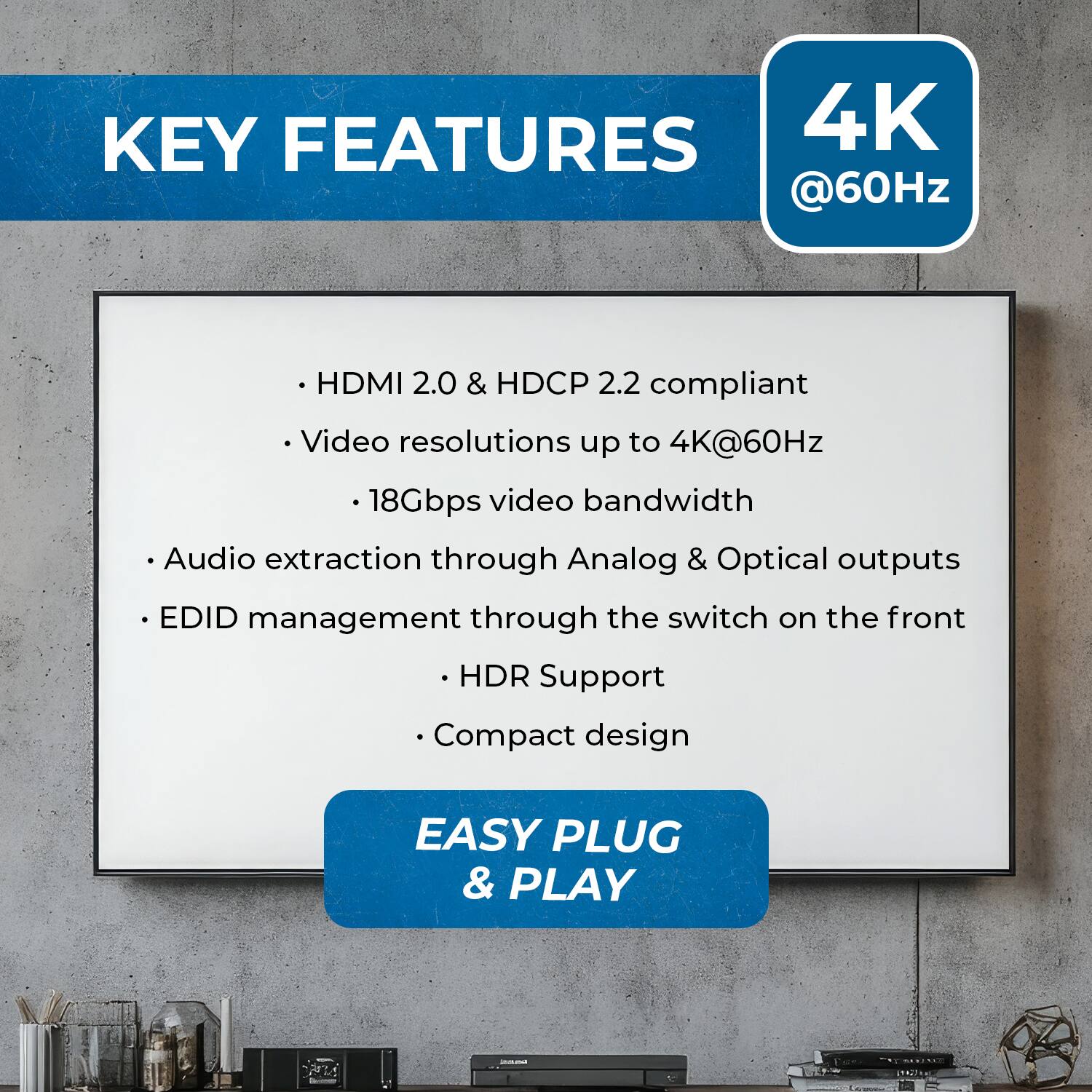

- OREI HD-202 : 2x2 HDMI Matrix Switch: Video resolutions up to 4K@60Hz
