Orei - 8K 2-port HDMI™ Switch (Audio Extract)-BK-21A - Black & Blue
Reviews coming soon
About This Item
- General
- Brand: Orei
- Model Number: BK-21A
- Product Name: OREI 8K 2-port HDMI™ Switch (Audio Extract)-BK-21A
- Color: Black & Blue
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions
- Product Height: 0.67 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.68 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: None
- Warranty - Labor: None
- Other
- UPC: 820103569996

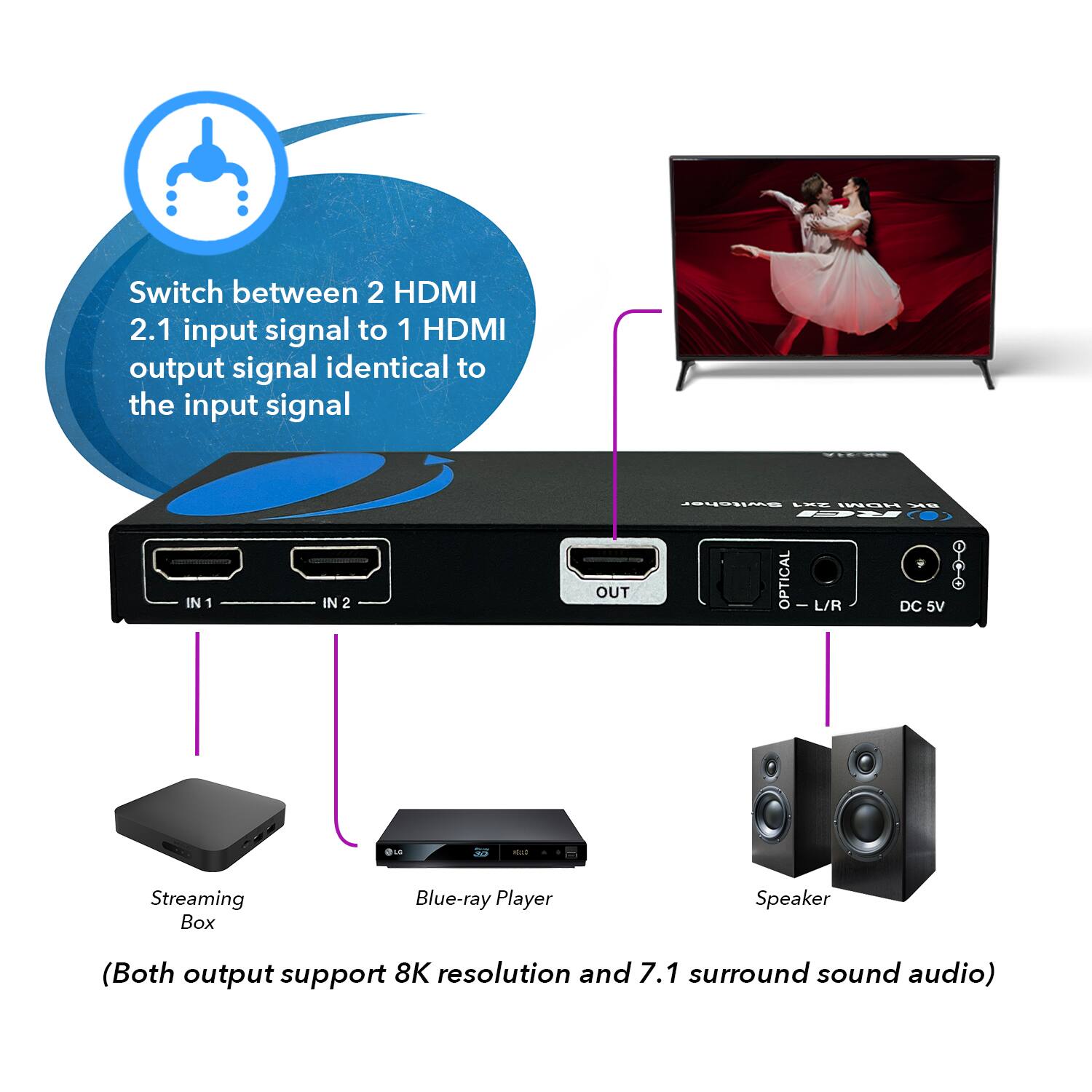

The BK-21A HDMI Switch allows you to switch between 2 Media devices on a single display. It supports video resolution up to 8K@60Hz 4:2:0 with support for 4K@120Hz and 1080p@240Hz. The device features 48Gbps video bandwidth. Optical and Analog 3.5mm outputs for Audio Extraction. The switch is HDMI 2.1 and HDCP 2.3 compliant. It also supports HDMI 2.1 features such as Variable Refresh Rate(VRR), Auto Low Latency Mode(ALLM), and Fast VActive(FVA). The BK-21A can be used with a variety of devices such as Xbox, PlayStation, Roku Stick, Fire Cube, DVD Players, etc.
- HDMI 2.1 and HDCP 2.3 compliant: 48 Gbps Video Bandwidth
- Video resolutions up to 8K@60Hz, 4K@120Hz & 1080p@240Hz.: HDR 10+ and Dolby Vision support
- VRR, ALLM & FVA support: HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Advanced EDID management: Audio Extraction through Optical and Analog 3.5MM outputs
- Features Automatic switching along with the front panel butt: Compatible with most media devices
Reviews
This product doesn't have any reviews yet.
Compare similar products
The BK-21A HDMI Switch allows you to switch between 2 Media devices on a single display. It supports video resolution up to 8K@60Hz 4:2:0 with support for 4K@120Hz and 1080p@240Hz. The device features 48Gbps video bandwidth. Optical and Analog 3.5mm outputs for Audio Extraction. The switch is HDMI 2.1 and HDCP 2.3 compliant. It also supports HDMI 2.1 features such as Variable Refresh Rate(VRR), Auto Low Latency Mode(ALLM), and Fast VActive(FVA). The BK-21A can be used with a variety of devices such as Xbox, PlayStation, Roku Stick, Fire Cube, DVD Players, etc.
The HDA-934 is an ARC/eARC HDMI audio extractor switch with 1 HDMI ARC/eARC soundbar port, 3 HDMI input ports, and 1 HDMI ARC/eARC output port. This device can extract audio from the HDMI sources or an ARC/eARC TV, providing ARC/eARC audio output directly to the soundbar. It is HDMI 2.0b and HDCP 2.2 compliant, supporting a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@60Hz 4:4:4 with HDR10+ and Dolby Vision pass-through. Please note that in order to extract audio from TV’s internal apps, the TV must be compatible with ARC/eARC. Only HDMI input 1 can connect to a soundbar, others are non-ARC/eARC standard HDMI ports to connect HDMI sources to connect to the TV. Control options include control via front panel buttons or IR remote. Advanced EDID management to select the settings (AUTO/2.0/5.1/7.1). Compact design, perfect for commercial or personal setups.
This OREI UHDS-202 18Gbps 2x2 HDMI Matrix switcher supports the transmission of the video signal (up to 4K2K@50/60Hz YCbCr 4:4:4) from two HDMI sources to two HDMI displays simultaneously. This product supports audio extract from output A to optical and analog output. This HDMI has 2 input into 2 output Matrix Switcher. Supports highest video resolution up to 4K x 2K at 60Hz), EDID bypass. 2 IN 2 OUT HDMI SWITCH - Smart EDID management, 4K/60Hz 4:4:4,4x1 18G switcher w/ audio de-embedded, HDR. This HDMI switch designed with 2 input ports and 2 output ports, you can choose the HDMI signal source by the IR remote control, easy to access. It supports three modes of EDID setting (AUTO, COPY, and STD). Flexible control via panel buttons and remote, the corresponding LED indicator on the front panel will be illuminated.
The BK-21AC HDMI Switch is an excellent solution for connecting two media devices to a single display and switching between them effortlessly. It is HDCP 2.3 compliant, supporting video resolutions up to 8K@60Hz, 4K@120Hz, and 1080p@240Hz with a 48Gbps video bandwidth. It is compatible with HDR10+ and Dolby Vision for enhanced visuals. The device includes both Optical and 3.5mm stereo ports for audio extraction and supports uncompressed LPCM as well as compressed DTS and Dolby Digital audio formats. It supports CEC control and advanced EDID management. Its compact design and plug-and-play setup make it ideal for home and commercial setups.
