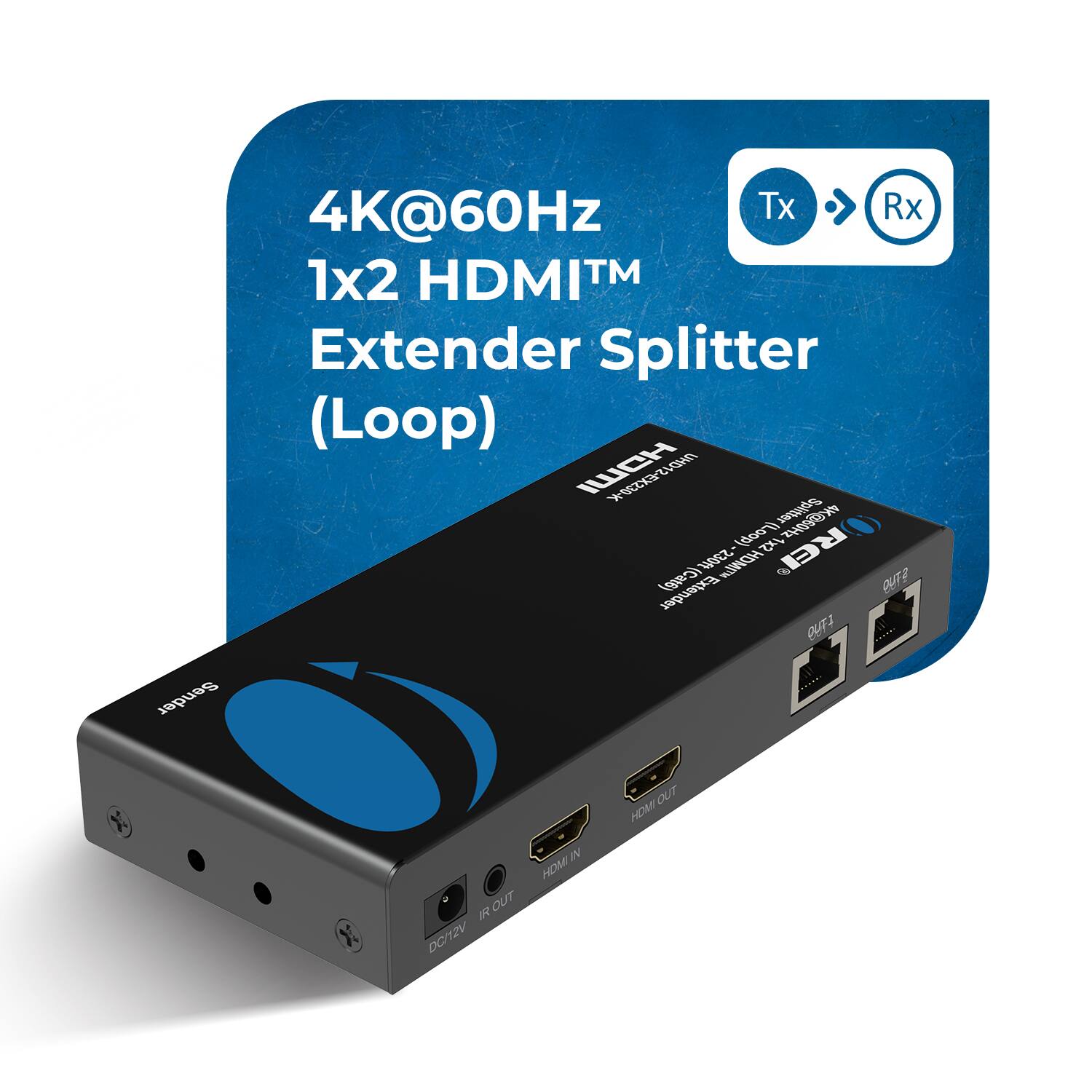

Orei - 4K@60hz 1x2 HDMI™ Extender Splitter (IR) - 230ft (Cat6) - (UHD12-EX230-K) - Black
About This Item
Reviews
This product doesn't have any reviews yet.
Compare similar products

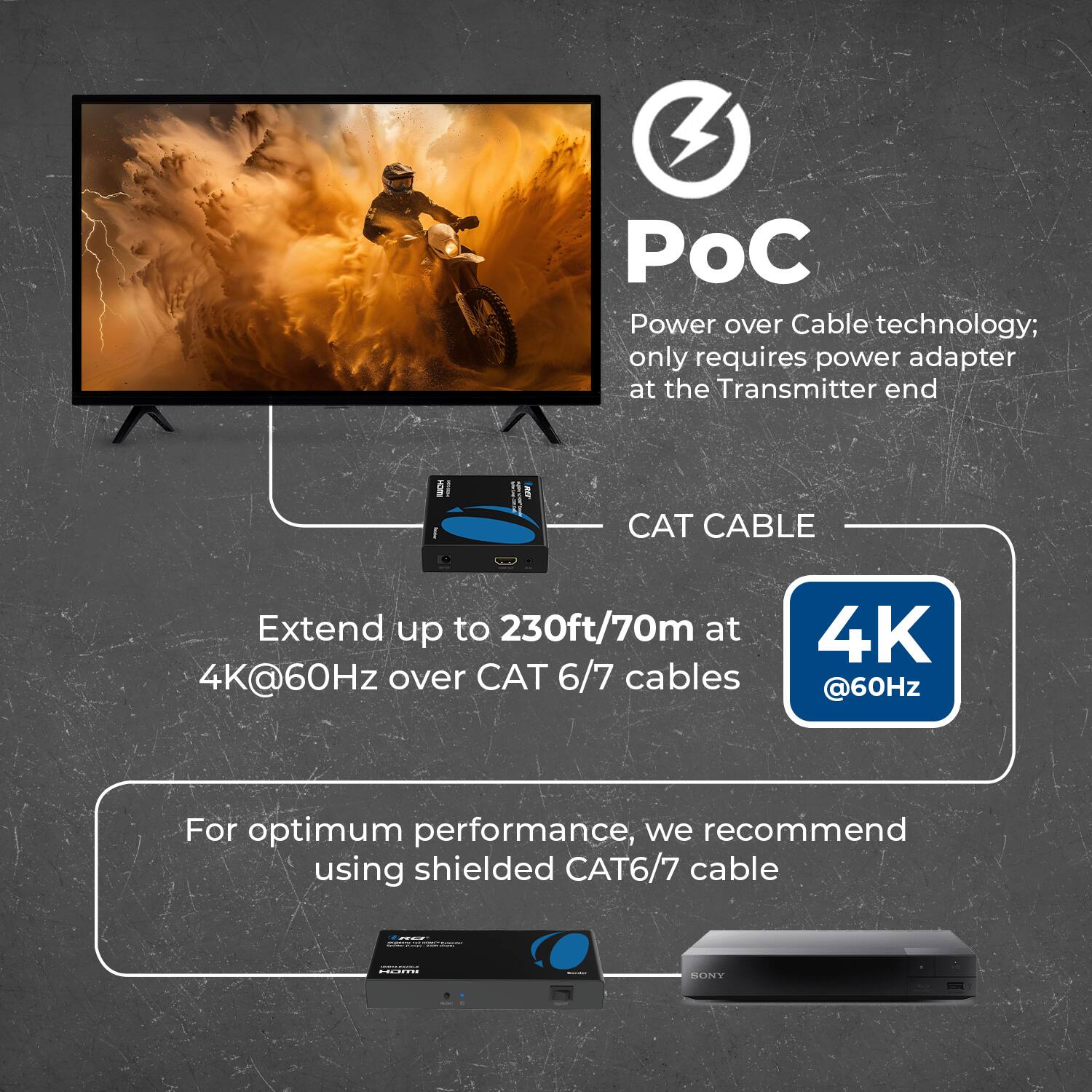

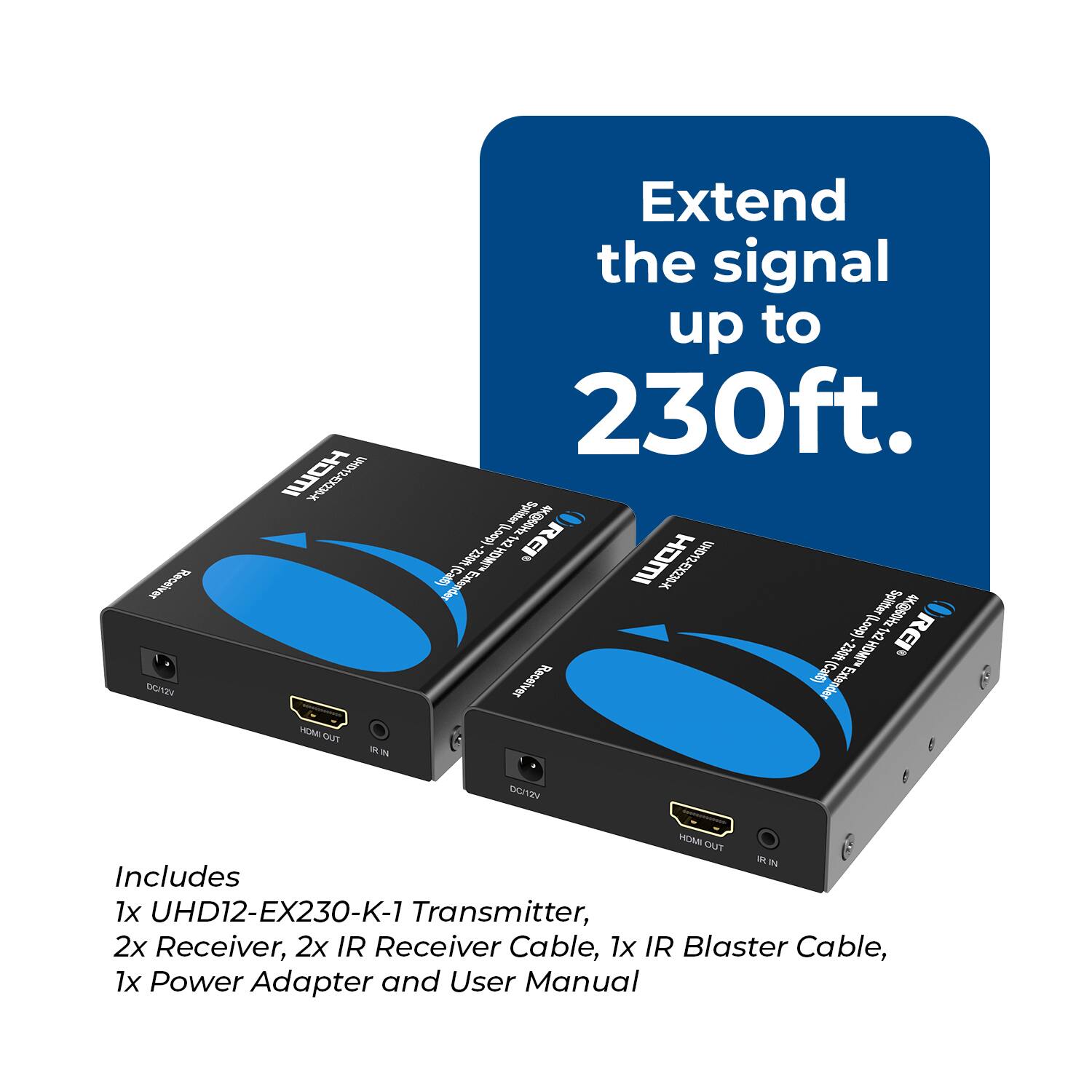

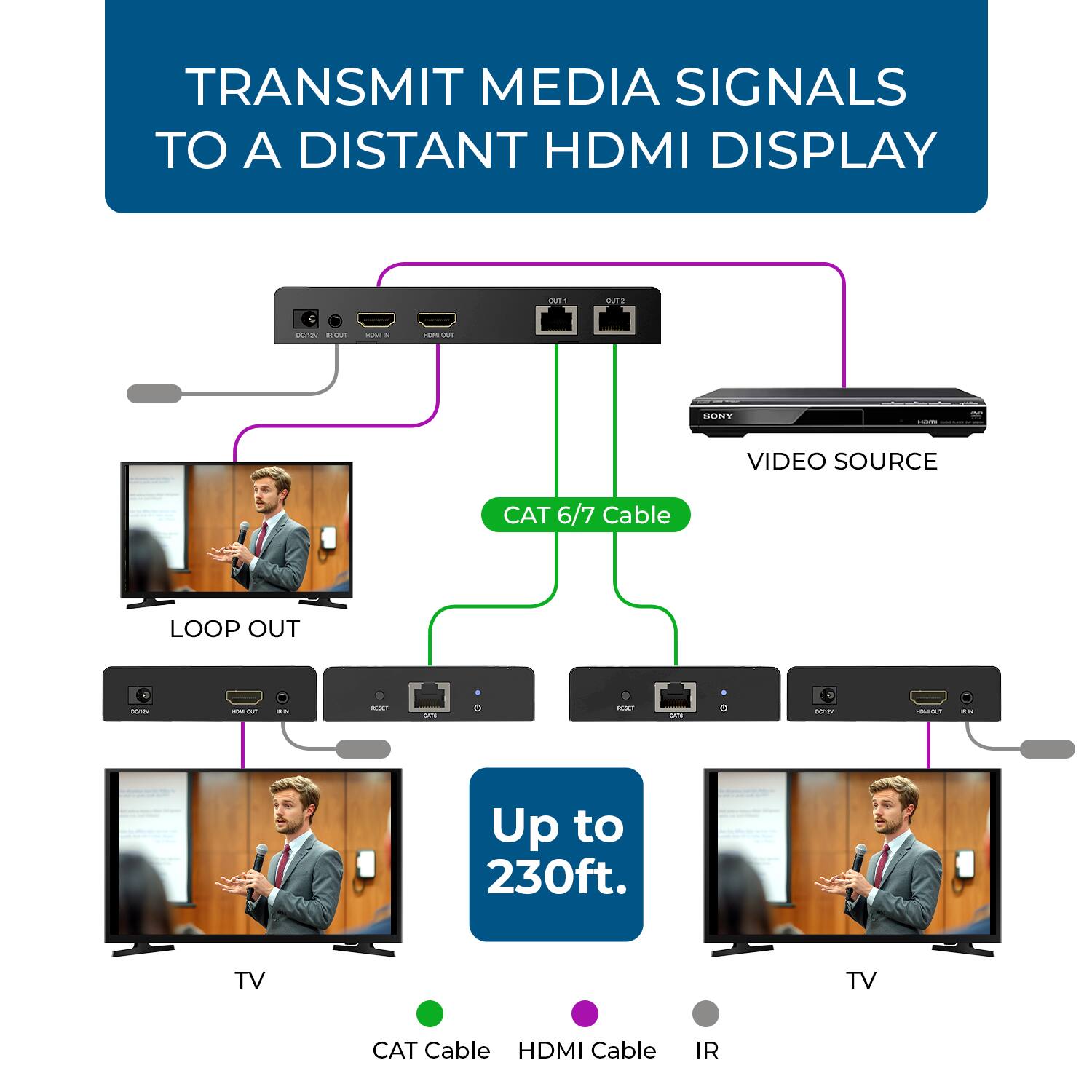

The UHD12-EX230-K HDMI Extender Splitter allows you to send media up to 230ft away at 4K resolution over CAT6/7 cables. It is HDCP 2.2 compliant with 18 Gbps video bandwidth. Extend media up to 230ft/70m at 4K@30Hz and 197ft/60m at 4K@60Hz. HDMI loop output at the Transmitter allows you to connect a display near the source. Advanced EDID management allows better compatibility. Power over cable technology simplifies installation as only one power adapter is needed, which connects to the Transmitter. Its compact design makes it ideal for any personal or commercial setup.
It can transmit HDMI 1080P signal to above 100M (330FT) by using UTP Cat5e6 Designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan. With the advantage of TCP/IP standard Extend 120 meters more by adding one more Ethernet router. Apply M-Jpeg technique to process image compressing and with little image quality loss Support HDMI 480i@60Hz, 480p@60Hz, 576i@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60HZ
The HD14-EX165-K efficiently distributes one HDMI source signal to any four display devices placed far away. It supports video resolutions up to 4K@30Hz and 1080p@60hz up to 165 feet over a CAT6/7 cable. The device is HDMI 1.4 and HDCP 1.4 compliant. It provides video bandwidth of 10.2Gbps while providing support for audio formats such as LPCM 7.1, Dolby True HD and DTS-HD Master Audio. The Transmitter features an HDMI loop out to connect a display near the source. The device also comes with unidirectional IR control from Receiver to the Transmitter and also support PoC requiring only one power adapter. This Extender Splitter is perfect for video distribution to 4 displays placed far away in any residential or commercial setups given its robust metal build and plug and play setup.
The HD12-EX165-K HDMI Extender Splitter provides a reliable solution for distributing one HDMI source to two displays over long distances. Utilizing a single CAT6/7 cable, it extends 4K@30Hz video up to 165 feet and 1080p@60Hz up to 230 feet with zero latency and uncompressed signal quality. It supports advanced audio formats including LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio for rich sound reproduction. The transmitter features an HDMI loop-out for local monitoring and unidirectional IR control to operate the source device from the receiver end. With Power over Cable (PoC) support, only one power adapter is needed, simplifying installation. Its rugged metal housing and plug-and-play design make it ideal for both residential AV setups and commercial display ,solutions.
