Orei - 4K@60Hz HDMI Over Fiber Optic Extender up to 10km with SDVoE Technology, Loop-Out, Audio embedding and Extraction – - Black

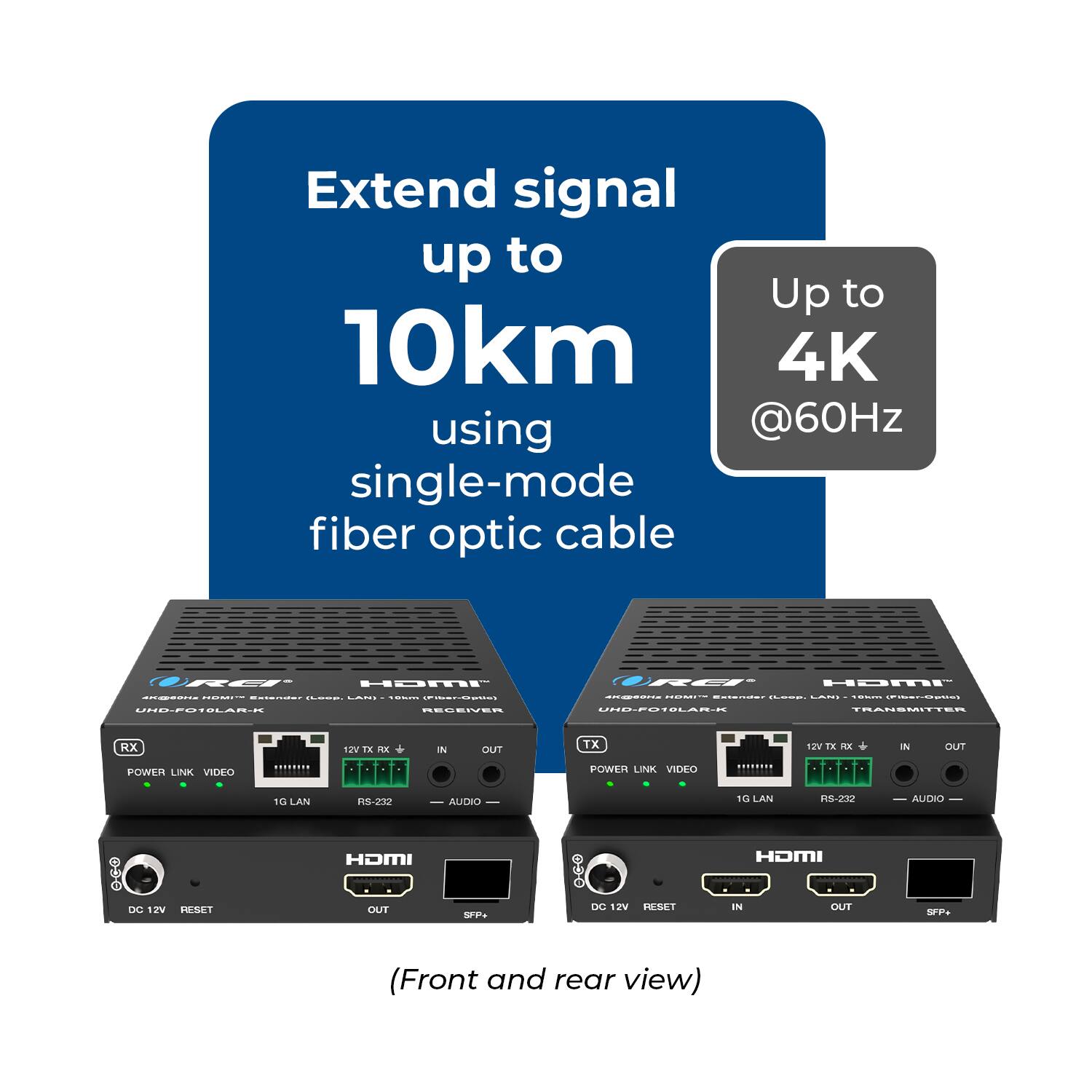

The UHD-FO10LAR-K is a high-performance HDMI over Fiber Optic Extender built on SDVoE technology, designed for long-distance, zero-latency AV transmission. It enables uncompressed 4K@60Hz HDR video extension up to 10 km over single-mode fiber or up to 300 meters over multi-mode fiber, making it ideal for mission-critical commercial environments. The Transmitter includes an HDMI loop-out for local monitoring, while the Receiver offers video scaling to match the display’s capabilities. Both units provide 1G LAN passthrough for network extension and include 3.5mm analog audio input/output for embedding or extracting audio as required. With support for CEC, RS-232 pass-through, and full compatibility with advanced audio formats—including LPCM 2/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD MA, and DTS:X—the system ensures seamless integration across diverse AV setups. Package Includes UHD-FO10LAR-K (Transmitter and Receiver), 4x Mounting ear, 8x Machine screw (KM3*4), 2x 4-pin 3.5mm Phoenix Connector, 2x Optical Fiber Module, 2x Power Adapter and User Manual.

• Uncompressed 4K@60Hz with Zero Latency:: Supports HDMI 2.0b and HDCP 2.2, for up to 4K@60Hz resolution with 18Gbps video bandwidth. HDR, Dolby Vision, and HLG support. Powered by SDVoE technology, delivers full-bandwidth, crystal-clear 4K video with zero latency—ideal for mission-critical AV applications. NOTE: SDVoE technology achieves ultra-low latency in the range of 100–300 microseconds (0.1–0.3 milliseconds), making it effectively imperceptible to the human eye.

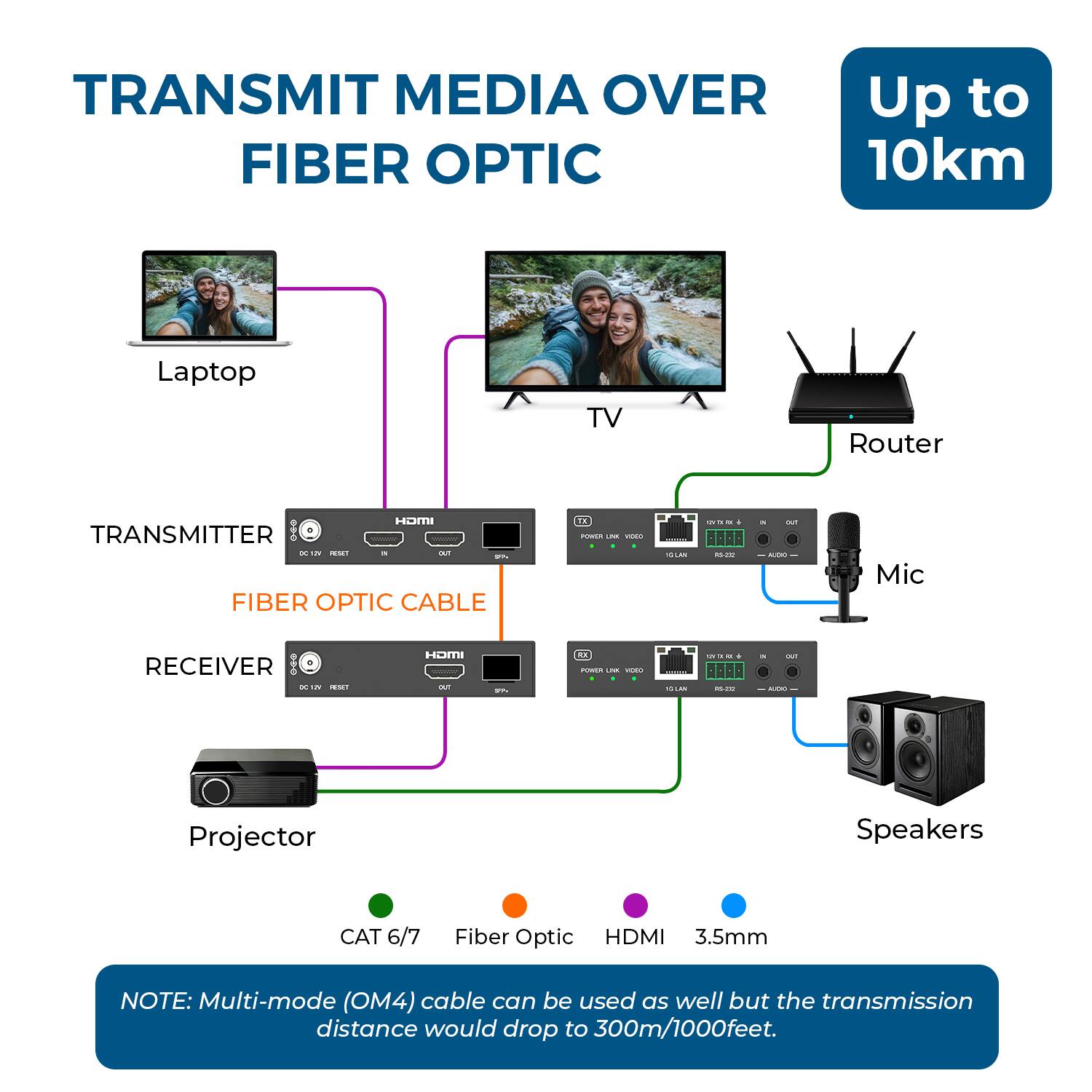

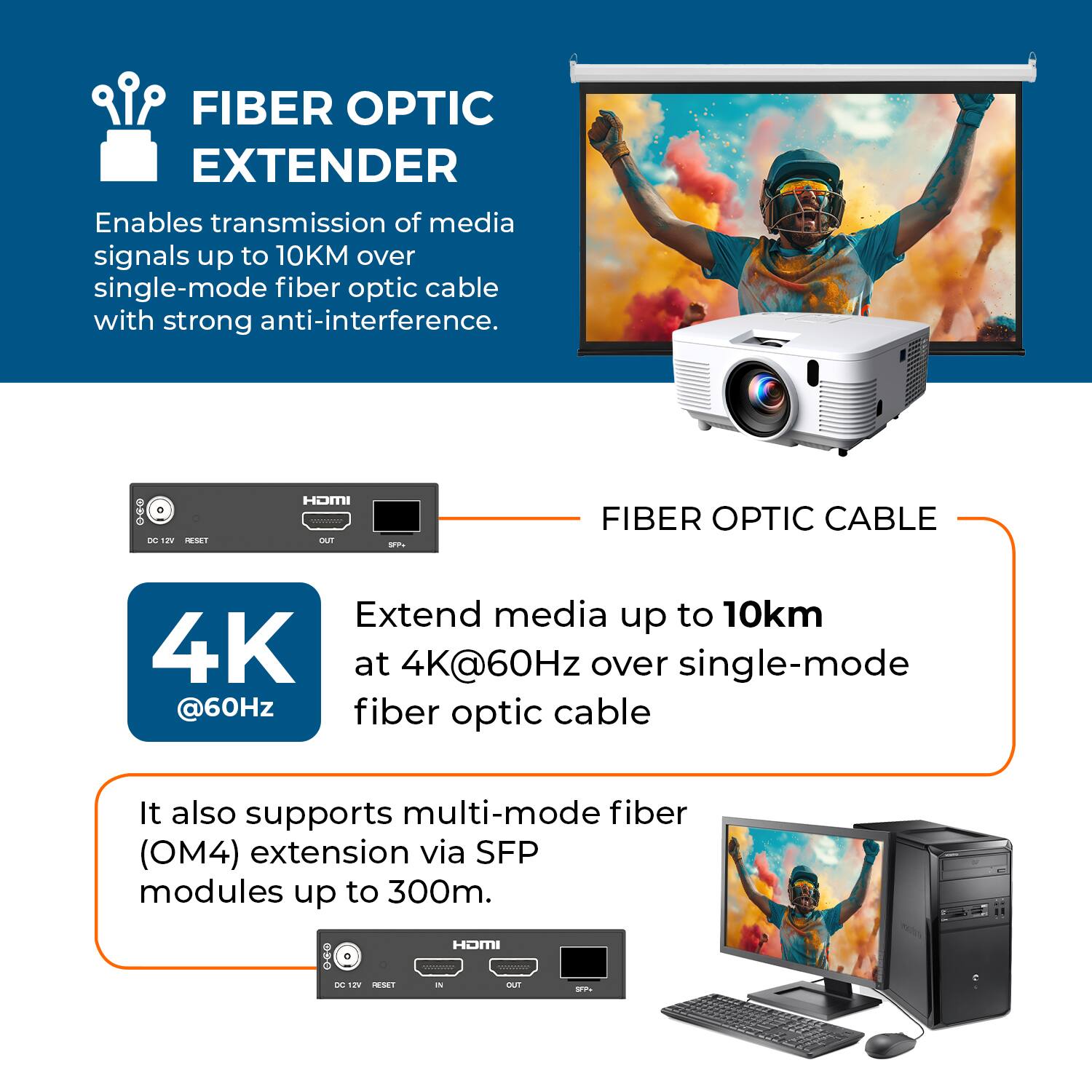

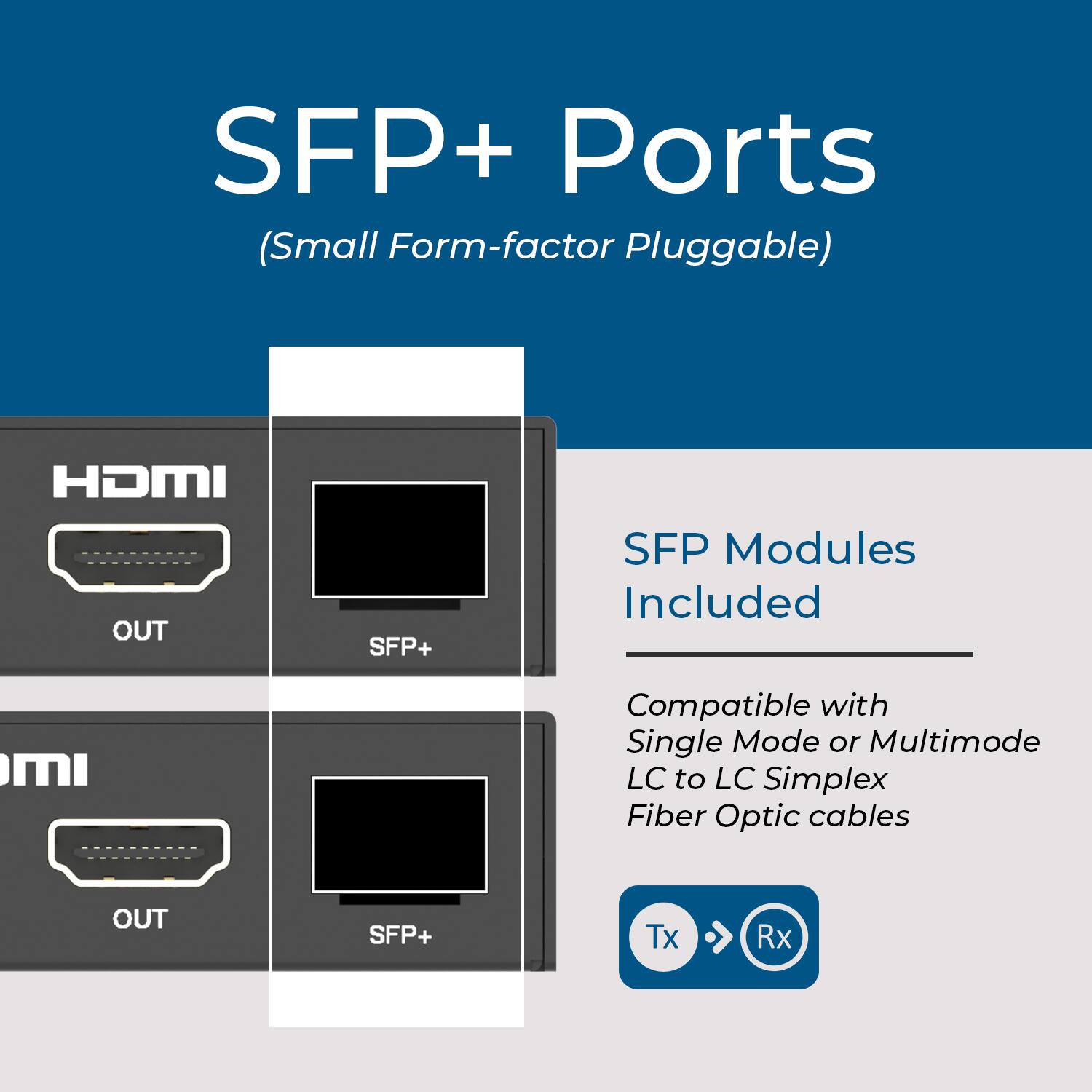

• Long Distance Transmission:: Transmit HDMI signals up to 10 km (32000 feet) over single-mode fiber or 300m (985 feet) over multi-mode fiber, perfect for large commercial and professional AV distribution setups. Each kit includes two 10G SFP+ (10 km) modules, allowing immediate deployment without additional purchases.
• HDMI Loop-Out & Built-In Scaling:: Transmitter features HDMI loop-out for local monitoring, while the receiver includes a scaler to automatically match the connected display’s resolution.
• Advanced Audio, Control & Network Passthrough:: Supports LPCM 2/5.1/7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and more through HDMI. Built-in 3.5mm analog audio input/output ports for embedding or extracting audio as required. Features CEC, RS-232 pass-through, and 1G LAN passthrough for network extension over fiber.
• Professional OREI Solution: Full OREI SUPPORT with 1-year warranty. Package includes 1x HDMI Transmitter, 1x HDMI Receiver, 4x Mounting ears, 8x Machine screw, 2x 4-pin 3.5mm Phoenix connectors, 2x Optical Fiber module, 2x Power Adapters and an instruction manual.
