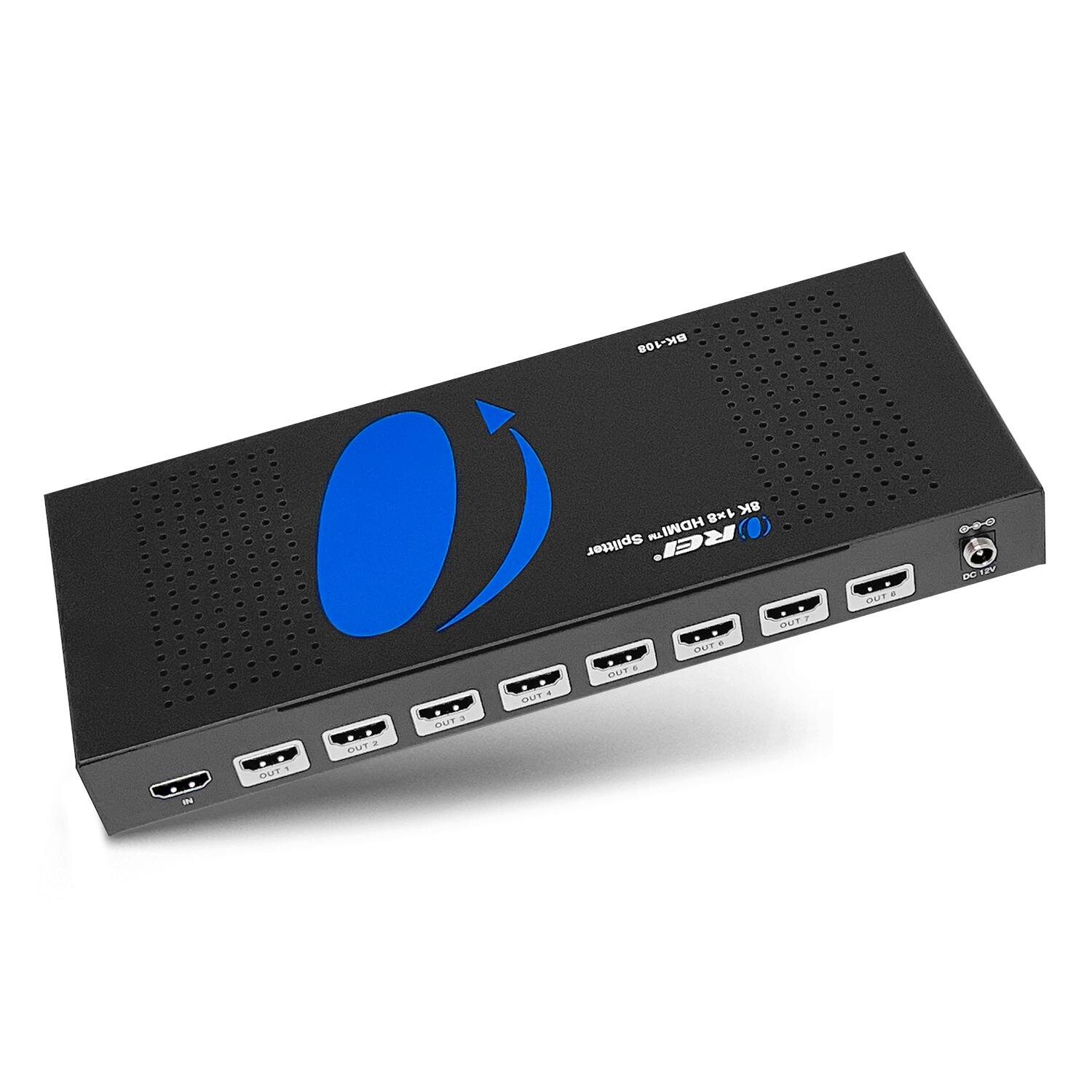

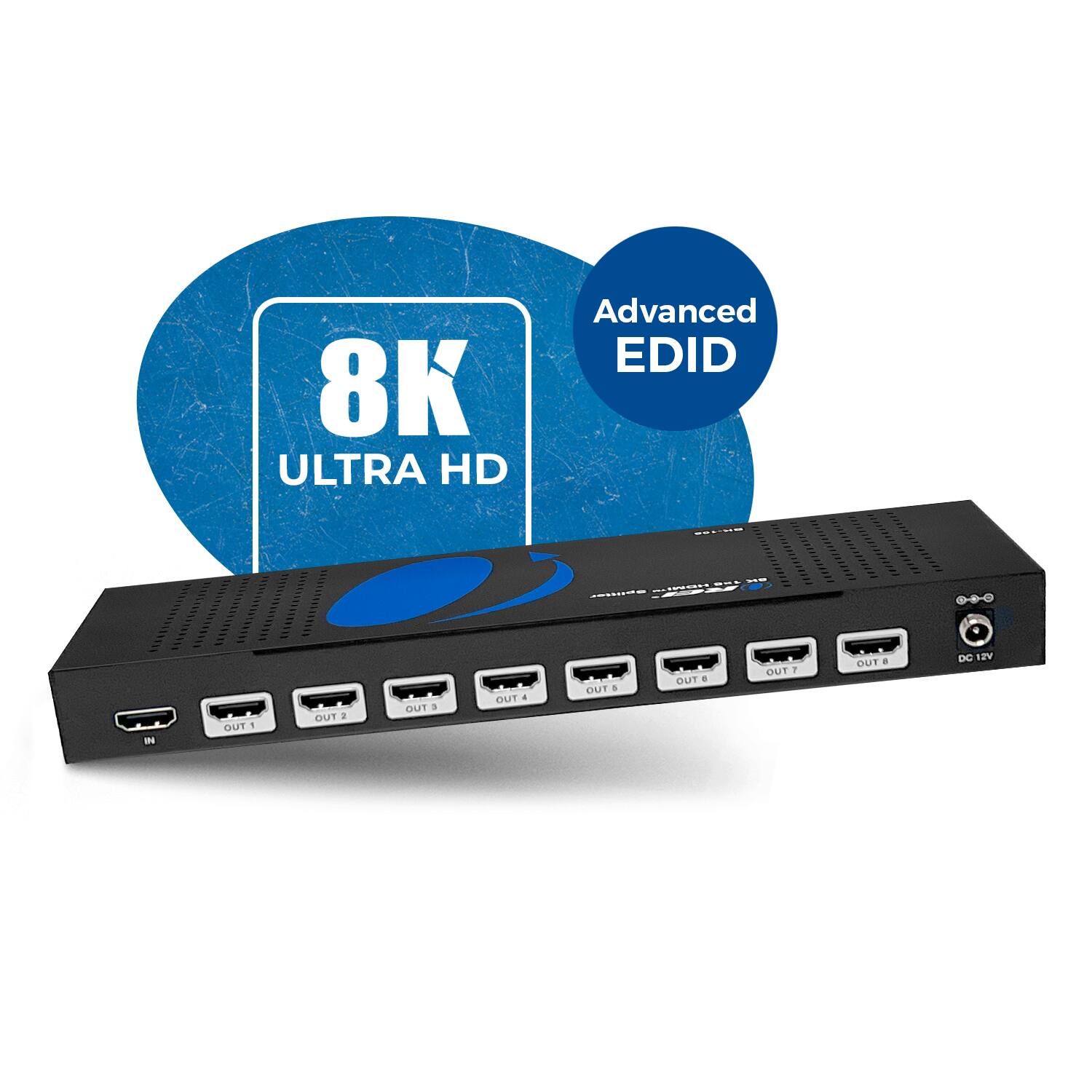

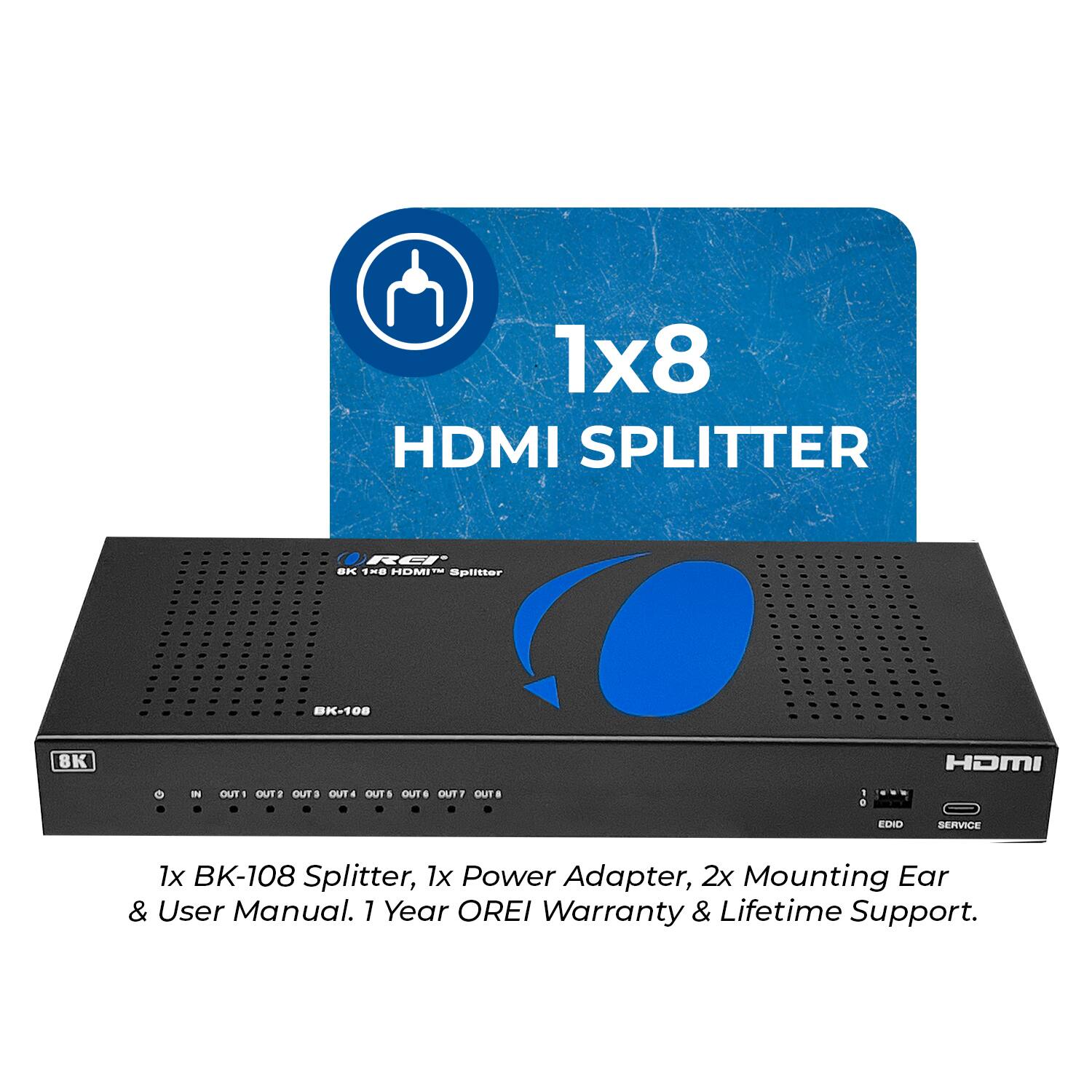

Orei - 8K 1x8 HDMI Splitter (Downscaler)-(BK-108) - Black & Blue
Related Item
About This Item
- General
- Brand: Orei
- Model Number: BK-108
- Product Name: OREI 8K 1x8 HDMI Splitter (Downscaler)-(BK-108)
- Color: Black & Blue
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI

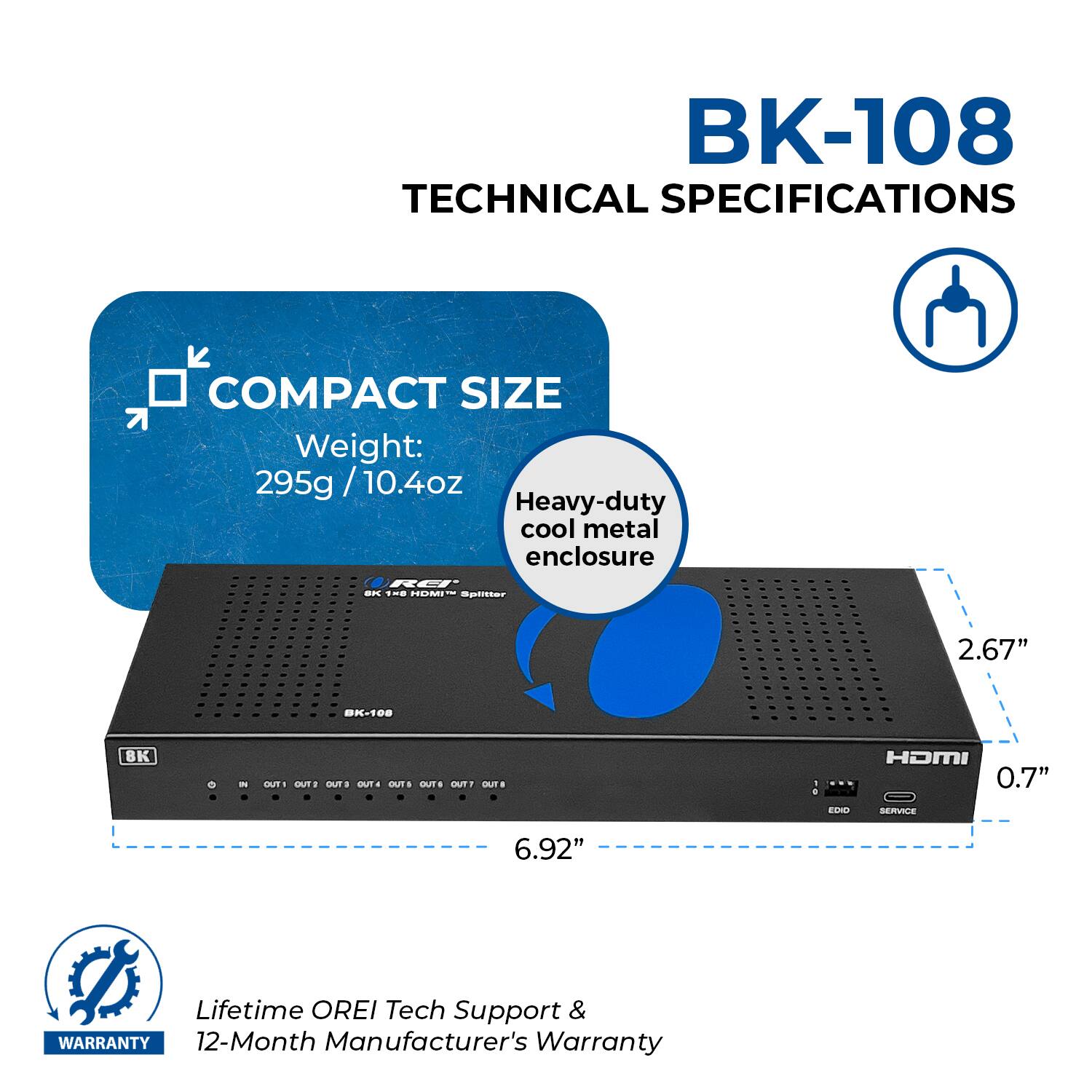

- Dimensions
- Product Height: 0.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.67 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.92 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: None
- Warranty - Labor: None
- Other
- UPC: 850031132894
The BK-108 8K 1x8 Splitter is an advanced solution for splitting a single HDMI signal to 8 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It supports video bandwidth of up to 48Gbps FRL & 18Gbps TMDS, and complies with HDMI 2.1 and HDCP 2.3 requirements. HDR/10/10+, Dolby Vision and HLG pass through is supported. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. It also features a compact design and plug & play setup.
- HDMI 2.1 and HDCP 2.3 compliant: 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4: VRR, ALLM, QMS, QFT, SBTM support
- HDR/10/10+, Dolby Vision, and HLG pass-through: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through from HDMI
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs: Automatic HDR to SDR Conversion on all outputs
- Advanced EDID management: Compact design for easy and flexible installation
