Orei - 8K 1x2 HDMI™ Splitter (Downscaler)-BK-102 - Black & Blue
Related Item
About This Item
- General
- Brand: Orei
- Model Number: BK-102
- Product Name: OREI 8K 1x2 HDMI™ Splitter (Downscaler)-BK-102
- Color: Black & Blue
- Connectivity

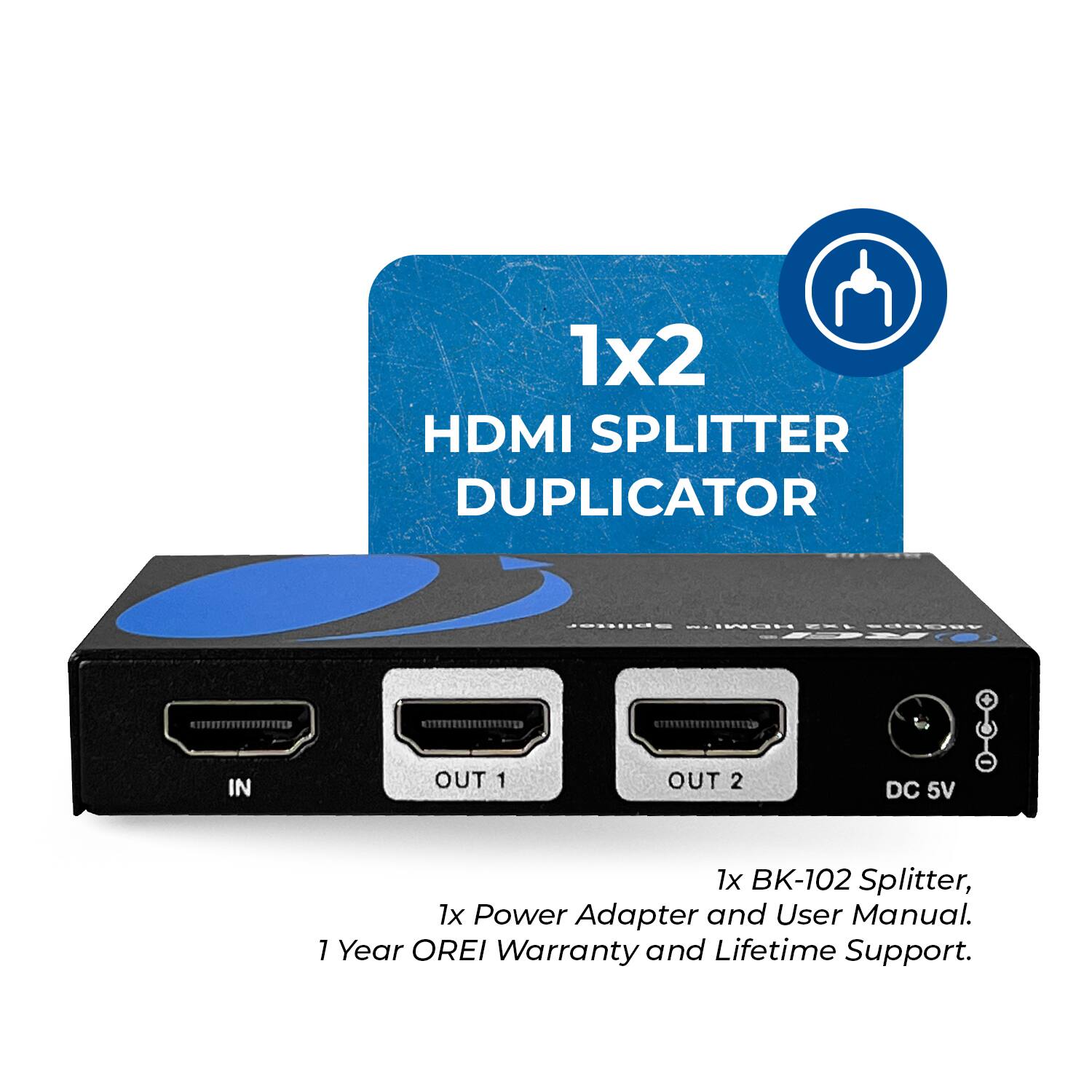

- Input(s): 1 x HDMI
- Output(s): 1 x HDMI

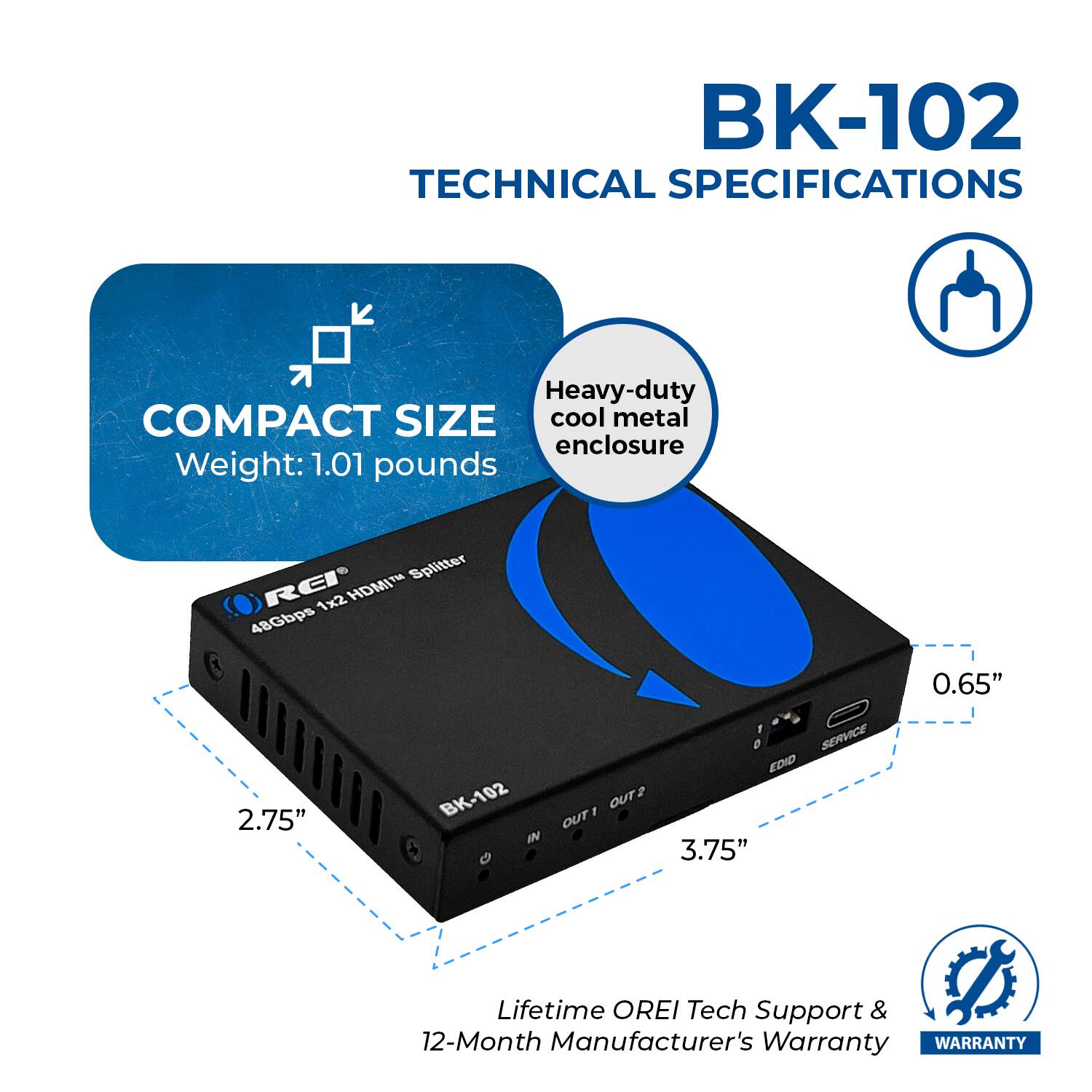

- Dimensions
- Product Height: 0.71 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.68 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.74 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: None
- Warranty - Labor: None
- Other
- UPC: 850031132658

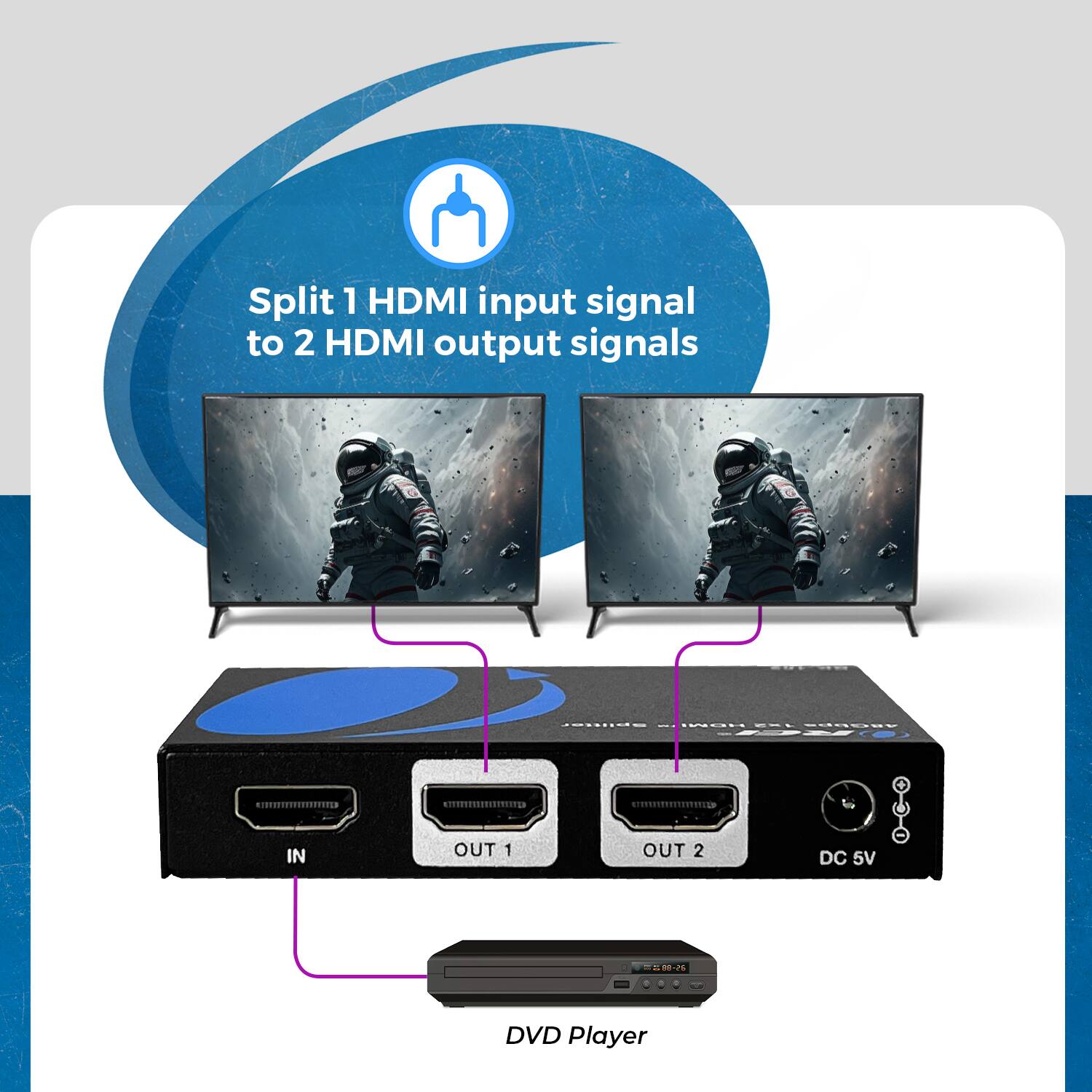

The BK-102 Splitter is a powerful device designed to split a single HDMI signal into two separate HDMI outputs simultaneously, with video resolutions up to 8K@60Hz 4:2:0 and 4K@120Hz 4:4:4. It features video bandwidth up to 48Gbps and complies with HDMI 2.1 and HDCP 2.3. HDR/10/10+, Dolby Vision, and HLG pass through. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for both outputs. Compact design and plug & play setup.
- HDMI 2.1 and HDCP 2.3 compliant: 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4: VRR, ALLM, QMS, QFT, SBTM support
- HDR/10/10+, Dolby Vision, and HLG pass-through: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X
- Audio pass-through from HDMI: 8K to 4K or 8K/4K to 1080P auto downscaling on both outputs

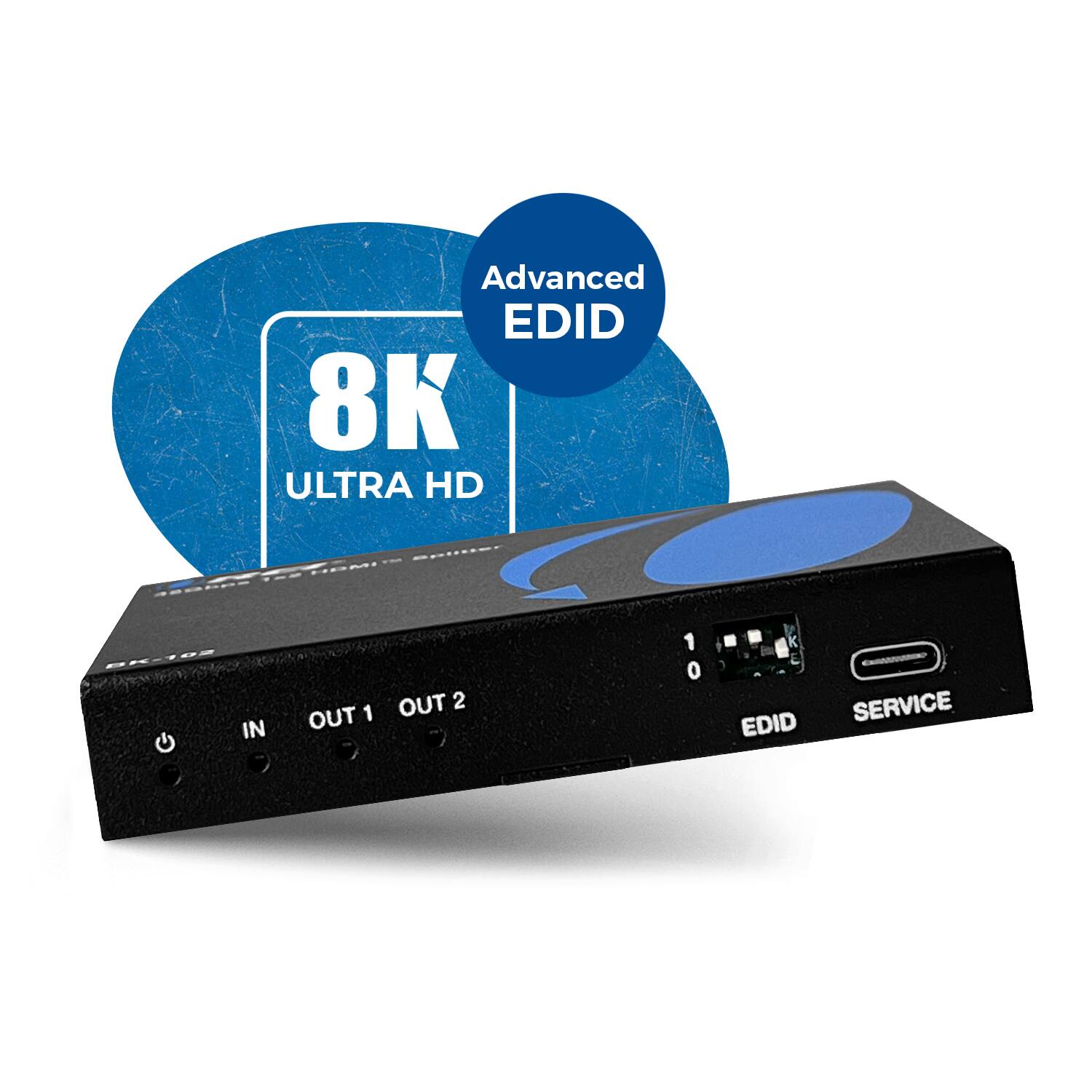

- Automatic HDR to SDR Conversion on both outputs: Advanced EDID management
