Orei - 8K@60Hz 2-port Dual Display HDMI™ KVM Switch (Audio, USB 3.0) (UKM-201-2C) - Black
Reviews coming soon
About this product
The UKM-201-2C is a high-performance 8K HDMI KVM Switch that lets you control two computers using one set of peripherals and dual external displays. It supports dual HDMI 8K@60Hz (YUV 4:4:4) with HDR10, HDR10+, Dolby Vision, HLG, 3D at 1080p, and HDCP 2.3. The dual HDMI outputs support Extend Mode (MST) for running different content on two screens. It features 12-bit Deep Color, 48Gbps bandwidth, CEC, and advanced audio including Uncompressed LPCM, and Compressed Dolby TrueHD, and DTS-HD Master Audio over HDMI. Supported resolutions also include 4K@120/144/165Hz, 2K@60/120/144/165Hz, and 1080p@120/144/165/240Hz. With three USB-A 3.0 ports and one USB-C 3.0 device port, it allows fast (5Gbps) sharing of keyboards, mice, SSDs, touchscreens, and other peripherals between both systems. A 3.5mm stereo audio output is included for flexible monitoring with speakers or headsets. Switching between computers is simple via the top button or wired remote, ensuring smooth workflow transitions. Compact and built for advanced multi-display setups, it’s ideal for commercial workstations, creative studios, and high-efficiency home offices. Note: Extended display mode requires two HDMI outputs and MST support. macOS laptops support only SST, so extended displays will not work on Macs
Features
MST Support
Allows extended displays from both computers.
High-Speed USB Connectivity

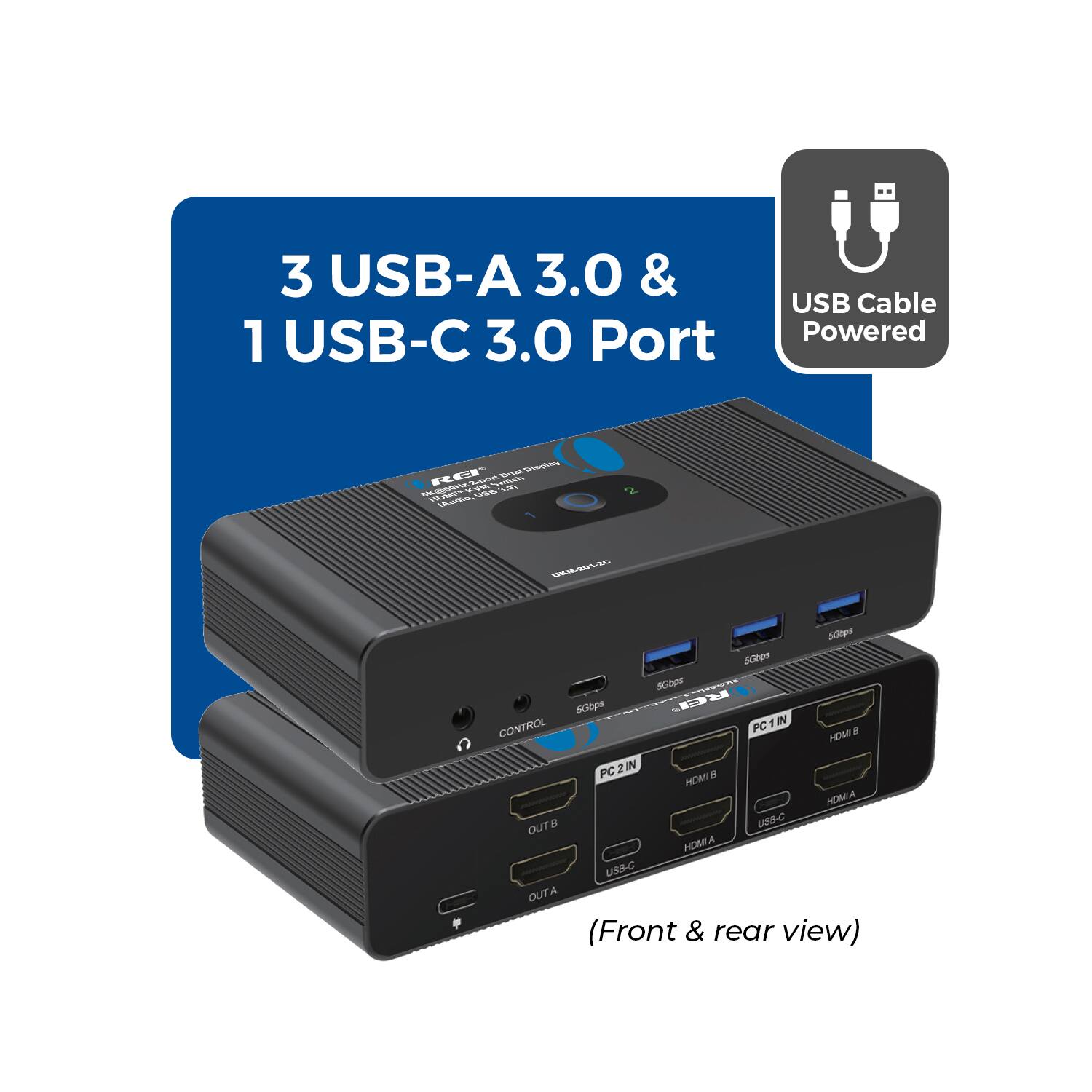

Three USB-A 3.0 and one USB-C 3.0 device ports support data transfer speeds up to 5Gbps.
8K Ultra-HD Video Support
Delivers resolutions up to 8K@60Hz (YUV 4:4:4), 4K@120Hz, 2K@120Hz, and 1080p@240hz for crystal-clear, high-detail imagery.
Advanced Audio Support
3.5mm audio output for headphones and speakers. Support for uncompressed LPCM and compressed DTS-HD Master Audio™, and Dolby TrueHD through HDMI.
HDR & 3D Video Compatible
Supports HDR10, HDR10+, Dolby Vision, HLG with 3D video support at 1080p.
Specifications
- BrandOreiModel NumberUKM-201-2CProduct Name8K@60Hz 2-port Dual Display HDMI™ KVM Switch (Audio, USB 3.0) (UKM-201-2C)ColorBlackInput(s)1 x HDMIOutput(s)1 x HDMI
