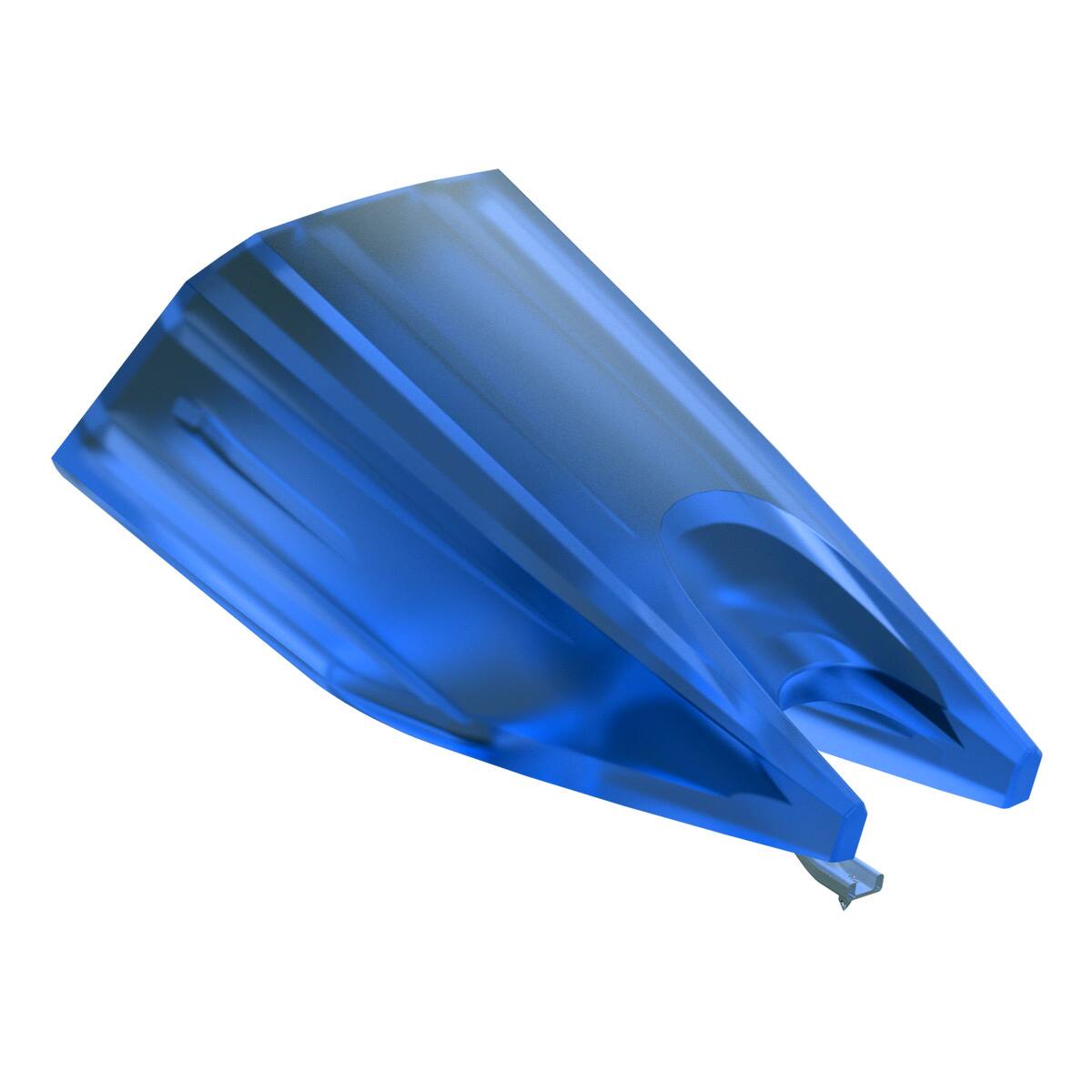

Ortofon - Concorde Music Replacement Stylus - Blue

Stylus 20 Replacement StylusWhat's in the Box:Stylus 20 Replacement StylusSpecificationsFrequency range: 20 - 27000HzFrequency response: 20 - 20000Hz 2/-3dBCompliance dynamic lateral: 25μm/mNTracking ability at 315Hz at recommended tracking force: 80 μmStylus type: Nude EllipticalStylus tip radius: r/R 8/18μmEquivalent stylus tip mass: 0.4mgTracking force range: 1.25 - 1.75g (12 - 17.5mN)Tracking force recommended: 1.5g (15mN)Tracking angle: 20°Recommended for the following cartridgeSuper OM 20OM 20OMP 20OMB 20LM 20Concorde 20LM 20HTM 20UTM 20H

Experience balanced and dynamic sound with a premium moving magnet cartridge designed for effortless installation and refined listening. An elliptical diamond stylus on a lightweight aluminum cantilever traces grooves with precision to reveal detail clarity and natural warmth. A carefully tuned rubber suspension enhances tracking and reduces resonance for clean musical flow. The advanced quad coil generator with split pole pins and silver plated oxygen free copper delivers strong output impressive channel balance and wide separation for lifelike imaging. The iconic integrated form allows tool free mounting on S shaped tonearms. Easy stylus replacement enables a clear upgrade path within the series making this cartridge a lasting choice for vinyl lovers seeking performance style and convenience.

The Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus normally used in HiFi cartridges delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.The addition of a Nude Elliptical diamond allows a smaller moving mass which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately extract more intricate details and track even the highest frequency information.What's in the BoxStylus Elite MKII Concorde Elite Replacement StylusPlease note: The MKII Elite Stylus replacement is pictured with a cartridge installed. Cartridge sold separately.SpecificationsChannel balance at 1 kHz: 1 dBOutput voltage at 1 kHz 5cm/sec: 8.5 mVChannel separation at 1 kHz: 25 dBTracking ability at 315Hz: 100 μmCompliance dynamic lateral: 13 μm/mNStylus type: Nude EllipticalStylus tip radius: r/R 8/18 μmTracking force range: 2.0–4.0 gTracking force recommended: 3.0 gTracking angle: 20°Cartridge weight: stylus = 1 g
