Ortofon - MC Quintet Moving Coil Cartridge - Blue

The AT33xEN is a versatile cartridge that delivers warm full-bodied audio with excellent tracking and high-frequency control thanks to its 0.3 x 0.7 mil elliptical nude stylus on a duralumin tapered cantilever. Its advanced suspension system with piano wire enhances accuracy and mid-low range response while the composite body of zinc aluminum and high-rigidity polymer reduces resonance for balanced natural sound. The dual moving coil design with PCOCC coils ensures outstanding channel separation and smooth signal transmission supported by a neodymium magnet and permendur yoke for high efficiency and resolution.FeaturesDual Moving Coil Cartridge with Elliptical Nude StylusPCOCC Coils Ensure Smooth Signal TransmissionComposite Body Reduces Resonance for Balanced SoundMaterial DifferenceThe AT33xEN’s rigid duralumin pipe cantilever which tapers toward the elliptical stylus tip for improved response is linked with a firm suspension mechanism slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilever’s fulcrum to ensure pure signal transmission for each channel.Sound BodyEach AT33x Series cartridge body is constructed of three distinct materials – die-cast zinc aluminum and high-rigidity polymer – optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.Full Warm SoundThe redesigned AT33x Series cartridges deliver that classic analog sound rich in detail across the audio spectrum with lifelike expressiveness in the mid to low frequencies.What's in the BoxAT33xEN Dual Moving Coil Stereo CartridgeInstallation KitManualSpecifications

The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required. Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation. The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion. The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required. Nude Microlinear stylus and boron cantilever provide lower distortion and high transient response. A neodymium magnet and a premium permendur yoke with high saturation flux density and outstanding magnetic properties further enhance the concentrated magnetic field of the coil gap. Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction. Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer.

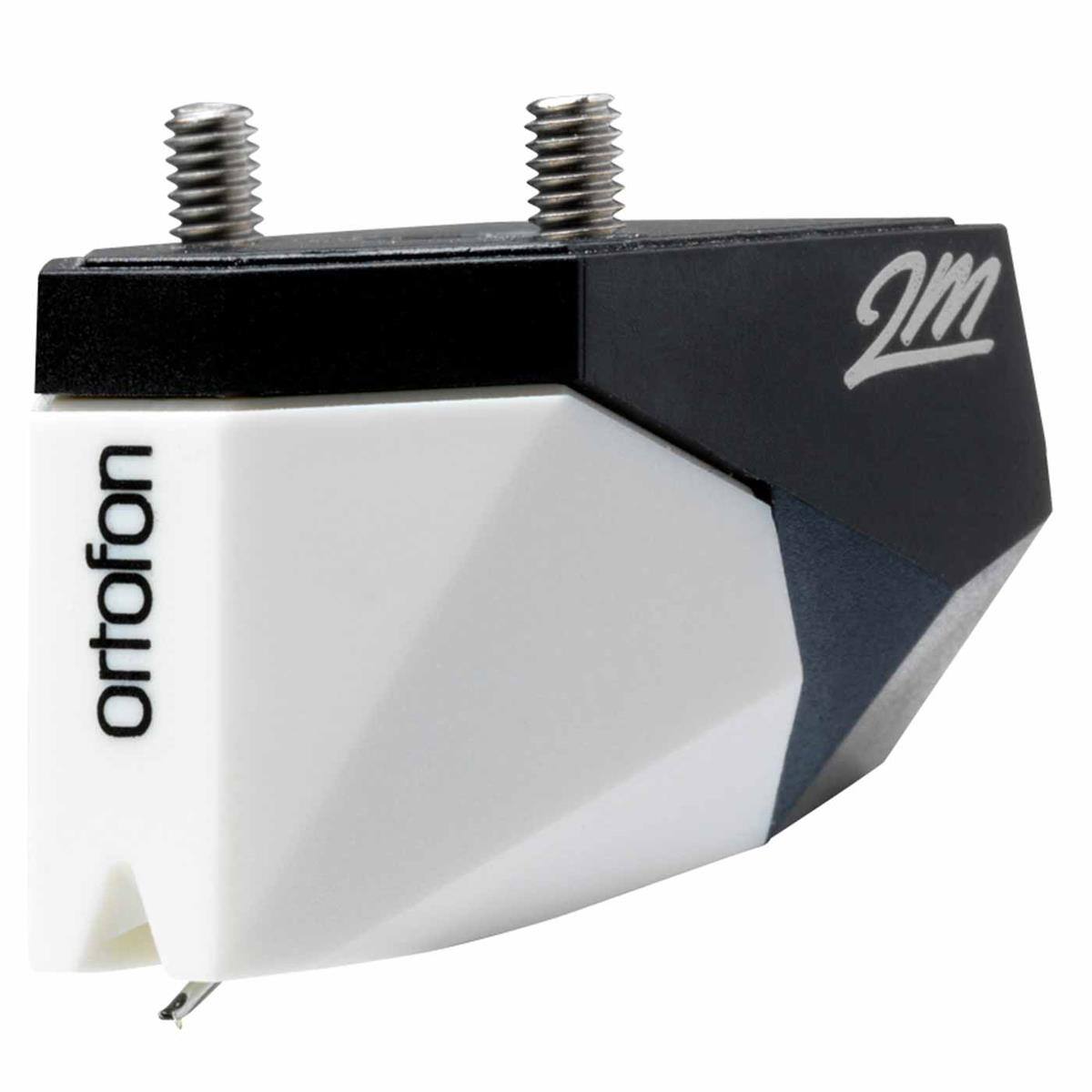

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Ortofon's philosophy is to play the record sound as accurate as possible without coloring the sound.The 2M Bronze features a nude Fine Line diamond stylus which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information making it a must for discerning listeners. Additionally its larger footprint ensures reduced distortion and record wear.The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black a revolutionary material which ensures high rigidity while eliminating unwanted resonances.We have optimized the design for ease of mounting the cartridge and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.The 2M Bronze uses a special upgraded engine featuring split pole pins with a silver plated copper wire.2M Black Specifications:Output voltage at 1000 Hz 5cm/sec: 5mVChannel balance at 1kHz: 1 dBChannel separation at 1 kHz: 26 dBChannel separation at 15 kHz: 15 dBFrequency range at - 3 dB: 20-29.000 HzFrequency response: 20-20.000 + 2 / - 0 dBTracking ability at 315Hz at recommended tracking force: 80 micrometersCompliance dynamic lateral: 22 micrometers/mNStylus type: Nude Fine LineStylus tip radius: r/R 8/40 micrometersTracking force range: 14-17g (14-17 mN)Tracking force recommended: 15 g (15 mN)Tracking angle: 20 degreesInternal impedance DC resistance: 12 kOhmInternal inductance: 630 mHRecommended load resistance: 47 kOhmRecommended load capacitance: 150-300 pFCartridge colour body/stylus: Black/BronzeCartridge weight: 7.2gReplacement stylus unit: 2M Bronze (interchangeable with 2M Black)Stylus protection guard: 2M BronzeWhat's In The Box:1 x Stylus brush1 x Screwdrive
