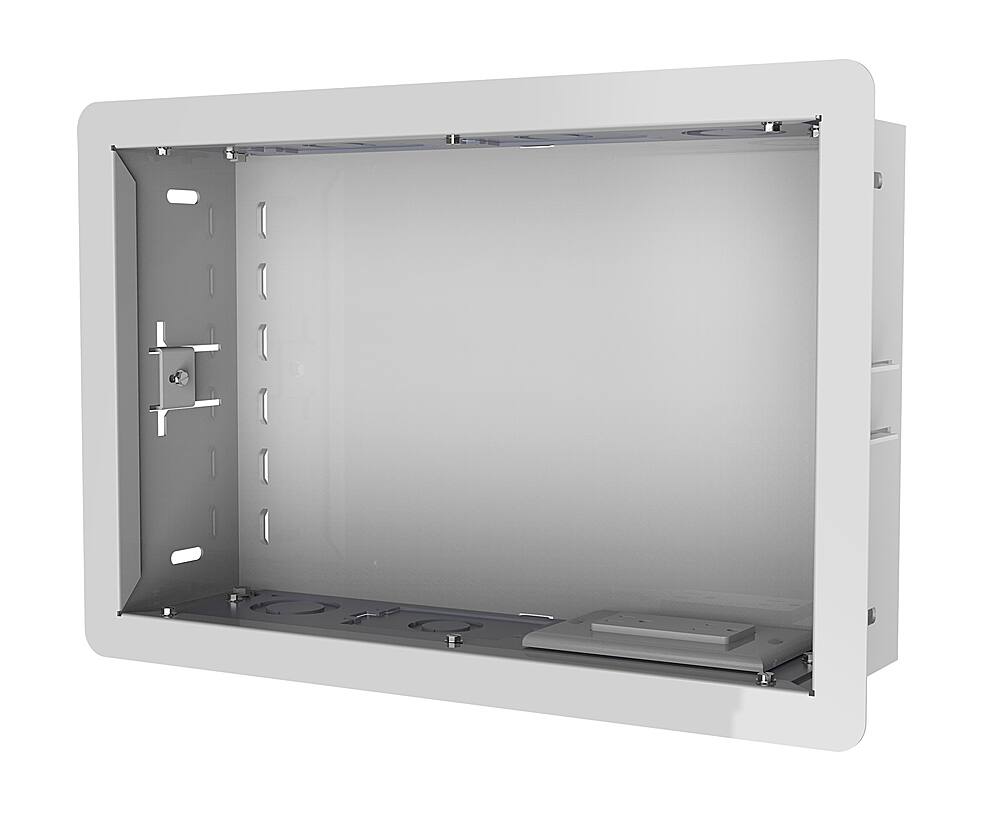

Peerless-AV - 14x9" In-wall Box with Duplex Surge Suppressor - White
Peerless-AV - 14x9" In-wall Box with Duplex Surge Suppressor - White
Reviews coming soon
Related Item
About This Item
- General
- Brand: Peerless-AV
- Model Number: IB14X9-AC-W
- Product Name: 14x9" In-wall Box with Duplex Surge Suppressor
- Color: White
- Features
- Accessory Type: In-Wall Box
- Compatibility: 14x9" In-wall Box - White
- Dimensions
- Product Height: 3.94 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.56 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 5 years limited
- Warranty - Labor: 5 years limited
- Other
- UPC: 735029332763
Peerless-AV’s In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.
- Installation: Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
- Knock Outs: Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit. Cut-Out Dimensions: 14.4" x 9.4" (365 x 238mm). Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
- Cable tie locations: Integrated cable tie locations

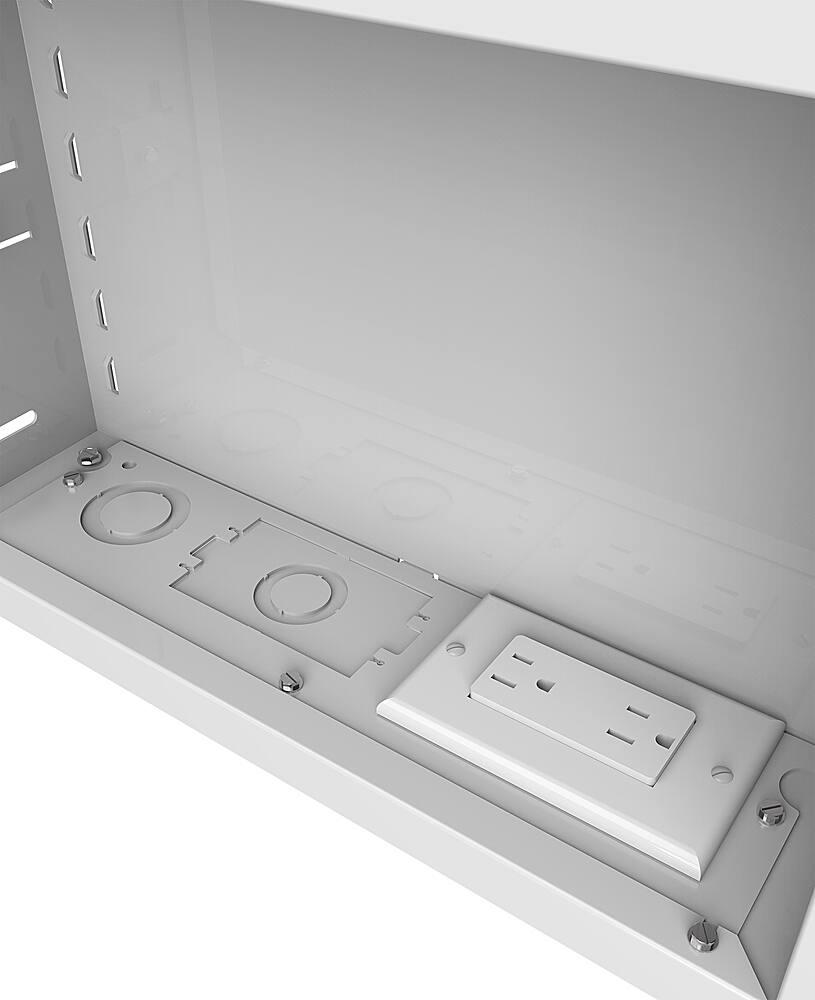

- UL 2416 listed: IB14X9-AC-W includes a 720 joule Leviton duplex surge protector, gang box and face plate
- Installation: Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
- Knock Outs: Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit. Cut-Out Dimensions: 14.4" x 9.4" (365 x 238mm). Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
- Cable tie locations: Integrated cable tie locations
- UL 2416 listed: IB14X9-AC-W includes a 720 joule Leviton duplex surge protector, gang box and face plate
Q: Does this in-wall box include a surge protector?
A: Yes, the IB14X9-AC-W model includes a 720 joule Leviton duplex surge protector.
Q: How is the in-wall box secured during installation?
A: It offers flexible mounting options: securement by two studs, a single stud, or directly into drywall.
Q: What conduit sizes are supported by the knock-outs on this in-wall box?
A: The knock-outs on this in-wall box support 3/4", 1.0", 1.25", and 1.5" conduit.
Q: Are there any cable tie locations on this in-wall box?
A: Yes, the in-wall box has integrated cable tie locations.
Q: What is the purpose of the removable mounting plates?
A: The removable mounting plates on this in-wall box reduce installation time by allowing wiring terminations to be completed outside the box.
Q: What is the depth of the box?
A: 3.94"
