Peerless-AV - Articulating Mount 37-65" Displays with In-wall Box - Black
Peerless-AV - Articulating Mount 37-65" Displays with In-wall Box - Black
About This Item
- General
- Brand: Peerless-AV
- Model Number: IM747PU
- Product Name: Articulating Mount 37-65" Displays with In-wall Box
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Fixed
- Adjustable Height: false
- Compatibility
- Maximum Weight Capacity: 80 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most 37-65" Displays
- Mount Location: Wall
- Maximum Television Size: 65 inches
- Minimum Television Size: 32 inches
- VESA Wall Mount Standard: 400mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 17 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 36.5 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5 years limited
- Warranty - Labor: 5 years limited
- Other
- UPC: 735029332923

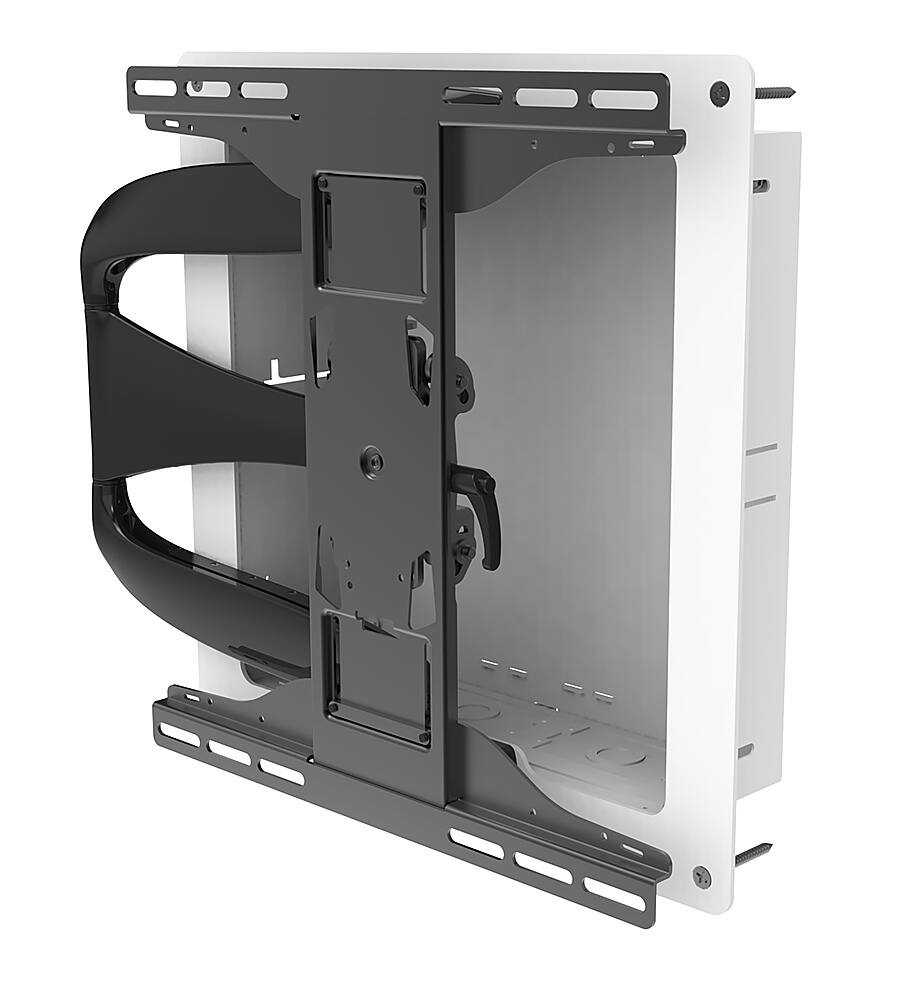

Peerless-AV’s Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
- Includes Articulating Mount: With 400 x T6400mm VESA adaptors, Up to ±90° of side-to-side swivel, Added ±5° of roll for post-installation T6display leveling without the use of tools
- Adjustment: Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Options: Landscape or portrait mounting options increases display versatility
- Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent: Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness: Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit. Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Wood stud and concrete mounting: For versatile installation options.
- 3-step installation: Offers simple setup.
- Includes Articulating Mount: With 400 x T6400mm VESA adaptors, Up to ±90° of side-to-side swivel, Added ±5° of roll for post-installation T6display leveling without the use of tools
- Adjustment: Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Options: Landscape or portrait mounting options increases display versatility
- Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent: Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness: Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit. Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Wood stud and concrete mounting: For versatile installation options.
- 3-step installation: Offers simple setup.
Whats Included
- Mounting and display attachment hardware, locking arm
- Owner's manual
- Peerless Flat TV Wall Mount for Most 32" - 56" Ultrathin Flat-Panel Displays
- Mounting and display attachment hardware, locking arm
- Owner's manual
- Peerless Flat TV Wall Mount for Most 32" - 56" Ultrathin Flat-Panel Displays
Product Manuals
Q: Is the mount straightforward to install, and does it include all necessary hardware?
A: The mount includes all necessary hardware for installation. The installation process is straightforward, but it mayrequire some technical expertise.
Q: Does the mount offer tilt or swivel adjustments for viewing angle?
A: The mount does offer tilt and swivel adjustments for viewing angle. The product description states that the mount is"articulating," which means it can be tilted and swiveled.
Q: Is the in-wall box included in the price or is it a separate purchase?
A: The in-wall box is included in the price of the Articulating Mount 37-65' Displays with In-wall Box. This is stated inthe product description, which says that the mount "comes with a built-in In-Wall Box."
Q: How much horizontal adjustment does the mount provide?
A: The mount does not provide any horizontal adjustment. It is a fixed mount designed for low profile/recessedapplications.
Q: Is the in-wall box spacious enough to conceal cables and power cords?
A: The in-wall box is designed to provide ample space for AV electronics and conceal cables and power cords. It isspecifically built for low profile/recessed applications requiring access to power.
Q: What are the materials used to construct the mount?
A: The mount is made of metal.
