Pioneer - Quantum Ultra Low-Ambient 1-Zone 18,000 BTU 23 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White
FREE shipping to
Related Item
Specifications
- Recommended Room Size750 square feetBTU Cooling Rating18000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate394 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 750 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 18000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 394 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 12.5 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Seasonal Energy Efficiency Ratio (SEER): 23 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: WYT018GLSI24RL-16S
- Product Name: Quantum Ultra Low-Ambient 1-Zone 18,000 BTU 23 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 43.13 x 8.75 x 13
- Outdoor Unit Dimensions: 36.5 x 15 x 27.5
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 750 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 18000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 19000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 394 cubic feet per minute
- Maximum Noise Level: 34 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio: 12.5 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER): 23 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- Amperage: 6.2 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included

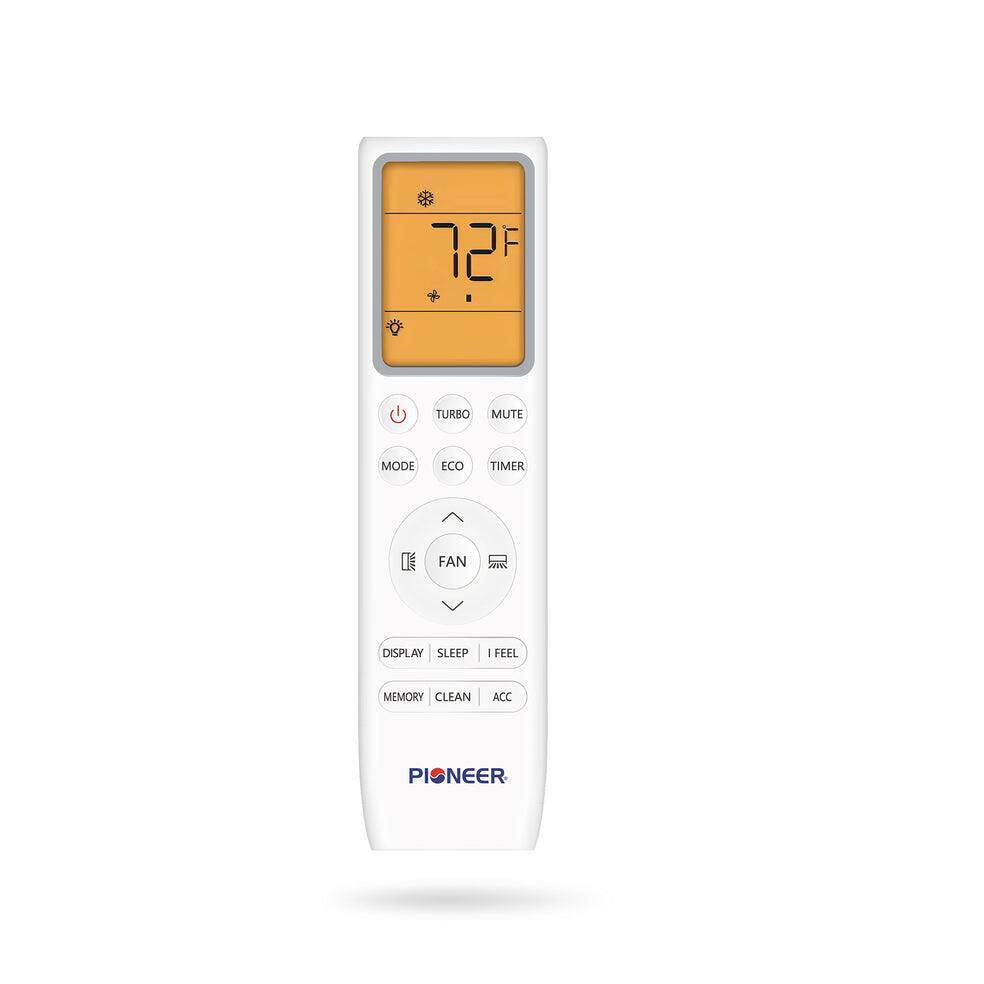

- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102183897
Experience powerful, year-round comfort with the Pioneer Quantum Ultra 18,000 BTU High-Wall Ductless Mini-Split Heat Pump. With 23 SEER2 cooling and 10 HSPF2 heating, this ultra-efficient system is ideal for spaces from 500 to 750 sq. ft. It delivers quiet, reliable performance in extreme conditions, operating from -13°F in heating to 131°F in cooling. The high-wall indoor unit features motorized dual-axis airflow, dual-drainage ports, and washable, reusable filters for long-term convenience. Control is effortless with built-in Wi-Fi via the Pioneer Airlink app or voice assistant, and the included remote offers access to Heating, Cooling, Dry, and Ventilation modes, plus ECO, SLEEP, TURBO, iFEEL, Self-Clean, Timer, and MEMORY functions. Pre-charged with eco-friendly R454b refrigerant, this full set includes the indoor and outdoor units, wireless remote with wall holder and batteries, customizable copper lines and electrical wire, 10 ft. drain hose, wall sleeve, sealing putty, leak guard, wrapping tape, installation manual, and user guide. The Quantum Ultra is designed to simplify installation and deliver ultimate control, energy savings, and all-season comfort.
- High-Efficiency Cooling & Heating: 18,000 BTU/hour cooling (23 SEER2, 12.5 EER2) and 19,000 BTU/hour heating (10 HSPF2, 3.81 COP2) for year-round comfort in rooms 500–750 sq. ft.

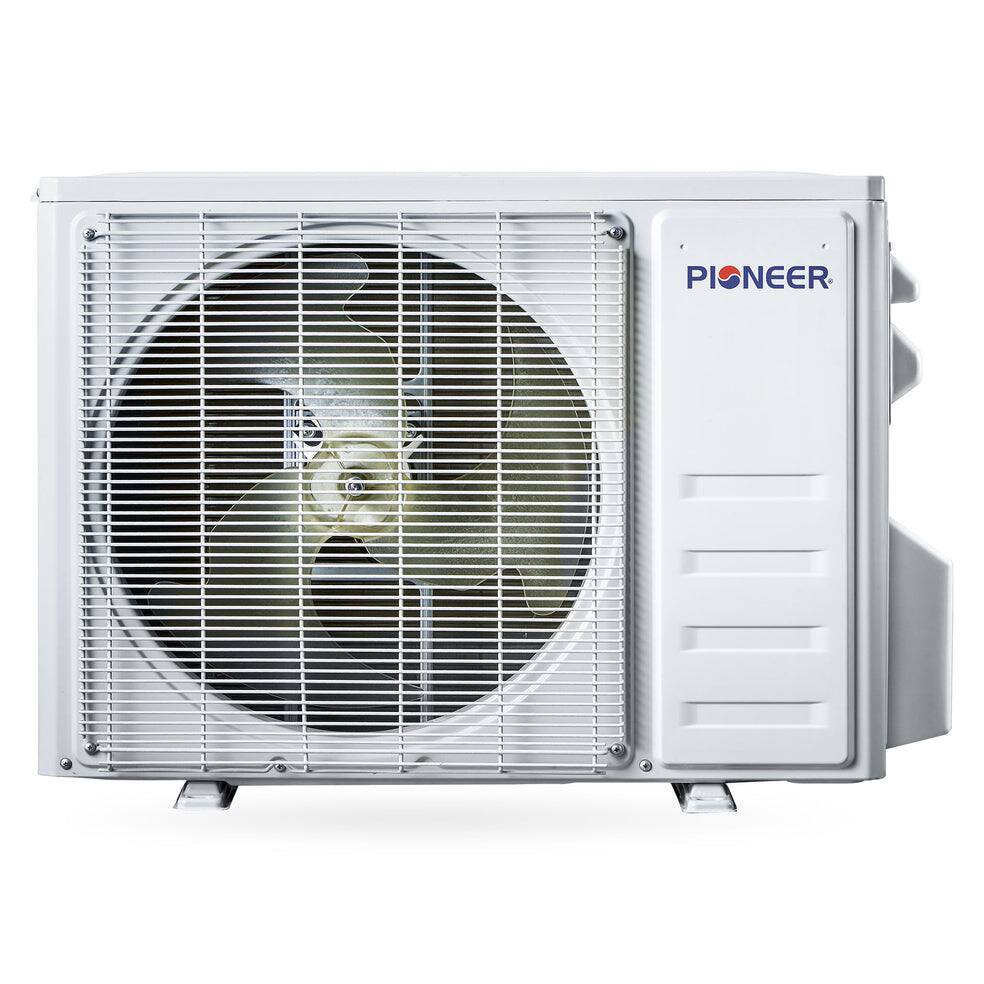

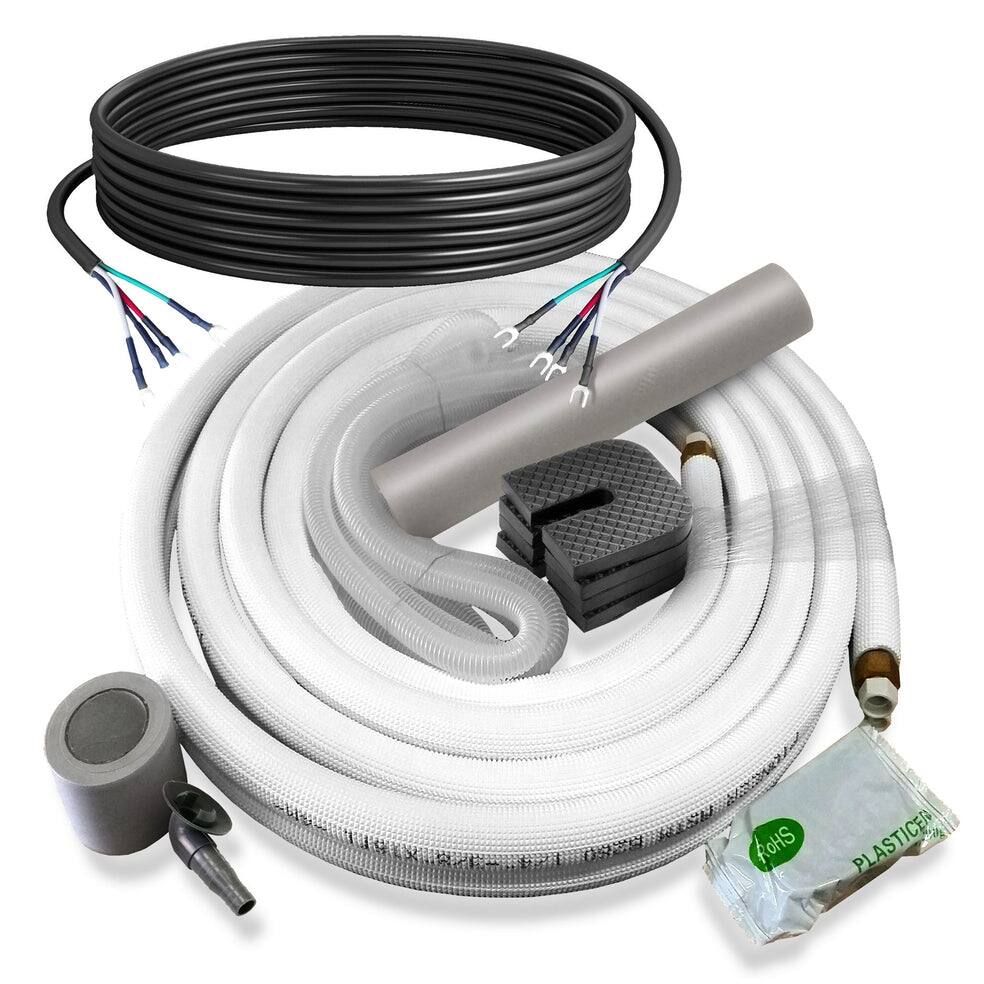

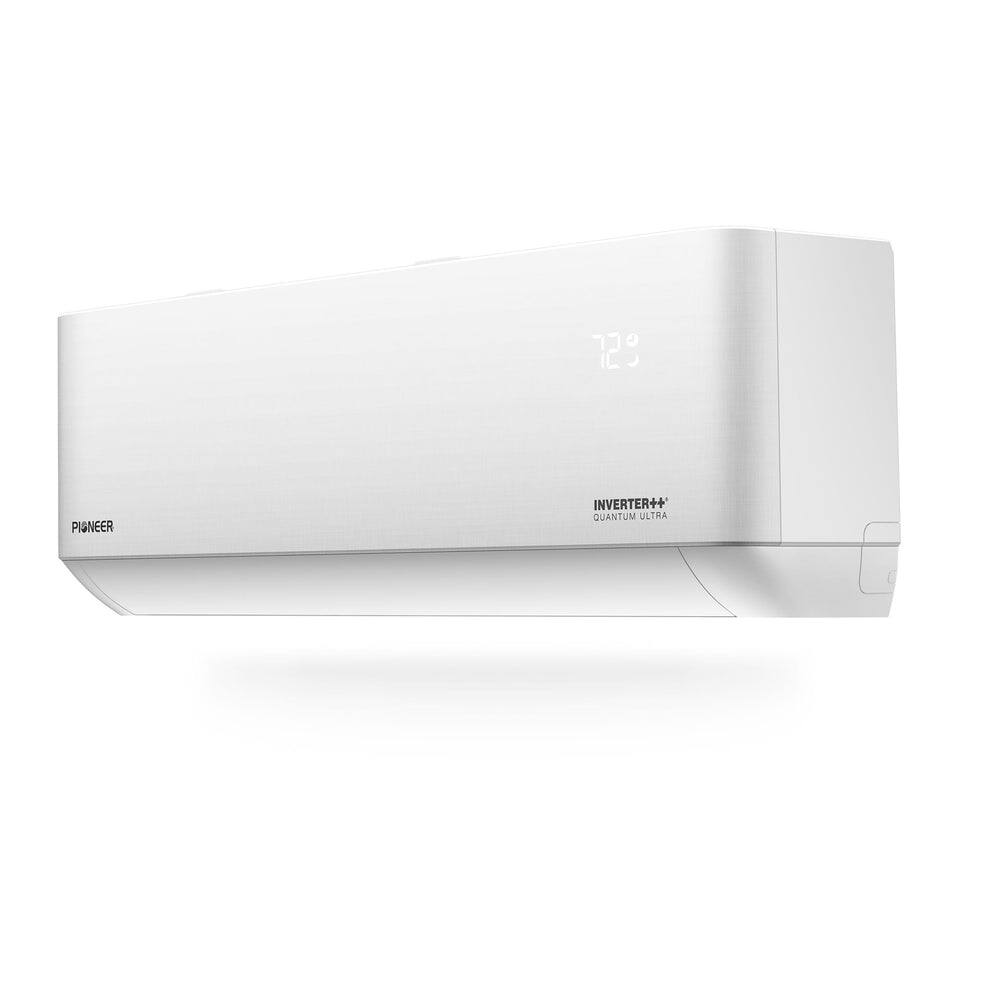

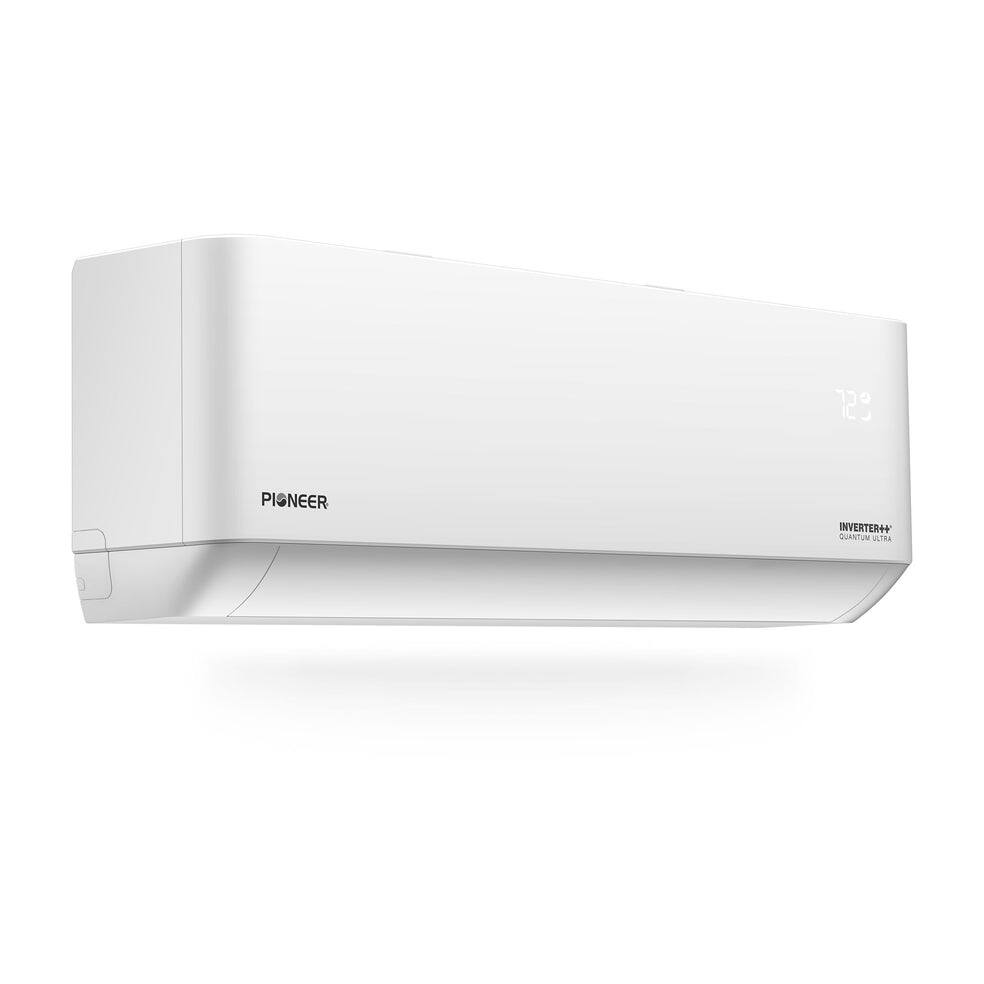

- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-13°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
- High-Efficiency Cooling & Heating: 18,000 BTU/hour cooling (23 SEER2, 12.5 EER2) and 19,000 BTU/hour heating (10 HSPF2, 3.81 COP2) for year-round comfort in rooms 500–750 sq. ft.
- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-13°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
Compare similar products
Experience powerful, year-round comfort with the Pioneer Quantum Ultra 18,000 BTU High-Wall Ductless Mini-Split Heat Pump. With 23 SEER2 cooling and 10 HSPF2 heating, this ultra-efficient system is ideal for spaces from 500 to 750 sq. ft. It delivers quiet, reliable performance in extreme conditions, operating from -13°F in heating to 131°F in cooling. The high-wall indoor unit features motorized dual-axis airflow, dual-drainage ports, and washable, reusable filters for long-term convenience. Control is effortless with built-in Wi-Fi via the Pioneer Airlink app or voice assistant, and the included remote offers access to Heating, Cooling, Dry, and Ventilation modes, plus ECO, SLEEP, TURBO, iFEEL, Self-Clean, Timer, and MEMORY functions. Pre-charged with eco-friendly R454b refrigerant, this full set includes the indoor and outdoor units, wireless remote with wall holder and batteries, customizable copper lines and electrical wire, 10 ft. drain hose, wall sleeve, sealing putty, leak guard, wrapping tape, installation manual, and user guide. The Quantum Ultra is designed to simplify installation and deliver ultimate control, energy savings, and all-season comfort.
Our split inverter air conditioner with heat pump is a perfect addition to your home! This 18000 BTU split air conditioner can quickly cool down or warm up rooms up to 1250 sq.ft, which is an ideal companion for hot summer or cold winter. Featuring an innovative inverter technology, our split AC unit can adjust the power supply frequency automatically to let you enjoy the benefit of comfort and lower energy consumption. The unit can provide strong and steady airflow to every part of your room with auto up-down and left-right swing. The air filter is easy to remove and wash, which can keep the AC unit running its best. You can adjust the working mode (auto, cool, dry, heat, fan), speed, timer, sleep mode, ECO mode or anything else by using the handy remote control. Self-clean and auto-defrost functions ensure good air quality and prolong service life. In addition, this split AC unit runs quietly, which won't disrupt your sleeping or working. And you can set the auto-off time from 0.5 to 24 hours. Filled with the new R32 refrigerant, the most eco-friendly choice that ensures the best air quality both indoors and outdoors. Competitors use an older refrigerant that is more harmful to the environment. If additional refrigerant needs to be added to the lines, check R32 availability at your local seller. Warm Notice: 1. The item comes in 2 boxes and delivery time may be different per box, please contact us if you have any questions. 2. The installation of this equipment should be done only by a Licensed HVAC Installer.
Our split inverter air conditioner with heat pump is a perfect addition to your home! This 12000 BTU split air conditioner can quickly cool down or warm up rooms up to 750 sq.ft, which is an ideal companion for hot summer or cold winter. Featuring an innovative inverter technology, our split AC unit can adjust the power supply frequency automatically to let you enjoy the benefit of comfort and lower energy consumption. The unit can provide strong and steady airflow to every part of your room with auto up-down and left-right swing. The air filter is easy to remove and wash, which can keep the AC unit running its best. You can adjust the working mode (auto, cool, dry, heat, fan), speed, timer, sleep mode, ECO mode or anything else by using the handy remote control. Self-clean and auto-defrost functions ensure good air quality and prolong service life. In addition, this split AC unit runs quietly, which won't disrupt your sleeping or working. And you can set the auto-off time from 0.5 to 24 hours. Filled with the new R32 refrigerant, the most eco-friendly choice that ensures the best air quality both indoors and outdoors. Competitors use an older refrigerant that is more harmful to the environment. If additional refrigerant needs to be added to the lines, check R32 availability at your local seller. Warm Notice: 1. The item comes in 2 boxes and delivery time may be different per box, please contact us if you have any questions. 2. The installation of this equipment should be done only by a Licensed HVAC Installer.
Stay cool with this Insignia three-in-one portable air conditioner. The included remote makes selecting the right temperature easy and lets you turn on the fan and dehumidifier from across the room. This Insignia three-in-one portable air conditioner produces up to 6,000 BTU of cooling power and quickly lowers the temperature in rooms up to 250 sq. ft.
| Pros for Pioneer - Quantum Ultra Low-Ambient 1-Zone 18,000 BTU 23 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Cooling, Ease of use, Overall Performance, Size, Setup |
| Cons for Pioneer - Quantum Ultra Low-Ambient 1-Zone 18,000 BTU 23 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Noise Level, Weight, Condition, Energy Consumption |
