Pioneer - Quantum Ultra Low-Ambient 1-Zone 9,000 BTU 23 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White
FREE shipping to
Related Item
Specifications
- Recommended Room Size350 square feetBTU Cooling Rating9000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate153 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 350 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 9000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 153 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 13 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Seasonal Energy Efficiency Ratio (SEER): 23 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: WYT009GLSI24RL-16S
- Product Name: Quantum Ultra Low-Ambient 1-Zone 9,000 BTU 23 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 32.25 x 7.63 x 12
- Outdoor Unit Dimensions: 31.88 x 12 x 21.63
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 350 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 9000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 10000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 153 cubic feet per minute
- Maximum Noise Level: 30 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio: 13 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER): 23 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- Amperage: 3.3 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102183866

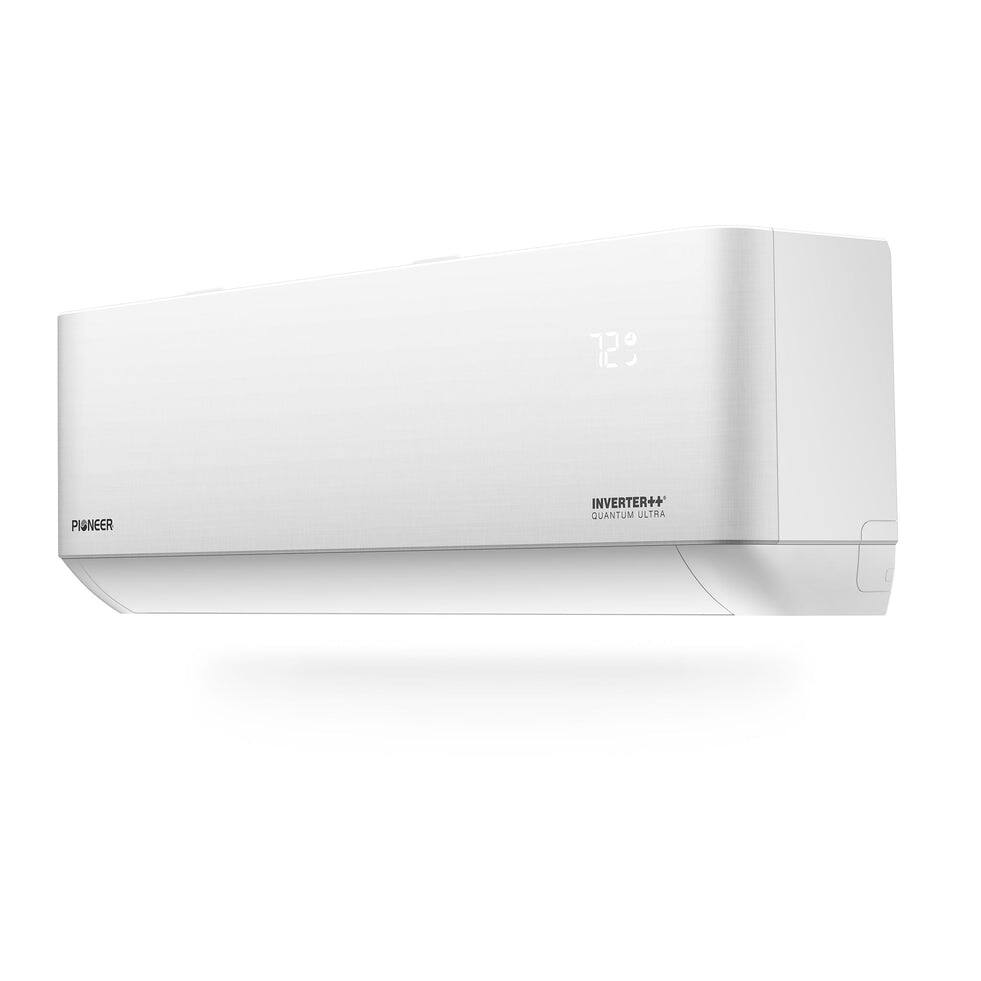

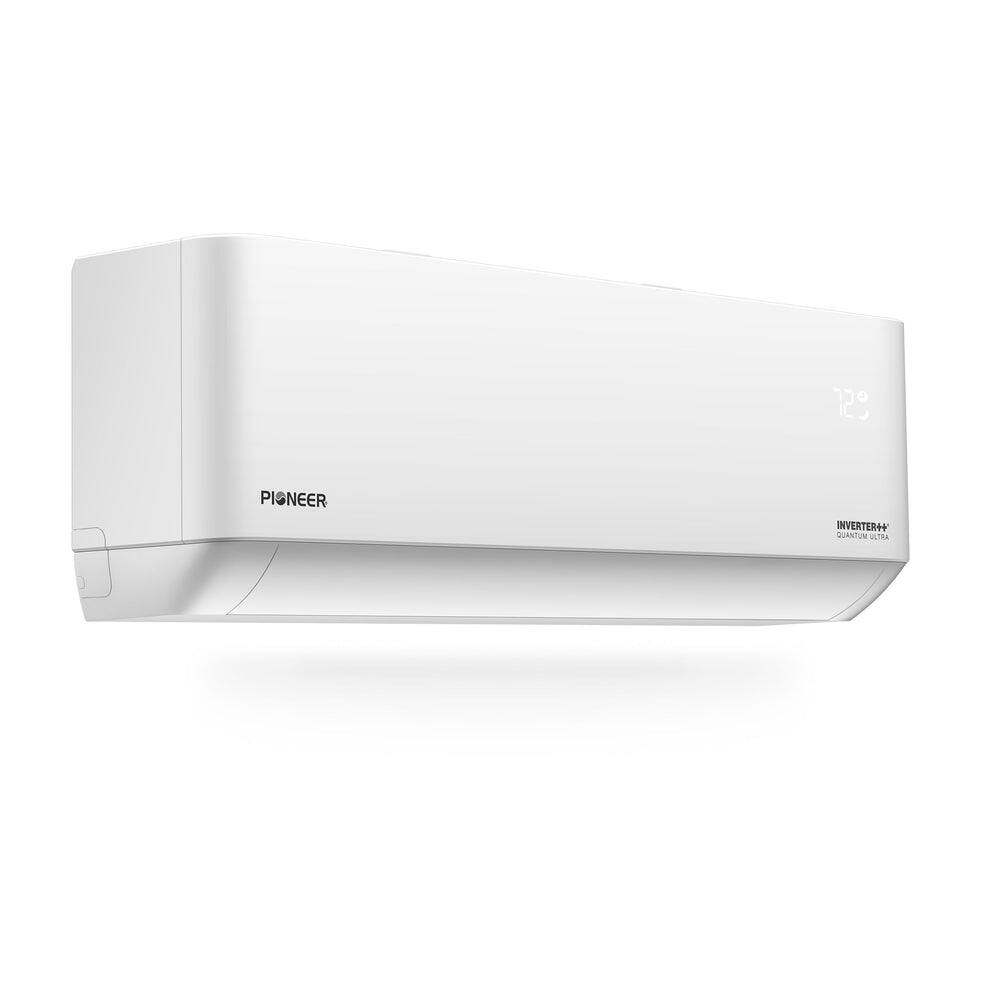

Stay comfortable year-round with the Pioneer Quantum Ultra 9,000 BTU High-Wall Ductless Mini-Split Heat Pump. Designed for small spaces from 250 to 350 sq. ft., this ultra-efficient system delivers 23 SEER2 cooling and 9.5 HSPF2 heating performance, even in extreme outdoor temperatures from -13°F to 131°F. The variable-speed DC inverter ensures whisper-quiet operation and major energy savings. The system features Wi-Fi connectivity and works seamlessly with the free Pioneer Airlink app for easy smartphone or voice assistant control. The high-wall indoor unit includes dual-axis motorized louvers, dual drainage ports, and washable, reusable filters. Use the included remote to control Heating, Cooling, Dry, and Ventilation modes, along with ECO, SLEEP, TURBO, TIMER, iFEEL, MEMORY, and a Self-Clean cycle. Pre-charged with eco-friendly R454b refrigerant, this complete set includes the indoor and outdoor units, remote with holder and batteries, customizable copper lines and electrical wire, 10 ft. drain hose, wall sleeve, putty, leak guard, wrapping tape, installation manual, and user guide. Compact, powerful, and efficient, the Quantum Ultra 9,000 BTU is built for lasting comfort.
- High-Efficiency Cooling & Heating: 9,000 BTU/hour cooling (23 SEER2, 13 EER2) and 10,000 BTU/hour heating (9.5 HSPF2, 3.81 COP2) for year-round comfort in rooms 150–350 sq. ft.

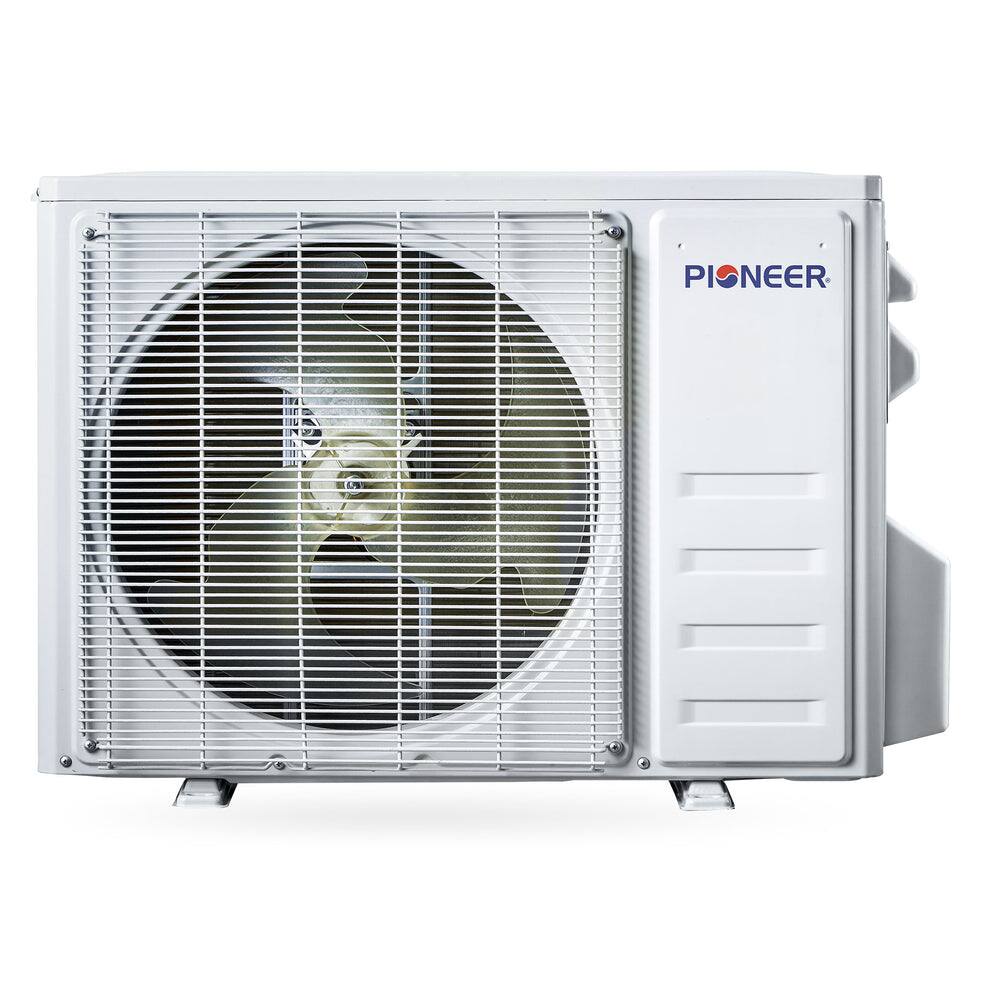

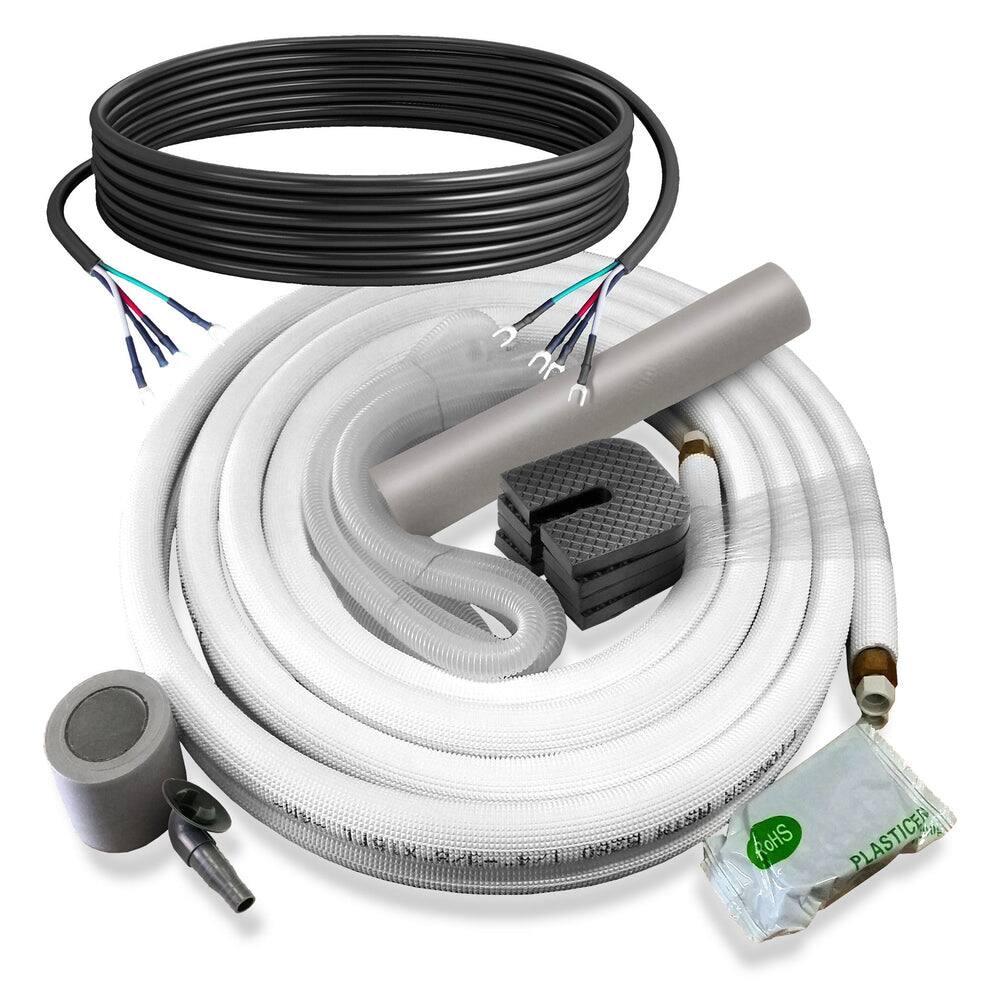

- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-13°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Documents
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
Compare similar products
Stay comfortable year-round with the Pioneer Quantum Ultra 9,000 BTU High-Wall Ductless Mini-Split Heat Pump. Designed for small spaces from 250 to 350 sq. ft., this ultra-efficient system delivers 23 SEER2 cooling and 9.5 HSPF2 heating performance, even in extreme outdoor temperatures from -13°F to 131°F. The variable-speed DC inverter ensures whisper-quiet operation and major energy savings. The system features Wi-Fi connectivity and works seamlessly with the free Pioneer Airlink app for easy smartphone or voice assistant control. The high-wall indoor unit includes dual-axis motorized louvers, dual drainage ports, and washable, reusable filters. Use the included remote to control Heating, Cooling, Dry, and Ventilation modes, along with ECO, SLEEP, TURBO, TIMER, iFEEL, MEMORY, and a Self-Clean cycle. Pre-charged with eco-friendly R454b refrigerant, this complete set includes the indoor and outdoor units, remote with holder and batteries, customizable copper lines and electrical wire, 10 ft. drain hose, wall sleeve, putty, leak guard, wrapping tape, installation manual, and user guide. Compact, powerful, and efficient, the Quantum Ultra 9,000 BTU is built for lasting comfort.
The new Uni-Fit 12,000 BTU Through-the-Wall Air Conditioner maintains even temperatures with centralized controls to reduce wasted energy & lower utility and maintenance costs. Its insulated inner wall, sheet metal casing & counterweights help dampen & absorb sound and vibration, and it’s built to last with corrosion-protected coils. This AC unit is easy to install with a chassis that fits 24 ½” to 27” sleeves and ships with a two-piece trim ring that fits over the chassis front, and it even integrates with your home tech! You can connect it to your smart home devices like Amazon Alexa or Google Home, and its built-in Wi-Fi lets you control it from remotely through the FriedrichGo App.

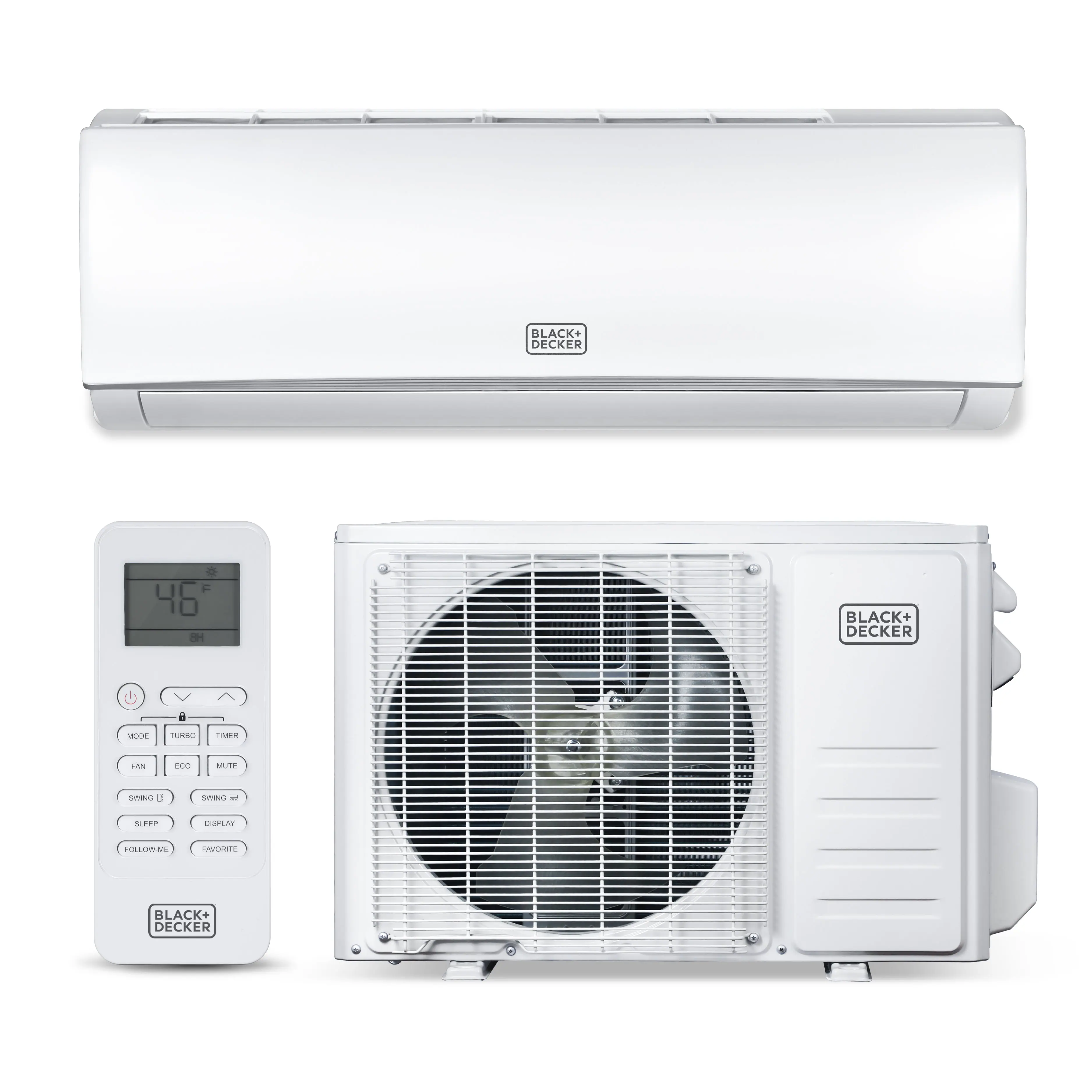

BLACK+DECKER 11,500 BTU Smart Mini Split Air Conditioner with Heat, an innovative solution in the realm of split-system air conditioners. Designed for optimal performance, this mini split air conditioner offers an exceptional blend of cooling, heating, dehumidification, and ventilation functionalities, making it an indispensable addition to your home or office. Equipped with a state-of-the-art inverter compressor, this split unit AC and heat system delivers precise temperature control and quieter operation. Its ductless design makes it a versatile wall-mounted air conditioner, ideal for spaces where traditional ductwork is not feasible. Stay connected with the BLACK+DECKER mini split AC/heating system, which features advanced Wi-Fi connectivity. Control the unit effortlessly with a smartphone or other smart devices via the app available on iOS or Google Play store. Also allows voice control with Amazon Alexa or Google Assistant. This smart air conditioner ensures seamless integration into your smart home ecosystem, providing convenience at your fingertips. The unit comes with a full-function remote control, allowing you to adjust settings such as the 4-in-1 air conditioner heater dehumidifier and fan modes, 4 fan speeds, and the 24-hour timer. Its electronic controls with a digital display offer intuitive operation, while the sleep mode ensures comfort throughout the night. Experience superior airflow with the large vented outlet, featuring both vertical and horizontal air swing for optimal air distribution. R32 refrigerant. Removable washable filter. Please note that professional installation is required for this split AC unit. Mini split includes 16.4'L refrigerant piping and a 3.2'L drain hose for installation. 230V/60Hz.
