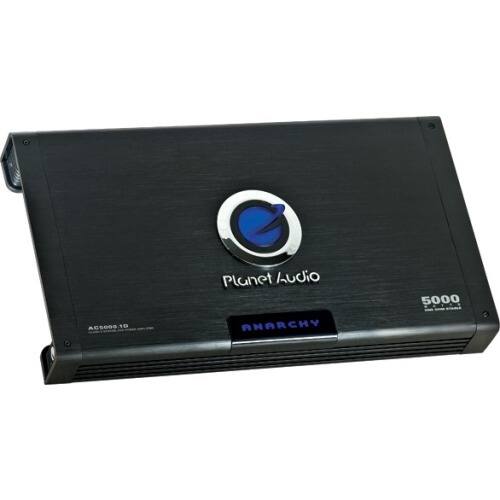

Planet Audio - Anarchy Class D Mono Amplifier 5000W Max; 1800W x 1 @ 4 Ohm; 2500W x 1 @ 2 - Multi
Model: AC5000.1D
SKU: 3259174
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 1.88
- Maximum Watts x Channel @ Ohms: Not provided (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- General
- Brand: Planet Audio
- Model Number: AC5000.1D
- Product Name: Anarchy Class D Mono Amplifier 5000W Max; 1800W x 1 @ 4 Ohm; 2500W x 1 @ 2
- Color: Multi
- Mounting Hardware Included: false
- Audio Power
- Continuous Watts x Channel @ Ohms: 1.88
- Maximum Watts x Channel @ Ohms: Not provided (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 15 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.3 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Dimensions
- Product Height: 2.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Not available
- Warranty - Labor: Not available
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 636210103738
ANARCHY 5000-watt Monoblock Class D Amplifier
- 5000 W MAX Power, 1 Channel 3750 W X 1 RMS @ 1 ohm 1875 W X 1 RMS @ 2 ohm 938 W X 1 RMS @ 4 ohm 7500 W X 1 RMS Strapped Bridged Power @ 2 ohm
- Monoblock Class D, MOSFET Power Supply
- Low Level Inputs, RCA Pre-amp Outputs
- Variable Low Pass Crossover, Variable Bass Boost and Variable Subsonic Filter
- Remote Subwoofer Control
Whats Included
- Anarchy Class D Mono Amplifier 5000W Max; 1800W x 1 @ 4 Ohm; 2500W x 1 @ 2
Q: what is the best 12 inch subs to go with this amp for maximum beat?
A: None the amp will take a crap on you in a few months
Q: Will this push 2 12’s kicker cvx’s 750 watt rms?
A: Yes the amplifier will work fine with you kicker subwoofers.
Q: Will this amp push 2 pioneer ts-w3003d4 and 2 pioneer ts-w310d4 12's
A: I am running 2 alpine type R 15s @2 ohms on this amp and it does pretty good. Draws alot of power from battery so be prepared to put in a secondary power source. When it comes to the amp itself, I would recommend getting 2 of them, 1 for each set of 12s. The amp has the ability to link them together so you only need one set of rcas to the amps. Over the amp is only pushing out 2500w at 2 ohms, so with the pioneers you listed being 4 ohm, your only gonna get about 1800w, which is why I would suggest 2 of them.
