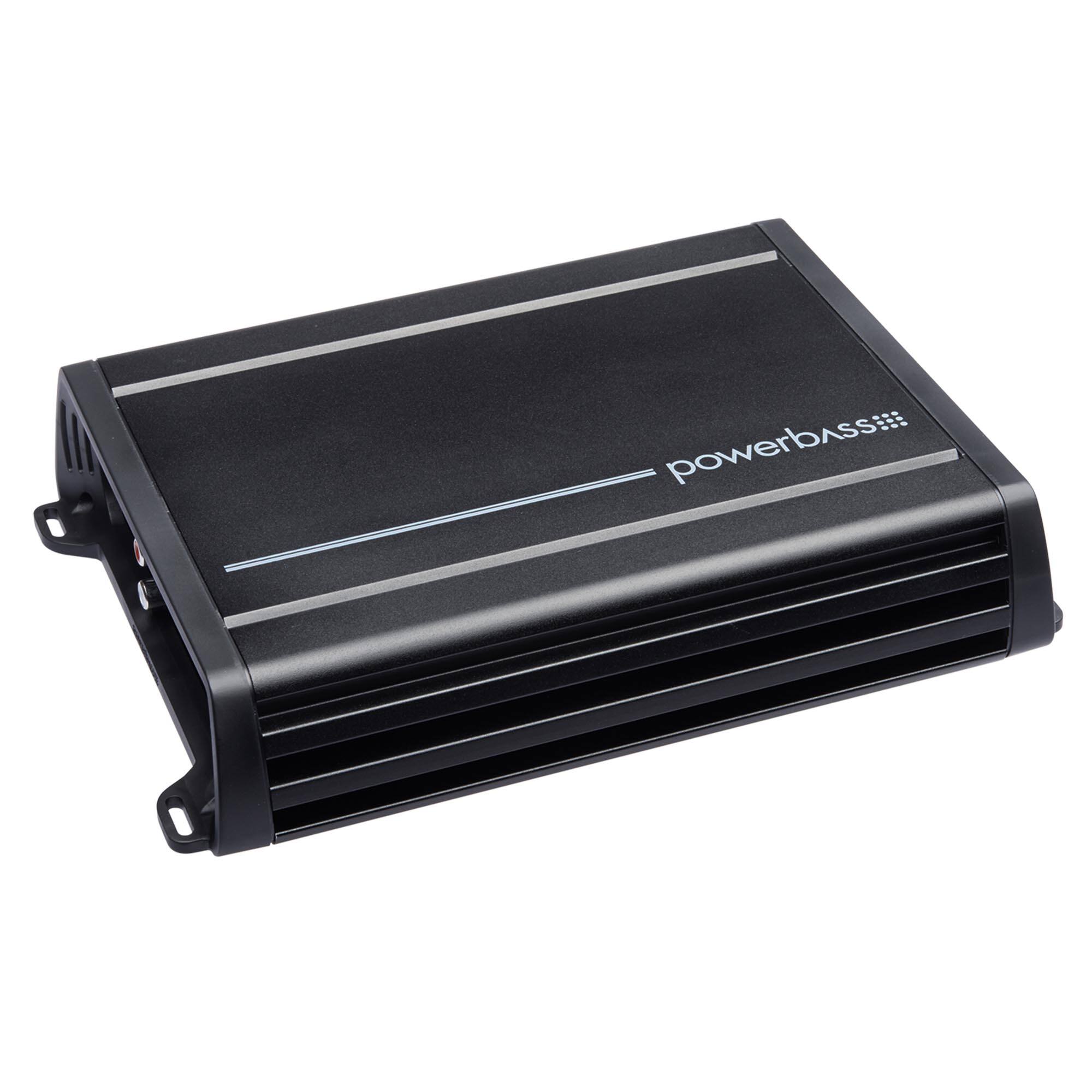

Powerbass - ACS-500.2D - 500 Watt x 1 @ 2-Ohm Amplifier - Black/Gray
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Powerbass
- Model Number: ACS-500.2D
- Product Name: PowerBass ACS-500.2D - 500 Watt x 1 @ 2-Ohm Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 500 watts
- Total Power Handling Maximum: 1000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 3.500 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.800 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.25 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 823871008353

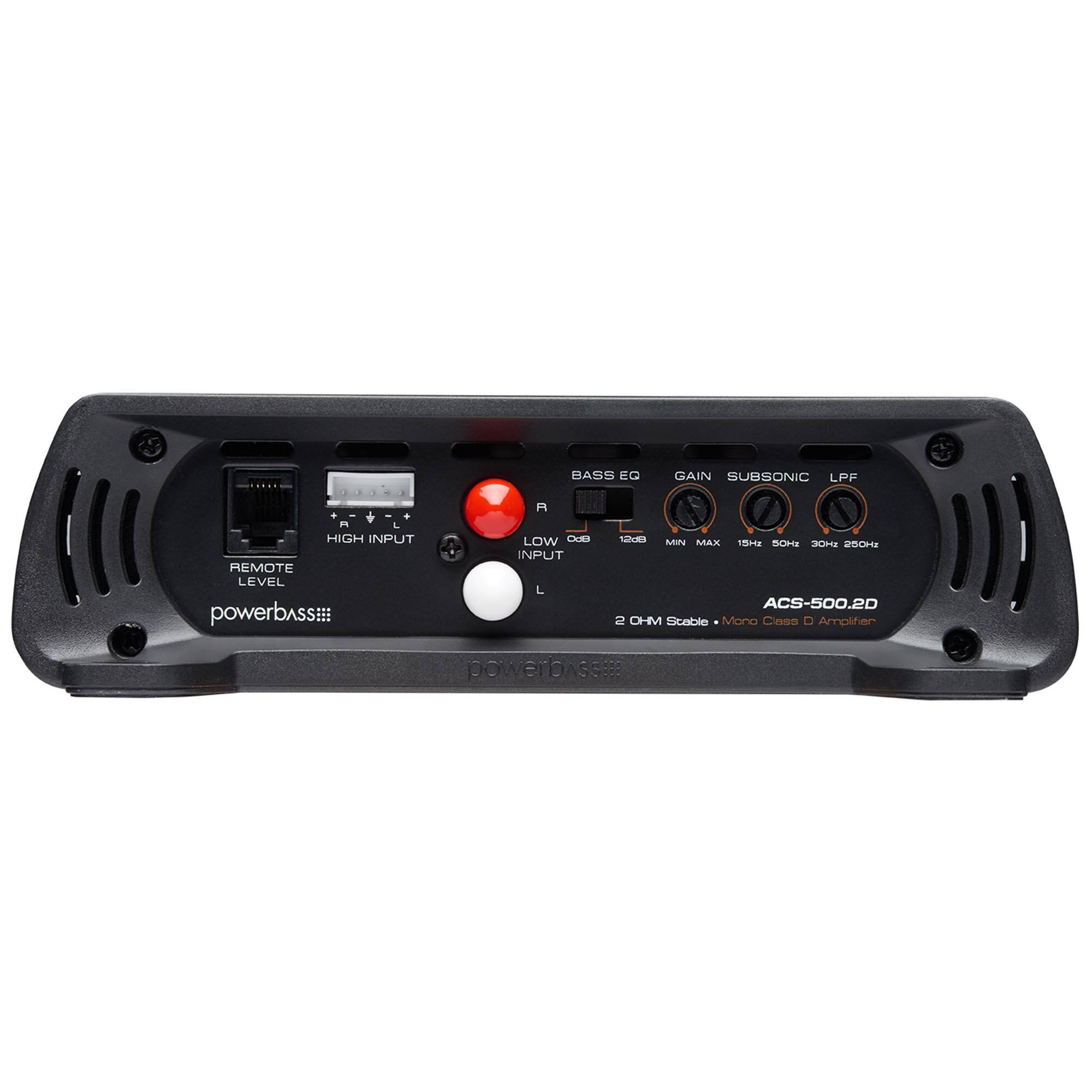

PowerBass ACS-500.2D 1ch Compact Amplifier The ACS-500.2D provides an astounding 500W RMS at 2Ω Mono giving the user a new option for great power at 2Ω instead of the standard 1Ω load that most D Class Subwoofers amplifiers need to provide peak output. Borrowing from our classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling. Features - • 500 Watt High Efficiency Class D Design • 2-OHM Stable Mono Block Amplifier • MOSFET Power Supply • High Level (Speaker)/Low Level (RCA) Input • Remote Soft Delay Turn On/Off Circuit • Variable Low Pass Electronic Crossover • Selectable 12dB Bass Boost EQ • Variable Gain Control • Remote Level Control Port (for optional PB-GAIN1 controller) • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output. Specifications - • Variable Subsonic Freq: Variable 15 Hz - 50 Hz • Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input • Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz • Subwoofer Frequency Range: 10 Hz - 250 Hz • Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz • Subwoofer EQ Frequency: 45 Hz • Variable Subwoofer EQ: Switchable 0/+12 dB • Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz • Peak Power: 1000 watts • Crossover Slope: 12 dB • Dimensions (in Inches): 9.7" x 7.1" x 2.0" • Input Sensitivity: 0.25 - 6.0 Volts • S/N Ratio: >90 dB • Total Harmonic Distortion: 0.5% at Rated Power • Strapped Output Power @ 2ohms: N/A • Output Power (14.4 V) @ 4 ohm: 300 watt x 1 • Output Power (14.4 V) @ 2 ohm: 500 watt x 1 • Channels (mono): 1 • Frequency Response: 10 Hz - 250 Hz
- Key Feature: 500 Watt High Efficiency Class D Design
- Key Feature: Borrowing from PowerBass's classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable.
- Key Feature: Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a small footprint.
- Key Feature: If you are seeking the perfect mix of performance and value look no further.
- Key Feature: 500 Watt High Efficiency Class D Design
- Key Feature: Borrowing from PowerBass's classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable.
- Key Feature: Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a small footprint.
- Key Feature: If you are seeking the perfect mix of performance and value look no further.
Whats Included
- PowerBass ACS-500.2D - 500 Watt x 1 @ 2-Ohm Amplifier
- PowerBass ACS-500.2D - 500 Watt x 1 @ 2-Ohm Amplifier
