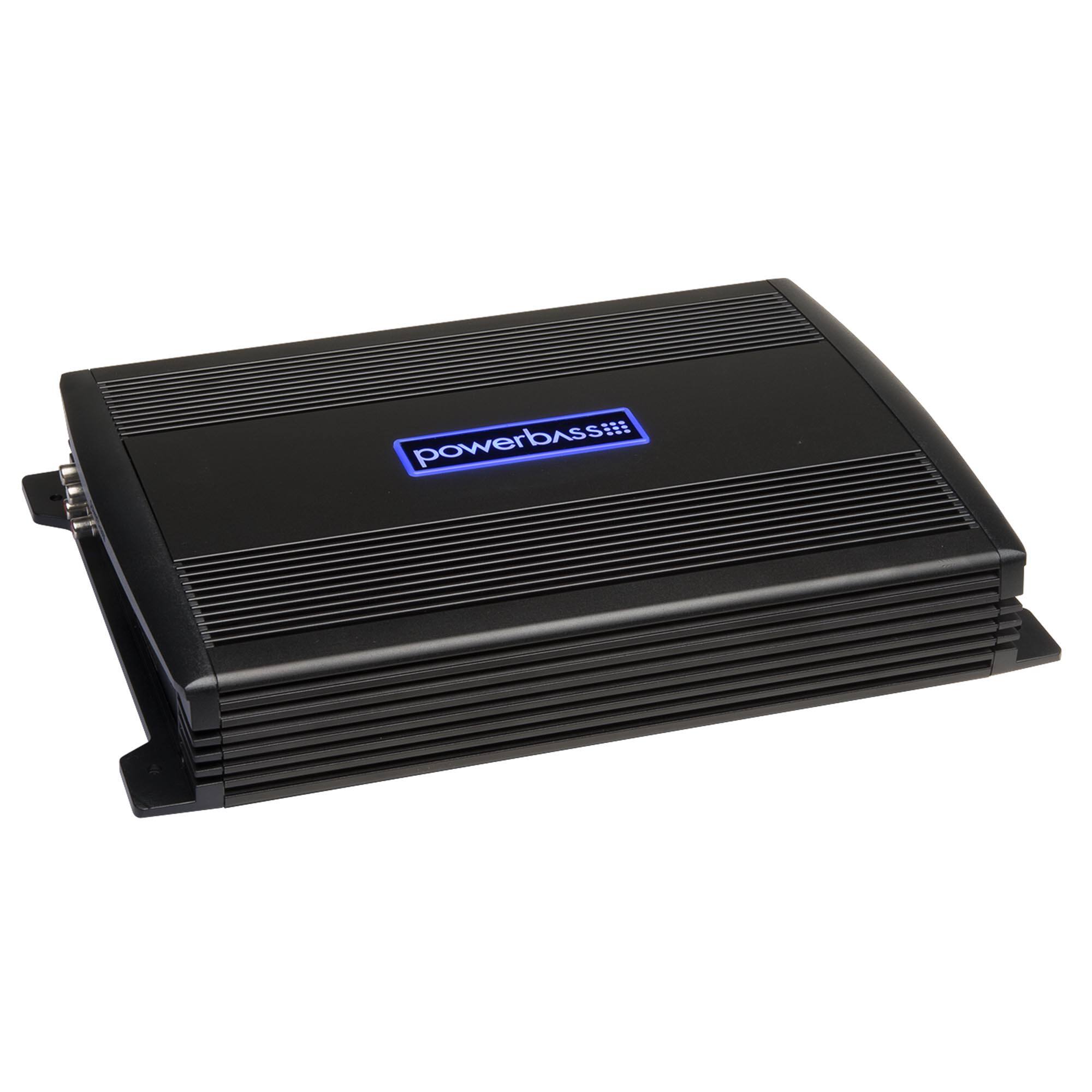

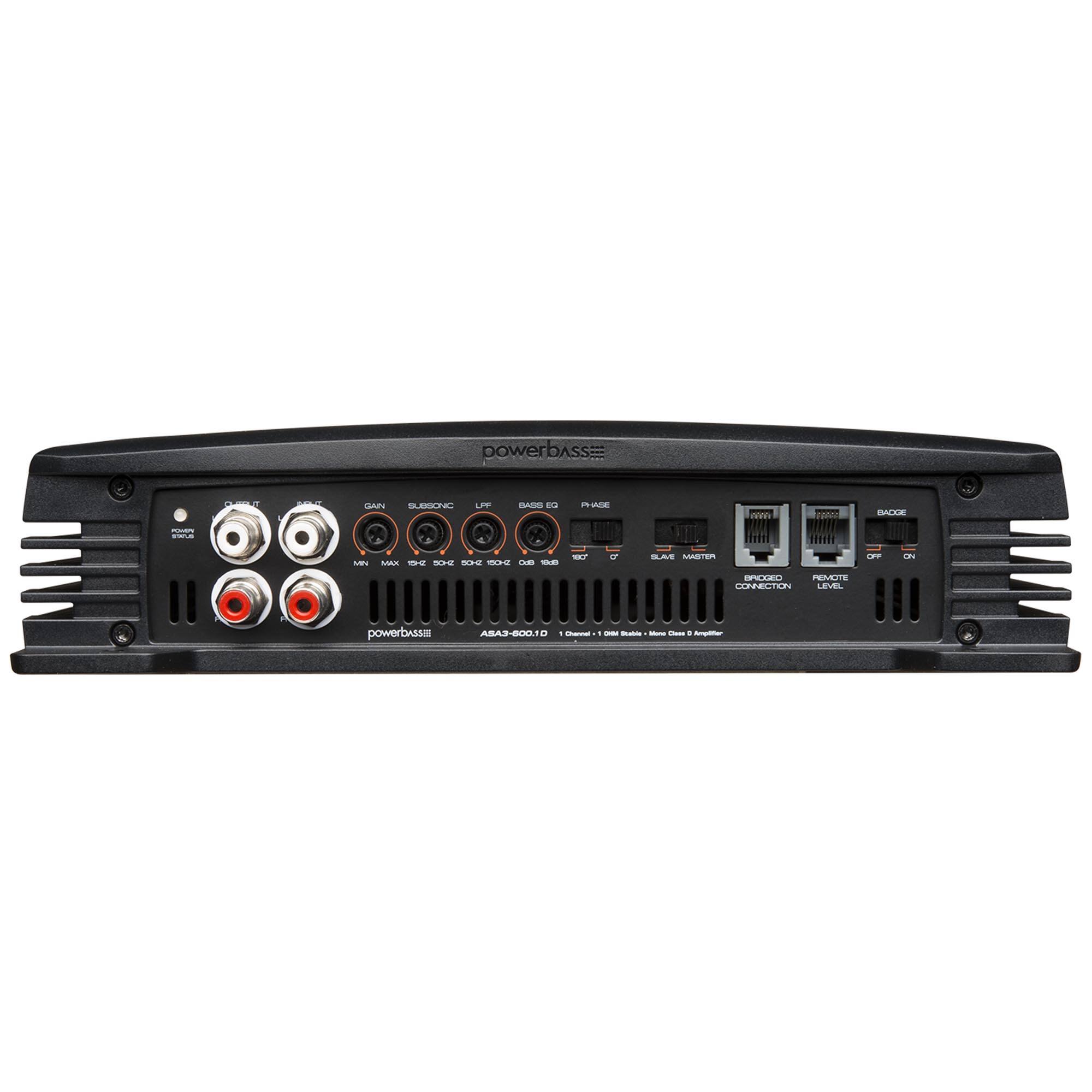

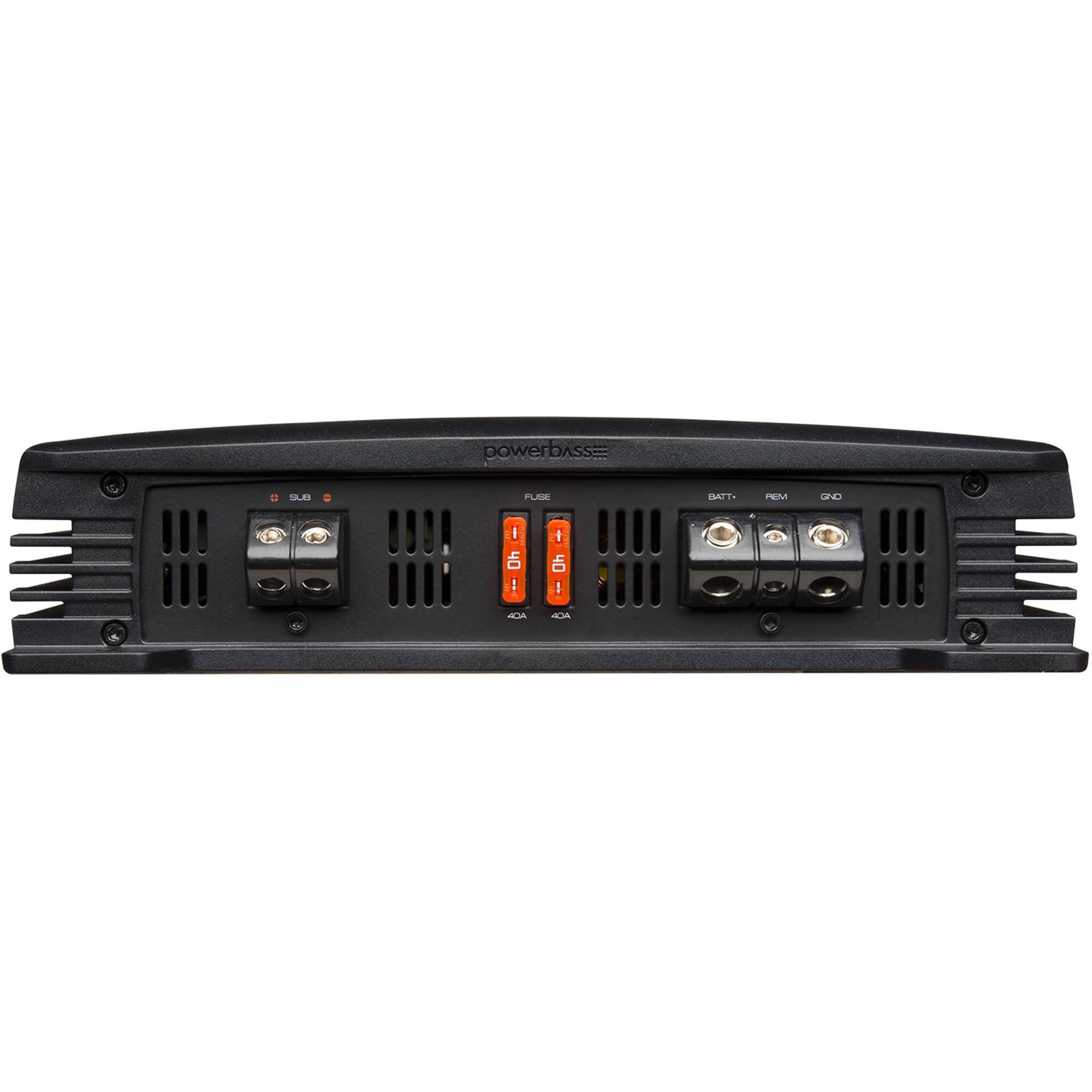

Powerbass - ASA3-600.1D - 600 Watt x 1 @ 1-Ohm Amplifier - Black/Gray

PowerBass ASA3 1000.1D Class-D 1ch Amplifier Our ASA3 Class D amplifiers are always 1-ohm stable, and still come complete with all our sought after features like subsonic filters to keep ultra low frequencies from zapping power from frequencies that you do not want to reproduce and protection circuitry that will keep your amplifier from blowing up during duress. Our Bass EQ control also gives you the ability to increase your subwoofers output by up to 18dB at the earth shaking frequency of 45 Hz to give your competition the knockout punch. Features - • 1,000 Watt High Efficiency Class D Design • 1-OHM Stable Mono Block Amplifier • Double Sided Circuit Board Construction • PWM MOSFET Power Supply • Low Level RCA Input/Low Level RCA Pass Through Output • Remote Soft Delay Turn On/Off Circuit • Variable Low Pass Electronic Crossover • Variable 12dB Bass Boost EQ • Variable Gain Control • Wired Secondary Remote Gain Control Included • Internal Thermal Cooling Fan • Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum) • Switchable Logo Back Lighting Specifications - • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz • Variable Subsonic Freq: 15 Hz - 50 Hz • Inputs: RCA Input/RCA Pass-Through Output • Equalization Boost/Cut: 0 - 18 dB • Subwoofer Frequency Range: 20 Hz - 150 Hz • Power Supply: Unregulated PWM • 4-ohm Power: 400 watts x 1 • 1-ohm Mono Power: 1000 watts x 1 • 2-ohm Power: 700 watts x 1 • Subwoofer EQ Frequency: 45 Hz • Variable Subwoofer EQ: 0 - 18 dB • Low-Pass Crossover Freq: 50 Hz -150 Hz • Peak Power: 2000 watts • Crossover Slope: 12 dB • Dimensions (in Inches): 15.5" x 9.4" x 2.3" • Input Sensitivity: 0.25 V - 6.0 V • S/N Ratio: >80 dB • Total Harmonic Distortion: >0.5% at Rated Power • Strapped Output Power @ 2ohms: 2000 watts x 1 • Output Power (14.4 V) @ 4 ohm: 400 watts x 1 • Output Power (14.4 V) @ 2 ohm: 700 watts x 1 • Output Power (14.4 V) @ 1 ohm: 1000 watts x 1 • Frequency Response: 20 Hz - 150 Hz

PowerBass ACS-1000D 1ch Compact Amplifier PowerBass is pleased to introduce their newest series of Class A/B full range and Class D bass amplifiers. Borrowing from their classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this they selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling. The result a line-up of two, four and mono channel models that offer great performance and fantastic value. Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. If you are seeking the perfect mix of performance and value look no further. Features - • 1,000 Watt High Efficiency Class D Design • 1-OHM Stable Mono Block Amplifier • MOSFET Power Supply • High Level (Speaker)/Low Level (RCA) Input • Remote Soft Delay Turn On/Off Circuit • Variable Low Pass Electronic Crossover • Selectable 12dB Bass Boost EQ • Variable Gain Control • Remote Level Control Port (for optional PB-GAIN1 controller) • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output. Specifications - • Variable Subsonic Freq: Variable 15 Hz - 50 Hz • Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input • Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz • Power Supply: Unregulated PWM • Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz • Subwoofer EQ Frequency: 45 Hz • Variable Subwoofer EQ: Switchable 0/+12 dB • Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz • Peak Power: 2000 watts • Crossover Slope: 12 dB • Dimensions (in Inches): 12.0" x 7.1" x 2.0" • Input Sensitivity: 0.25 V - 6.0 V • S/N Ratio: >90 dB • Total Harmonic Distortion: 0.5% @ 1,000 watts • Output Power (14.4 V) @ 4 ohm: 400 watts x 1 • Output Power (14.4 V) @ 2 ohm: 600 watts x 1 • Output Power (14.4 V) @ 1 ohm: 1000 watts x 1 • Frequency Response: 10 Hz - 250 Hz

Borrowing from Powerbass's former ACS series, these new amplifiers offer upgraded features, terminals and a dual layer PCB all packed in the most compact chassis allowable. To accomplish this they selected SMD parts and engineered a brand new high density heat sink engineered for maximum efficiency and cooling. The result, an all new line-up of two, four, five and mono channel models that offer amazing performance and fantastic value. Ultra efficient, the PB Series amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. The PB Series Amplifiers provide the perfect mix of performance and style in a sleek new compact chassis. Features: 500 Watt High Efficiency Class D Design 2-OHM Stable Mono Block Amplifier MOSFET Power Supply High Level (Speaker)/Low Level (RCA) Input Remote Soft Delay Turn On/Off Circuit Variable Low Pass Electronic Crossover Selectable 12dB Bass Boost EQ Remote Level Control Port (for optional PB-GAIN1 controller) Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output. Specifications: Peak Power: 1000 watts Subwoofer Frequency Range: 10 Hz - 250 Hz Power Supply: Unregulated PWM Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input Dimensions (in Inches): 9.7" x 7.1" x 2.0" Depth: 9.7" Channels (mono): 1 Variable Subsonic Freq: Variable 15 Hz - 50 Hz Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz Height: 2.0" Width: 7.1" Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz Subwoofer EQ Frequency: 45 Hz Variable Subwoofer EQ: Switchable 0/+12 dB Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz High-Pass Crossover Freq: n/a Crossover Slope: 12 dB Input Sensitivity: 0.25 - 6.0 Volts S/N Ratio: >90 dB Total Harmonic Distortion: 0.5% at Rated Power Strapped Output Power @ 2ohms: N/A Output Power (14.4 V) @ 4 ohm: 300 watt x 1 Output Power (14.4 V) @ 2 ohm: 500 watt x 1 Output Power (14.4 V) @ 1 ohm: N/A Frequency Response: 10 Hz - 250 Hz
