PTZOptics - Studio SE Hive-Linked PTZ Camera w/ 20x Optical Zoom, HD Streaming–White | More
Related Item
Specifications
- Effective Pixels8.4 megapixelsStandardized Video ResolutionFull HD (1080p)
- Key Specs
- Effective Pixels: 8.4 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: Full HD (1080p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: PTZOptics
- Model Number: PT20X-STUDIO-SE-WH-G3_EDI_6
- Product Name: PTZOptics Studio SE Hive-Linked PTZ Camera w/ 20x Optical Zoom, HD Streaming–White | More
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Optical Zoom: 20x (The optical zoom uses a combination of lenses that magnify the image prior to it being registered at high resolution by the imaging sensor.)
- Exposure Control
- Effective Pixels: 8.4 megapixels (The actual number of pixels which make up the viewable image.)
- Video
- Standardized Video Resolution: Full HD (1080p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Compatibility
- Tripod/Monopod Mountable: true (A support function that allows the device to be mounted to monopods and tripods for leveling and stability.)
- Memory Card Compatibility: Secure Digital (The type of memory card(s) recommended for use with the product.)
- Features
- Integrated Speaker(s): false
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)

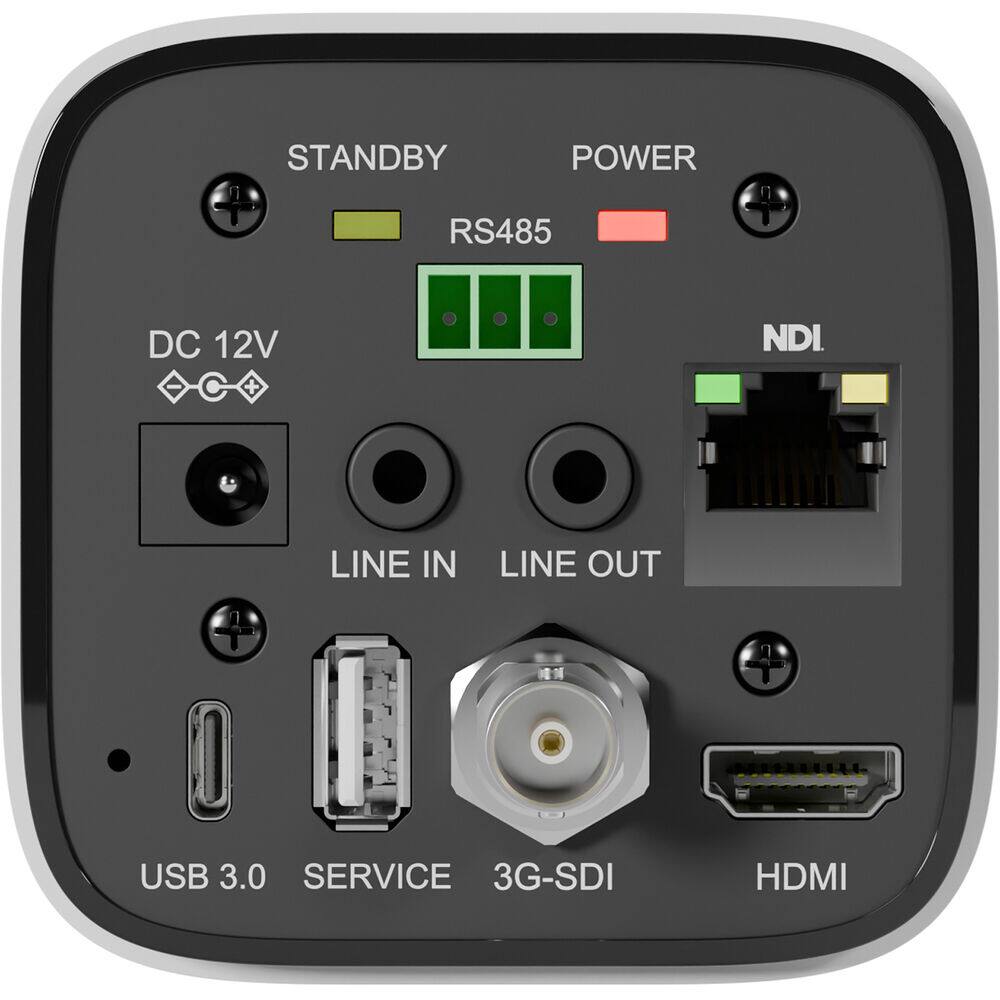

- Output(s): HDMI, SDI, USB
- Microphone Type: Built-in (condenser)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Power
- Rechargeable Battery: false
- Removable Battery: true
- Included
- Batteries Included: false (Indicates whether the product comes with the required batteries for its operation.)
- Memory Card Included: false (Indicates whether a memory card is included.)
- Remote Control Included: true
- Dimensions
- Product Height: 5.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18.66 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 197684008641

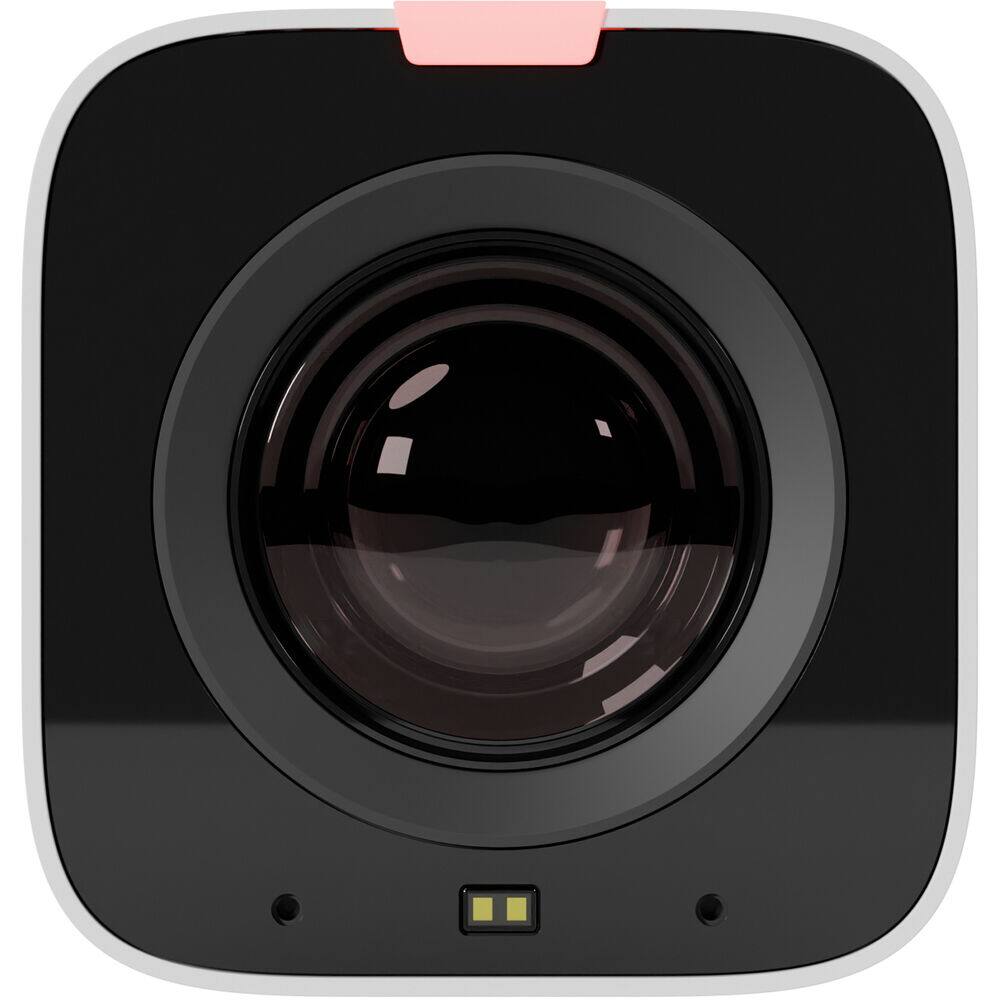

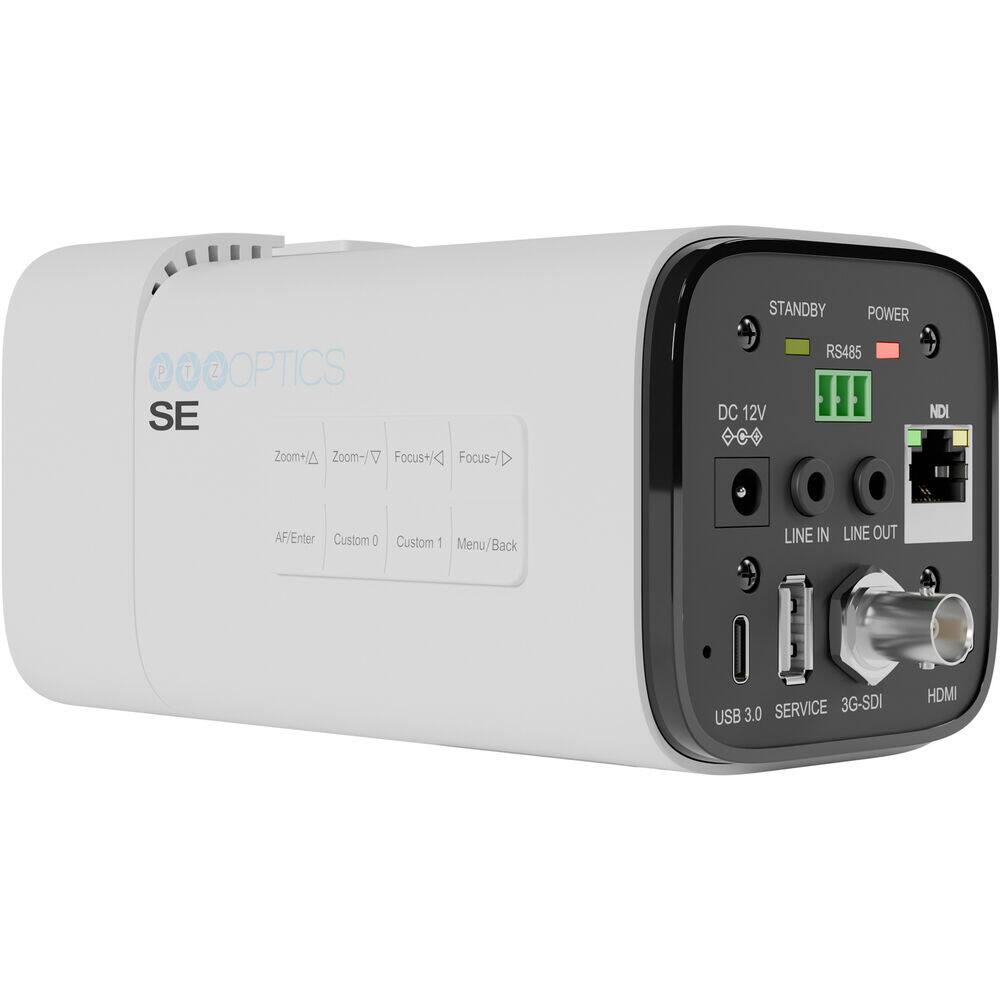

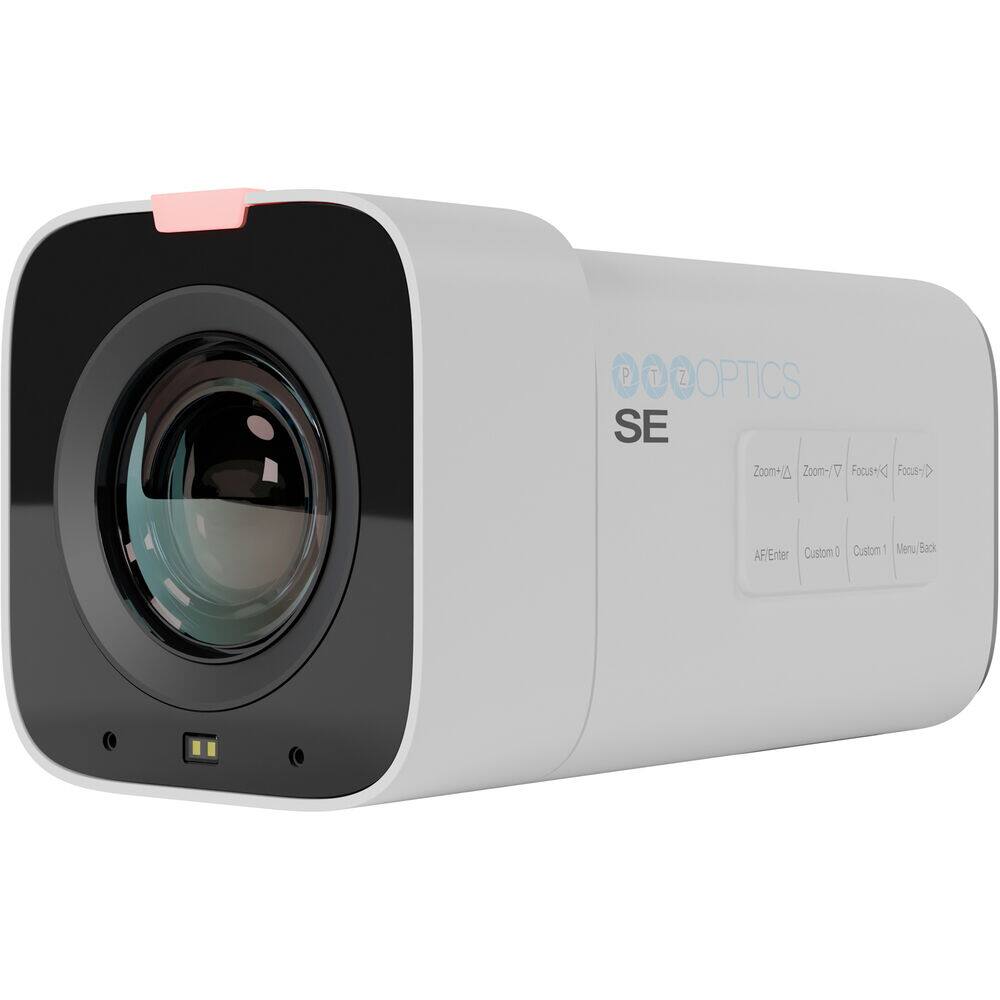

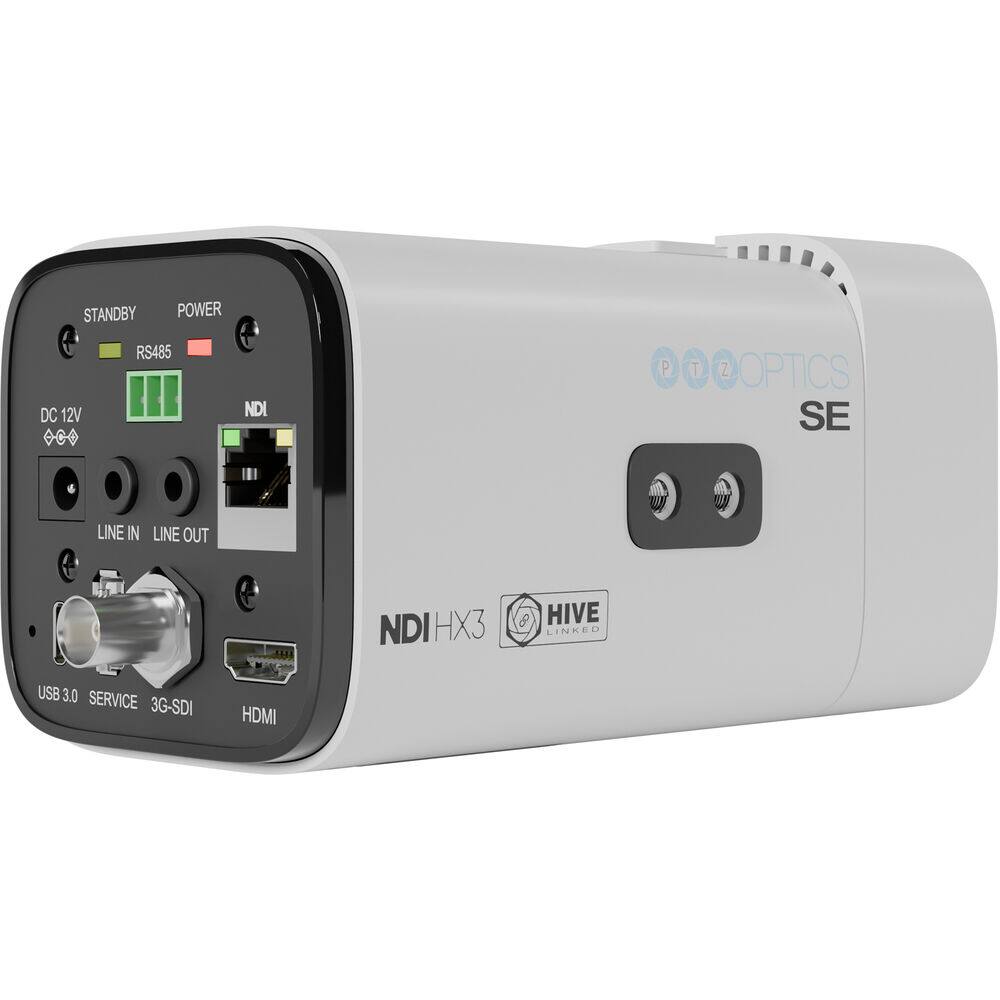

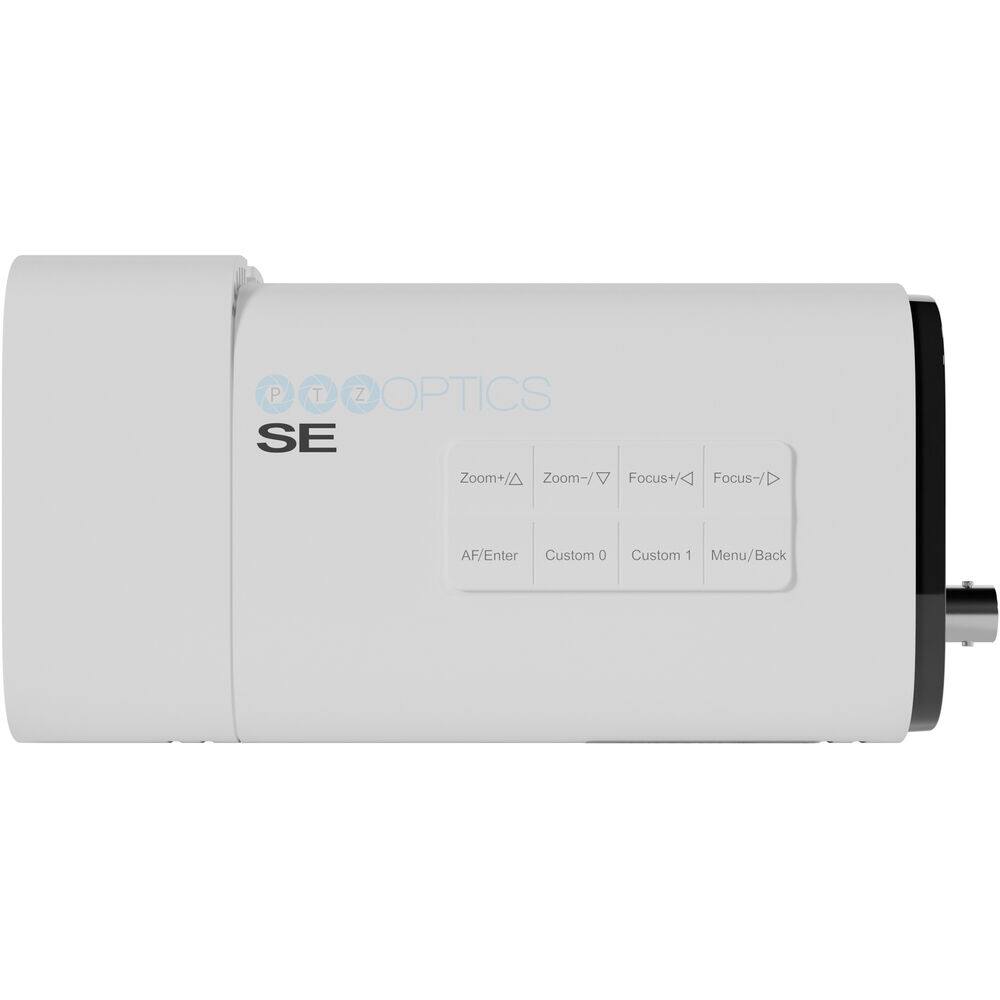

The PTZOptics Studio SE Hive-Linked Camera is a versatile and compact camera designed to deliver professional video production capabilities with future-proof connectivity. Equipped with a 1/2.8" CMOS sensor, it supports resolutions up to 1080p60 for sharp, detailed video suitable for content creation, education, corporate events, and livestreaming. Its 20x optical zoom provides a flexible field of view ranging from 60.7 degrees wide to 3.5 degrees telephoto, enabling coverage of both intimate spaces and large venues. Key features include a front tally light for clear on-air indication, a built-in microphone, and line-level audio input and output for easy integration into AV setups. The standout Hive-linked connectivity offers seamless access to the PTZOptics Hive Studio cloud platform, streamlining remote workflows and multi-camera management, and Native NDI HX3 is built in. Multiple outputs are supported simultaneously, including HDMI or SDI plus IP, USB, RTMP, and NDI, making the camera adaptable for hybrid setups. Control options are wide-ranging, with support via browser-based web UI, PTZ control app, PTZOptics joysticks, Hive Studio, and camera management software. Power flexibility includes both the included AC adapter and PoE through a network switch, minimizing cabling requirements. Compact, lightweight, and scalable, the Studio SE Hive-Linked Camera provides an accessible yet professional-grade solution for creators, educators, and organizations seeking reliable, high-quality video production and streaming.Manufacturer Items Include:PTZOptics Studio SE Hive-Linked Camera with 20x Optical Zoom (White)12V, 2A International Power SupplyLens CapUSB-A to USB-C Cable2 x AAA BatteryBundle Items Include:2x PTZOptics Studio SE Hive-Linked Camera with 20x Optical Zoom (White)2x 7" External Monitor2x 72" Tripod2x Ethernet Cable2x Video CableCable TiesCleaning Kit

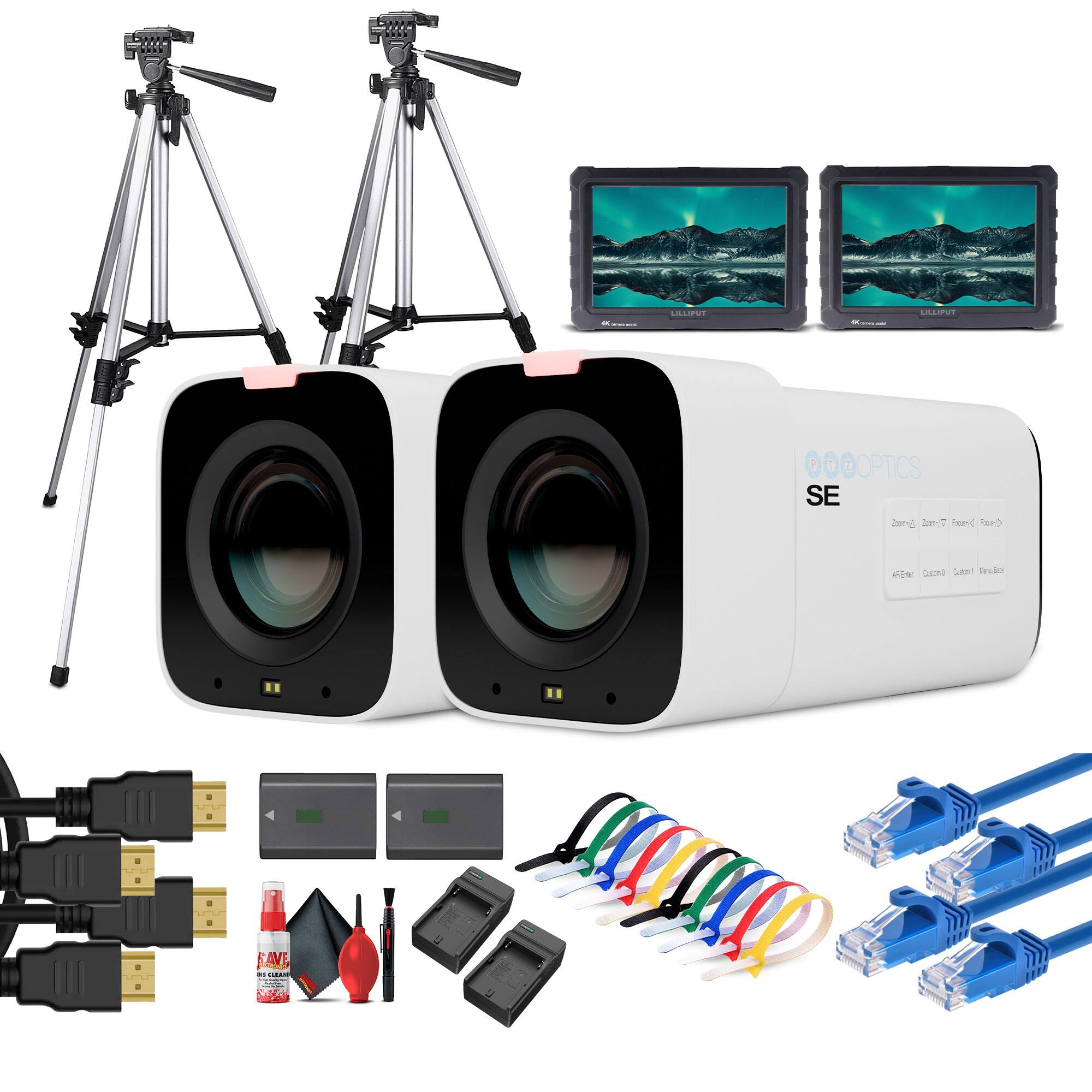

- Feature 1: Bundle Items Include: 2x PTZOptics Studio SE Hive-Linked PTZ Camera with 20x Optical Zoom – Full HD Streaming, Low-Latency, Compact Design – White | 2x 7" External Monitor | 2x 72" Tripod | 2x Ethernet Cable | 2x Video Cable | Cable Ties | 2x Replacement Battery |2x Replacement Charger | Cleaning Kit
- Feature 2: The PTZOptics Studio SE Hive-Linked Camera is a compact livestreaming and production tool featuring a 1/2.8" CMOS sensor that captures 1080p60 video. Its powerful 20x optical zoom provides a 60.7 degrees to 3.5 degrees field of view, while a front tally light, built-in microphone, and line audio I/O make it well-suited for hybrid events, classrooms, studios, and live productions.
- Feature 3: Offering native NDI HX3 support without requiring additional licenses, the Studio SE enables smooth integration into IP workflows. It supports multiple simultaneous outputs, including HDMI or SDI plus IP, RTMP, USB, and NDI, making it highly adaptable for livestreaming, production, and hybrid setups across studios, classrooms, and event venues.
- Feature 4: Control is flexible with options including a browser-based web UI, PTZ control app, PTZOptics joysticks, and Hive Studio cloud integration. USB connectivity and camera management tools further enhance versatility, ensuring streamlined operation whether controlling a single camera or managing multiple units remotely.
- Feature 5: Powering options include the supplied AC adapter or Power over Ethernet (PoE), which simplifies cabling by combining power, control, and network connectivity into one connection. Compact and lightweight, the Studio SE with Hive-linked connectivity offers creators future-proof versatility, scalability, and reliable performance for professional streaming.
Whats Included
- PTZ camera; IR remote; AC adapter; mounting hardware; documentation
Compare similar products
The PTZOptics Studio SE Hive-Linked Camera is a versatile and compact camera designed to deliver professional video production capabilities with future-proof connectivity. Equipped with a 1/2.8" CMOS sensor, it supports resolutions up to 1080p60 for sharp, detailed video suitable for content creation, education, corporate events, and livestreaming. Its 20x optical zoom provides a flexible field of view ranging from 60.7 degrees wide to 3.5 degrees telephoto, enabling coverage of both intimate spaces and large venues. Key features include a front tally light for clear on-air indication, a built-in microphone, and line-level audio input and output for easy integration into AV setups. The standout Hive-linked connectivity offers seamless access to the PTZOptics Hive Studio cloud platform, streamlining remote workflows and multi-camera management, and Native NDI HX3 is built in. Multiple outputs are supported simultaneously, including HDMI or SDI plus IP, USB, RTMP, and NDI, making the camera adaptable for hybrid setups. Control options are wide-ranging, with support via browser-based web UI, PTZ control app, PTZOptics joysticks, Hive Studio, and camera management software. Power flexibility includes both the included AC adapter and PoE through a network switch, minimizing cabling requirements. Compact, lightweight, and scalable, the Studio SE Hive-Linked Camera provides an accessible yet professional-grade solution for creators, educators, and organizations seeking reliable, high-quality video production and streaming.Manufacturer Items Include:PTZOptics Studio SE Hive-Linked Camera with 20x Optical Zoom (White)12V, 2A International Power SupplyLens CapUSB-A to USB-C Cable2 x AAA BatteryBundle Items Include:2x PTZOptics Studio SE Hive-Linked Camera with 20x Optical Zoom (White)2x 7" External Monitor2x 72" Tripod2x Ethernet Cable2x Video CableCable TiesCleaning Kit
Just like the original HERO camera, LIT HERO is tough, tiny and waterproof, but is packed with even more amazing features. It bumps its 4K video up to 60 frames per second for smoother motion and the ability to play back footage in 2x slow motion. Turn on the new built-in light to help capture shots when there’s little to no light, while Magnetic Latch1 compatibility lets you switch between mounting setups in seconds. LIT HERO makes everything easy. Just point and shoot to capture your adventures. After recording, the GoPro Quik app can smooth out your footage with HyperSmooth video stabilization and automatically turn it into pro-quality highlight videos that are sent to your phone so you can relive and share your most awesome moments.
Osmo Pocket 3 Vlogging Camera features a powerful 1-inch CMOS sensor that puts detail-rich imaging right in the palm of your hand. With a 2-inch rotatable touchscreen and full-pixel fast focusing, go horizontal or vertical for more precise awareness and control. 4K/120fps, three-axis mechanical stabilization, and a host of intelligent features make Pocket 3 ready for any moving moment.
Osmo Pocket 3 features a powerful 1-inch CMOS sensor that puts detail-rich imaging right in the palm of your hand. With a 2-inch rotatable touchscreen and full-pixel fast focusing, go horizontal or vertical for more precise awareness and control. 4K/120fps, three-axis mechanical stabilization, and a host of intelligent features make Pocket 3 ready for any moving moment.
| Pros for PTZOptics - Studio SE Hive-Linked PTZ Camera w/ 20x Optical Zoom, HD Streaming–White | More | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Video Quality, Overall Performance, Ease of Use | Video Quality, Overall Performance, Portability, Stabilization, Battery Life |
| Cons for PTZOptics - Studio SE Hive-Linked PTZ Camera w/ 20x Optical Zoom, HD Streaming–White | More | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Heat Dissipation |
