PYLE - Bluetooth Stereo Amplifier Receiver - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms4Number of Channels4Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 4
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- General
- Brand: PYLE
- Model Number: PDA4BU.5
- Product Name: Bluetooth Stereo Amplifier Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 4
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Type: Power amplifiers
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: RCA
- Video Only Outputs: 1 x Component video (The number and type of video signal only outputs the product has.)
- Dimensions
- Product Height: 3.15 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.24 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.02 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.62 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 842893144504
DETAILS

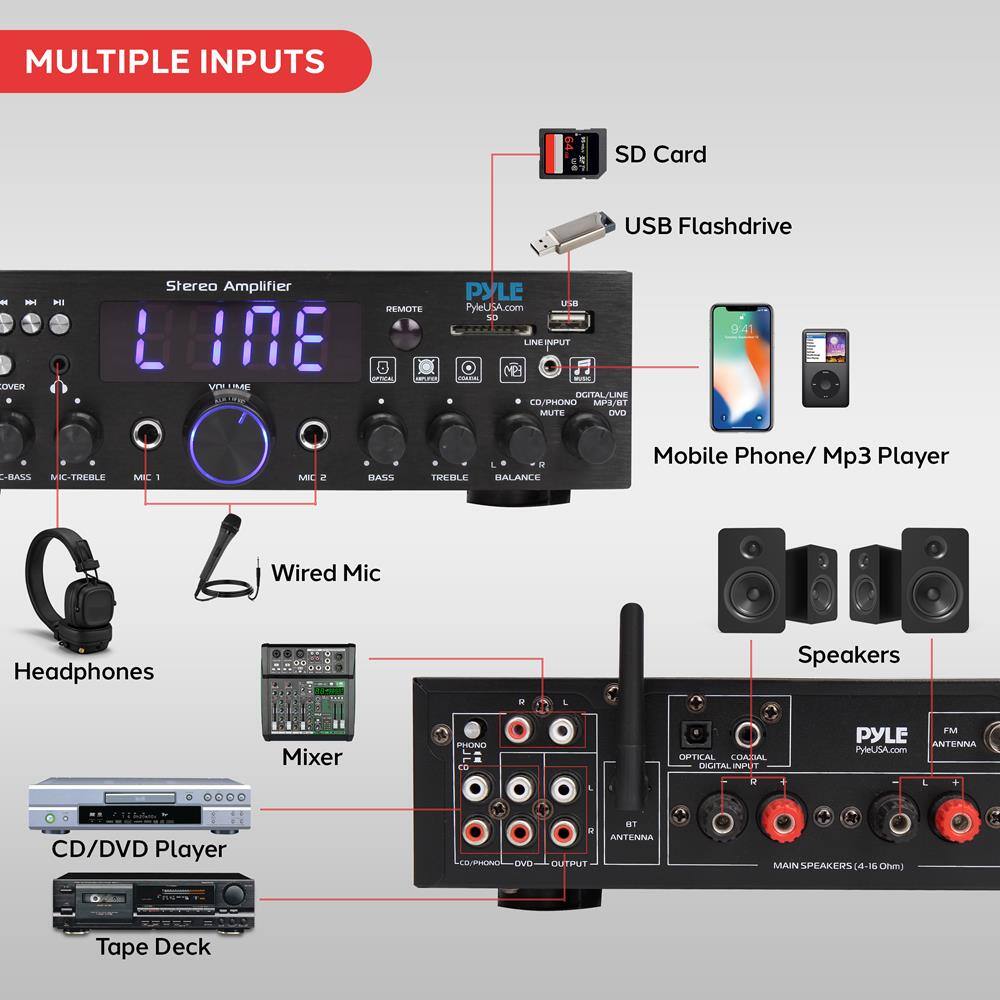

Features:
- USB Flash Drive & SD Memory Card Readers
- FM Radio with LED Digital Display
- Aux (3.5mm) Input
- Desktop Audio Mini Power Amplifier
- Compact Home Theater-Stereo Receiver Style
- Built-in Bluetooth for Wireless Music Streaming
- Phono Inputs
- Optical/Coaxial Digital Signal Inputs
- Multi-Channel Audio Input Selection
- MP3/WAV Audio Files Support
- Connect & Stream Audio from External Devices
- (2) 1/4 Microphone Input Jacks
- (2) Pairs RCA (L/R) Audio Input Connectors
- (2) Pairs Banana Plug Speaker Output Connectors
- (1) Pair RCA (L/R) Audio Output Connectors
- (1) 1/4 Headphone Output Jacks
- Mic Talk-over Ability to Speak Over Audio Karaoke Style
- Front Panel Audio Control Center
- Radio Station Auto-Search Scan
- Repeat Audio File Functions
- Treble Bass Master & Microphone Volume Adjustable
Bluetooth Connectivity:
- Receives Wireless Signal for Audio Streaming
- Simple & Hassle-Free Pairing Setup
- Integrated Antenna for Extended Wireless Range
- Works with All of Today’s Latest Devices
- (Smartphones Tablets Laptops Computers etc.)
- Bluetooth Version: 4.2
- Bluetooth Network Name: PDA4BU
- Wireless Range: 40+ Ft.

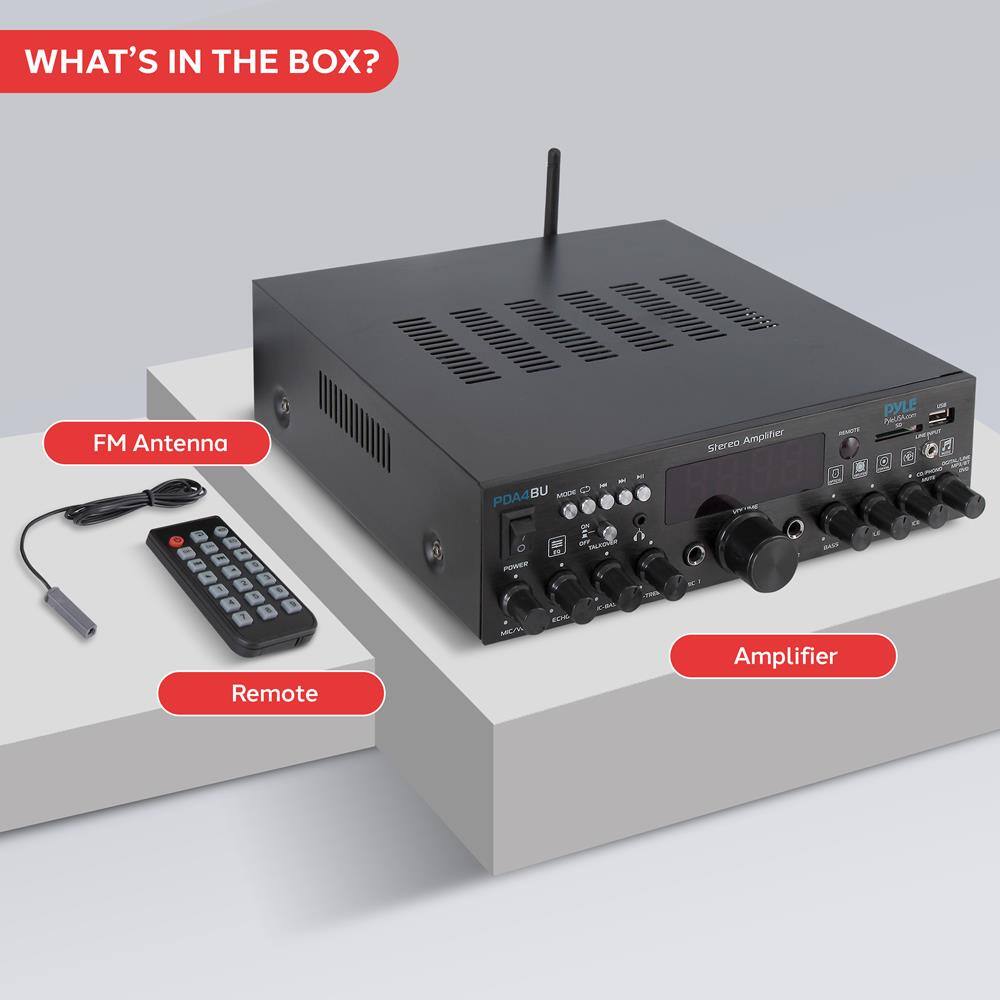

What’s In The Box:
- Desktop Stereo Amplifier
- Remote Control
- FM Antenna
Technical Specs:
- LED Screen Size: 3.3’’ x 1’’
- Remote Control Battery: 3V Lithium Cell (CR2025) Included
- MAX Power Output: 25 Watt (@ 4 Ohm)
- RMS Power Output: 20 Watt x 2 (@ 8 Ohm)
- Tone Control: Bass f=100Hz +/-12dB Treble f=10 KHz +/-12dB
- Tone Control for Mic: Bass f=100Hz +/-8dB Treble f=10 KHz +/-8dB
- Frequency Response: 20Hz-20 kHz
- Frequency Adjustment: +/-2dB
- Signal to Noise Ratio: >71dB
- T.H.D.: <1%
- Radio Station Presets: Up to 60 Stations
- Separation Degree: >48dB
- Power Supply: 115V/230V Switchable
- Dimensions (L x W x H): 10.2 x 9.8 x 2.8 -inches
Whats In The Box
- USB Flash Drive & SD Memory Card Readers: FM Radio with LED Digital Display
- Aux (3.5mm) Input: Desktop Audio Mini Power Amplifier
- Compact Home Theater-Stereo Receiver Style: Built-in Bluetooth for Wireless Music Streaming
- Phono Inputs: Optical/Coaxial Digital Signal Inputs
- Multi-Channel Audio Input Selection: MP3/WAV Audio Files Support
- USB Flash Drive & SD Memory Card Readers: FM Radio with LED Digital Display
- Aux (3.5mm) Input: Desktop Audio Mini Power Amplifier
- Compact Home Theater-Stereo Receiver Style: Built-in Bluetooth for Wireless Music Streaming
- Phono Inputs: Optical/Coaxial Digital Signal Inputs
- Multi-Channel Audio Input Selection: MP3/WAV Audio Files Support
Whats Included
- 1
- 1
A: The PDA4BU does not have a dedicated subwoofer output, so it can’t power a sub directly. You can connect a subwoofer only if it’s a powered (active) sub that has its own built-in amp. The PDA4BU gives about 200 watts per channel at 4 ohms, which is plenty for regular speakers.
