RackSolutions - 2U Raven 130-A Dry Slide Rail for HPE - Black

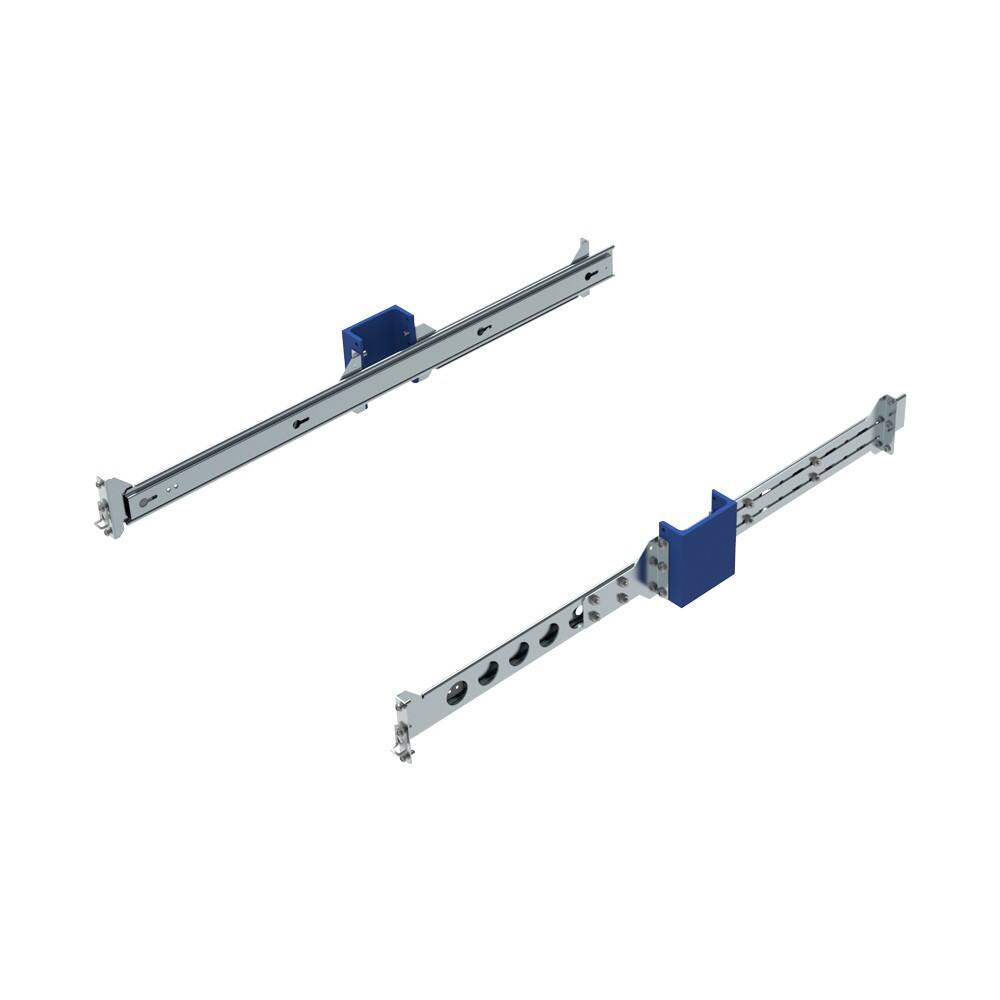

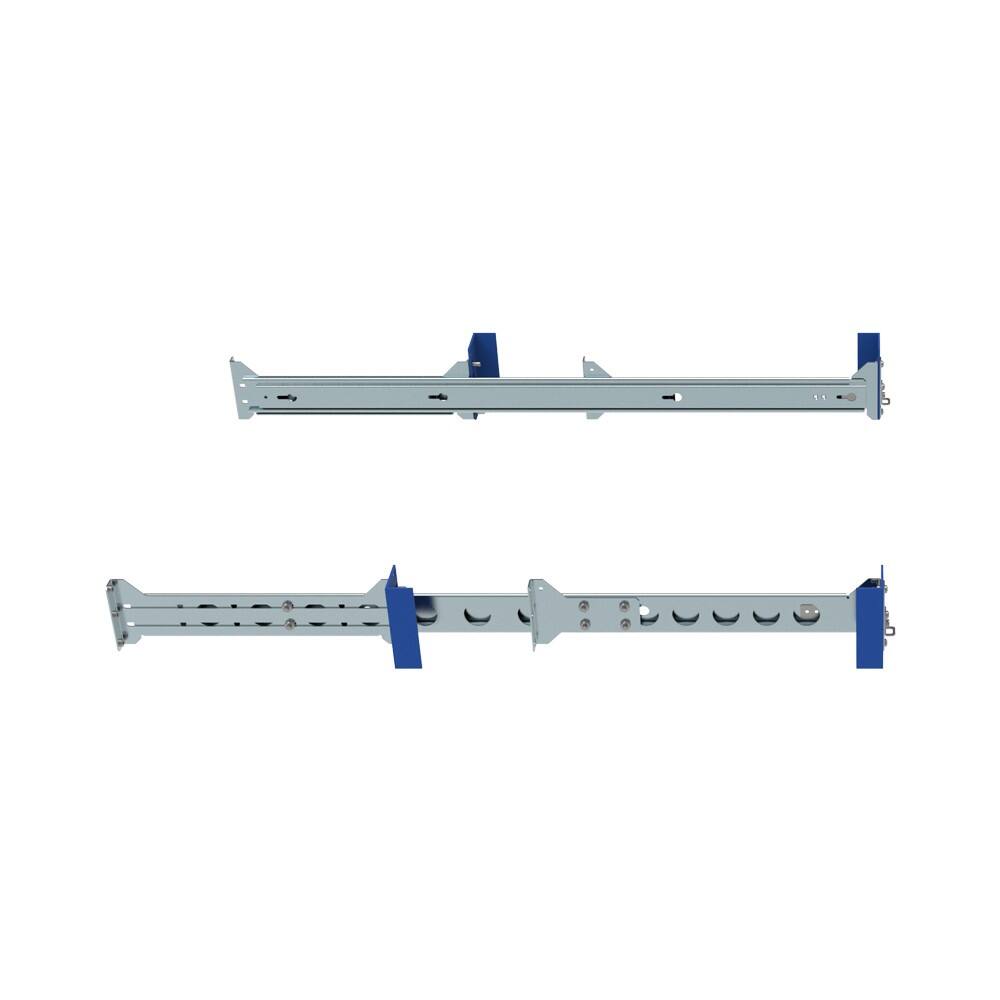

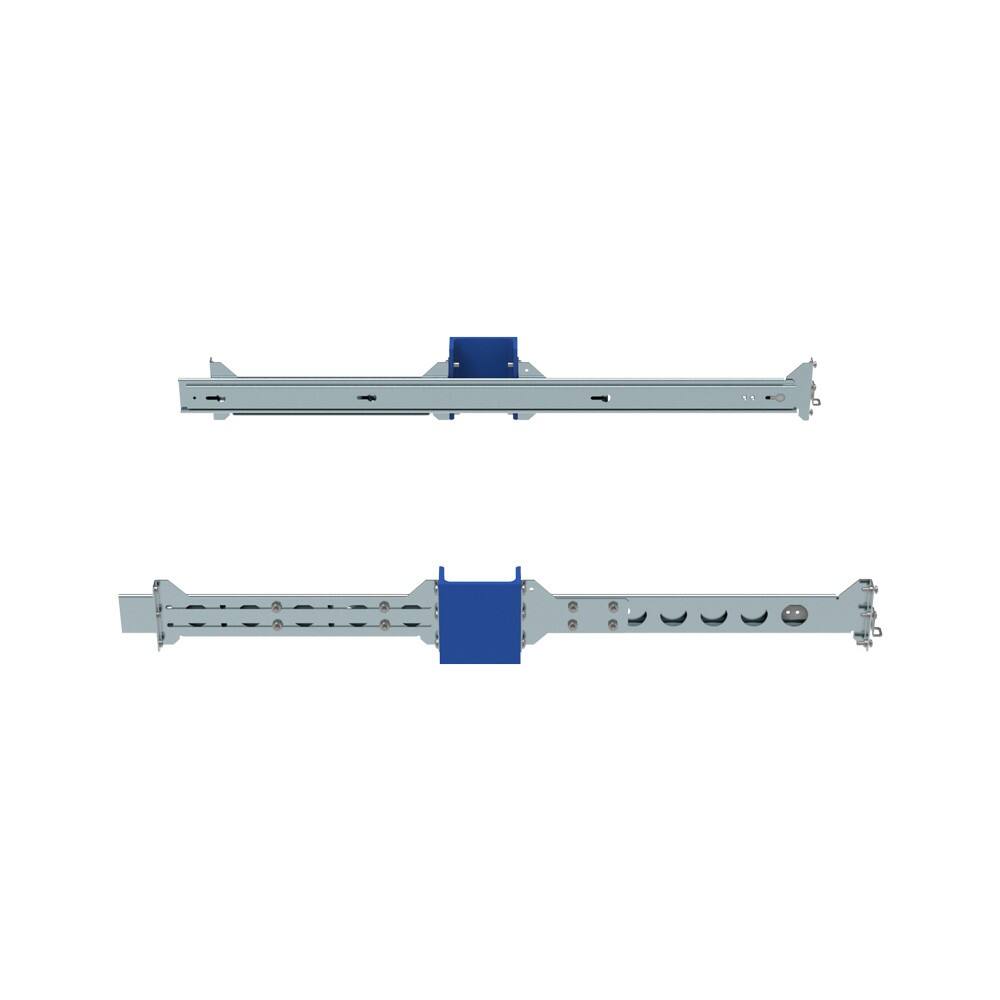

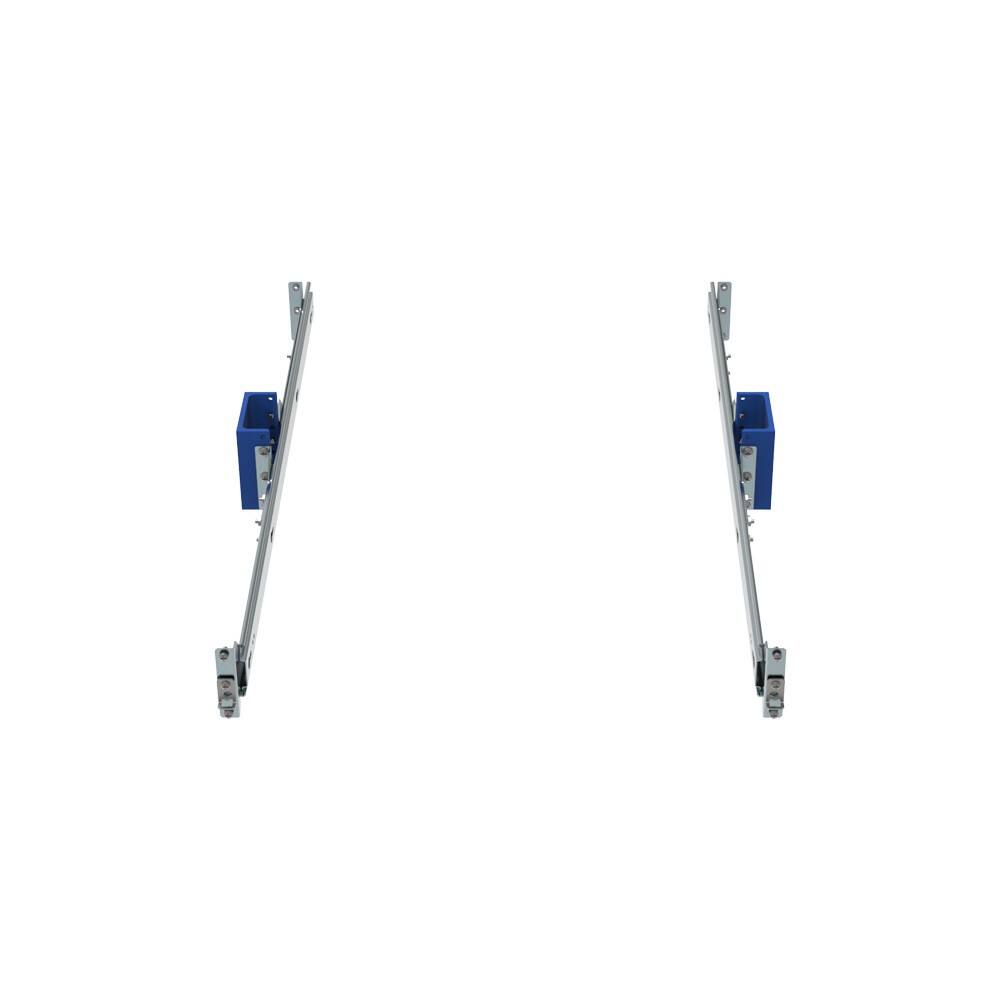

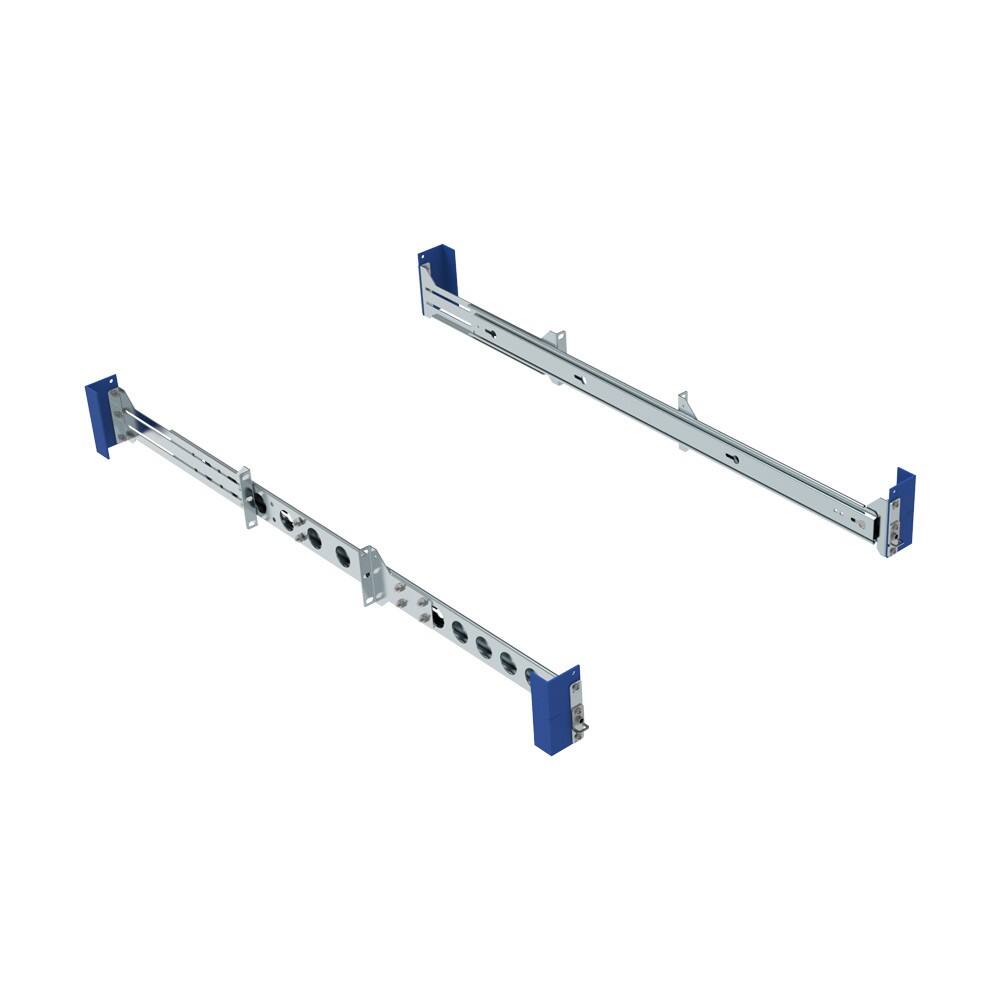

The RackSolutions 2U Raven 105-A Rail mounts HP DL380 Gen 8, Gen 9 and Gen 10 servers, along with the HP SimpliVity 380, in either a 4Post server rack or a 2Post relay rack. Mounting depth adjusts across an unusually wide range, from 3.0in to 32.0in, which is what allows one part to cover both rack types. It replaces the HP OEM rail kits for the DL380 and DL560 across those generations. These are dry slide rails: the server slides in and out, but there is no ball bearing mechanism and no stop catch, so the chassis can be drawn fully clear rather than stopping partway. In 2Post racks the rail center-mounts on uprights from 3in to 6in.

The RackSolutions 2U Raven 200-A Rail is an alternative to the HPE OEM rail kits for 2U ProLiant rack servers, covering Gen11 and Gen12 models including the DL385 Gen11 in Two-Row SFF configuration and the DL340 Gen12 GPU-Optimized build. It supports both 2Post and 4Post EIA-310 standard racks, with mounting depth from 12in to 39.50in for 4Post and 3in to 6in for 2Post center mounting, which is an unusually wide span for a single rail. The dry slide mechanism gives smooth operation and outlasts ball bearing alternatives in racks that are serviced often. The rail supports L shaped, C shaped and other upright profiles and works with square, round and threaded rack holes.

The RackSolutions 1U Raven 190-A Rail is a direct alternative to the HPE OEM 1U rail kits for 11th generation ProLiant servers, supporting the ProLiant DL20 Gen11 in both SFF and LFF drive configurations. It installs in standard 2Post or 4Post 19 inch EIA-310 racks without the original kit. The dry slide mechanism extends and retracts smoothly for routine maintenance and has fewer parts to wear than a ball bearing rail. A slam latch retaining plate is included, which secures the server at the front of the chassis so it sits in a fixed position. Mounting depth adjusts from 14.50in to 29.50in on 4Post racks and center mounts between 3in and 6in on 2Post racks. It works with square, round and threaded uprights, including L shaped and C shaped profiles.
