Rocketfish™ - Tilting TV Wall Mount for Most 19" to 39" TVs - Black
- General
- Brand: Rocketfish™
- Model Number: RF-HTVMTAB
- Product Name: Tilting TV Wall Mount for Most 19" to 39" TVs
- Color: Black
- Assembly Required: No
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting
- Tilt: +12/-20 (Angles upward or downward for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Cord Storage: false
- Compatibility
- Maximum Weight Capacity: 50 pounds (The maximum load that can be supported by the product.)
- Compatibility: Universal
- Mount Location: Wall
- Maximum Television Size: 39 inches
- Minimum Television Size: 19 inches
- VESA Wall Mount Standard: 75mm x 75mm, 200mm x 200mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 8.86 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.54 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Other
- UPC: 600603203022
Only at Best Buy

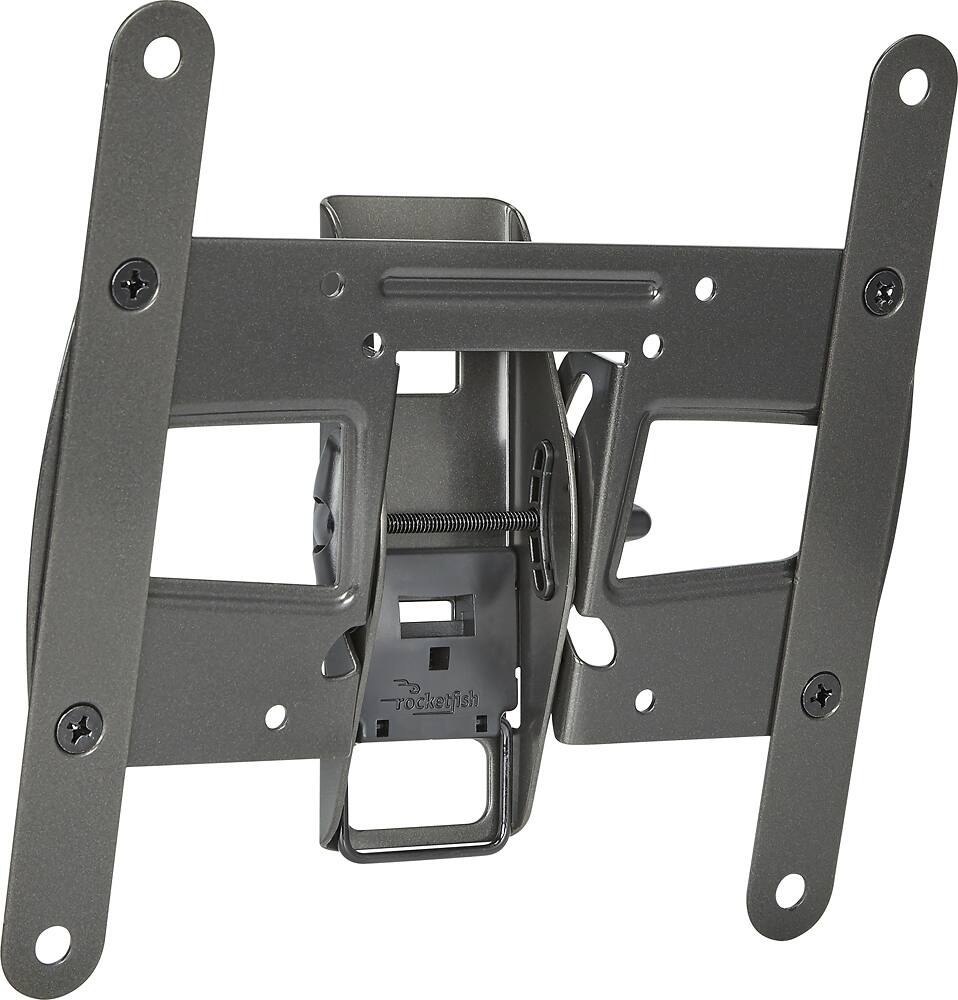

Hang your television on the wall with this RocketFish tilt mount. It accommodates televisions that are 19 to 39 inches, and the Virtual Axis Tilt makes adjusting the viewing angle simple. This RocketFish tilt mount has a tension knob to keep the television secure even while you adjust the angle.
- Compatible with most 19" - 39" TVs: Up to 50 lbs. For sturdy support.
- Tilt tension knob adjusts: Holds TV in position.
- Virtual Axis™ Tilt technology: Allows smooth, fingertip adjustments +12 / -20°.
- VESA compliant: Including 75mm x 75mm and 200mm x 200mm for a variety of mounting options.
Whats Included
- TV brackets
- Wall plate
- Mounting hardware
- Mounting template
- Assembly Guide
Product Manuals
Q: What are the size bolts this mount comes with?
A: The Hardware kit includes screws: M4 x 12 mm, M6 x 12 mm, M8 x 20 mm, M4 x 35 mm, M6 x 35 mm and M8 x 35 mm . Also 5/16" × 2 3/4" lag bolts.
Q: Does this support a 32" TV with 100 x 200 VESA mount?
A: Yes ... It Is A Configuration Mount ... Pick Your Pattern ... Use Pattern " A " For 75 x 75 , 100 x 100 or 200 x 100 ...Use Pattern " B " For 200 x 200 ...
A: You Can Buy Them From The TV Manufacturer ... Should Be In Your Provided Manual ...
Q: Will this mount to concrete block walls? 2nd question - can I attach a soundbar mount to it?
A: Yes ... The Wall Anchors For Concrete Don't Come With The Kit ... Mine Used A 7/32" ( 10 mm ) Masonry Drill Bit , Have To Buy That Too ... Kit CMK1 With 2 Concrete Anchors ( Fischer UX10 x 60R ) Can Be Bought From Customer Service 1-800-359-5520 ... It Also Comes With 2 More 5/16" x 2 3/4 " Lag Bolts ...
Q: Does this mount fit a 31" Samsung flatscreen Model #LN32B640R3FXZA?
A: Fits 19 " To 39 " TV'S ... I Used It On My 28" Samsung TV & My 32 " Visio TV...

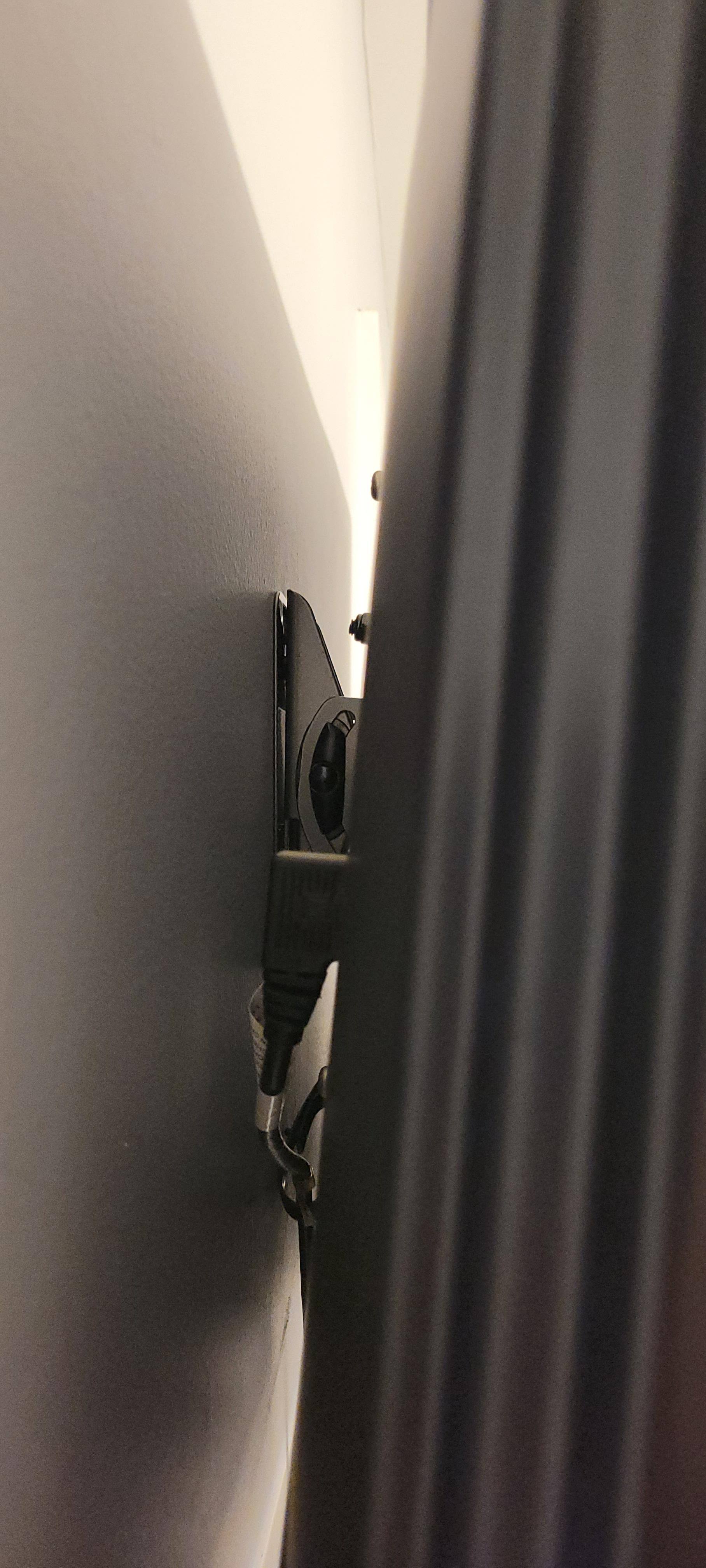

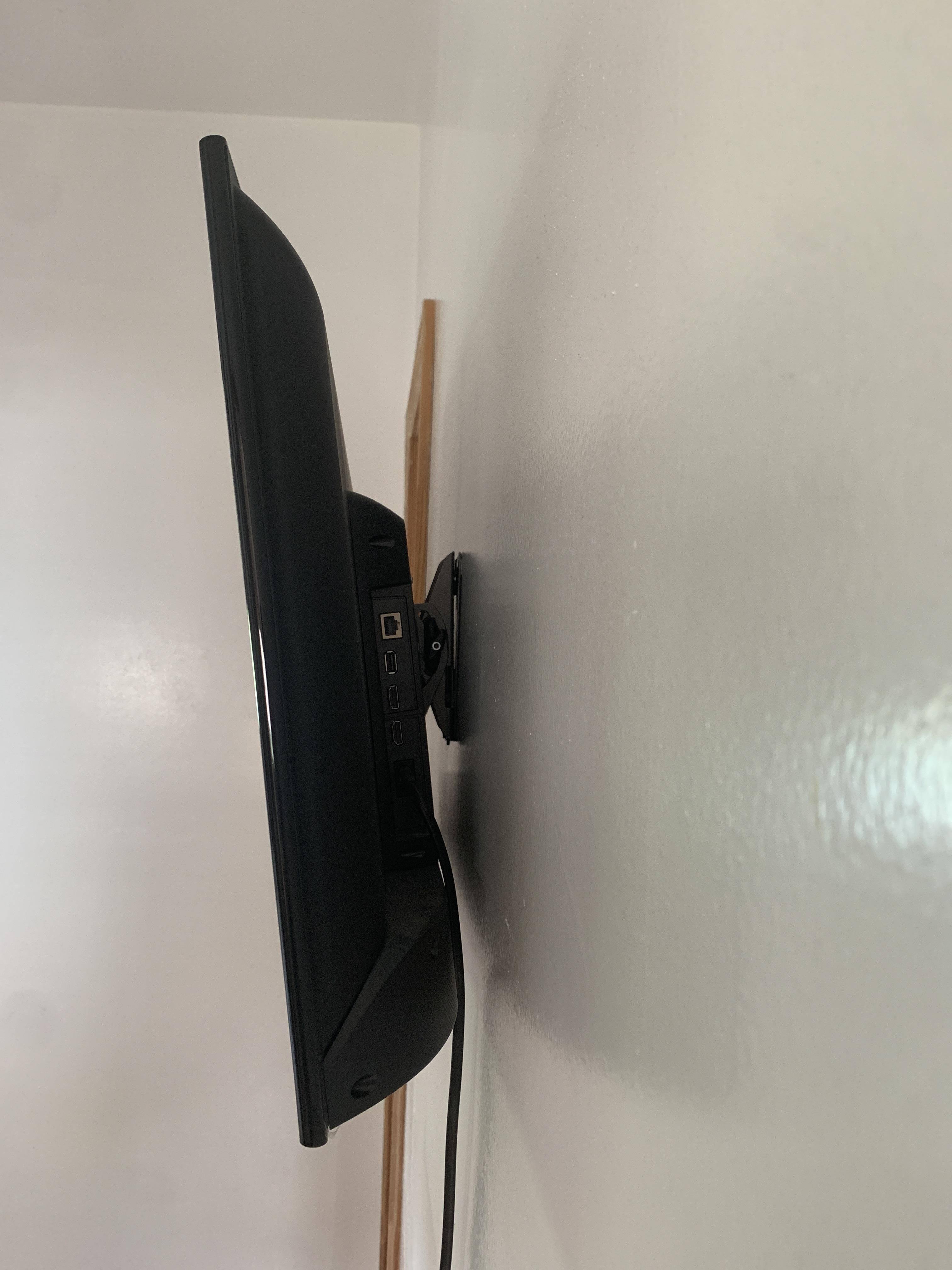

Q: How far does this extend from the wall when it's perfectly vertical?
A: Hi! This mount extends 1.9" when flushed with the wall. Regards, Daniel T. - Insignia Support
Q: Does anyone know the actual weight of the mount itself?
A: undefined
A: Once mounted the mount can not be adjusted up or down to accomendate a sound bar. The mount mesurement vertical will need to include the height of the sound bar. This mount will only tilt up/down not rise and fall vertically.
