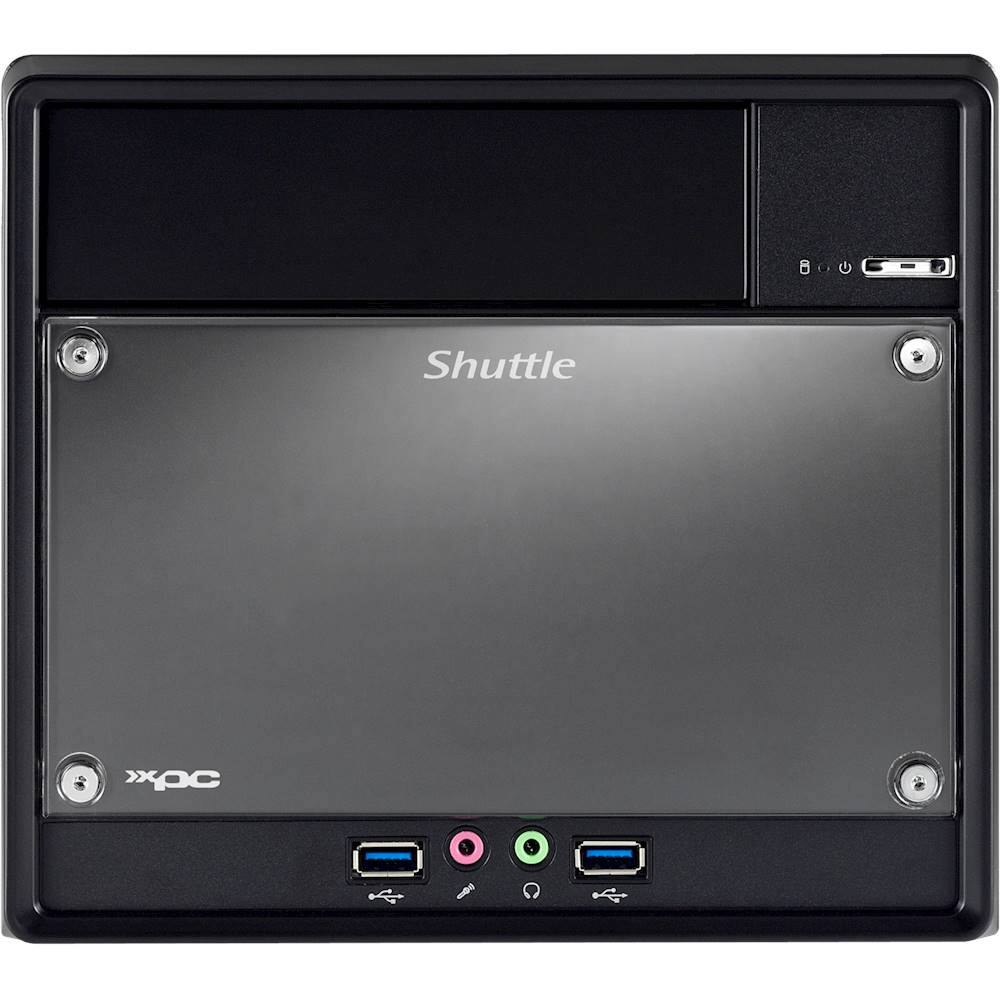

Shuttle - XPC Cube SH310R4 Barebone Desktop - Black
Model: SH310R4
SKU: 6359745
This item is no longer available in new condition. See similar items below
- General
- Brand: Shuttle
- Model Number: SH310R4
- Product Name: XPC Cube SH310R4 Barebone Desktop
- Color: Black
- Processor
- Processor Included: false (Indicates whether the product comes with a processor.)
- Processor Compatibility: Intel Celeron, Intel Pentium, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
- Memory
- System Memory (RAM): 0 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR4 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 2666 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 2
- System Memory RAM Expandable To: 32 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Processing Unit (GPU) Included: false (Indicates whether the product comes with a graphics processing unit (GPU)/graphics card.)
- Compatibility
- Motherboard Form Factor: Proprietary (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ethernet Card: 10/100/1000 (Also known as an Ethernet adapter, this card plugs into a computer's motherboard and enables it to access an Ethernet network. Ethernet data transmission speeds are measured in Mbps (megabits per second) and Gbps (gigabits per second). For example, a 10/100 Ethernet port transmits 10 and 100 Mbps, while a 10/100/1000 Ethernet port transmits 10 and 100 Mbps and has a maximum speed of 1000 Mbps (1 Gbps).)
- Number Of Ethernet Ports: 1
- Number of VGA Ports: 1 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number of HDMI Outputs (Total): 1
- Number of USB Ports (Total): 8
- USB Ports: 4 x USB-A 2.0, 2 x USB-A 3.1, 2 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number Of DisplayPort Outputs: 1
- Number of DisplayPort Ver. 1.2 Outputs: 1
- Expansion
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of Internal 3.5" Bays: 2
- Features
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Enclosure Type: Other
- Dimensions
- Product Height: 7.79 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.5 pounds (The out of box weight of the item.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 887993001593
Shuttle XPC Cube SH310R4 Barebone Desktop: Equip your custom workstation with this Shuttle XPC Cube mini barebone PC. The two PCIe expansion slots accommodate graphics and sound cards for multimedia hubs, and two M.2 drive bays with SATA and PCIe compatibility provide flexible storage options. This Shuttle XPC Cube mini barebone PC has HDMI, DisplayPort and VGA outputs to support a dual-display system.
- Intel 8th and 9th Gen processor support: The Intel H310 chipset supports Intel® Coffee Lake Core® i3/i5/i7/i9 series, Pentium, and Celeron® LGA 1151 v2 processors with up to 95W TDP.
- Up to 32GB system memory: Each of two memory slots supports up to 16GB DDR4 2400/2666MHz RAM to smoothly run your graphics-heavy PC games and video-editing applications, as well as numerous programs and browser tabs at the same time.
- M.2 expansion slots: One M.2 2280 Type-M and one M.2 2230 Type-E slots are built in for an M.2 SSD, Wi-Fi card, or other compatible devices.
- Two 3.5" HDD bays to create an immense file storage space: This desktop offers flexible internal storage set up along with two M.2 slots.
- Dual-slot graphic card support: Lets you enhance your gaming performance.
- Two USB 3.1 Gen 1 and two USB 3.0 ports maximize the latest high-speed devices: It also includes four USB 2.0 ports to connect more accessories and peripherals. The USB 3.1 and USB 3.0 ports are backward compatible with USB 2.0 devices (at 2.0 speeds).
- Multidisplay capability: Connect the usual single monitor, or add a second monitor to double your viewing space for work and games (monitors sold separately).
- Additional ports: HDMI output for a high-definition monitor or HDTV. DisplayPort and VGA outputs. Microphone input, headphone output.
Whats Included
- Shuttle XPC Cube SH310R4 Barebone Desktop
- 2 x SATA cables
- Power cord
- Thermal paste
- Screws pack
- Owner's manual
