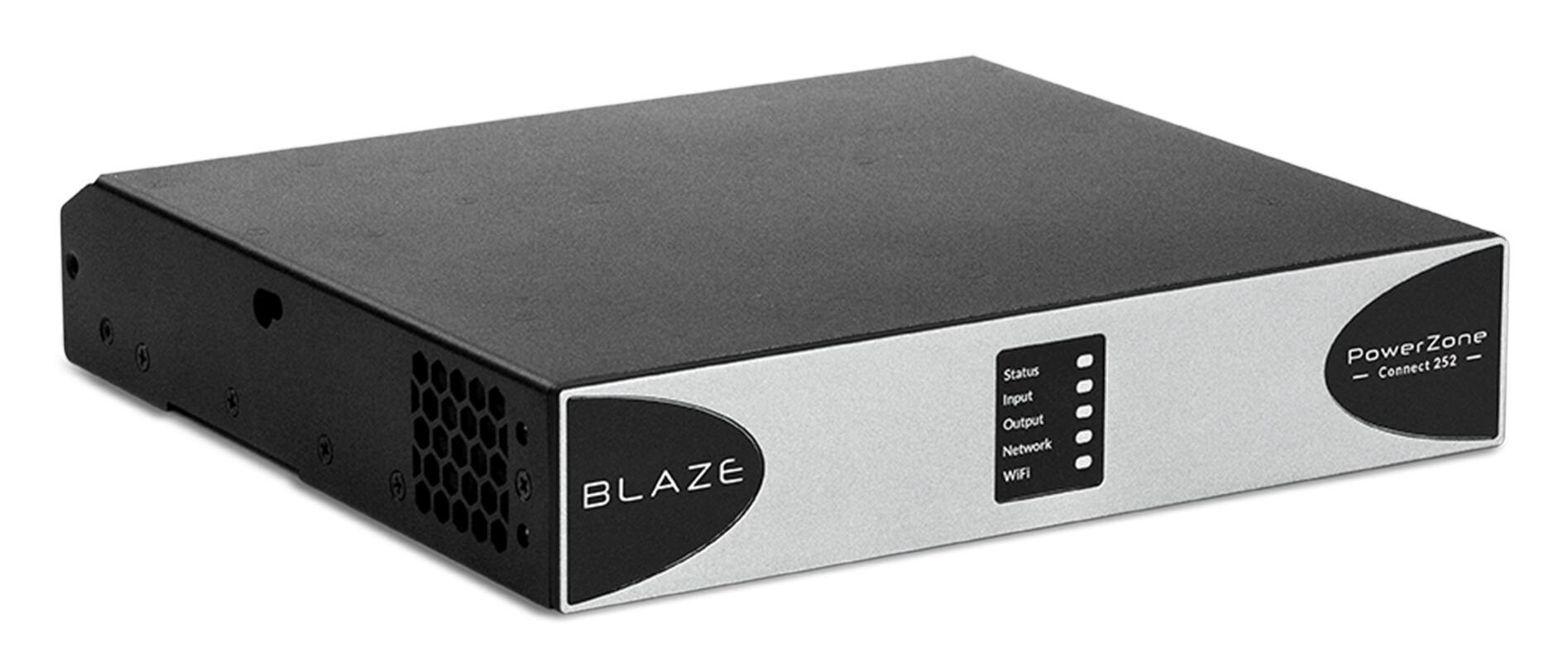

Sonance - Blaze PowerZone Connect 252 – 250 W DSP-enabled Class-D amplifier with 2 channels (Each) - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms125 W x 2 @ 8 ohmNumber of Channels2Audio Only InputsUnbalanced RCANetwork Connector(s)1 x LAN
- Key Specs
- Continuous Watts x Channel @ Ohms: 125 W x 2 @ 8 ohm
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: Unbalanced RCA
- Network Connector(s): 1 x LAN
- General
- Brand: Sonance
- Model Number: UBX-888-010
- Product Name: Blaze PowerZone Connect 252 – 250 W DSP-enabled Class-D amplifier with 2 channels (Each)
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 125 W x 2 @ 8 ohm
- Maximum Watts x Channel @ Ohms: 250 W @ 4 ohms bridged (1 channel) (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 250 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
- Audio
- Impedance: 8 ohm (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Audio Only Inputs: Unbalanced RCA
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Antenna Input: No antenna inputs
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Fan Cooled: true
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 810103860360
The PowerZone Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 250 W. The 1U family powers both conventional low-impedance (4 ohms to 16 ohms) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution. Our intuitive PowerZone Control web app is built into all our PowerZone Connect amplifiers for easy system setup. PowerZone Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
- Ultra-Compact ½-Rack Form Factor: Efficient space-saving design ideal for small to mid-sized installations.
- Full-Matrix DSP Configuration via PowerZone Control: Configure and manage the full DSP matrix directly through the built-in PowerZone Control web application.
- Hybrid Power Distribution (4 ohm, 8 ohm, 16 ohm, 70V/100 V): Flexible power distribution supporting both low-impedance (4 ohm to 16 ohm) and high-impedance (70 V/100 V) speaker configurations.
- Pascal UMAC Class-D Technology: High-efficiency Class-D amplification powered by Pascal UMAC for superior audio performance.
- S/PDIF Input/Output: Supports digital audio connectivity through S/PDIF inputs and outputs.
- Configurable GPIO (general purpose input/output): Customizable GPIO ports for enhanced control and integration with external systems.
- Energy Efficiency & Compliance: Compliant with ErP and Energy Star standards for environmentally friendly operation.
- UL Listed Audio Equipment: Certified to meet UL safety standards for professional audio equipment.
- UREC™ Universal Power Supply with PFC: Reliable power supply featuring Power Factor Correction (PFC) for global compatibility.
- 5-Year Warranty: Comes with a comprehensive 5-year warranty for long-term peace of mind.
Whats Included
- (1) Connect 252 Amplifier Unit
- (1) Mains Power Cable
- (4) Euroblock Input Connectors
- (2) Euroblock Output Connectors
- (1) GPIO Socket Connector
- (4) Adhesive Rubber Feet
- 1) Document Pack (Quick Start Guide & Manuals)
Q: Is the amplifier energy efficient and compliant with standards?
A: Yes, the amplifier is compliant with ErP and Energy Star standards.
Q: Does this amplifier have a warranty?
A: Yes, this amplifier comes with a comprehensive 5-year warranty.
Q: Is this amplifier app compatible?
A: Yes, this amplifier is app compatible.
Q: Does this amplifier support digital audio connectivity?
A: Yes, this amplifier supports digital audio connectivity through S/PDIF inputs and outputs.
Q: What kind of power supply does this amplifier use?
A: This amplifier uses a UREC Universal Power Supply with PFC.
Q: Can this amplifier be used with different speaker configurations?
A: Yes, this amplifier supports both low and high impedance speaker configurations.
Q: Are line-level inputs supported by this amplifier?
A: Yes, line-level inputs are supported.
