Sonance - R12SUB - Reference 12" Passive In Wall Subwoofer (Each) - Paintable White
Sonance - R12SUB - Reference 12" Passive In Wall Subwoofer (Each) - Paintable White
More Buying Options
Related Item
Specifications
- RMS Power500 wattsWoofer Size12 inches
- Key Specs
- RMS Power: 500 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 12 inches
- General
- Brand: Sonance
- Model Number: R12SUB
- Product Name: R12SUB - Reference 12" Passive In Wall Subwoofer (Each)
- Color: Paintable White
- Audio
- Minimum Frequency Response: 25 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 90 decibels
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Speaker Type: In-Wall
- Subwoofer Type: Passive (Passive subwoofers require an external amplifier, such as the one driving the main speakers in the system, for power. Active subwoofers, on the other hand, have a designated amplifier (one that isn't shared with other speakers) for power as well as line-level crossover.)
- Enclosed: false
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Connectivity
- Network Connector(s): No network connectors, No network connectors, No network connectors
- Subwoofer Connection Type: Banana Jack/Screw Terminals
- Wireless: false
- Dimensions
- Product Height: 12.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.38 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.156 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18 pounds (The out of box weight of the item.)
- Material
- Woofer Composition: Laminated carbon fiber
- Included
- Remote Control Included: false
- Cable(s) Included: None
- Warranty
- Warranty - Parts: Limited lifetime
- Warranty - Labor: Limited lifetime
- Other
- UPC: 041093933554

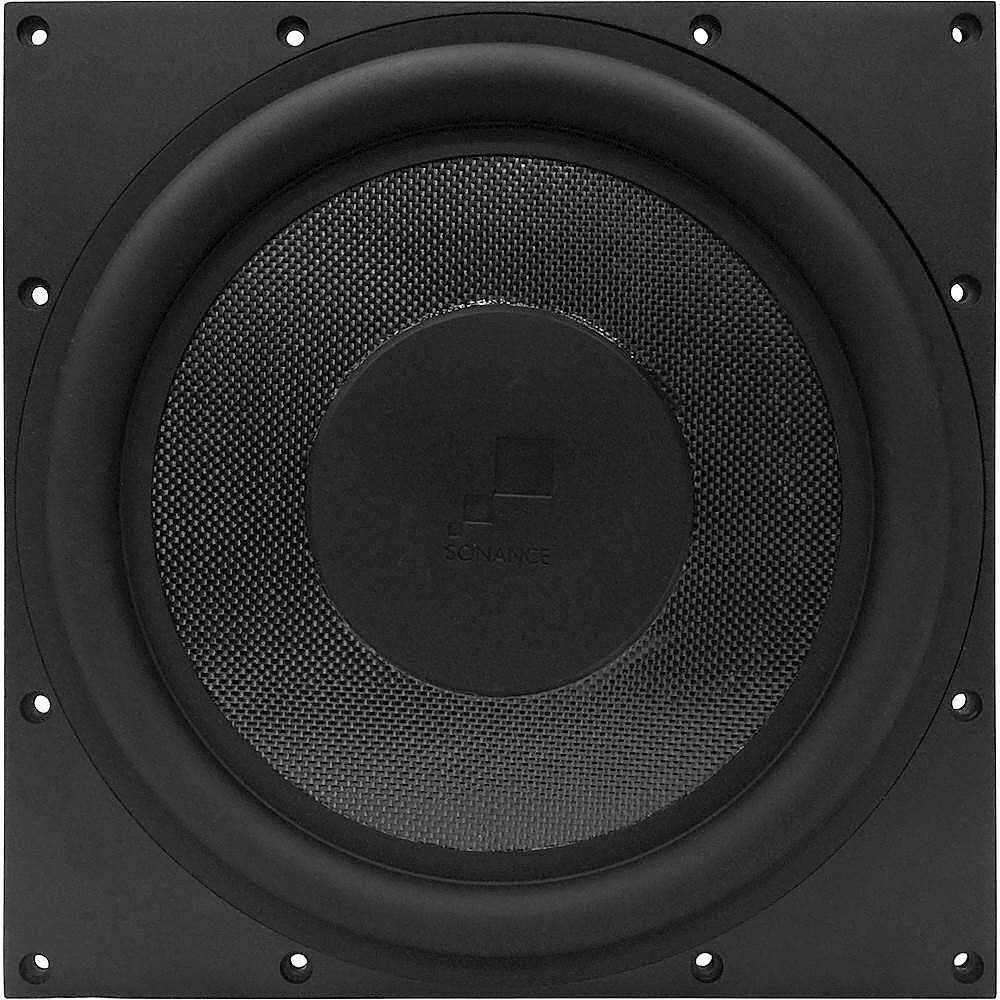

Highlight the bass in music and movies with this Sonance Reference in-wall subwoofer. The innovative design brings big sound to your home without the need for a large cabinet, and the laminated carbon fiber cone with rubber surround enhances low frequencies for premium performance. This Sonance Reference in-wall speaker is meant for installation in conjunction with new construction or renovation projects for a seamless appearance.
- 12" passive subwoofer: Delivers authoritative bass for high-impact home theater audio.
- 25-250Hz frequency response: Delivers booming lows for an immersive soundscape.
- 90dB sensitivity: For powerful sound.
- 8 ohms nominal impedance: Provides efficient conduction of power.
Whats Included
- Sonance Reference 12" Passive In-Wall Subwoofer
- (1) Grille mounting frame
- (1) Grille
Product Manuals
Q: Does the subwoofer have a built-in amplifier?
A: This subwoofer does not have a built-in amplifier.
Q: What type of connection does the subwoofer use?
A: This in-wall subwoofer uses a banana jack/screw terminal connection type.
Q: What is the minimum frequency response of the subwoofer?
A: The minimum frequency response of the subwoofer is 25 hertz.
Q: What is the cut out dimensions for 12 inch Contance in wall subwoofer?
A: Hi, Thanks for your question. For the Sonance R12SUB, the cutout (opening) is 12.97" x 12.97", per the CAD drawing. A couple of important notes that are easy to miss: This subwoofer requires the matching in-wall enclosure (R12SUB ENC), which is sold separately. For your convenience, I’ve included links to the CAD files and Quick Start Guides for both the subwoofer and enclosure below. Sonance R12SUB Enclosure Best Buy SKU: 5704008 CAD File: https://images.salsify.com/image/upload/s--MwP-yfQA--/efw3jm168qa1bnnmba90.pdf Quick Start Guide: https://files.bbystatic.com/DcB4J8rgWv2zDFtPzv1uKQ%3D%3D/505464f5-7024-4ac7-b0b6-ac161a0a4b6f.pdf Sonance R12SUB Best Buy SKU: 6253942 CAD File: https://images.salsify.com/image/upload/s--D_vWqpkX--/tg34e3gumgef4orzfhab.pdf Quick Start Guide: https://files.bbystatic.com/2p4eFtI7SSSytHpfIvZBKA%3D%3D/d93a8533-cb1c-47f8-8202-366d6ea99b1e.pdf If you’re looking for an in-wall subwoofer that does not require a separate enclosure, take a look at the Sonance VPSUB (Best Buy SKU 6253955). This model has an integrated enclosure, making installation simpler. I hope you found this information helpful. If you have any additional questions, feel free to reach out to our California-based support team at 949-492-7777. We’re available Monday through Friday, 6 a.m. to 5 p.m. PST, and happy to help! – Sonance Tech Support Team
A: Hi, Thanks for your question. This subwoofer is part of a system that requires the use of an in-wall enclosure. You can view the Reference 10" Sub Enclosure here: https://www.bestbuy.com/site/sonance-reference-10-in-wall-subwoofer-enclosure-each-black/5704004.p?skuId=5704004 I would also recommend using our amp to properly power the subwoofer. You can view the Sonamp DSP 2-150 MKII amplifier here: https://www.sonance.com/electronics/amplifiers/dsp If you have additional questions, or if you would like some assistance selecting the right Sonance product, please call our California-based support team at 949-492-7777 and ask for Tech Support. We are available Monday - Friday, 8 AM to 5 PM PST. We will be happy to answer all your questions. - Sonance Customer Support Team
A: This product is a passive subwoofer (not powered) so it does not have a LFE input. You need a dedicated amplifier to power this sub and that amplifier would need to have the LFE input. Then you would connect your receiver to that amp.
