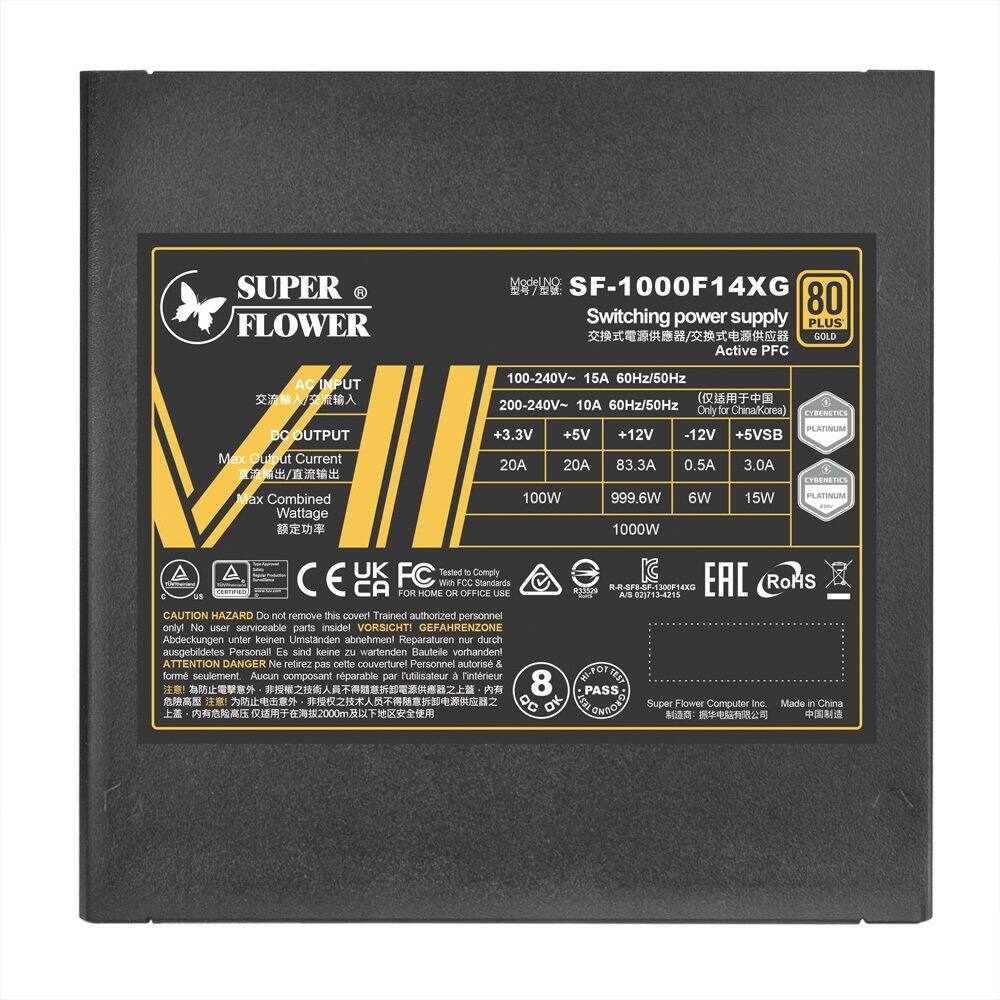

Super Flower - Leadex VII XG 1000W 80+ Gold, Full Modular, ATX 3.1 & PCIe 5.0 Power Supply - Black
Wattage
1000 wattsColor
Black- Intel - Core Ultra 5 245K 14-Cores 14-Threads - 4.6GHz (5.2 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$199.99The price was $326.99
Specifications
- Wattage1000 wattsModularFully modularEnergy Efficiency80 PLUS GoldATX Connector1PCIe Connector1EPS12V Connector1
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 149.86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Super Flower
- Model Number: Leadex VII XG ATX 3.1 1000W
- Product Name: Leadex VII XG 1000W 80+ Gold, Full Modular, ATX 3.1 & PCIe 5.0 Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86.36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 149.86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 72 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: None
- Other
- UPC: 4711213446689

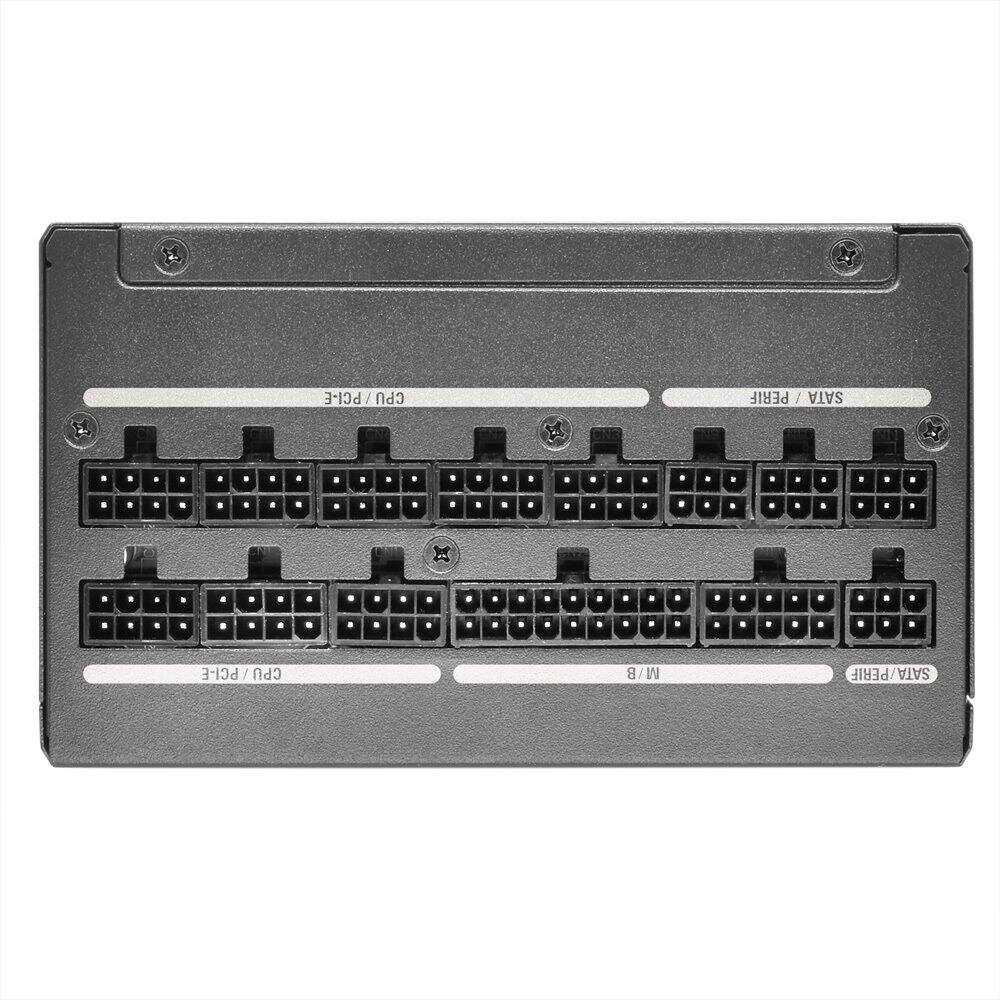

LEADEX VII XG is fully compatible with Intel ATX 3.0 & ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode. 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
- 80 PLUS Gold Certified: 80 PLUS Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
- 80 PLUS Gold Certified: 80 PLUS Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
