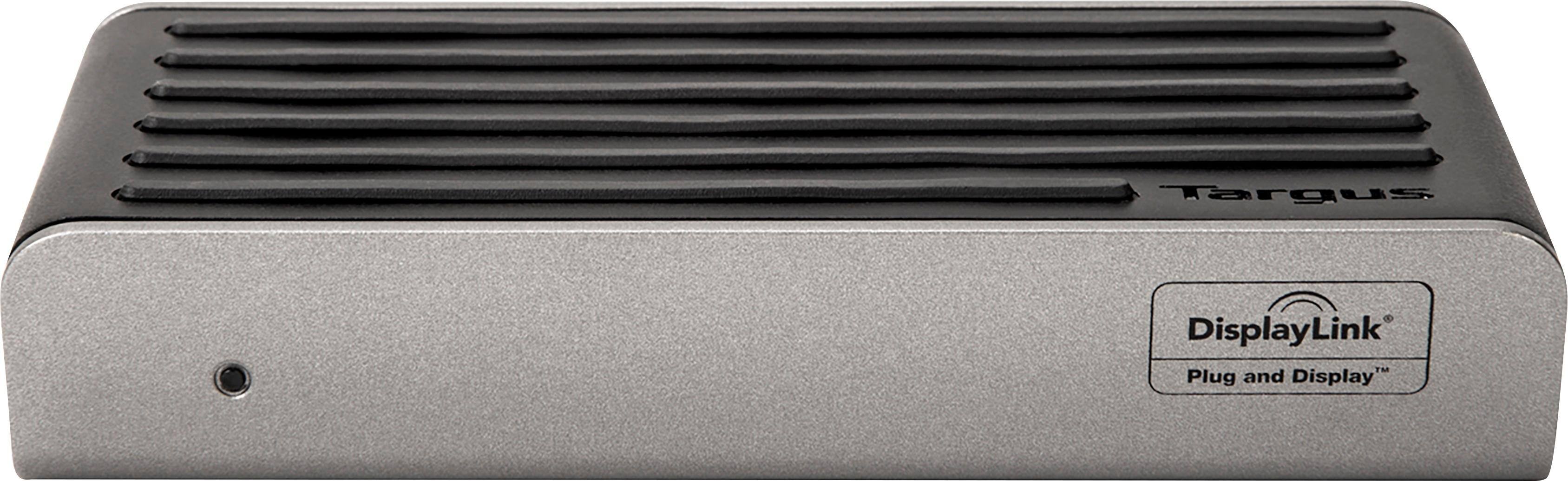

Targus - VersaLink Dual HD Video Docking Station - Black
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 2
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Targus
- Model Number: DSU300US
- Product Name: VersaLink Dual HD Video Docking Station
- Color: Black
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 85Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x DisplayPort, 1 x HDMI, 1 x VGA (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 1 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number of USB Ports (Total): 2
- USB Ports: 4 x USB-A 3.1 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Included: true
- Power Supply Input: USB 3.0
- Maximum Input Power: 135 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB 3.0 (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 65 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 10 megabits per second
- Brand Compatibility: Universal
- Model Compatibility: Universal
- Features
- Indicator Light(s): false
- Dimensions
- Product Height: 1.46 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 2.91 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 5.28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 6.4 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 092636325312
Streamline your home office work space with this Targus VersaLink docking station. It connects up to two monitors via HDMI or DisplayPort to improve productivity, and its four USB ports provide places to plug in keyboards and mice. This Targus VersaLink docking station is universally compatible with common operating systems for versatile use.
- Designed for most laptops with USB ports: Including Windows, Mac, Android, Chromebook, and Linux laptops.
- Connects up to two monitors for improved productivity: Connects dual HD monitors or a single 2K monitor. DisplayPort port supports a 2K monitor (up to 2560 x 1600 x 30 FPS). DVI-I, HDMI ports support dual monitors (up to 2048 x 1152 x 60 FPS).
- Two USB 3.0 ports (one powered) and two USB 2.0 ports: To connect all your home office peripherals.
- Gigabit Ethernet port: For secure wired access at ultrafast speeds.
- Audio in/out port: For mics, speakers, or earphones.
- Integrated security lock slot: Safeguards the equipment and keeps the dock secure.
- Small footprint: Takes up less space and keeps the desk clutter-free.
- Designed for most laptops with USB ports: Including Windows, Mac, Android, Chromebook, and Linux laptops.
- Connects up to two monitors for improved productivity: Connects dual HD monitors or a single 2K monitor. DisplayPort port supports a 2K monitor (up to 2560 x 1600 x 30 FPS). DVI-I, HDMI ports support dual monitors (up to 2048 x 1152 x 60 FPS).
- Two USB 3.0 ports (one powered) and two USB 2.0 ports: To connect all your home office peripherals.
- Gigabit Ethernet port: For secure wired access at ultrafast speeds.
- Audio in/out port: For mics, speakers, or earphones.
- Integrated security lock slot: Safeguards the equipment and keeps the dock secure.
- Small footprint: Takes up less space and keeps the desk clutter-free.
Whats Included
- Owner's manual
- Targus VersaLink Dual HD Video Docking Station
- Owner's manual
- Targus VersaLink Dual HD Video Docking Station
Product Manuals
Q: How does this unit charge the laptop?
A: It does not. laptop must be plugged in to its adapter.
A: Yes. I can connect two monitors at same time. It's plug and play - just plug two monitors to the docking station. There are three monitor ports - one HDMI, one DVI and one display port. Only maximum two monitors can be supported.
Q: Is this docking station compatible with DisplayLink Software?
A: Yep, it certainly is. I'm currently using it with two displays on an M1 MacBook Air. To be clear, DisplayLink handles both of the displays connected to this adapter, so neither of them count toward any capacity limit the host computer might otherwise have for external displays (i.e. the one-display limit on an M1 MacBook Air, the two-display limit on a Thunderbolt chip).
Q: Will this work on a HP Laptop
A: I have an HP laptop attached. It works fine.
A: No
Q: Does it have a power button to power on and off your laptop?
A: Unfortunately, no.
A: It does not say what models of mac this will work for but on the system requirements it says that it supports Mac OS X v10.9 or later. Also i don't know if your mac has just a usb c or if it is a traditional usb port but you might need a converter because it doesn't have a usb c port. Also it says for more info on compatible systems go to visit.targus.com
Q: does the displayport output support 4k video at 60Hz?
A: I highly doubt it because there have not really been any changes in the last 2 years. But i don't know of the capabilities of the USB 3.0 port but if 4k 60Hz is supported by USB 3.0 then it should work.
