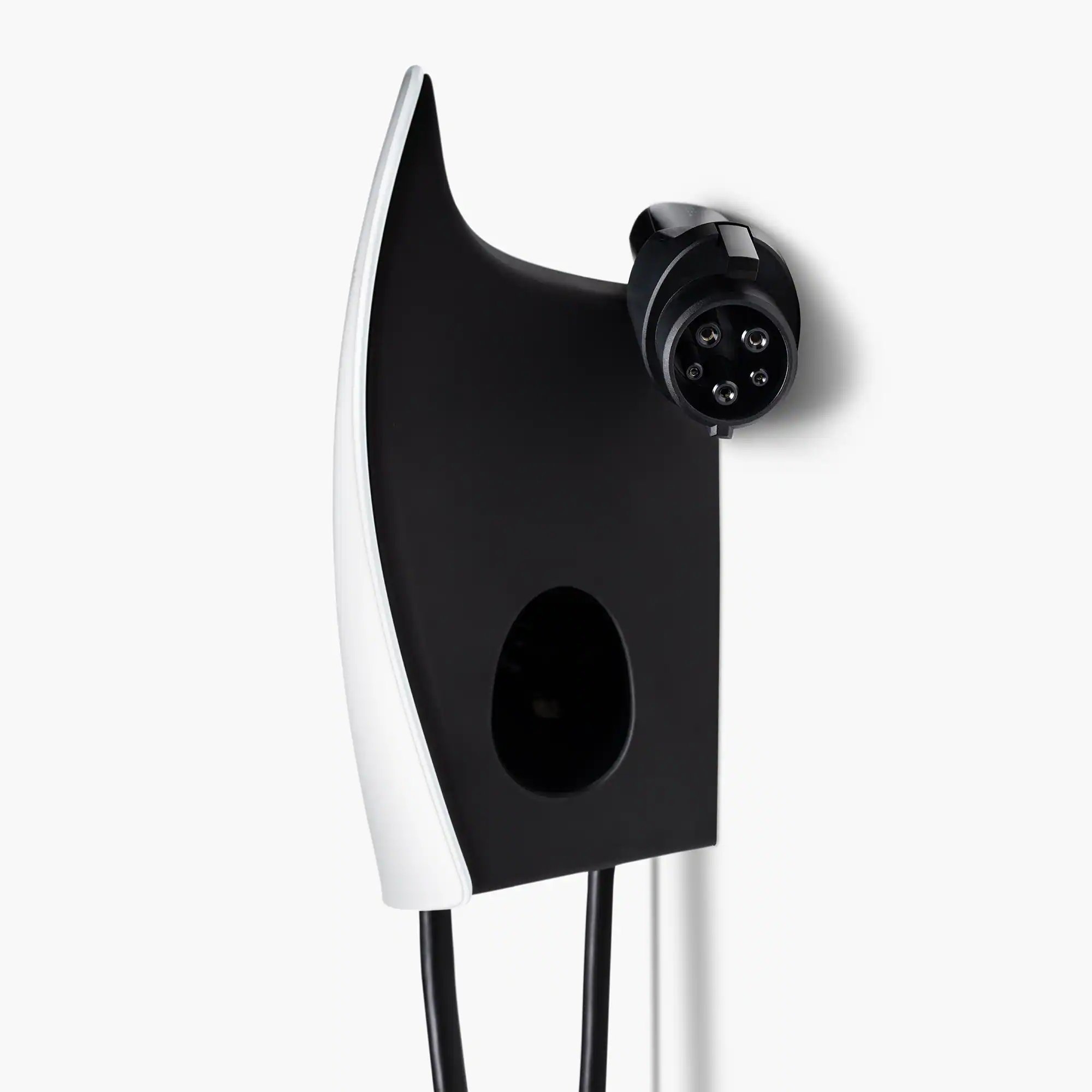

Tesla - Universal Wall Connector Level 2 Hardwired Electric Vehicle (EV) Charger – up to 48A– 24’ - White
- General
- Brand: Tesla
- Model Number: 1734411-02-E
- Product Name: Universal Wall Connector Level 2 Hardwired Electric Vehicle (EV) Charger – up to 48A– 24’
- Color: White
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: Hardwired
- Power Requirements: Nominal 200-240V AC single-phase
- Circuit Breaker Needed: Yes. Requires 60A, 50A, 40A, 30A, 20A, or 15A breaker. Includes integrated GFCI protection.
- Charging Rate: Up to 11.5kW (on 60A breaker)
- Charging Cable Length: 24 feet
- Surge Protection: N/A
- Connectivity
- Connector Type(s): SAE J1722 (Type 1), Tesla (Type of interface connection found on the device.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Mount Type: Wall, Stand
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Certifications and Standards: cULus - E351002
- Product Safety Certifications and Standard(s): cULus, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Environmental
- Indoor or Outdoor Use: Outdoor
- Minimum Operating Temperature: -22.0 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- NEMA Enclosure Rating: Type 3R
- Dimensions
- Product Height: 13.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 12.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 4 year for Residential use and 1 year for Commercial use.
- Warranty - Labor: Not applicable
- Other
- UPC: 860009564022
Universal Wall Connector is a convenient charging solution for Tesla and non-Tesla electric vehicles alike and is ideal for houses, apartments, hospitality properties and workplaces. With the same speed, power and functionality as Wall Connector, Universal Wall Connector is compatible with Tesla vehicles and non-Tesla EVs. Universal Wall Connector adds up to 44 miles of range per hour (or 11.5 kW). Must be installed by a qualified electrician.

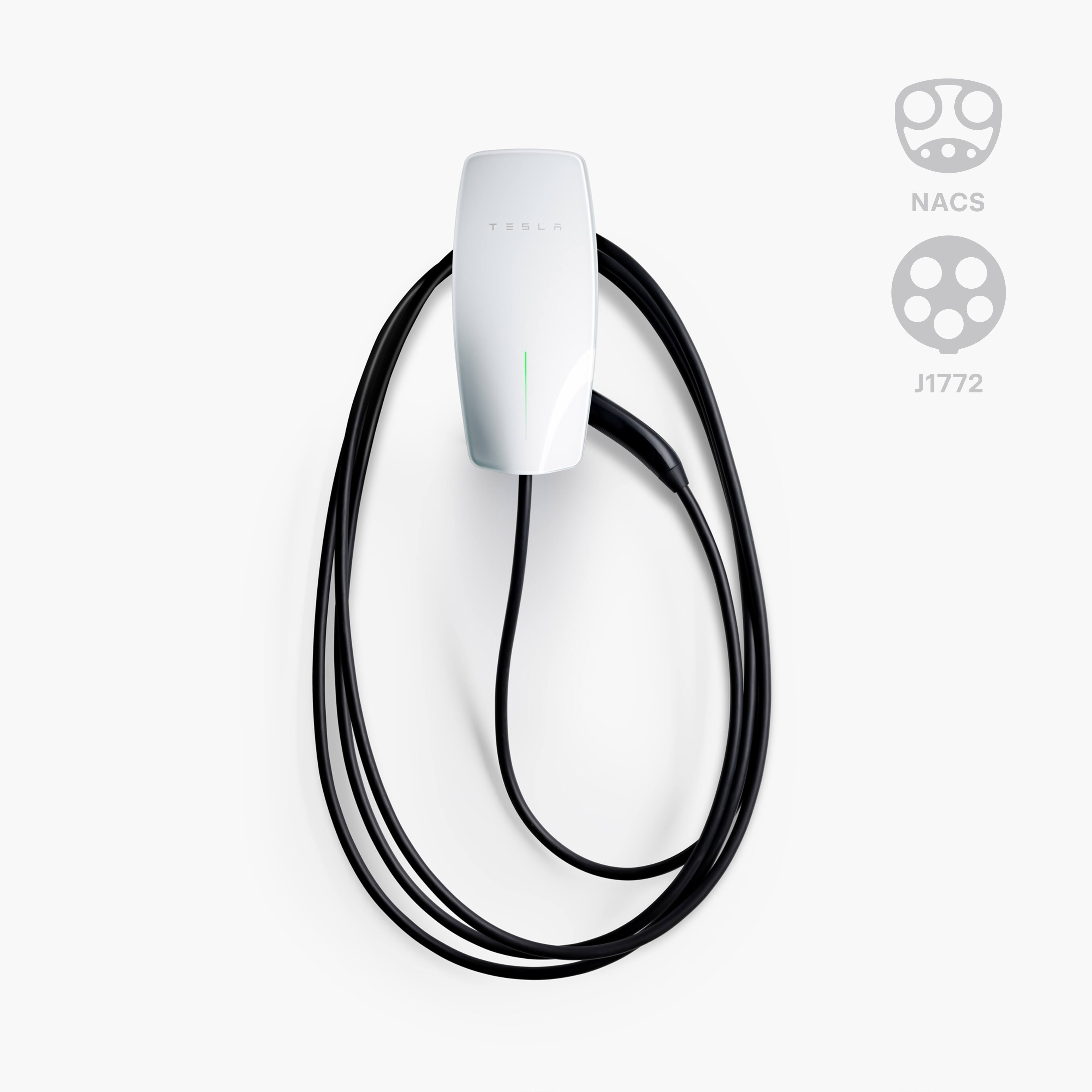

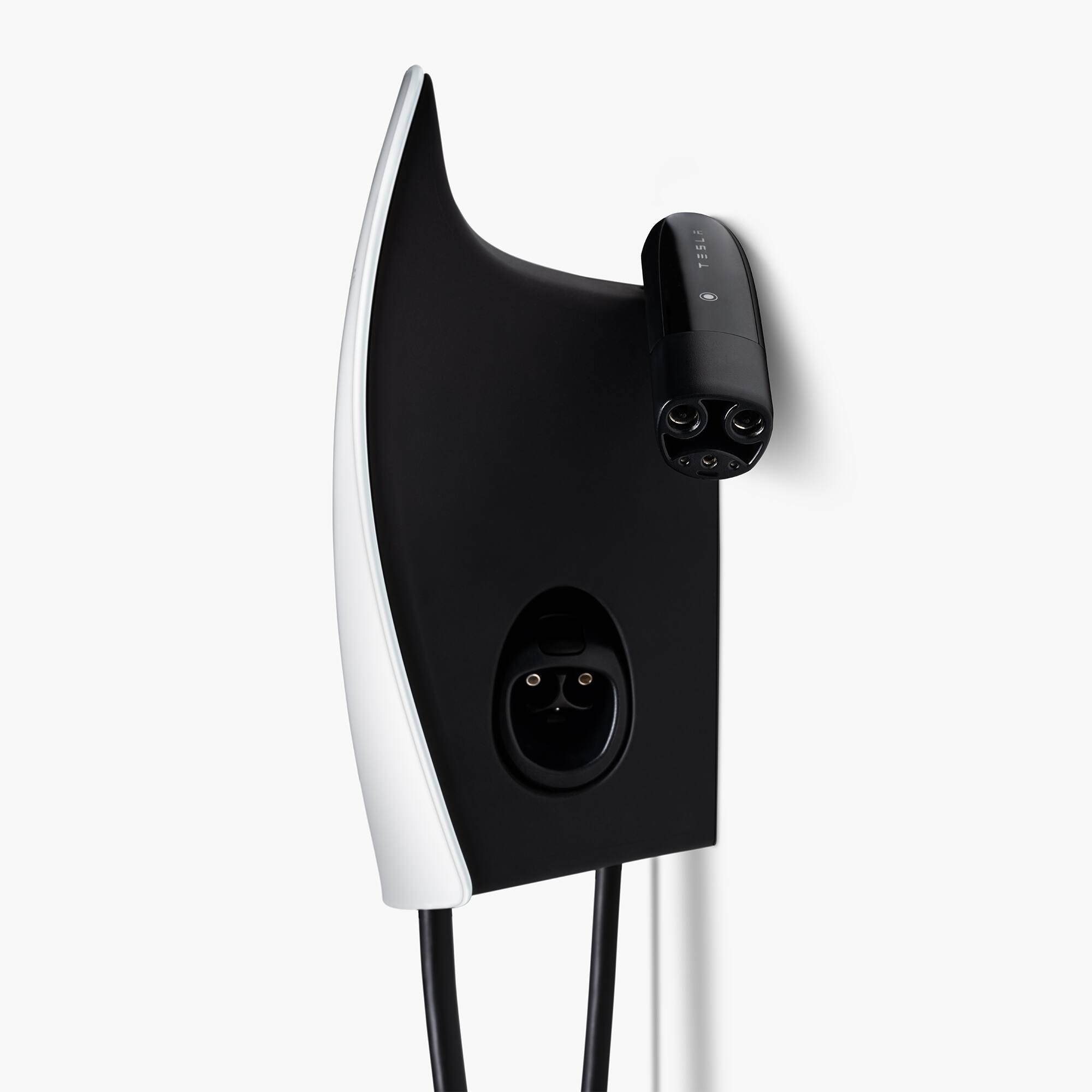

- Vehicle compatibility: Seamlessly transitions between NACS and J1772 connectors, accommodating all major North American EVs including Tesla Vehicles. Integrated J1772 adapter to conveniently charge any electric vehicle
- Charging speed: Up to 44 mi of range added per hour at 11.5 kW / 48 amp output

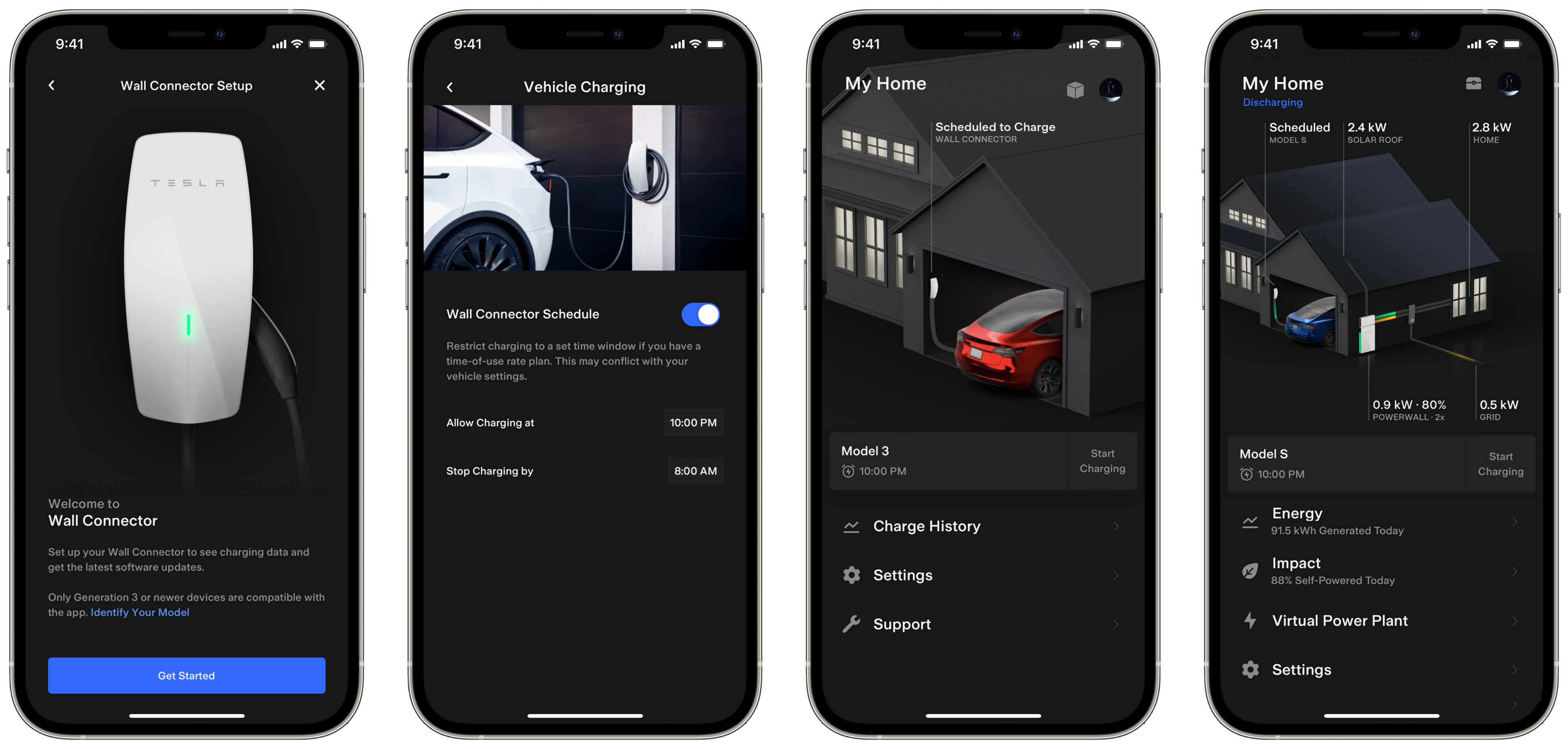

- App experience: Monitor and manage your charging schedule and usage from the Tesla app.
- Ease: Over-the-air firmware updates for continual product improvements and access control. Auto-sensing handle to open a Tesla charge port
- Pair with Powerwall: Pair with Powerwall to use stored energy to charge your electric vehicle during outages. Powershare-enabled Tesla vehicles can also provide backup power to your home during an outage.
Whats Included
- EV charger and user manual
Product Manuals
Q: Can I monitor my charging schedule with an app?
A: You can monitor and manage your charging schedule and usage from the Tesla app.
Q: Does this EV charger need to be hardwired?
A: Yes, this EV charger needs to be hardwired and requires a 60A, 50A, 40A, 30A, 20A, or 15A breaker.
Q: Can I use this Tesla charger outdoors?
A: Yes, this charger has a versatile indoor/outdoor design.
Q: How long is the cable on this charger?
A: This charger comes with a 24-foot cable.
Q: Does this charger work with non-Tesla vehicles?
A: Yes, this charger is compatible with all major North American EVs, including Tesla vehicles.
Q: What is the maximum charging speed of this Tesla Wall Connector?
A: Tesla vehicles can gain up to 44 miles of range per hour with the 11.5 kilowatt, 48 amp output of this charger.
Q: What is the warranty on this Tesla charger?
A: This charger comes with a four-year warranty for residential use.

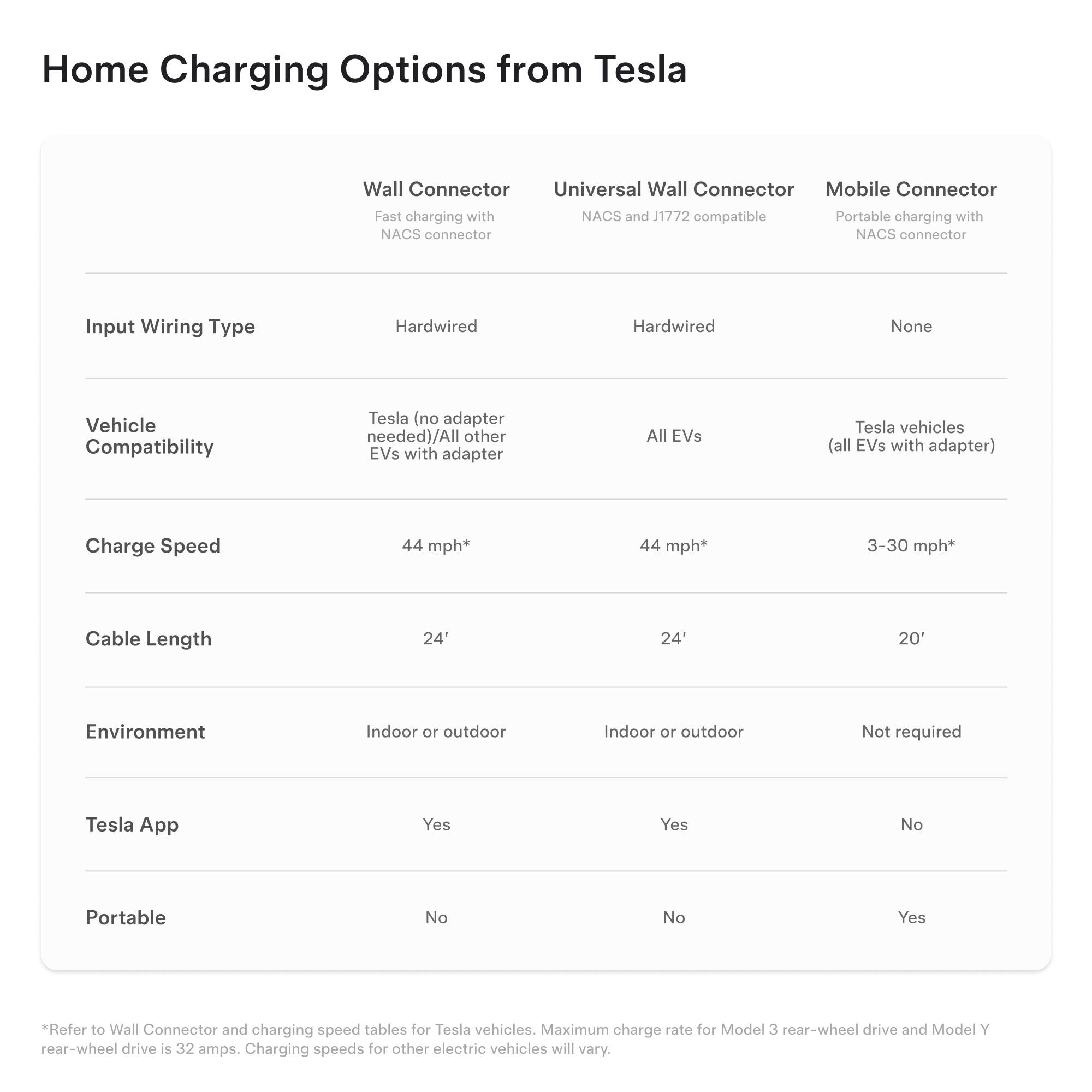

Compare similar products
Universal Wall Connector is a convenient charging solution for Tesla and non-Tesla electric vehicles alike and is ideal for houses, apartments, hospitality properties and workplaces. With the same speed, power and functionality as Wall Connector, Universal Wall Connector is compatible with Tesla vehicles and non-Tesla EVs. Universal Wall Connector adds up to 44 miles of range per hour (or 11.5 kW). Must be installed by a qualified electrician.
The Tesla Wall Connector is our most convenient charging solution for Tesla vehicles and is ideal for houses, apartments, hospitality properties and workplaces. A faster and Wi-Fi enabled option for your Tesla vehicle, Wall Connector receives over-the-air updates so the charger becomes better over time. Wall Connector adds up to 44 miles of range per hour (or 11.5 kW). Must be installed by a qualified electrician.
Stay charged on extended trips or when you need it most with Mobile Connector. Using a standard outlet, you can add up to 3 miles of range per hour with the NEMA 5-15 Adapter or up to 30 miles of range with the NEMA 14-50 Adapter, depending on your vehicle. When used with a vehicle equipped with Powershare, Mobile Connector can be paired with the Powershare Outlet Adapter to power electronic devices. Note: Powershare is currently only available with Cybertruck.
With today's electric vehicles, a standard wall outlet won't cut it anymore. The ChargePoint Home Flex adds 37 miles of range per hour to your electric vehicle. The Level 2, 240V home charger delivers up to 50 amps of charging speed, charging your electric car up to 9 times faster than the typical wall outlet. Compatible with any electric car, the ChargePoint Home Flex was tested on leading electric vehicle models, such as the Nissan LEAF, Chevrolet Volts, Tesla cars, and more. Use the ChargePoint app to set calendar reminders, charging schedules, and review your charging data. The WiFi-enabled EV charging station is compatible with Amazon Alexa devices. Install the home charging station indoors or outdoors. Installation by an electrician is easy. Choose from hardwired or plug-in installation. Plug-in installation with NEMA 6-50 outlet requires circuits rated 40A or 50A. The 23-foot long charging cable easily connects to your Toyota Prius Prime, BMW i3, or other electric vehicle. Charge up for your commute from your own garage with the ChargePoint Home Flex EV Charger.
| Pros for Tesla - Universal Wall Connector Level 2 Hardwired Electric Vehicle (EV) Charger – up to 48A– 24’ - White | |||
|---|---|---|---|
| Charging Speed, Ease of use, Installation, Compatibility, Performance | Charging Speed, Ease of use, Installation, Quality, Design | Overall Performance, Portability | There were no pros for this product— |
| Cons for Tesla - Universal Wall Connector Level 2 Hardwired Electric Vehicle (EV) Charger – up to 48A– 24’ - White | |||
| Adapter, Price | WiFi Connectivity, Amperage | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers express satisfaction with the easy installation, compatibility with various electric vehicles, and sleek design of the Universal Wall Connector. They appreciate its compatibility with both Tesla and non-Tesla vehicles, as well as its future-proofing capabilities with the inclusion of both J1772 and NACS charging adapters. However, a few customers have experienced issues with the adapter getting stuck in the charger and have expressed frustration with Tesla's technical support.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Seamless Charging at Home – Worth Every Penny!
Super easy install and looks great on the wall. Charges my blazer ev quickly and reliably every time. The universal plug is a huge plus for future-proofing, and the build quality feels premium. Definitely recommend if you want a clean, efficient home charging setup.
Posted by Devin
- Rated 5 out of 5 stars
Great charger - a game changer and looks awesome!
Picked up the Tesla Universal Wall Level 2 Charger from Best Buy and it's fantastic. Fast charging, looks good, and works with other EVs too. Had it professionally installed, safe, and the app control is convenient. Definitely recommend for any Tesla owner looking to install a home charger. It's by far the best option. Made owning the car 1000x better and less of a headache.
Posted by DannyS
- Rated 5 out of 5 stars
Fast, Reliable Charging with a Sleek Design
The Tesla Universal Wall Connector has exceeded my expectations. Installation was straightforward with a professional electrician, and the build quality is excellent—solid, sleek, and well-designed. I love that it's compatible with both Tesla and non-Tesla EVs thanks to the built-in J1772 adapter, making it future-proof for any household. Charging speeds are impressive (up to 11.5 kW), easily topping up my Tesla overnight. The 24-foot cable is very convenient, and the cable management is clean. If you're looking for a reliable, high-performance Level 2 charger that blends style and functionality, this is it.
Posted by JohnS
